Introduction
A transformer gasket is a small part with a big job. It keeps insulating fluid in and keeps moisture, contaminants, and air out. The U.S. Bureau of Reclamation (USBR) ties moisture entry through leaky gaskets, cracks, or seals to about 90% of preventable bushing failures, a figure it reports for its own fleet, not the industry.
So what is the best gasket material? There isn't one. The answer depends on the fluid, temperature, environment, joint design, and maintenance plan.
This guide covers NBR, rubberized cork, EPDM, neoprene, and silicone, then selection criteria, replacement decisions, and leak-sealing alternatives.
Key Takeaways
- NBR is a common oil-resistant choice; EPDM suits weather exposure but not mineral oil.
- Rubberized cork and solid rubber differ in conformability, compression retention, and aging.
- Thickness and compression must follow OEM specifications or an engineered procedure.
- A confirmed leak doesn't automatically mean full teardown; evaluate the source, risk, and downtime first.
Why Transformer Gasket Material Matters
What a Transformer Gasket Must Do
Gaskets seal tank covers, inspection covers, bushings, radiators, valves, tap changers, and other bolted or flanged joints. A good seal does several things:
- Retains insulating oil
- Excludes moisture and oxygen, which accelerate cellulose deterioration and acid and sludge formation
- Reduces fire and environmental risk
- Keeps the transformer available
Why Material Selection Affects Service Life
Gaskets degrade through compression set, hardening, cracking, thermal cycling, UV exposure, and chemical aging. USBR's FIST guidance links gasket set to temperature extremes and age, and also names UV exposure and expansion and contraction during cooling as contributors to leakage.
Claims of a fixed service life are unreliable. Ask the manufacturer for data on your specific compound and fluid.
Common Causes of Apparent Gasket Failure
Visible oil doesn't always mean a bad gasket. Other causes include:
- Loose or uneven fasteners
- Improper bolt torque
- Damaged flanges or poor surface preparation
- Excessive compression or wrong thickness
- A leak at an adjacent component, such as a cooling pipe, bushing, or pressure-relief joint
On a 4-bolt flapper valve, the flange gasket, the stem, or both can leak. Extra bolt tightening rarely fixes a failed gasket. Confirm the true source before ordering parts.
Common Transformer Gasket Materials
NBR (Nitrile Rubber)

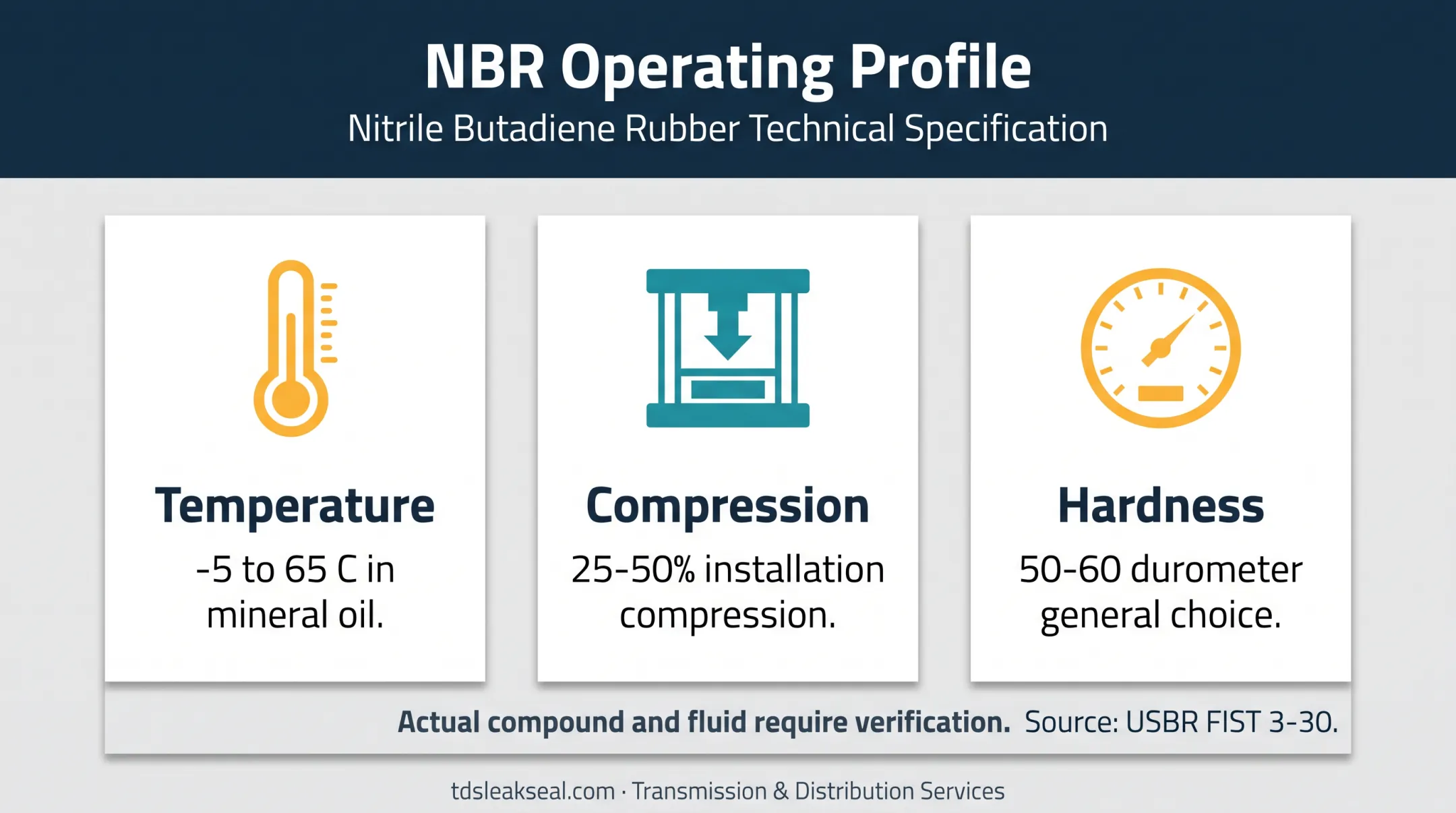

NBR is the usual starting point for oil-filled equipment. USBR's FIST 3-30 guidance lists it for mineral oil at -5 to 65°C with 25-50% installation compression, and cites 50-60 durometer as a general choice.
Fluid matters, though:
- SKF says NBR resists most mineral oils but has poor resistance to esters.
- Cargill says Buna-N seals may be satisfactory with its FR3 natural ester to about 120°C (250°F), an FR3-specific finding rather than a blanket rating.
- Silicone fluid needs separate compatibility evidence.
Generic catalog temperature ranges aren't transformer ratings. Request immersion and compression-set data for the actual compound.
Rubberized Cork
Cork is blended with rubber for conformability, which helps on flat-to-flat joints with minor flange irregularities. FIST lists cork-nitrile at -5 to 60°C and 40% installation compression for joints without grooves. Amorim's TD1310 is an NBR-bonded cork sheet recommended for most transformer oils.
Watch for hardening, drying, and loss of compression with age. GE also notes that untreated composition cork is not liquid-tight.
| Factor | Rubberized cork | Solid NBR |
|---|---|---|
| Conformability | Higher on uneven flat joints | Lower; suits grooves and recesses |
| Resilience | Lower | Higher |
| Compression retention | Can drop with aging | Generally better when well-compounded |
| Typical use | Flat-to-flat, no groove | Grooved joints with compression limiters |
EPDM
EPDM resists weather, ozone, UV, and water. Trelleborg lists a general range of -45 to +150°C (peroxide-cured). That makes it attractive outdoors.
But SKF states EPDM is not resistant to mineral oil and other nonpolar media. Great weather resistance does not equal oil compatibility. Don't use it in oil-wetted joints without written confirmation from the gasket maker and the transformer OEM.
Neoprene and Silicone
Neoprene fits weather-exposed joints. FIST lists solid neoprene at -54 to 60°C with 30-33% compression, and cork-neoprene at 0 to 60°C for flat joints.
Silicone offers a wide temperature range (Trelleborg: -50 to +175°C), but SKF describes its mechanical properties as relatively poor. Dow warns that silicone rubber can swell in silicone transformer liquid and recommends testing every proposed gasket material.
Verify oil resistance, strength, and compression retention for both.
How the Materials Compare in Practice
| Material | Oil/fluid fit | Weather | Notes |
|---|---|---|---|
| NBR | Strong with mineral oil; fluid-dependent | Moderate | Common default |
| Rubberized cork | Good with mineral oil if NBR-bonded | Moderate | Conformable; watch aging |
| EPDM | Poor with mineral oil | Strong | Outdoor, non-oil uses |
| Neoprene | Verify | Good | Weather-exposed joints |
| Silicone | Verify; may swell in silicone fluid | Strong | Wide temperature range |
Use this as a screening tool only. The transformer drawing, OEM specification, fluid data sheet, and engineering review make the final selection.
How to Choose the Right Transformer Gasket Material
Start with the Fluid and Operating Conditions
Identify the fluid first: mineral oil, a named natural ester, or silicone liquid. Each needs documented compatibility.
Then factor in:
- Operating temperature and thermal cycling
- Loading pattern
- Pressure or vacuum conditions
- Whether the fluid has aged
Evaluate the Installation Environment
Indoor or outdoor placement, sunlight, ozone, rain, humidity, pollution, and salt all shift the choice. Keep fluid resistance and weather resistance separate. A gasket that wins on one can fail on the other.
Check Joint Design, Compression, and Dimensions
Flange flatness, groove geometry, bolt spacing, and fastener loading control the seal. FIST advises choosing thickness so roughly one-quarter to one-third of the gasket protrudes above the groove. An oversized gasket can block metal-to-metal contact and leak.
There is no universal thickness. GE's network-transformer manual specifies buying gaskets sized to the application. Follow OEM drawings or an engineered specification.
Verify Material Quality
Ask suppliers for:
- Compound designation and technical data sheet
- Fluid-immersion results (ASTM D471) and compression-set data (ASTM D395)
- Aging information and lot traceability
- Applicable OEM or utility requirements
Confirm whether the gasket is custom-cut or molded for your unit, not just nominally sized.
Match the Material to the Maintenance Objective

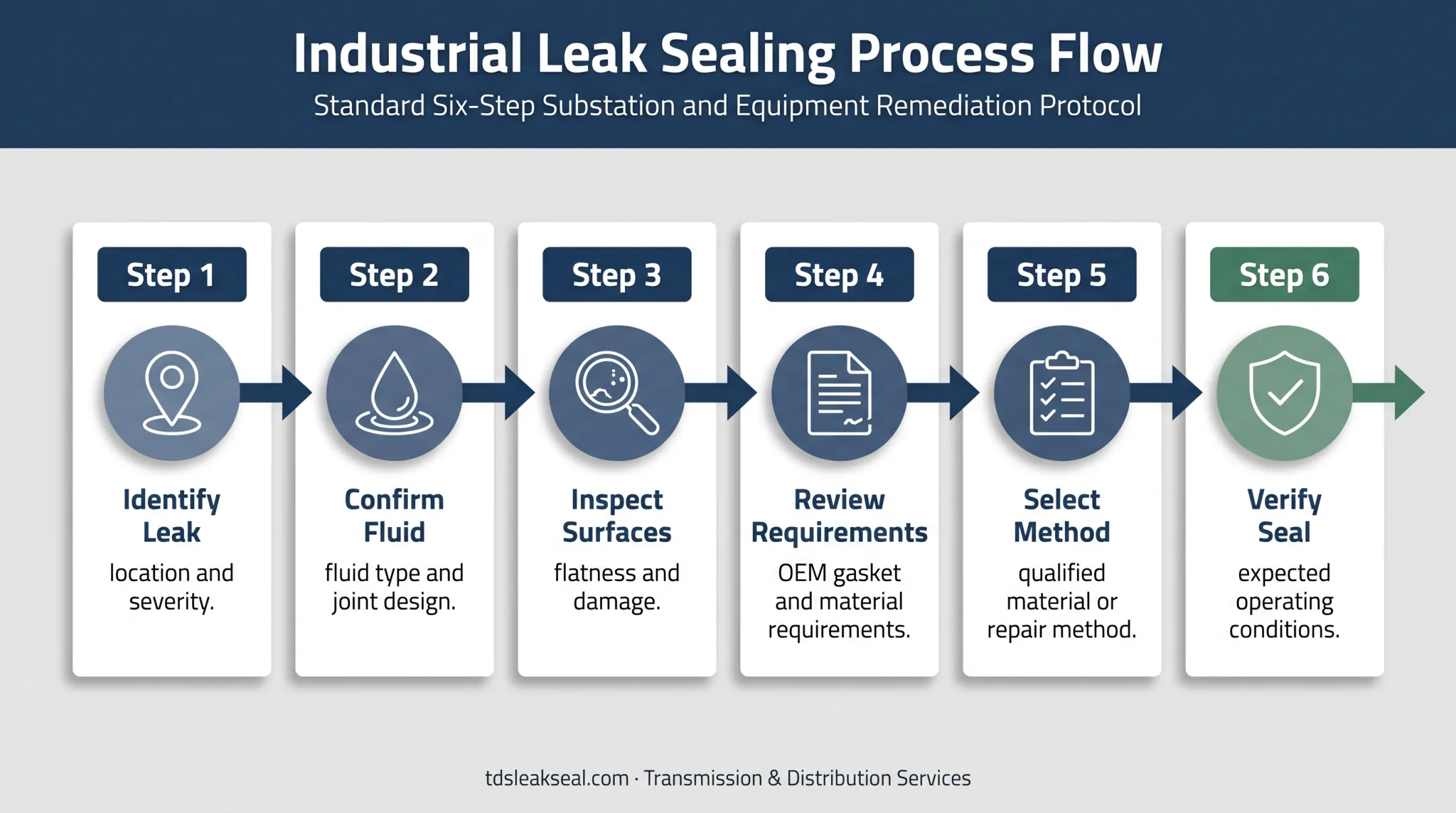

A planned-outage gasket and an in-service leak repair call for different evaluation. Both must protect oil containment. Work through this sequence:
- Identify the leak location and severity.
- Confirm the fluid type and joint design.
- Inspect the sealing surfaces for flatness and damage.
- Review OEM gasket and material requirements.
- Select a qualified material or repair method.
- Verify the finished seal under expected conditions.
Replacement, Regasketing, or Leak-Sealing?
When Traditional Replacement Is Appropriate
Full regasketing usually makes sense when you face:
- Extensive gasket deterioration
- Damaged sealing surfaces
- Repeated leaks at the same joint
- Need for internal access
- An upcoming planned outage
Plan on de-energization, grounding, oil handling, disassembly, surface preparation, torque control, and testing. Outage length depends on the component. EPRI notes that an extreme radiator leak may require taking the unit out of service and removing the radiator.
When Leak Sealing May Be Considered
A qualified low-pressure, cured-in-place sealing method can be an alternative when:
- The leak location is suitable
- Equipment condition is acceptable
- The compound is compatible with the fluid
- Safety controls are met
It replaces the sealing function of the leaking joint. It does not fix structural, electrical, or mechanical defects.
How Transmission & Distribution Services Fits In

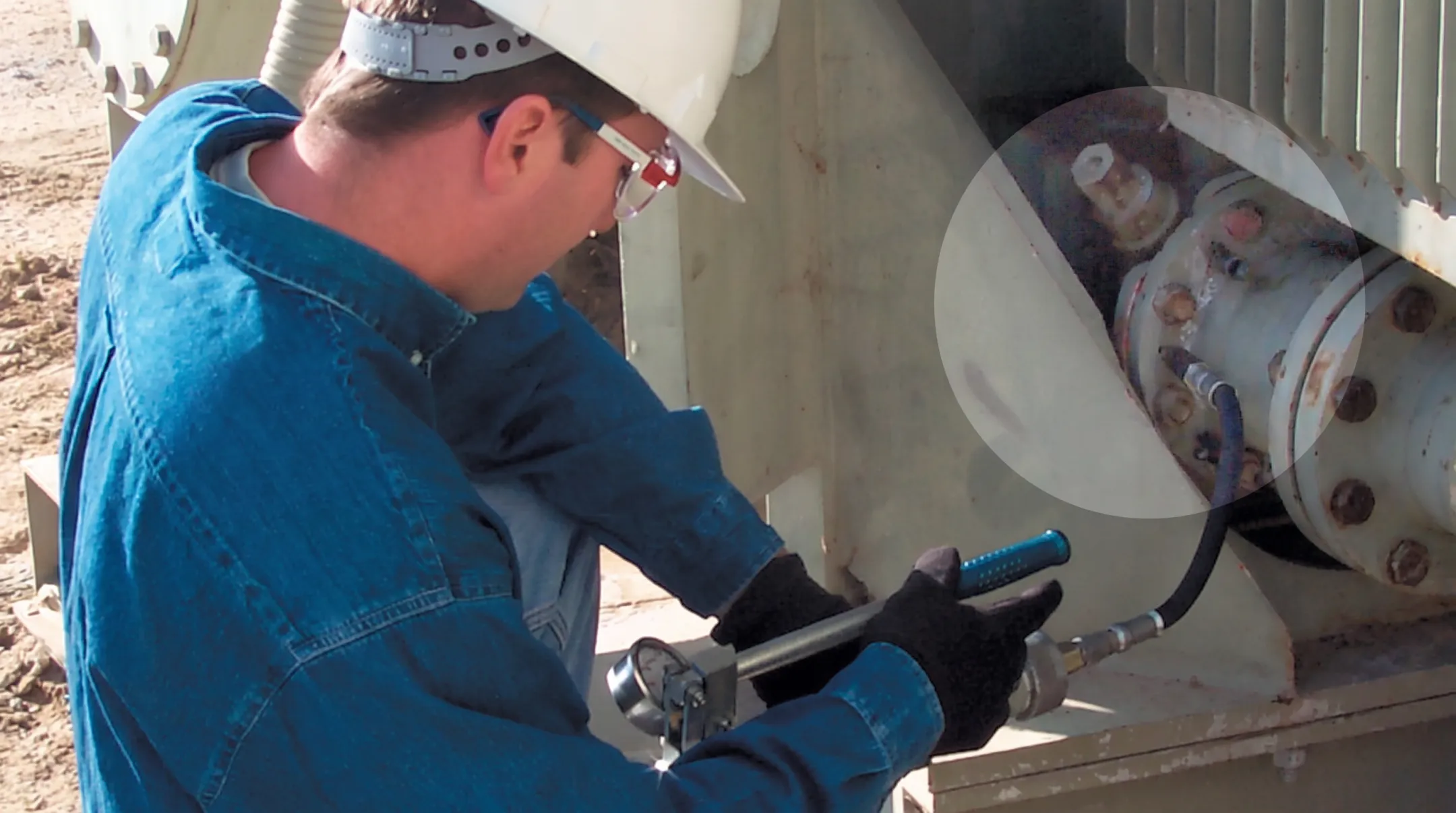

Transmission & Distribution Services (TDS) is a substation-focused leak-sealing specialist. Its free equipment survey identifies the leak location, repair method, and price.
Its proprietary rubber-based sealant is oil-resistant and compatible with transformer oil and SF6 gas. It cures in place as replacement gasket material. Per TDS:
- Repairs can often avoid disassembly and downtime
- Some work can proceed while equipment stays in service
- Documented warranty coverage is four years
- A 4-bolt flange usually takes about 2 hours; an 8-bolt flange about 3 hours, without draining the oil
Only a site-specific assessment and an approved work procedure can decide whether an in-service repair is appropriate.
Conclusion: Choosing the Right Transformer Gasket Material
NBR, rubberized cork, EPDM, neoprene, and silicone each have a place. Let these factors drive the choice:
- Fluid compatibility
- Temperature and environment
- Joint geometry and compression
- OEM requirements
For maintenance teams:
- Document the leak
- Verify material and joint requirements
- Compare outage cost against failure risk
- Bring in a qualified specialist when replacement or sealing is uncertain
Frequently Asked Questions
How much does it cost to replace a gasket?
Cost depends on gasket size and material, access, oil handling, labor, testing, outage duration, and whether disassembly is needed. No universal price exists.
Is it worth fixing a gasket?
Usually, yes. Timely repair limits oil loss, moisture ingress, and environmental exposure. The right option depends on the leak source, transformer condition, and downtime limits.
What type of gaskets are used in transformers?
Common options include NBR, rubberized cork, EPDM, neoprene, and silicone. The correct type depends on the fluid, joint, temperature, and environment.
What are the different types of gasket materials?
Families include solid rubber, rubberized cork, elastomers such as NBR and EPDM, silicone, and specialty compounds. Names alone don't replace application-specific compatibility testing.
Is a cork gasket better than a rubber gasket?
Rubberized cork conforms better to uneven flat joints. Solid rubber offers more resilience and compression retention. Neither wins for every joint.
What is the standard thickness of a gasket?
There isn't one. Thickness is application-specific and should come from OEM drawings, the original gasket design, or an engineered specification covering compression and flange geometry.
