The stakes are real. The U.S. Bureau of Reclamation links oxygen and moisture to faster paper decay, acid and sludge formation, and reduced cooling. Topping up nitrogen and walking away just hides the problem.
This guide covers how blanketing works, what causes pressure loss, how to investigate safely, how oil filling and replenishment fit in, and when to bring in a leak-sealing specialist.
Key Takeaways
- Read blanket pressure against temperature, oil level, gauge condition, and OEM requirements.
- A pressure drop alone doesn't prove the tank or a gasket is leaking.
- Repeated top-ups without finding the cause can mask air and moisture ingress.
- Qualified personnel should handle testing, repair, and replenishment with electrical and respiratory safety controls.
What Is a Transformer Nitrogen Blanket and Why Does It Matter?
The basic purpose of a nitrogen blanket
In a sealed-tank design, the space above the oil holds nitrogen under pressure. That gas space absorbs oil-volume changes as temperature swings, while a tight tank limits air and moisture ingress.
Why bother? Oxygen and moisture speed up cellulose deterioration and produce acids, sludge, and more water. Sludge coats windings and structures and cuts cooling efficiency. Moisture also weakens insulation strength.
Transformer components and configurations
Typical parts include the main tank or conservator, gas space, pressure-vacuum gauge, nitrogen regulator, supply connection, valves, and relief devices. Air-cell designs add a bladder.
Not every design is a nitrogen blanket:
| Design | How it works | Nitrogen blanket? |
|---|---|---|
| Sealed tank | Nitrogen headspace; pressure changes with temperature | Yes |
| Free-breathing conservator | Open breather exchanges air with atmosphere | No |
| Air-cell conservator | Bladder separates oil from air; may cycle through desiccant | No |
A bladder isn't perfectly impermeable, and a perforation lets air reach the oil. Correct pressure, gas quality, and monitoring all depend on the specific design.
Blanketing versus other nitrogen uses
Don't confuse three functions:
- Blanketing: ongoing gas-space preservation.
- Purging: a maintenance operation, such as moving dissolved gases out of oil before electrical tests.
- Nitrogen-injection fire protection: a separate protective system for internal faults.
A blanket doesn't replace oil testing, mechanical repair, moisture control, pressure protection, or the manufacturer's instructions.
Common Causes and Signs of Transformer Nitrogen Leaks
Potential leak locations
Likely external points include:
- Supply fittings, regulators, valves, and tubing
- Pressure gauges
- Flanges, inspection covers, and conservator connections
- Air-cell interfaces
- Aged gaskets and seals
The Bureau of Reclamation names bushing-bottom and pressure-relief-device gaskets as common moisture-entry points.
TDS sees gasket failures at pipe flanges, bushing flanges, and drain valves, and notes that original gaskets can reach end of life or fail early from defective material or poor installation.
An oil leak and a nitrogen leak can occur at the same boundary, but they aren't the same diagnosis. An oil stain points to a liquid seal failure. Pressure loss with no visible oil may point to a gas-side or instrument issue.
Pressure loss that isn't necessarily a leak
Temperature matters. EPRI's maintenance guide notes sealed-tank gas pressure rises and falls with temperature. Eaton's pad-mounted manual says negative pressure can appear at low ambient temperature or light load and isn't by itself proof of a leak.
Other non-leak causes include:
- Faulty gauges or regulators
- Incorrect initial filling
- Air-cell problems
Use manufacturer documentation, not universal pressure values. One Prolec Waukesha nitrogen generator manual lists a 0.5 to 5.0 psig gas-space band, but that applies to that system only.
Symptoms and consequences
Watch for:
- Recurring pressure loss or a gauge repeatedly near zero
- Odd pressure behavior after temperature changes
- Audible gas escape, where safely detectable
- Visible oil residue
- Frequent nitrogen bottle changes
EPRI ties frequent bottle replacement or pressure alarms to gasket leaks. An unresolved leak can lead to:
- Lost positive pressure
- Air and moisture ingress
- Faster oil degradation
- Reduced insulation reliability
- Oil seepage and outage risk
TDS notes that unchecked oil leaks can expose a utility during EPA inspections. Whether SPCC rules apply depends on the facility's oil capacity and location, not on a pressure reading.
Diagnostic summary
| Symptom | Possible cause | Next step |
|---|---|---|
| Low pressure | Cold temperature, light load, small leak, regulator issue | Compare with temperature and OEM range |
| Zero pressure | Significant leak, empty supply, failed gauge | Verify gauge; escalate before refilling |
| Visible oil | Failed gasket, flange, or valve | Locate source; check oil level |
| Unstable readings | Gauge or regulator fault, temperature swings | Verify with a reference instrument |
| Loss after recent maintenance | Disturbed seal, fitting, or fill error | Review work records; recheck connections |
Qualified personnel must confirm all field symptoms.

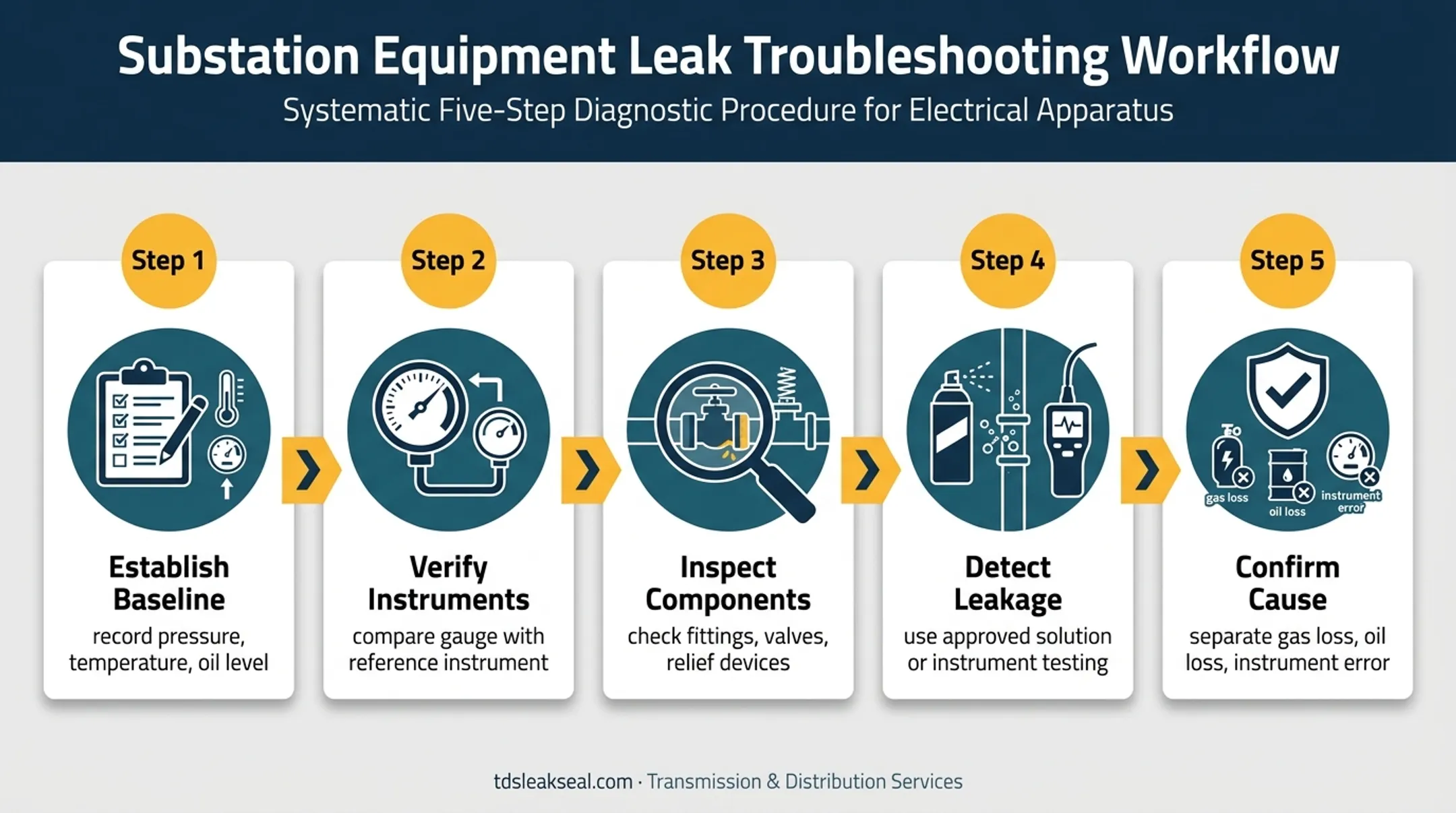

How to Troubleshoot a Suspected Nitrogen Leak
Start with safety and site controls
Qualified electrical personnel should follow the site job briefing, arc-flash and shock protection rules, lockout/tagout or approved energized-work procedures, and OEM instructions. OSHA 1910.269 covers maintenance of power transformation and distribution equipment.
Nitrogen adds its own hazard:
- OSHA defines an oxygen-deficient atmosphere as below 19.5% oxygen.
- The U.S. Chemical Safety Board counted 85 workplace nitrogen-asphyxiation incidents and 80 deaths from 1992 to 2002.
- Avoid uncontrolled venting, ventilate enclosed areas, consider oxygen monitoring, and never exceed rated pressure.
Establish a reliable baseline
Record:
- Gauge reading and time interval of pressure change
- Ambient and oil temperatures
- Oil level
- Recent maintenance, filling, or nitrogen additions
Photograph the gauge and suspect areas. Compare against a verified instrument where permitted, and review the OEM pressure range and maintenance history.
Locate and confirm the leak
Inspect in this order:
- Gauge and regulator
- Supply fittings, valves, and tubing
- Relief devices
- Conservator or air-cell connections
- Tank seams, covers, flanges, and gaskets
Use only approved detection methods, such as a compatible leak-detection solution or instrument testing. The Prolec manual allows soap solution or leak-tracing spray on that system's pipes and connections. Open flames, unapproved sprays, and improvised pressure tests are unacceptable.
For oil seepage, a detector spray helps. TDS Oil Leak Detector leaves a light coating that darkens where oil emerges. TDS notes a leaking 8-bolt flange is hard to judge by eye alone.
Separate gas loss from oil loss and instrument error
Correlate pressure with oil level, visible seepage, temperature trends, and gauge verification. No single symptom is conclusive.
Escalate when any of these apply:
- Pressure cannot be maintained
- Oil is actively escaping
- The tank boundary may be compromised
- The gauge is unreliable
- Insulation may be affected
Respond without masking the problem
Restore nitrogen to the manufacturer-specified condition only after the cause is understood. Repeated top-ups without repair prolong air and moisture ingress.
Document:
- Confirmed leak location and test method
- Pressure and temperature readings
- Nitrogen source and quality
- Oil observations
- Corrective action and return-to-service checks
Transformer Oil Filling, Nitrogen Replenishment, and Routine Monitoring
High-level oil filling process
Oil filling isn't a generic field task. The sequence runs:
- Verify transformer design and oil specification.
- Inspect and prepare the equipment.
- Test and condition the oil.
- Use filtration, vacuum, or degassing only where the OEM procedure requires.
- Fill to the correct level and establish the specified gas space.
- Perform post-fill checks.
Follow current OEM instructions and applicable standards. IEEE C57.93-2019 covers installation and maintenance of larger liquid-immersed power transformers. ASTM D3487 covers new mineral insulating oil, D1533 measures water content, and D923 covers sampling.

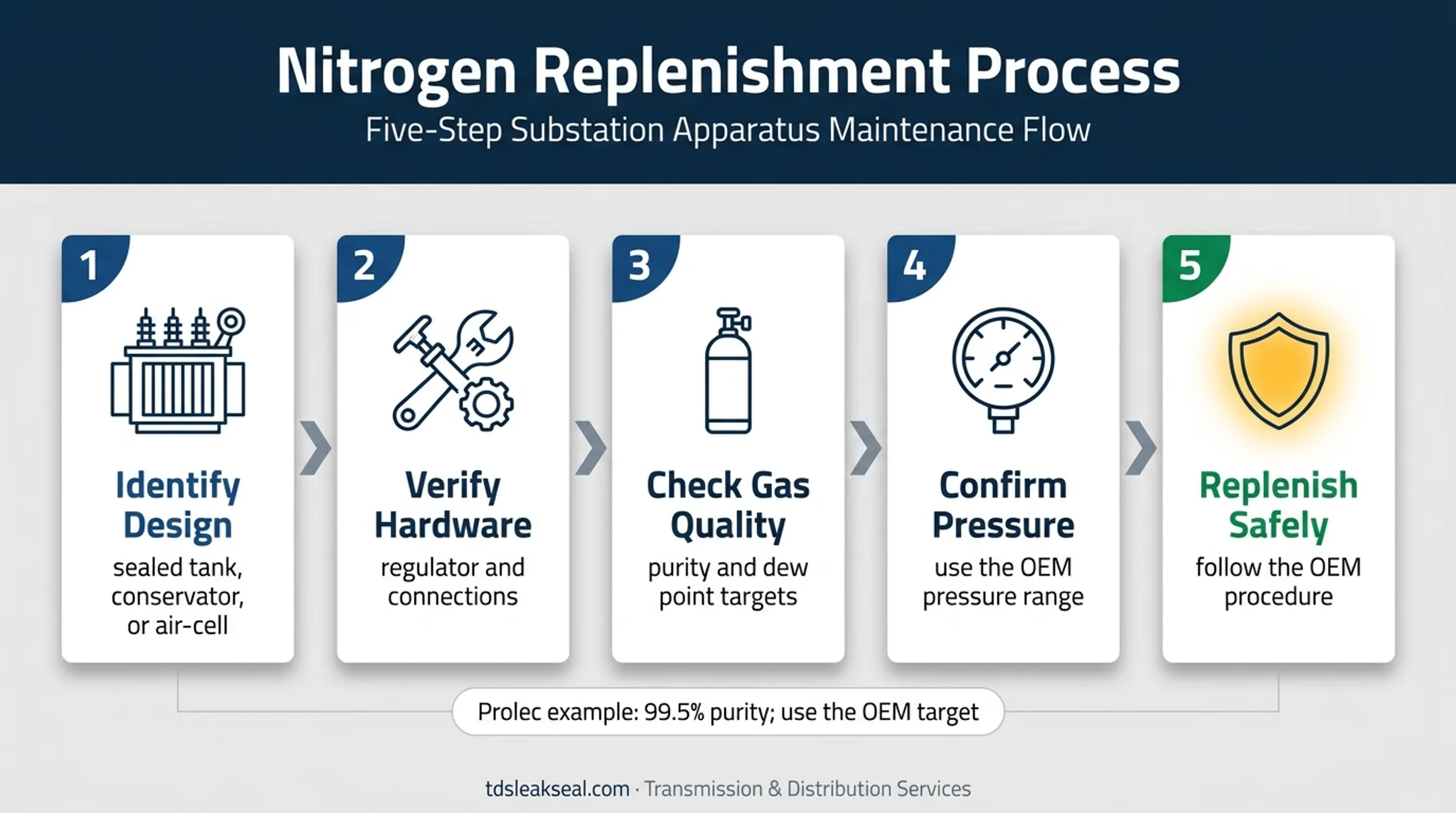

Nitrogen replenishment after pressure loss
First determine whether nitrogen goes into a sealed tank, conservator gas space, or air-cell arrangement. Then verify the regulator, connections, gas quality, pressure range, and leak condition before replenishing. Purity and dew point targets come from the OEM. One Prolec specification, for example, calls for 99.5% purity; use the OEM target for your unit, not a generic figure.
Routine monitoring
Build a documented plan covering:
- Pressure, ambient temperature, and oil temperature
- Oil level
- Gauge and regulator condition
- Visible seepage
- Desiccant or breather condition, where applicable
- Oil-quality testing, including dissolved gas analysis
Set intervals from the OEM manual, equipment criticality, site conditions, and applicable standards. No common interval applies across designs.
When Does a Nitrogen Leak Require Specialized Repair?
Mechanical, instrument-related, or structural?
A faulty gauge, regulator, valve, or fitting usually calls for component service. A failed gasket, flange, cover, or tank boundary may need a leak-sealing or repair assessment.
Bring in engineering or the manufacturer right away for:
- An active oil leak or damaged tank
- Inability to maintain pressure
- Evidence of moisture ingress
- Safety-device operation
- An unknown leak location

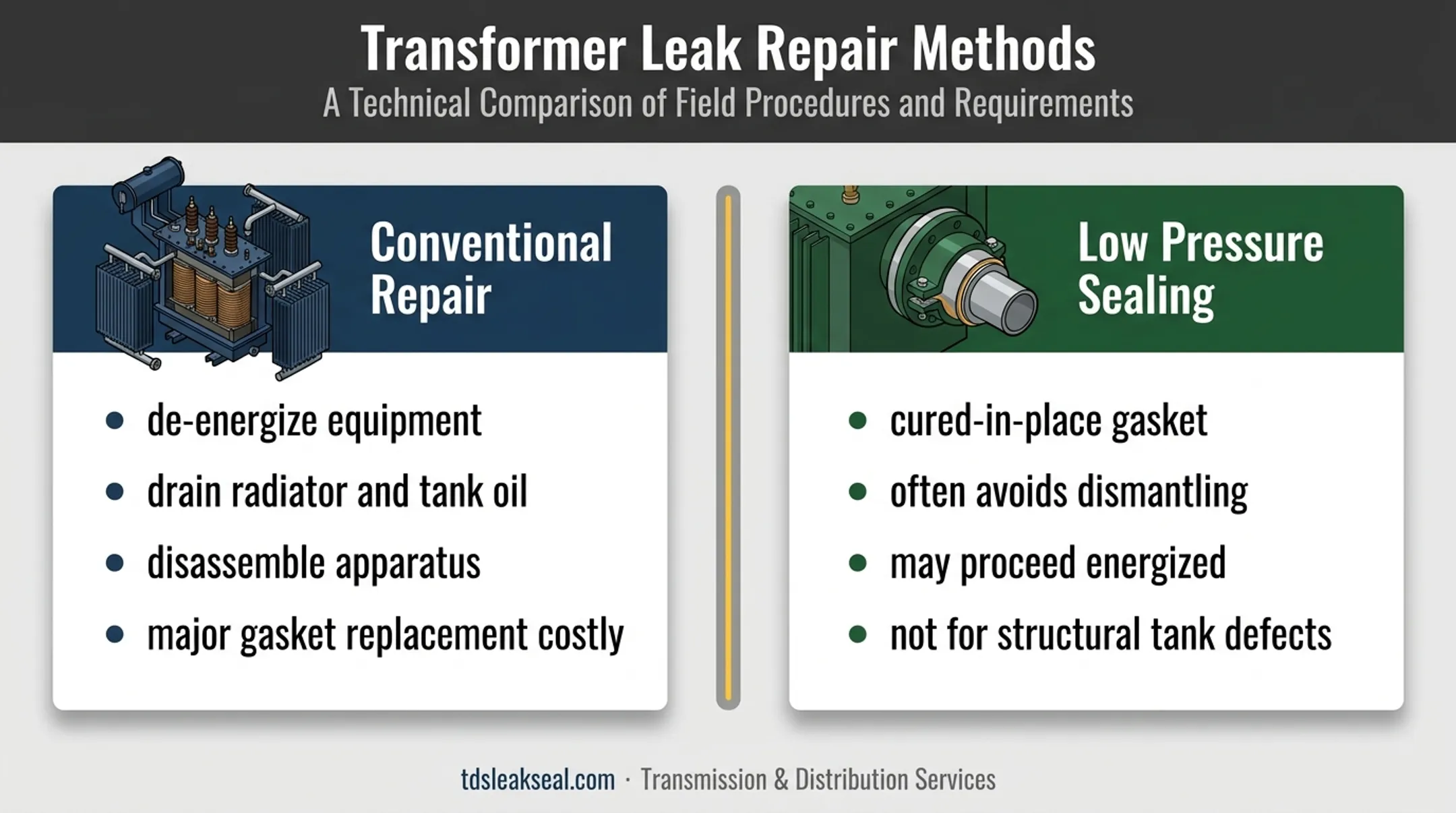

Low-pressure leak sealing as an alternative to teardown
Conventional repair is often disruptive. Even minimal leaks may require de-energizing, draining oil from radiators and often the main tank, then disassembly. EPRI notes that major gasket replacement on large transformers can be very costly.
When nitrogen loss traces to a leaking seal or gasket on an oil-filled transformer or other substation apparatus, Transmission & Distribution Services (TDS) offers a free equipment survey. It identifies the equipment, leak location, repair method, and repair price.
TDS installs a cured-in-place gasket intended to match the OEM gasket's properties and life expectancy, often without dismantling the apparatus. Many repairs can proceed while equipment stays energized when conditions allow.
The method is called "low pressure" because substation apparatus runs at far lower pressure than process piping. Gasket sealing still has clear limits:
- Regulators and supply lines fall outside its scope
- Structural tank defects need a different assessment
- No independent benchmark compares cost or outage time with regasketing
Selecting and preparing a repair provider
Give the contractor:
- Transformer make and model
- Oil and conservator arrangement
- Pressure history and temperature conditions
- Photos and suspected leak location
- Recent maintenance records
- Energized status and OEM restrictions
TDS reports that its technicians are OSHA certified and work exclusively in substations. It offers a four-year warranty on original work, and customers do not pay for sample repair work if the leak cannot be fixed. Confirm warranty terms and site approvals in writing.
Frequently Asked Questions
What is nitrogen used for in a transformer?
Nitrogen fills the gas space above the oil, limiting contact with oxygen and moisture. The exact arrangement and pressure depend on the transformer design.
What is the process of transformer oil filling?
Oil is tested and prepared, filled under the manufacturer's procedure to the correct level, and the proper nitrogen space is established. Post-fill quality and electrical checks follow.
How can you tell if a transformer nitrogen blanket is leaking?
Recurring pressure loss, erratic gauge behavior, or visible leakage are warning signs. Temperature, gauge, regulator, and air-cell checks are needed to confirm the cause.
Why does transformer nitrogen pressure keep dropping?
Possible causes include a genuine leak, temperature changes, a faulty gauge or regulator, incorrect filling, or air-cell and conservator issues. Qualified diagnosis is required.
Can you simply add nitrogen when transformer pressure is low?
Not before finding the cause. Follow the OEM procedure, because repeated additions can mask a leak or allow air and moisture in.
Is a nitrogen leak the same as a transformer oil leak?
No. One is gas loss and the other is liquid seepage, but both can start at the same gasket, flange, valve, or tank boundary and may need coordinated inspection.
