Leak points are not interchangeable. An NPT connection, compression fitting, flare, self-sealing coupling, tubing assembly, and gasketed flange each seal differently. Each needs its own inspection and repair method.
This guide covers where leaks occur, why they develop, how qualified personnel confirm the source, and when repair, replacement, or specialized sealing makes sense.
Key Takeaways
- Contamination, bad assembly, damaged faces, wrong torque, vibration, and aging cause most fitting leaks.
- Identify the sealing principle before applying sealant, tightening, or swapping parts.
- Confirm leaks with proper detection, OEM documentation, and post-repair verification.
- Closed-loop handling, good records, and qualified technicians cut avoidable releases.
Common SF6 Gas Fitting and Tubing Leak Points
Threaded, flare, and compression connections
How a fitting seals tells you how it fails.
- NPT/tapered thread: Sealant fills gaps left between thread flanks. Leaks come from damaged or cross-threaded joints, poor sealant application, improper tightening, or excess sealant entering the system.
- Parallel thread: Sealing depends on an O-ring, bonded washer, or face seal, not the threads. Check that element first.
- Flare: JIC 37-degree fittings seal metal to metal, per Parker's description. Mismatched JIC and SAE angles, scratched or dented flare faces, missing gaskets where specified, and over-tightening cause leaks.
- Compression: In a ferrule design, the front ferrule seals and the rear grips. Scratches or nicks on the tube OD, misplaced or damaged ferrules, mixed components, and poor technique create leak paths.
Fitting-maker guidance also notes that vibration, temperature swings, pressure changes, and repeated disassembly degrade these joints. That guidance is general, not SF6-specific, so treat it as a starting point.
Tongue-and-groove, flange, and self-sealing couplings
Tongue-and-groove joints need clean, undamaged metal faces. Dirt, scratches, or distortion prevent a gas-tight seal.
Flanges leak through O-rings, grooves, bolts, and mating surfaces. Aged seals, uneven bolt compression, contamination, or flange damage open a path. TDS identifies pipe flanges, bushing flanges, and drain valves as typical SF6 leak sources, and gaskets can fail at end of life or early from defective material or poor installation.
Self-sealing couplings deserve a close look at the coupling face, internal seal, locking mechanism, and protective cap. DILO describes screw-together halves with an internal O-ring and valves that close on disconnection. Gas can stay trapped between disconnected sections.
Confirm the sealing method and replacement parts with the equipment or fitting manufacturer. Appearance alone is not proof.
Valves, service ports, adapters, and instrument connections
Check these locations during every survey:
- Valve stems and packing areas
- Fill ports
- Pressure or density-monitor connections
- Analyzer ports and regulator interfaces
- Adapter junctions
Every added adapter, reducer, hose union, or quick disconnect is another interface. Include each one in the leak survey.
US cylinders are a separate compatibility check. Airgas lists CGA 590 as a standard SF6 outlet, and CGA charts show it as a left-hand internal thread. Verify the valve on your actual cylinder, plus torque and manufacturer instructions, before connecting.
Do not apply thread tape or liquid sealant to metal-to-metal or self-sealing connections. It can interfere with the sealing surface and contaminate gas-analysis equipment.
SF6 tubing and service hose assemblies
Separate leaks in the tube or hose body from leaks at end fittings, ferrules, crimps, couplings, and sleeves.
Conditions that weaken assemblies include:
- Cracks and abrasion
- Kinking and excessive bending
- Corrosion and chemical damage
- Heat and UV exposure
- Unsupported spans and repeated flexing
Wrong material, outside diameter, wall thickness, cut quality, or cleanliness also prevents a reliable connection.
Confirm hose service life and test intervals with the manufacturer rather than assuming one universal SF6 rule. A 2019 Doble presentation cites a hose vacuum-rise example of under 2 Torr in 2 minutes, but that is one example, not an acceptance criterion. Use the hose manufacturer's inspection, storage, and pressure-testing guidance.
Equipment-side interfaces in breakers and GIS
Leaks extend beyond the loose fitting. Look at gasketed covers, compartment flanges, bushing or cable interfaces, density-monitor ports, and valve blocks.

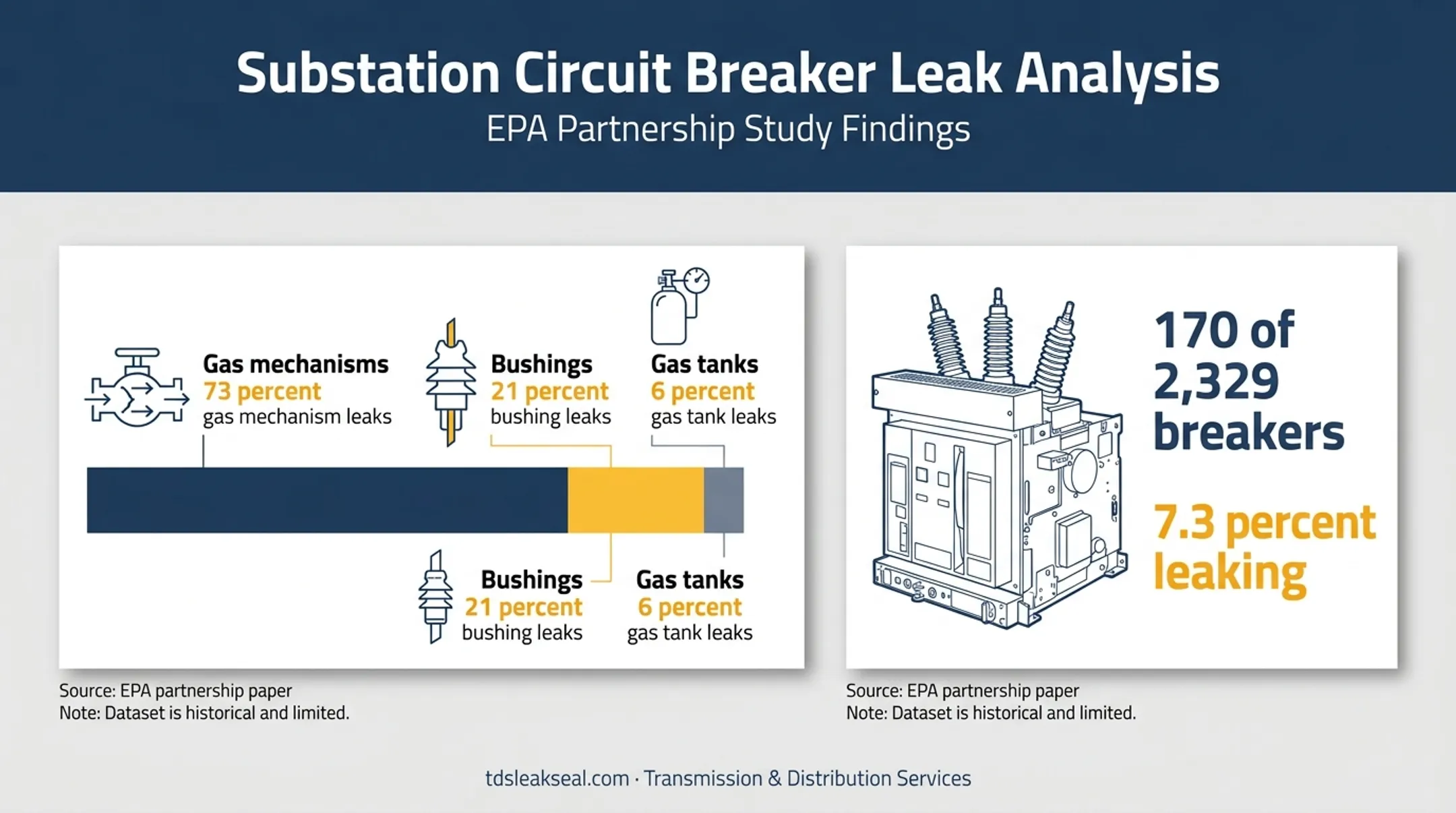

An EPA partnership paper reviewing breaker leak surveys attributed 73% of leak locations to gas mechanisms, 21% to bushings, and 6% to gas tanks. Its own dataset found 170 of 2,329 breakers (7.3%) leaking. The data is historical and limited.
TDS likewise lists porcelain-to-base flanges and bushing end caps as typical breaker leak sites, and piping, flange connections, and seam welds on GIS.
A gas indication near a fitting does not prove the fitting is the source. Gas migrates along surfaces, threads, tubing, and coverings. Use drawings, nameplates, maintenance records, and the OEM manual to map every pressure-boundary component before planning repairs.
Why These Leak Points Fail, and How to Confirm the Source
Contamination, damage, and incorrect assembly
Dirt, moisture, oil, sealant residue, and metal particles keep seals from seating. So do damaged faces on metal-to-metal, O-ring, gasket, flare, ferrule, or thread seals.
Installation errors show up as leaks:
- Cross-threading
- Mixed fitting geometries or components from different manufacturers
- Over- or under-tightening
- Wrong sealant
Before disassembly, record the fitting type, manufacturer, part numbers, torque requirements, tubing specification, and last maintenance.
Vibration, thermal cycling, and mechanical loading
A correct assembly can still fail. Vibration, repeated pressure or vacuum cycles, temperature changes, side loading, and hose movement all stress seals.
Route and support tubing so bending and pulling forces never reach a fitting, valve, instrument, or port. Check the OEM's requirements for vibration control, tube support, bend radius, torque retention, and inspection frequency.
A safe leak-confirmation workflow
Only qualified personnel following site switching, approach-boundary, PPE, and gas-handling procedures should inspect or repair SF6 equipment. OSHA 1910.269 limits work on exposed energized equipment to qualified employees.

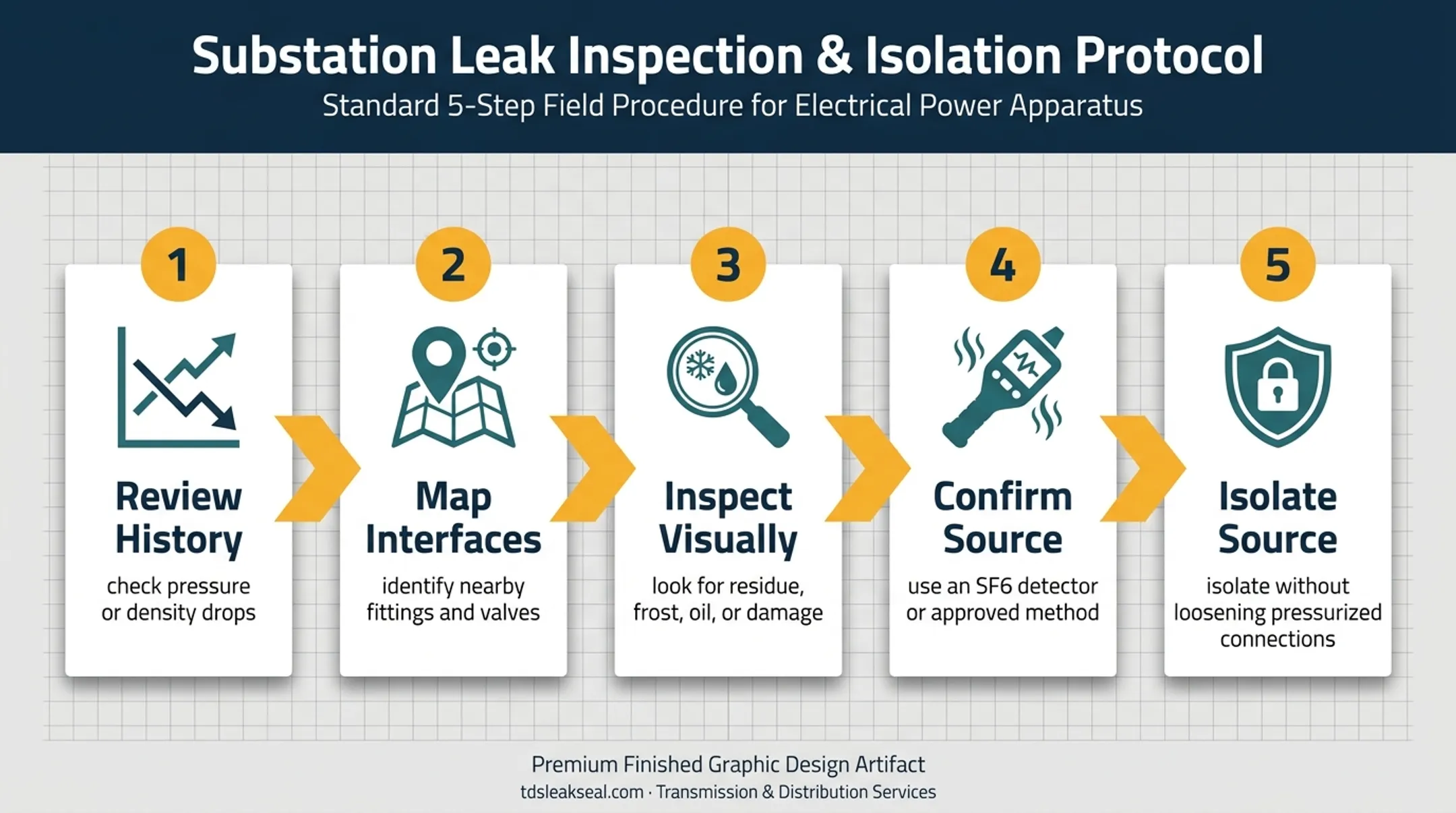

A staged process works best:
- Review pressure or density history for unexplained drops.
- Identify all nearby fittings, valves, and other interfaces.
- Inspect visually for residue, frost, oil, or damaged seals.
- Confirm the source with an SF6 detector or other approved method.
- Isolate the confirmed source without loosening a pressurized connection.
EPA workshop materials note that a low-density alarm is often the first indication. Handheld detectors (thermal-conductivity, negative-ion, or electron-capture) must be at or near the leak. Thermal imaging helps find minor chronic leaks.
TDS uses an infrared laser-scanning unit that shows SF6 as black smoke on recorded video. Wind, noise, and survey thoroughness can make handheld detectors and ultrasonic devices unreliable.
Select equipment for the environment and sensitivity needed, and maintain and calibrate it per manufacturer instructions.
Safety note: Consult the current SF6 safety data sheet and site procedures. High concentrations can cause asphyxiation, and arcing produces decomposition products. Address ventilation, confined spaces, recovery, and emergency response.
Distinguishing a leak from a pressure or density change
SF6 pressure moves with temperature. WIKA explains that temperature-compensated density instruments stay stable through temperature-driven changes and show decline only with gas loss.
Compare pressure, density, temperature, and records. Rule out instrument error, bad records, or a faulty density monitor before calling it a localized leak. Document the equipment ID, compartment, suspected component, detection method, observation, and gas recovered or added.
Confirming the repair
- Run a post-repair check with the approved method and the manufacturer's acceptance criteria.
- Confirm a stable pressure or density trend, inspect adjacent interfaces, and recheck under normal operating conditions.
- Keep gas recovery, transfer, and inventory records for emissions accounting and future troubleshooting.
Safe Repair and Prevention Practices
Match the repair to the sealing design
Cleaning and reseating can work for some contaminated metal-to-metal connections. Damaged threads, O-rings, gaskets, ferrules, tubing, valves, or sealing faces generally need replacement or a manufacturer-approved repair.
There is no universal torque or sealant guidance. Torque, turns past finger-tight, sealant, gasket, and lubrication requirements come from the fitting or equipment maker.
Avoid these mistakes:
- Mixing JIC and SAE flare parts
- Combining tube-fitting components from different manufacturers
- Using wrong tube dimensions
- Reusing damaged seals
- Retightening repeatedly without finding the cause (damages fittings and enlarges leaks)
Repair tubing and hose assemblies correctly
When installing tubing or hose assemblies:
- Use compatible tubing with the correct dimensions
- Make clean square cuts and deburr the edges
- Hold the specified bend radius
- Install ferrules or end fittings per the manufacturer's procedure
Replace assemblies that show:
- Cracking, severe abrasion, or corrosion
- Deformation or contamination
- Compromised fittings or failed pressure tests
- Uncertain service history
Store assemblies away from sunlight, moisture, corrosive chemicals, temperature extremes, rodents, and sharp bends.
Control emissions during inspection and repair

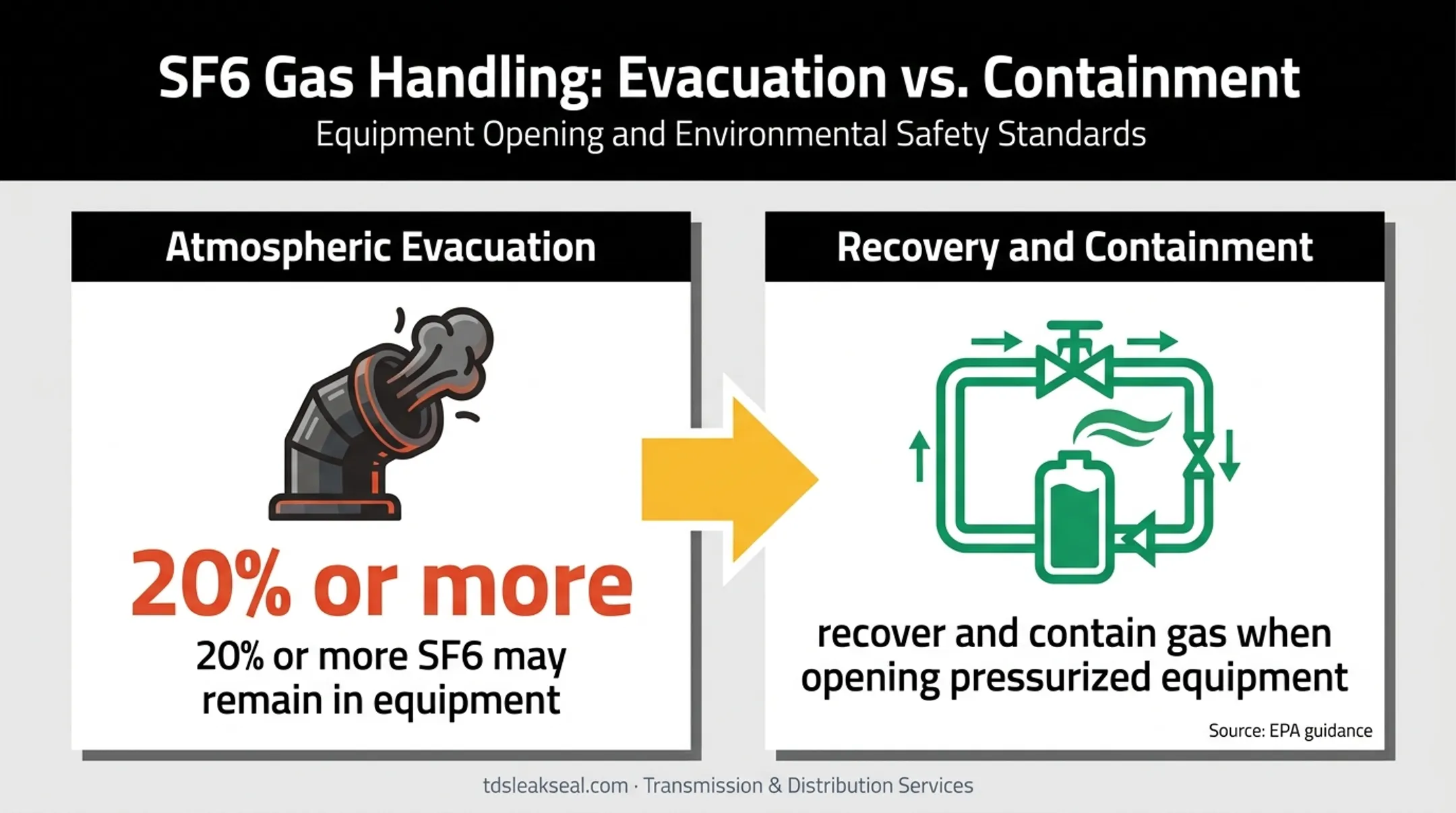

EPA's guidance warns that evacuating only to atmospheric pressure can leave 20% or more of SF6 in equipment. Recover and contain gas whenever work opens a pressurized compartment, hose, or fitting.
- Use self-sealing or low-loss connections and controlled hose disconnection.
- Use suitable recovery equipment and check gas quality.
- Handle gas in a closed loop.
- Distinguish recovery, reuse, reclamation, recycling, and disposal under current US rules.
- Follow gas-handling practices in IEC 62271-4 and IEEE C37.122.3.
- Document cylinder IDs, quantities, equipment, transfers, findings, repairs, and final verification.
Documentation supports compliance. EPA's Subpart DD applies to covered electric power systems, and EPA inspections ask whether leaks are documented and whether an action plan exists to repair them.
Build a preventive inspection program
- Schedule inspections by OEM guidance, criticality, environment, vibration, age, and leak history.
- Inspect protective caps, spare adapters, hose ends, tube supports, valve areas, monitor connections, and flange hardware.
- Check for signs of mechanical loading on tubing and fittings.
- Stock compatible seals, fittings, tubing, hoses, detection equipment, and torque instructions.
- Train technicians in fitting identification, SF6 safety, recovery, detection, contamination control, and documentation.
When to Consider Specialized SF6 Leak-Sealing Support
Localized leaks that may suit low-pressure sealing
A specialized assessment makes sense when a leak is localized to an accessible gasket, fitting, flange, or apparatus interface. Teardown in those cases often means major outage, labor, or contamination concerns.
Suitability depends on:
- Leak location and design
- Operating conditions and material compatibility
- Safety requirements
- OEM or owner approval

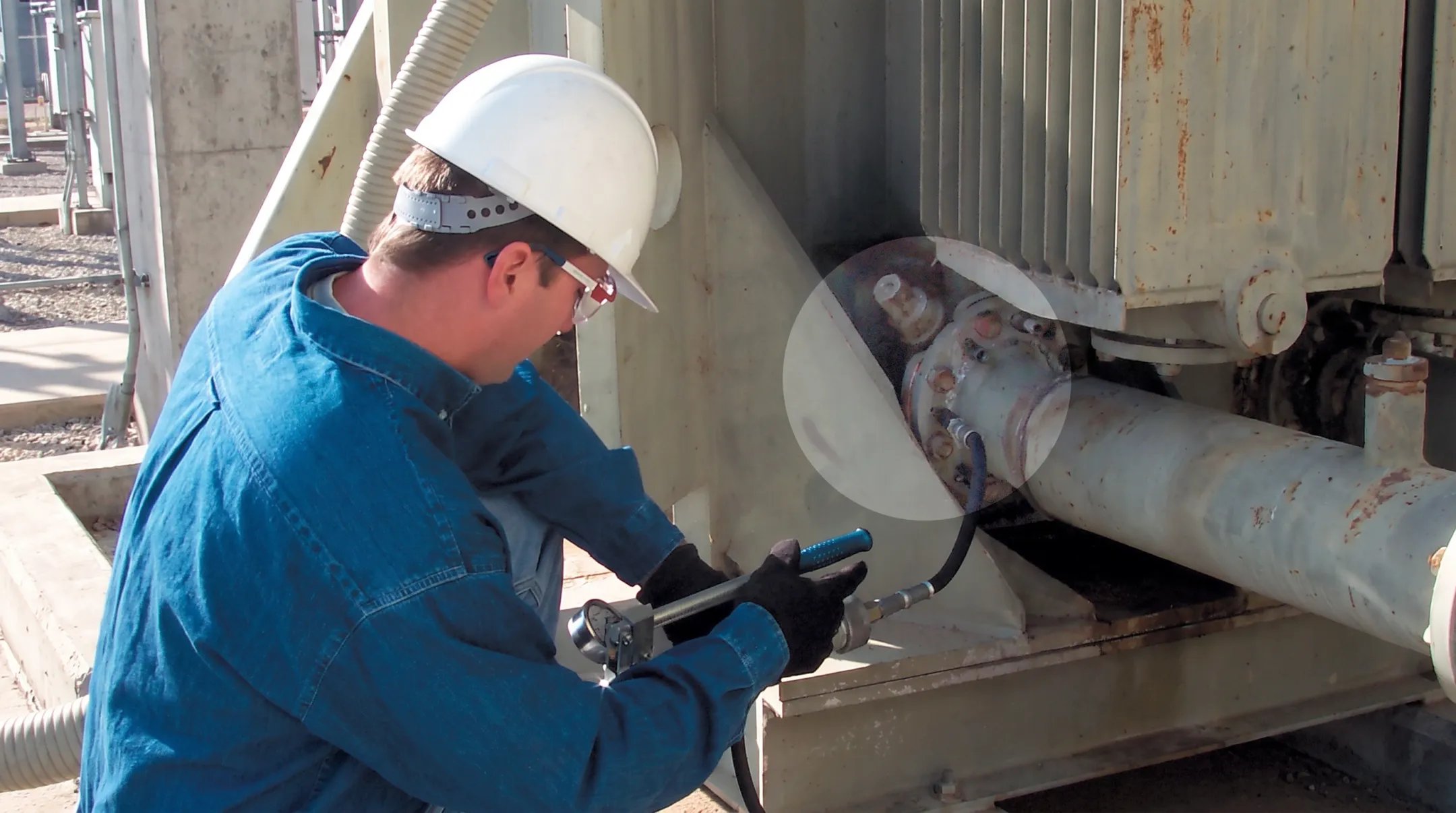

Transmission & Distribution Services (TDS) provides low-pressure leak sealing for SF6 gas-filled circuit breakers and GIS. A free equipment survey identifies the equipment, leak location, repair method, and estimated price.
One utility example: a PSE&G presentation reported a field repair on a 230 kV breaker that held until the breaker was replaced 18 months later. That is a single case, not a benchmark.
Situations that may call for conventional repair
Consider outage work, component replacement, or OEM support for:
- Damaged pressure-boundary components
- Severe corrosion or failed valves
- Inaccessible leaks or structural damage
- Contaminated or compromised gas
- Conditions that cannot be handled safely in service
Energized repair is never automatic. It applies only when site safety rules, equipment condition, work method, and qualified personnel allow it. Coordinate the utility owner, switching authority, manufacturer, compliance team, and contractor before work begins.
TDS service fit
TDS is a specialized substation leak-sealing organization serving US utilities, generating facilities, and other owners of SF6 apparatus. It does not replace gas suppliers or OEM engineering.
When conditions allow, repairs can reduce disassembly, reassembly, and downtime compared with teardown and regasketing. TDS replaces OEM gasket material with a cured-in-place gasket, and it backs leak-seal repairs with a four-year warranty. For a persistent SF6 leak, request an equipment survey.
Frequently Asked Questions
Where can I purchase SF6 gas?
Use a qualified industrial-gas supplier or approved utility procurement channel. Verify cylinder, transport, recovery, storage, and current US handling requirements first.
What does SF6 gas stand for?
SF6 is sulfur hexafluoride. It serves as an insulating and arc-interruption medium in gas-insulated switchgear and circuit breakers.
What are the most common SF6 gas leak points?
The most common points are fitting interfaces, valves, service ports, flanges, O-rings and gaskets, tubing and hose ends, density-monitor connections, and apparatus pressure-boundary interfaces.
How do you detect an SF6 gas leak at a fitting or tube connection?
Combine qualified visual inspection, appropriate SF6 detection equipment, and pressure or density trend review. Confirm the exact source, then verify after repair.
Can an SF6 leak be repaired without taking equipment out of service?
Some localized leaks can be assessed for in-service low-pressure sealing. The decision depends on the apparatus, leak location, safety controls, operating condition, owner approval, and a qualified technician's evaluation.
