The trouble starts when the pointer moves. A low or changing reading might be normal temperature-related oil movement, real oil loss, a leaking gauge assembly, or a faulty indicator. Guess wrong and you either ignore a developing leak or add oil you shouldn't.
This article covers how the gauge works, how to read it, where leaks show up, how to inspect safely, and what repair options exist for utility and plant maintenance teams.
Key Takeaways
- The correct level comes from the transformer design, OEM markings, and reference temperature, not a universal fill height.
- Oil near the gauge doesn't prove the gauge is the source; check nearby fittings, flanges, and valves.
- Persistent low level, active dripping, alarms, or sustained zero pressure on a sealed tank need qualified evaluation.
- Follow site procedures, manufacturer instructions, and OSHA requirements for any gauge work.
What a Transformer Oil Level Gauge Does and How It Works
What the gauge measures
The gauge shows the level of insulating liquid inside a liquid-filled transformer. Prolec's network transformer manual notes that insulating oil transfers heat and provides the major part of the transformer's insulation.
A falling level therefore matters. WEG's September 2021 instruction manual states that low liquid level can cause dielectric failure, overheating, and reduced life expectancy. Rely on the OEM marks for the height at which windings or leads risk exposure. Manufacturers set those marks for each design rather than one industry-wide figure.
Common gauge designs
- Float-and-dial with magnetic coupling: an internal float moves a pointer across a liquid-tight separation. Eaton and MESSKO both use this approach.
- Sight glass: GE's sealed network transformers use one, with the adjacent nameplate identifying the 25°C level.
- Conservator gauges: MESSKO's MTO measures conservator oil level, and the gauge and transmitter can be separated.
- Alarm and remote variants: Eaton offers SPDT contacts for low-level annunciation. MESSKO variants add 4-20 mA and Modbus outputs.
Gear-driven versions amplify pointer movement relative to float travel, while lever-driven versions have a slimmer profile, according to Qualitrol. A simple dial only informs someone standing in front of it. A unit with contacts can alert a control room.
Gauge readings versus other instruments
Don't mistake one dial for another:
- Oil level gauge: liquid level, usually with low/high and temperature-reference marks.
- Top-oil temperature gauge: temperature of the liquid at the top of the tank.
- Winding temperature indicator: Eaton's example adds a current-transformer-fed heater to simulate winding hot-spot gradient.
- Pressure/vacuum gauge: gas-space pressure, which varies with temperature.
Zero pressure that never changes under load may point to a seal leak, but one zero reading isn't conclusive. Southwest Electric checks persistent zero across different temperatures and loads.
What the gauge can't diagnose

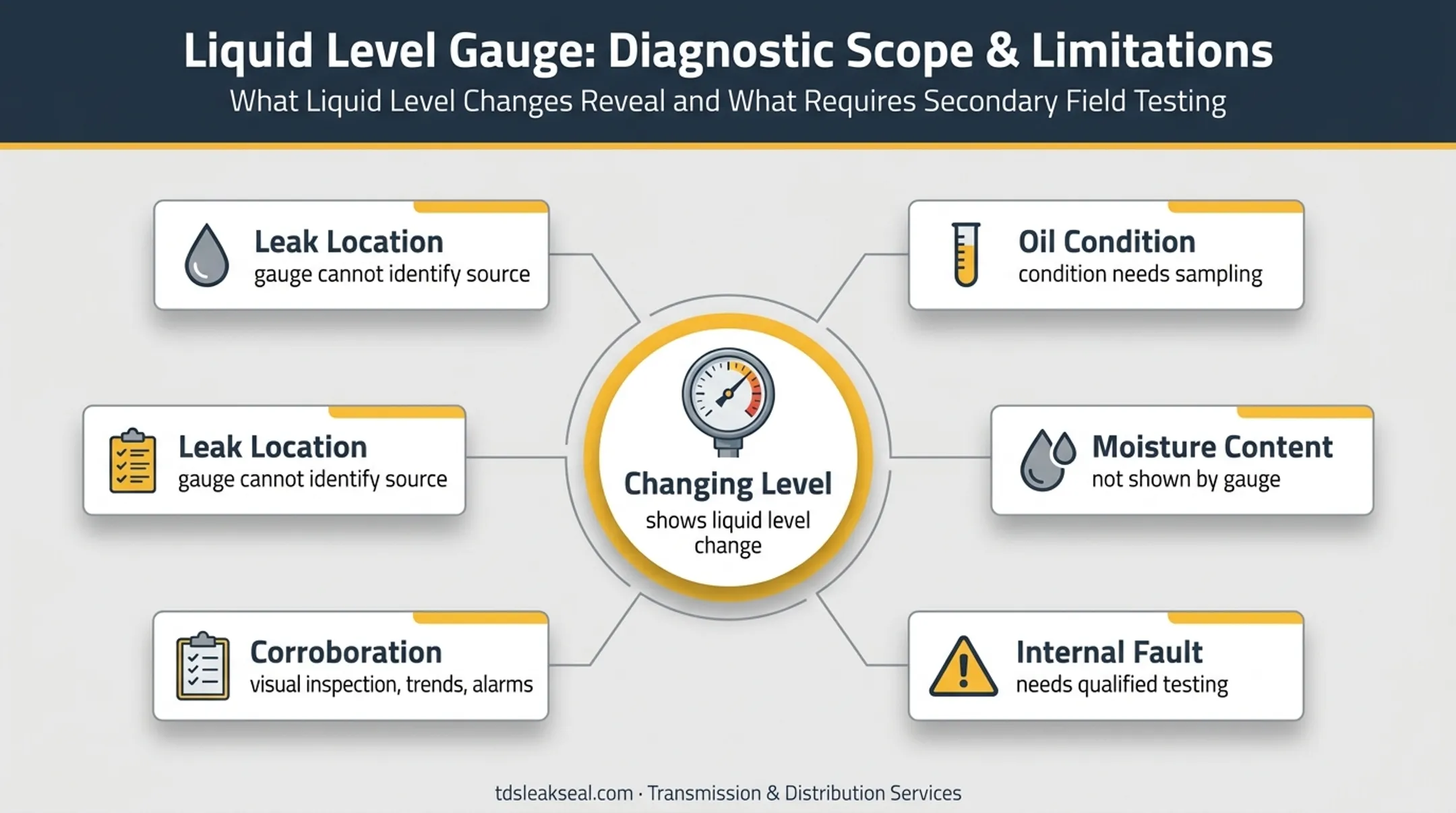

The gauge reveals a changing level. It generally can't tell you the leak location, oil condition, moisture content, or internal fault. When a reading looks abnormal, combine it with visual inspection, temperature and pressure trends, alarm history, oil sampling, and qualified diagnostic testing.
How to Interpret a Transformer Oil Level Reading
Use the transformer's reference marks
Eaton defines its datum as the expected level at an average internal fluid temperature of 25°C. WEG says not to operate below its 25°C mark when the unit is near that temperature. Prolec specifies adjusting the 25°C filling indication for actual transformer temperature.
The nameplate, manual, or approved maintenance documentation sets the operating range. No generic fill height applies across units, so don't add oil just because one reading looks low.
Account for temperature and load

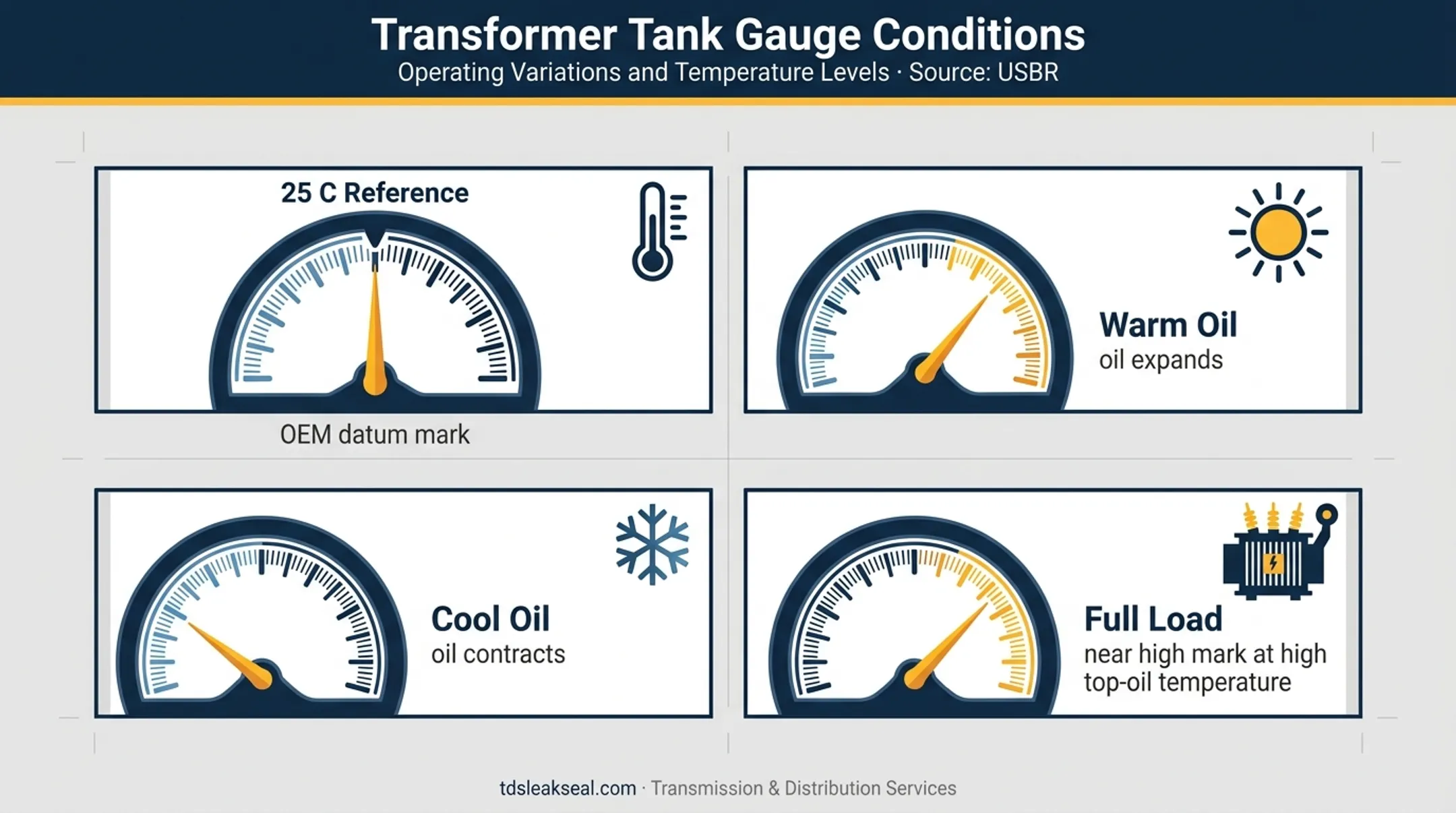

Oil expands as it warms and contracts as it cools. The USBR technical reference explains this, and its example puts the level near the high mark at full load and high top-oil temperature.
So log level alongside:
- Oil temperature
- Load
- Pressure/vacuum reading
- Ambient conditions
Compare readings taken under similar circumstances, not a single glance.
Recognize abnormal readings
Treat these as warning signs:
- A persistent downward trend
- A sudden change
- A reading below the OEM minimum
- Visible oil outside the tank or at seals
- A related temperature or pressure abnormality
Overfilling is also a problem. Expanded oil can raise tank pressure or push oil out through seals and other openings. Any correction should follow the manufacturer's procedure.
Why Transformer Oil Level Gauges Leak and Warning Signs
Common leak locations
Southwest Electric lists gauges, welded areas, and gasketed or bolted areas among typical leak locations. Around the gauge assembly, check:
- Sight glass or window
- Mounting gasket and flange
- Threaded connections
- Drain or isolation fittings
- Pointer shaft seal and body seal
- Nearby valves and pipework
Oil travels. It runs down the tank and spreads, so the wettest spot isn't always the source. TDS identifies liquid level gauges among leak-prone transformer locations, with bolt and threaded-connection penetrations as the features at risk.
Possible causes
Suspected contributors include:
- Gasket hardening, wear, ultraviolet exposure, and taking a set
- Thermal cycling, vibration, corrosion, and impact
- Loose or distorted fittings and installation errors
- Winding vibration that loosens bolts, with rust progressing to pinholes
- Incorrect mounting or the wrong gasket materials
USBR diagnostics guidance flags gasket wear, UV exposure, and taking a set. Southwest Electric describes winding vibration and rust pinholes. MESSKO warns that incorrect mounting or the wrong gaskets can cause damage.
These are suspected causes until confirmed. Check OEM parts, torque requirements, seal materials, and installation history.
Warning signs
- Oil film, wetness, staining, or drips at or below the gauge
- Unexplained level decline or repeated low-level alarms
- Pressure/vacuum behavior that no longer tracks temperature and load
- Fogged, cracked, stuck, or unreadable sight glass (instrument issue possible before tank level is confirmed)
Gauge leak versus tank or fitting leak

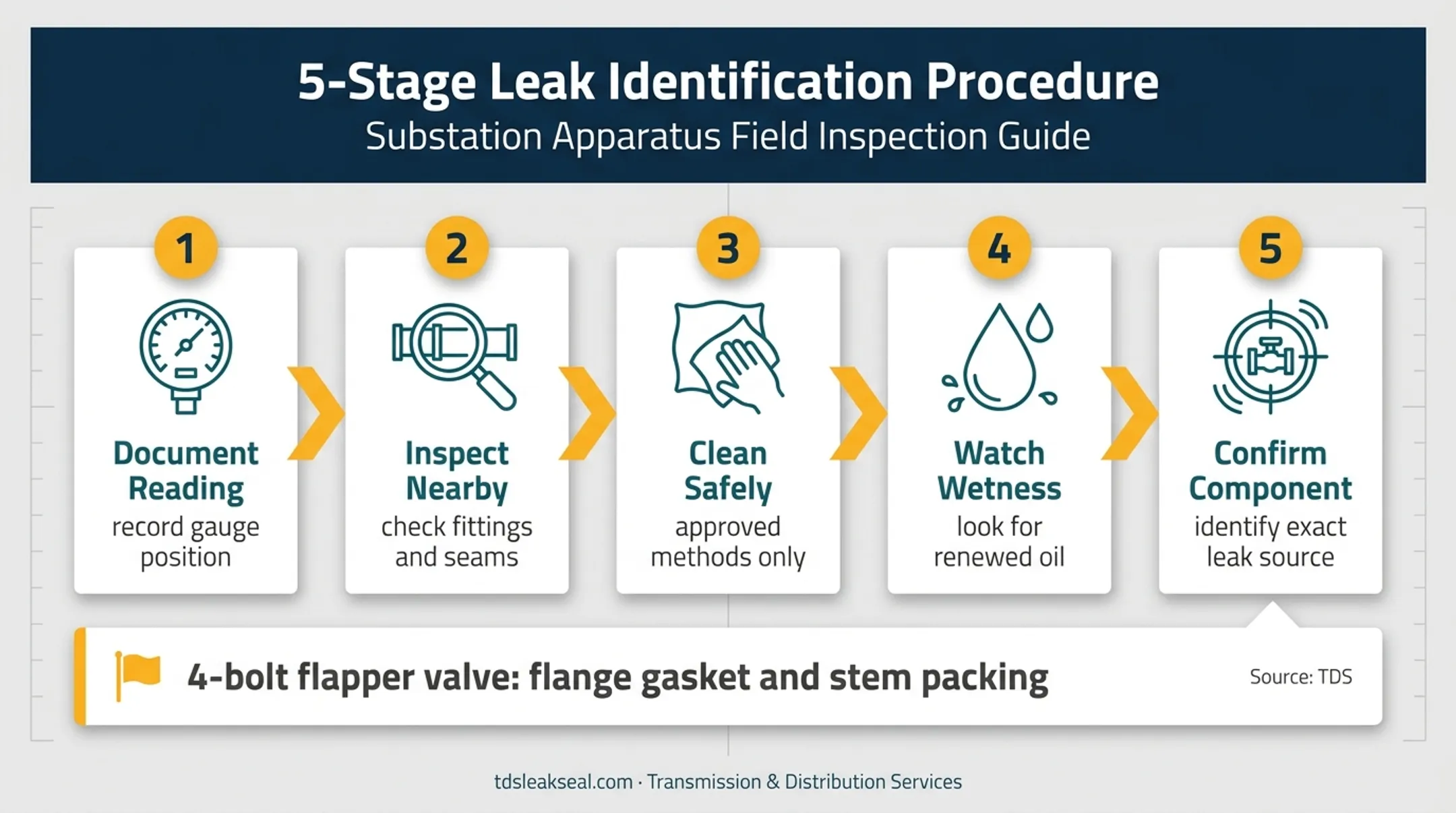

- Document the gauge reading.
- Inspect adjacent components from a safe distance.
- Clean the surface only by approved methods.
- Watch for renewed wetness without disturbing energized equipment.
Level trend, pressure behavior, oil location, and findings help narrow the source. TDS notes that visual inspection of a leak location is often inadequate, and its detection service begins by determining the exact leaking component. In one documented 4-bolt flapper-valve case, TDS Oil Leak Detector found leaks at both the flange gasket and the stem packing.
Why a small leak deserves attention
Continued leakage means lost insulating oil and reduced cooling. Openings above the oil level can also admit air and moisture, even without visible oil. Surface contamination, environmental release, and possible escalation to an outage compound the risk.
The environmental rules are specific. Under 40 CFR Part 110, a discharge causing a sheen on covered waters or adjoining shorelines is harmful. The person in charge must immediately notify the National Response Center at 800-424-8802.
Separate SPCC reporting under 40 CFR 112.4 applies to larger discharges and goes to the EPA Regional Administrator within 60 days. Confirm current applicability with your environmental group.
How to Inspect and Respond to a Suspected Gauge Leak

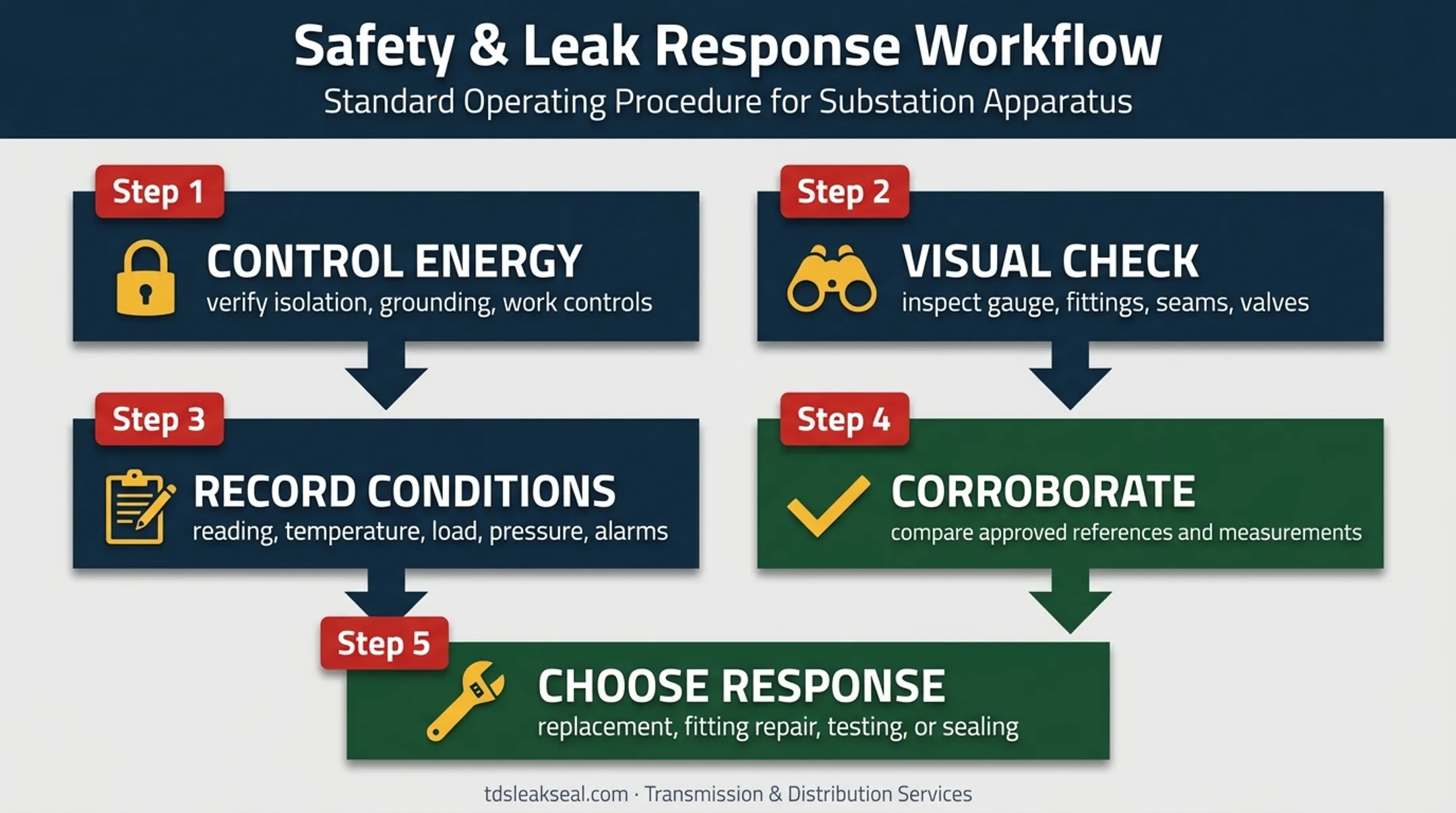

Start with electrical and site safety
Treat the transformer as energized unless qualified personnel have verified isolation, grounding, and work controls. OSHA 1910.269 covers utility installations, including energy control, deenergizing, and protective grounding. 1910.147 covers hazardous energy during servicing but excludes some utility installations, so the two aren't interchangeable.
Removing, loosening, tightening, or replacing a gauge is not a DIY task. MESSKO requires electrical isolation and grounding for its indicator work. Qualified workers follow manufacturer instructions and the site job hazard analysis.
Confirm the condition safely
Do a controlled visual check of the gauge, nearby fittings, tank seams, radiator connections, valves, and containment. Avoid contact with oil. Record:
- Gauge position and apparent rate of change
- Oil temperature and load
- Pressure/vacuum indication
- Alarm status
- Visible oil and its location
Check whether the indication is real
A low reading can come from several sources other than a true leak:
- Temperature contraction
- Calibration error
- Stuck float or damaged linkage
- Faulty dial or failed alarm contact
- Actual oil loss
Compare against the approved reference information and corroborate with another qualified measurement before anyone adds oil.
Triage the urgency
Escalate promptly for:
- Active dripping or a rapidly falling level
- Oil below the manufacturer's minimum
- Exposed internal components
- Abnormal temperature or repeated alarms
- Sustained zero pressure on a sealed tank, or pressure excursions
- Any sign of environmental release
Follow the facility's emergency, reporting, containment, and outage procedures. Don't improvise a repair.
Gather information for the repair team
Have this ready for the repair team:
- Make, model, and serial number
- Voltage and capacity
- Gauge type and oil type
- Leak location and operating state
- Recent readings and photos (where safe and permitted)
- Access limits and outage constraints
That information helps decide among gauge replacement, gasket or fitting repair, oil handling, more testing, or low-pressure sealing.
Repair Options for a Leaking Transformer Oil Level Gauge

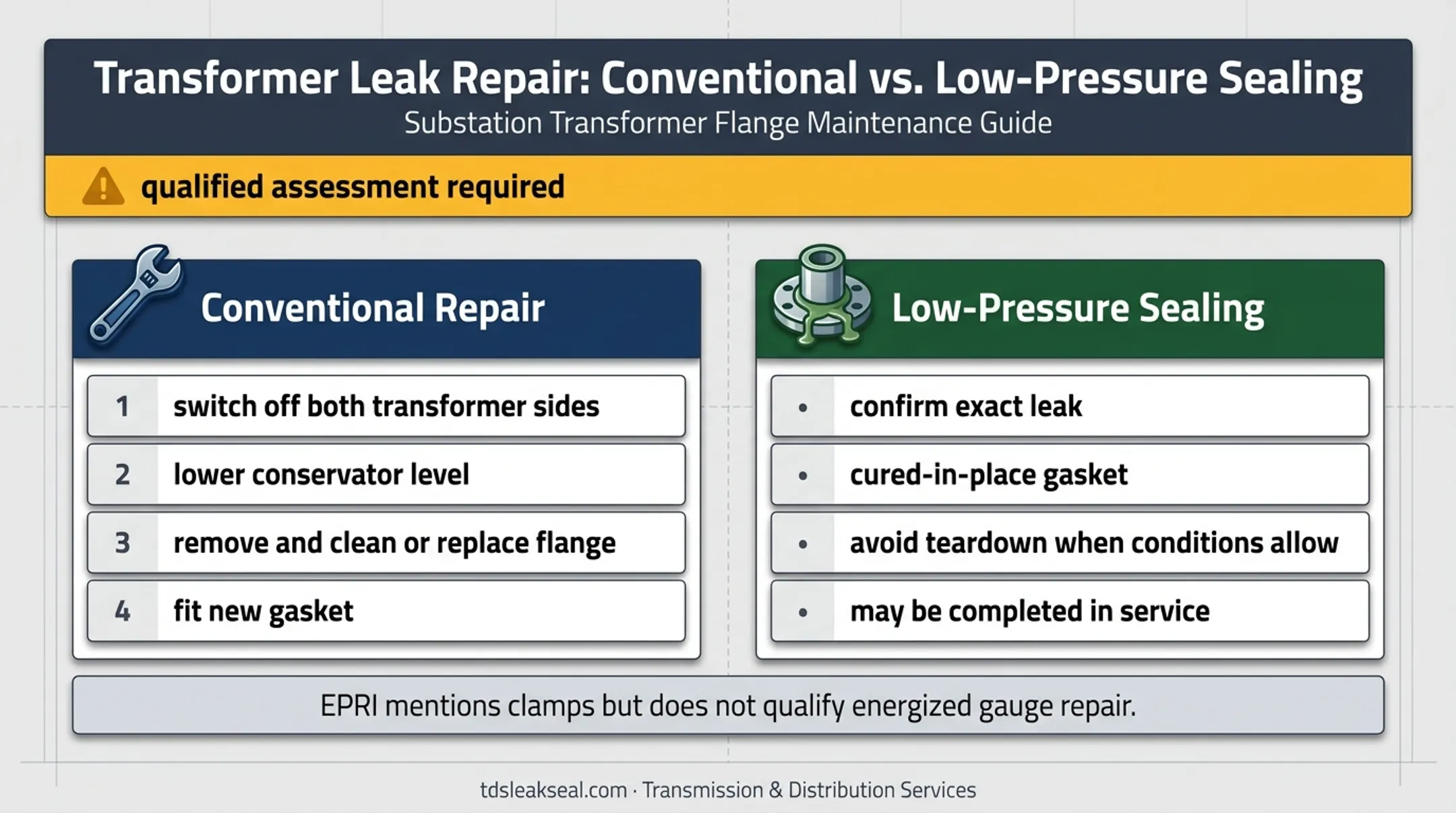

Conventional repair or replacement
MESSKO's MTO instructions call for switching off both transformer sides and securing against restart. Where oil would escape, lower the conservator level below the removal interface, then remove and clean or replace flange components and fit a new gasket. Fit and tightening depend on flange design.
When selecting a replacement, match gauge range, mounting pattern, temperature reference, alarm contacts, material compatibility, calibration, and approved parts availability.
Low-pressure leak sealing as an alternative
Transmission & Distribution Services (TDS) is a substation leak-sealing specialist. Its low-pressure method replaces OEM gasket material with a cured-in-place gasket, to avoid teardown and regasketing when conditions allow. For a failed flapper-valve gasket, TDS notes conventional repair normally means draining and removing the radiator bank.
TDS first confirms the exact leak and fixes only the leaking component. The company states its sealant does not react adversely with transformer oil.
Many repairs can be completed in service when access to energized components is not required, subject to a qualified assessment. EPRI's 2013 assessment mentions clamps for leaking transformers but does not qualify energized gauge repair.
How to evaluate a service provider
Ask whether the provider can:
- Identify the actual leak source
- Explain the repair method
- Address environmental controls
- Work within your outage plan
- Document the completed repair
TDS offers free equipment surveys listing the equipment, leak location, repair method, and price, and states its leak-seal repairs carry a four-year warranty. The survey and warranty apply to TDS work specifically. Customers don't pay if TDS cannot fix the leak.
