Introduction
A transformer condition assessment gives asset managers evidence for one decision: keep operating, monitor, repair, refurbish, or replace. Ideally that decision happens before a failure forces it.
A single test is not an assessment. An assessment combines inspection findings, electrical diagnostics, oil and insulation data, operating and event history, and asset criticality.
Lead times raise the stakes: Wood Mackenzie reported an average of roughly 150 weeks after receipt of order for power and GSU units in mid-2024.
This article covers how to select tests, interpret trends and uncertainty, and turn results into risk-based maintenance actions for U.S. fleets.
Key Takeaways
- No single test establishes condition; correlate several evidence sources.
- Match tests to criticality, age, loading, redundancy, and recent events.
- Consistent methods, baselines, and qualified interpretation make results usable.
- A health score supports engineering judgment and must never hide a severe defect.
Why Transformer Condition Assessment Matters to Asset Managers
Transformer condition assessment is a structured evaluation of insulation, oil, windings, bushings, tap changers, core, tank, cooling system, and auxiliaries. Its output is a defensible basis for budgets, outages, and capital requests.
Degradation mechanisms to watch
- Thermal aging and oil oxidation
- Moisture ingress
- Partial discharge and arcing
- Winding movement after faults
- Connection deterioration
- Bushing aging
- Cooling-system problems
- External corrosion and leaks
CIGRE's reliability survey of 1996-2010 failures found annual major-failure rates of about 0.53% for substation units and 0.95% for generator step-up (GSU) units. These are population rates, not remaining-life predictions for any one transformer.
Context changes risk
The same test result means different things on different units. Record transformer role, load served, redundancy, outage consequences, age, maintenance history, fault exposure, environment, and replacement availability.
Assessment results feed condition-based maintenance, targeted diagnostics, outage planning, spare strategy, refurbishment, replacement, and capital approvals.
External observations such as leaks, abnormal temperatures, damaged bushings, corrosion, or cooling problems count as condition evidence. Investigate them in context. One visible symptom does not prove a specific internal defect.
What Tests Are Included in a Transformer Condition Assessment?
Start with inspection and online indicators
Walk-down items include oil level, leaks, tank and conservator condition, bushings, gauges, cooling equipment, valves, arresters, corrosion, alarms, and signs of overheating.
Infrared thermography, temperature trends, load data, and SCADA records can flag abnormal heating and cooling problems while the unit stays in service, when conditions permit. Vibration, sound, and ultrasonic methods help spot loose parts or possible discharge.
Infrared alone does not confirm the unit is fit for continued operation, so treat it as a prompt for further checks.
Evaluate oil and insulating-fluid condition
Dissolved gas analysis (DGA) is the most informative oil test. Per Doble's guidance, hydrogen points toward partial discharge, acetylene toward arcing or high temperature, and ethylene toward high-temperature faults.
One sample cannot establish activity. Trends and rates of change matter; read them against loading history and IEEE C57.104-2019 or IEC 60599:2022.
Other oil tests, ordered when they answer a question:
- Moisture (ASTM D1533): wetness of oil and, indirectly, paper
- Dielectric breakdown (D1816, D877): contamination; high values do not rule it out
- Acidity (D974) and interfacial tension (D971): oil ageing
- Liquid power factor (D924): dielectric loss and contamination
- Furans (D5837): indirect paper-ageing evidence, affected by oil treatment
- Metals, particles, and visual examination: wear, arcing products, contamination
Get sampling right
Bad samples produce false trends. Follow ASTM D923:
- Use representative sampling points and clean, compatible containers
- Protect samples from contamination and light
- Label accurately and keep chain of custody
- Get samples to the laboratory promptly
Perform offline electrical diagnostics
| Test | What it can reveal |
|---|---|
| Insulation resistance / polarization index | Moisture, contamination, insulation changes |
| Winding resistance | Open or poor connections, tap-changer problems |
| Turns ratio | Shorted turns, internal connection faults |
| Excitation current | Core and magnetic-circuit abnormalities |
| Power factor / dissipation factor | Moisture, deteriorating dielectric insulation |
| Impedance / leakage reactance | Winding deformation after through-faults |
Check mechanical integrity and major components
Sweep frequency response analysis (SFRA) addresses suspected winding or core movement after transport, through-faults, or short circuits. Megger's SFRA guidance prefers a same-unit historical baseline, then phase-to-phase, sister-unit, or factory comparisons. There is no universal pass/fail value.
Also check these major components:
- Bushing capacitance and power factor
- On-load tap changer inspection
- Cooling-system checks
- Core-ground testing when indicated
- Protection and auxiliary-device verification
Use advanced tests selectively

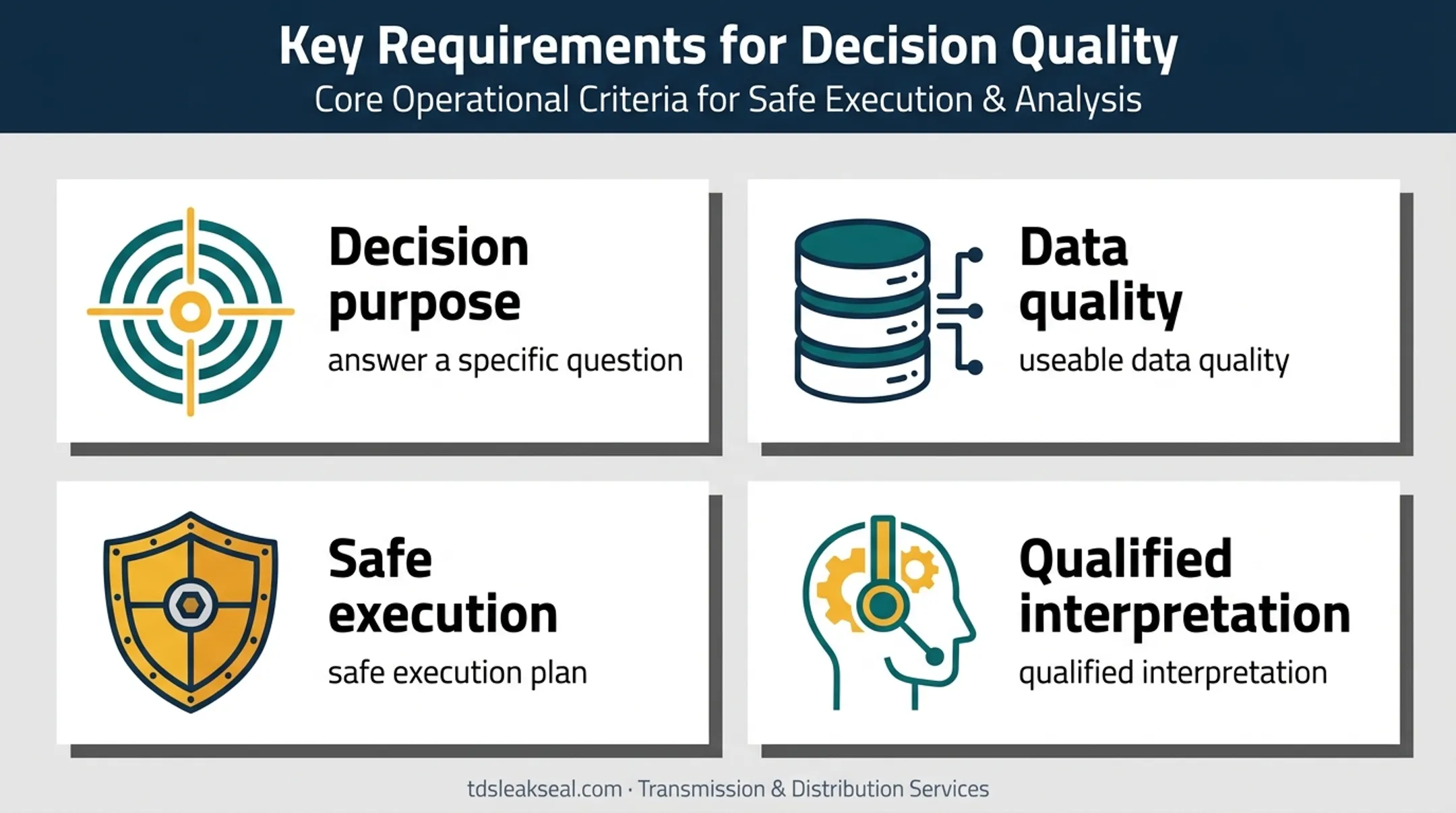

Partial-discharge testing, dielectric frequency response, online DGA, vibration analysis, internal inspection, and direct paper sampling answer specific questions. More testing is not automatically better. Each added test needs a decision purpose, usable data quality, a safe execution plan, and qualified interpretation.
Match the package to the decision
Organize the test list by objective:
- Routine screening
- Post-event investigation
- Suspected defect confirmation
- Life-extension evaluation
- Commissioning baseline
- End-of-life assessment
Cite current IEEE C57.152-2025, NETA MTS and ATS, manufacturer criteria, and utility procedures. Manufacturer criteria can take precedence, and design or service history can make a standard package inappropriate.
How to Build a Risk-Based Assessment Program
Define scope and objective
Start with an inventory that captures:
- Nameplate data, type, and voltage class
- Role, location, age, and loading
- Cooling, insulating fluid, and tap-changer type
- Known modifications
Fleet screening can rely on existing records and routine oil results. A high-consequence or event-affected unit warrants a coordinated electrical, mechanical, oil, and engineering investigation.
Establish baselines and protect data quality
Collect the records that anchor later comparisons:
- Factory and commissioning reports
- Maintenance records, DGA, and oil reports
- Outage and fault history
- Load and temperature history
- Inspection photos and repair documents
Record test method, instrument, temperature, sampling location, laboratory, operating state, and interpretation standard so future results stay comparable.
Schedule around risk and events
Triggers include:
- Commissioning
- Abnormal DGA or operating data
- Overloads, through-faults, and lightning
- Cooling failures, transport, and major repairs
- End-of-life studies
Avoid a single universal interval. NETA's maintenance-frequency guidance treats its intervals as assistive. Criticality, age, trend, manufacturer guidance, environment, and failure consequences set frequency.
Use a transparent ranking method

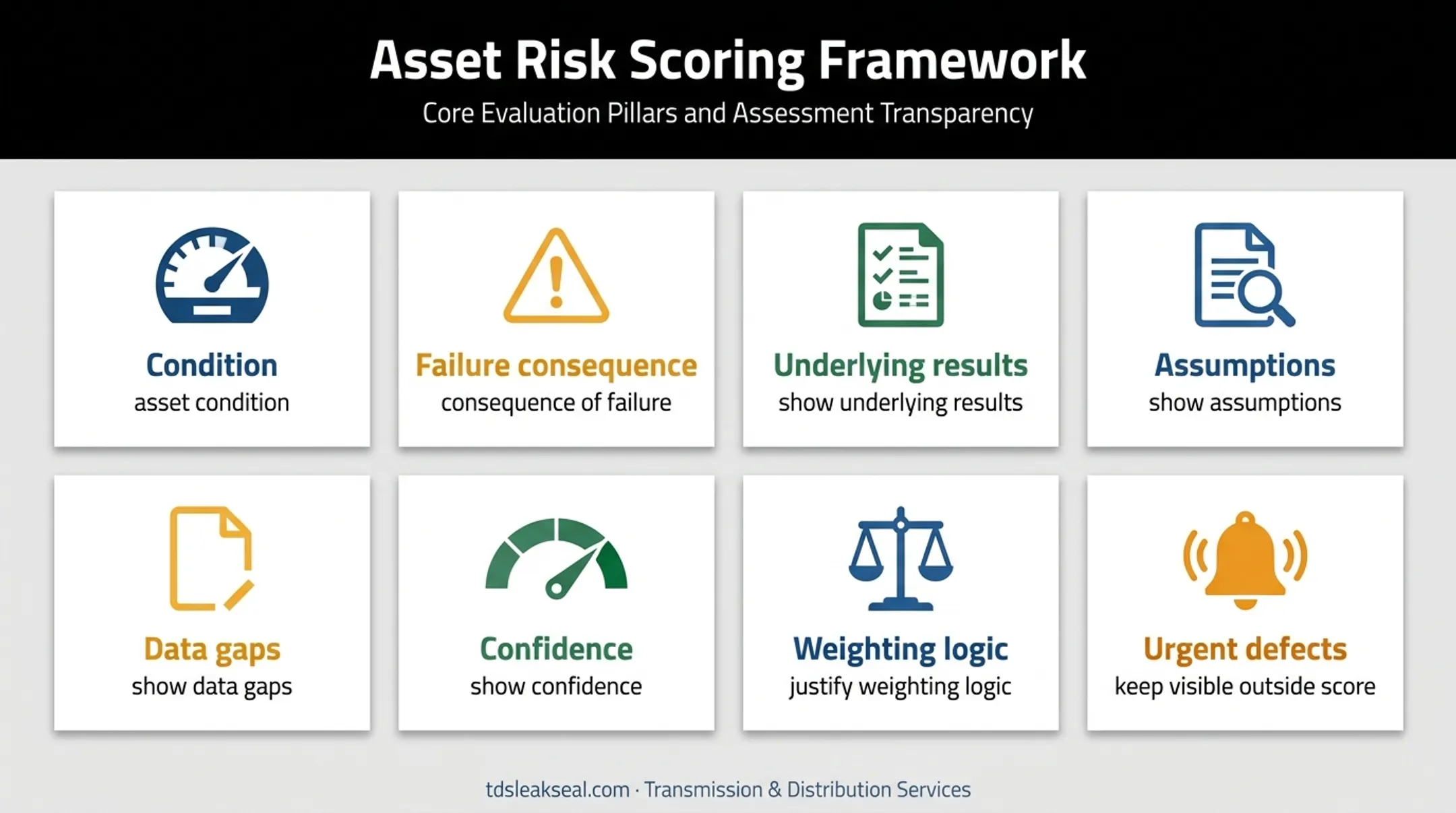

A health index can combine condition with consequence of failure, but it must show underlying results, assumptions, data gaps, confidence, and weighting logic. CIGRE TB 761 notes that aggregation approaches differ and should be justified.
Averaging can mask the worst component, so keep urgent defects visible outside the composite score.
Set governance
- Approve test plans and review abnormal findings with qualified personnel
- Define escalation rules, review dates, and action owners
- Note budget implications
- State the evidence needed to close or downgrade a risk
How to Interpret Assessment Results and Assign Asset Risk
Trend against meaningful baselines
Compare against prior measurements, factory baselines, phase-to-phase patterns, sister units, and nameplate data, with temperature corrections. An isolated value misleads. Cite the relevant standard or manufacturer guidance for each limit, and treat thresholds as screening aids, not automatic replacement triggers.
Correlate evidence by failure mechanism
Evaluate a suspected issue across related evidence before assigning urgency:
- DGA and oil quality against loading and temperature history
- SFRA against fault records and mechanical events
- Bushing results against power factor trends
Conflicting results call for a data-quality review, repeat sampling or testing, and specialist interpretation. Do not average them away.
Translate condition into action categories
- Continue operation with routine monitoring
- Targeted follow-up testing
- Planned repair or outage
- Urgent operational mitigation
- Replacement planning
Each category should state the evidence, uncertainty, consequence, timeframe, interim controls, and decision owner.
From Assessment Findings to Maintenance Action
Build a decision path
A report should go beyond pass or fail. State each of the following with the evidence behind it:
- Suspected failure mechanism and confidence level
- Operational consequence
- Next step
- Whether the action is corrective, preventive, or investigative
Responses can include increased monitoring, oil treatment, component repair, cooling work, bushing or tap-changer intervention, planned outage testing, refurbishment, replacement, or emergency operating restrictions. Prescribe none without supporting evidence.
Address confirmed oil leaks without overreaching

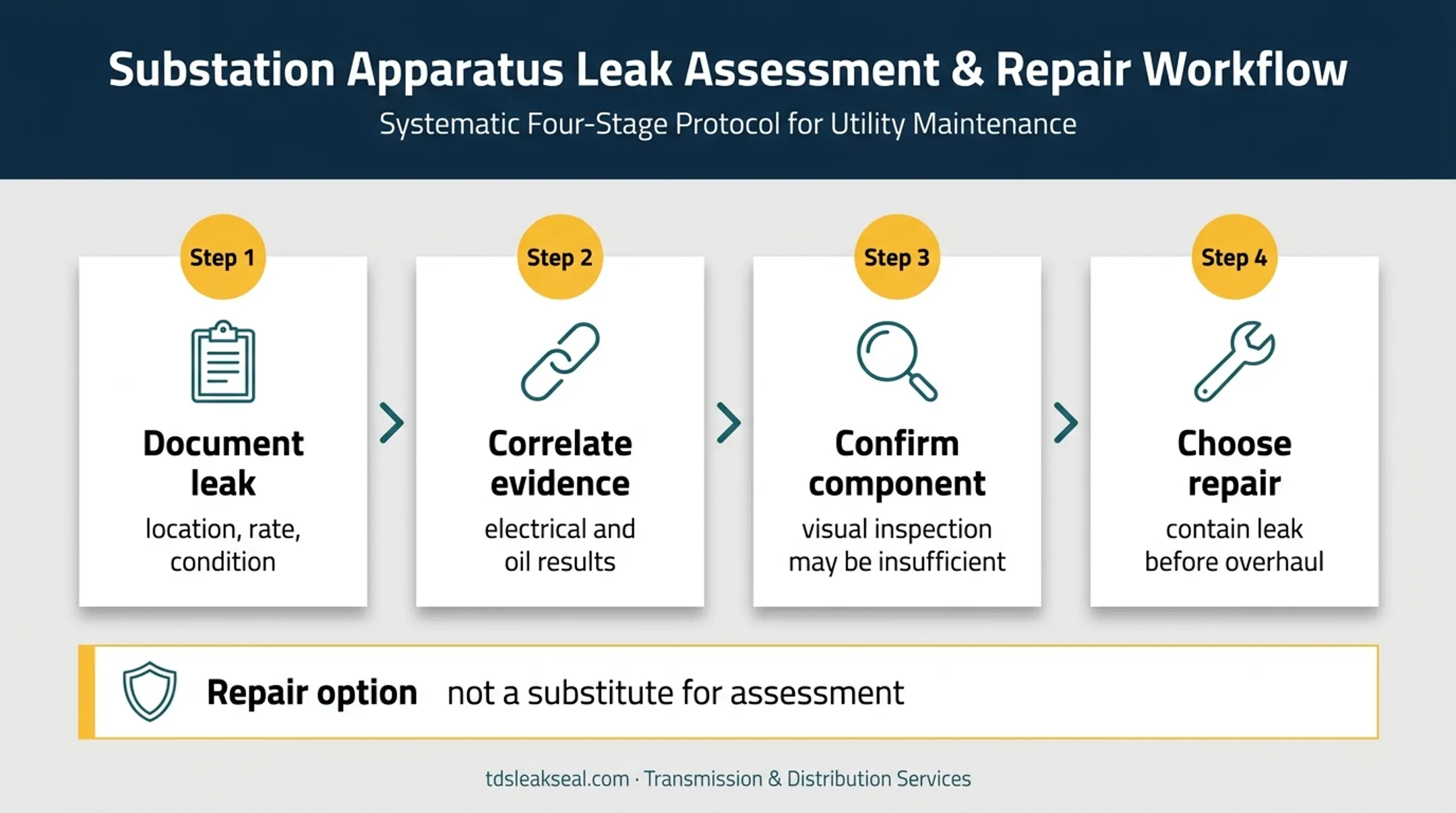

Document each leak by:
- Location
- Rate or progression
- Equipment condition
- Environmental exposure
- Operational implications
Then read those findings alongside electrical and oil results. Aging gaskets, moisture ingress, and corrosion around flanges and bolts are common contributors, per Hitachi Energy's service guidance.
Visual inspection alone often fails to identify the exact leaking component, so confirm it before repair.
Where a leak specialist fits, Transmission & Distribution Services (TDS) offers free equipment surveys that list the facility, equipment, leak location, repair price, and proposed repair method.
Its low-pressure approach replaces failed gasket material with cured-in-place gaskets, often without traditional teardown. When conditions allow, work can proceed while apparatus stays energized and in service.
This is a repair option, not a substitute for condition assessment. It can contain a leak until a planned overhaul or replacement.
Close the lifecycle loop
After every assessment or repair, update the transformer record:
- Test results and photographs
- Work performed and warranty information
- Residual risks
- The next review trigger
Consistent records and evidence-based follow-up help asset managers defend budgets, plan outages, prioritize fleet risk, and extend reliable service. Age alone does not decide replacement.
Frequently Asked Questions
What tests are included in a transformer test list?
Typically visual inspection, DGA and oil-quality tests, insulation and electrical tests, mechanical diagnostics, component checks, and targeted advanced tests. The final list depends on design, criticality, history, and assessment objective.
How often should transformer condition assessment be performed?
There is no universal schedule. Frequency depends on age, criticality, loading, condition trends, manufacturer guidance, and events such as faults, overloads, transport, or major repairs.
What is the difference between transformer testing and condition assessment?
A test produces one measurement. An assessment combines multiple diagnostics, operating history, criticality, and uncertainty into a recommended management action.
Can a transformer pass electrical tests and still have a mechanical problem?
Yes. Winding displacement, core movement, cooling defects, or component deterioration may need SFRA, visual, thermal, or vibration evidence beyond routine electrical tests.
How should asset managers prioritize transformers for assessment?
Weigh consequence of failure, lack of redundancy, age, loading, fault exposure, abnormal trends, environment, maintenance history, and replacement availability. Do not rely on a composite score alone.
When should a transformer oil leak trigger further action?
When location, severity or progression, oil level, environmental risk, criticality, or related test results warrant it. Document the leak and get qualified repair advice rather than assuming replacement.
