Introduction
Dust, oil, moisture, salt, carbon, and industrial residue all degrade electrical equipment. ABB's switchgear guidance notes that humidity combined with pollutants can promote partial discharge and surface discharge that deteriorates insulation over time.
Cleaning an energized panel is not a spray-and-wipe job. It is controlled electrical work.
This guide helps US maintenance teams understand the equipment specifications, safety controls, application tools, and decision points. De-energization is the preferred option. Any energized work must follow qualified-person, employer, and applicable OSHA and NFPA requirements.
Key Takeaways
- No cleaner or tool makes every energized panel safe to clean.
- Check dielectric data, residue, flammability, compatibility, and manufacturer approval before buying a cleaner.
- A full setup covers inspection gear, controlled applicators, containment, PPE, and post-cleaning verification.
- Recurring oil contamination points to a leak that needs diagnosis, not more wiping.
What "Live Electrical Panel Cleaning" Means
"Live" or "energized" cleaning is work done while equipment stays connected to an electrical source. The safer default is isolation, lockout/tagout, verified absence of voltage, and discharge of stored energy.
OSHA treats equipment as energized unless it has been verified and locked or tagged out. Removing a guard on a panelboard exposes live parts, so OSHA's panelboard interpretation requires electrical work practices and qualified persons. It is not a cleaning endorsement.
How contaminants affect equipment
- Dust and debris can hide developing defects and interfere with contacts.
- Oil films and moisture reduce insulation performance.
- Salt and carbon can encourage tracking and arcing.
- Residue can obstruct airflow or leave a conductive film.
Context matters. A film on a control-panel surface is a housekeeping issue. Oil or SF6-related contamination on substation apparatus may signal a leak instead.
Product labels are not interchangeable
"Electrical cleaner," "contact cleaner," "degreaser," "transformer cleaner," and dry-cleaning methods serve different purposes and have different limits. A product label is never universal approval for energized work. Check the SDS, technical data sheet, and equipment maker's instructions every time.
How to Choose Live Electrical Panel Cleaning Equipment
Cleaner and chemical specifications
"Dielectric" is a product claim, not a universal rating. One CRC contact-cleaner data sheet reports 40 kV under ASTM D877 for that product, yet it still calls for a suitability check before use. D877 tests insulating liquids. D149 tests solid insulation. Neither certifies a solvent for every panel.
Review these properties in the technical data:
- Test method, ratings, and stated intended use
- Evaporation rate and residue
- Flash point, flammability, and VOC content
- Odor, ventilation needs, and mist or conductive-film risk
Then confirm compatibility with plastics, rubber, insulation, painted or powder-coated surfaces, labels, sealants, terminals, and coatings in that specific panel.
Application and access controls
Good tools limit overspray and keep liquid from bridging terminals:
- Precision nozzles and controlled dispensers
- Swabs and lint-free wipes
- Approved nonmetallic brushes
Avoid methods and tools that spread contamination or create new hazards:
- High-pressure spraying and uncontrolled aerosols
- Metal tools and improvised brushes
- Unapproved compressed air
These approaches damage components, raise static or ignition concerns, and push debris deeper. OSHA allows compressed air for cleaning only below 30 psi with chip guarding and PPE, and that is not approval for energized electrical work.
Matching equipment to the job
Build your decision on these factors:
- Contamination type (dust, oil film, carbon tracking, or conductive residue)
- Panel voltage and enclosure access
- Component sensitivity, including electronics and insulation class
- Ventilation and environmental conditions
- Spot cleaning versus broader maintenance scope
Before purchasing, compare manufacturer approvals, SDS requirements, dielectric data, waste requirements, and replacement-supply availability.
Safety Requirements Before Cleaning an Energized Panel
Job planning and authorization
Start with a documented job hazard analysis. Include:
- Qualified-person requirements and electrical safety training
- Job briefing and site switching procedures
- Arc-flash assessment and approach boundaries
- Any energized-work justification or permit your employer requires
Relevant OSHA rules include:
- 1910.331–.335 for electrical work practices
- 1910.269 for utility generation, transmission, and distribution
- 1910.132 for PPE
- 1910.1200 for hazard communication
NFPA 70E is a consensus standard and does not replace your written electrical safety program. NFPA now lists 2027 as the current edition, so confirm which edition your program adopts.

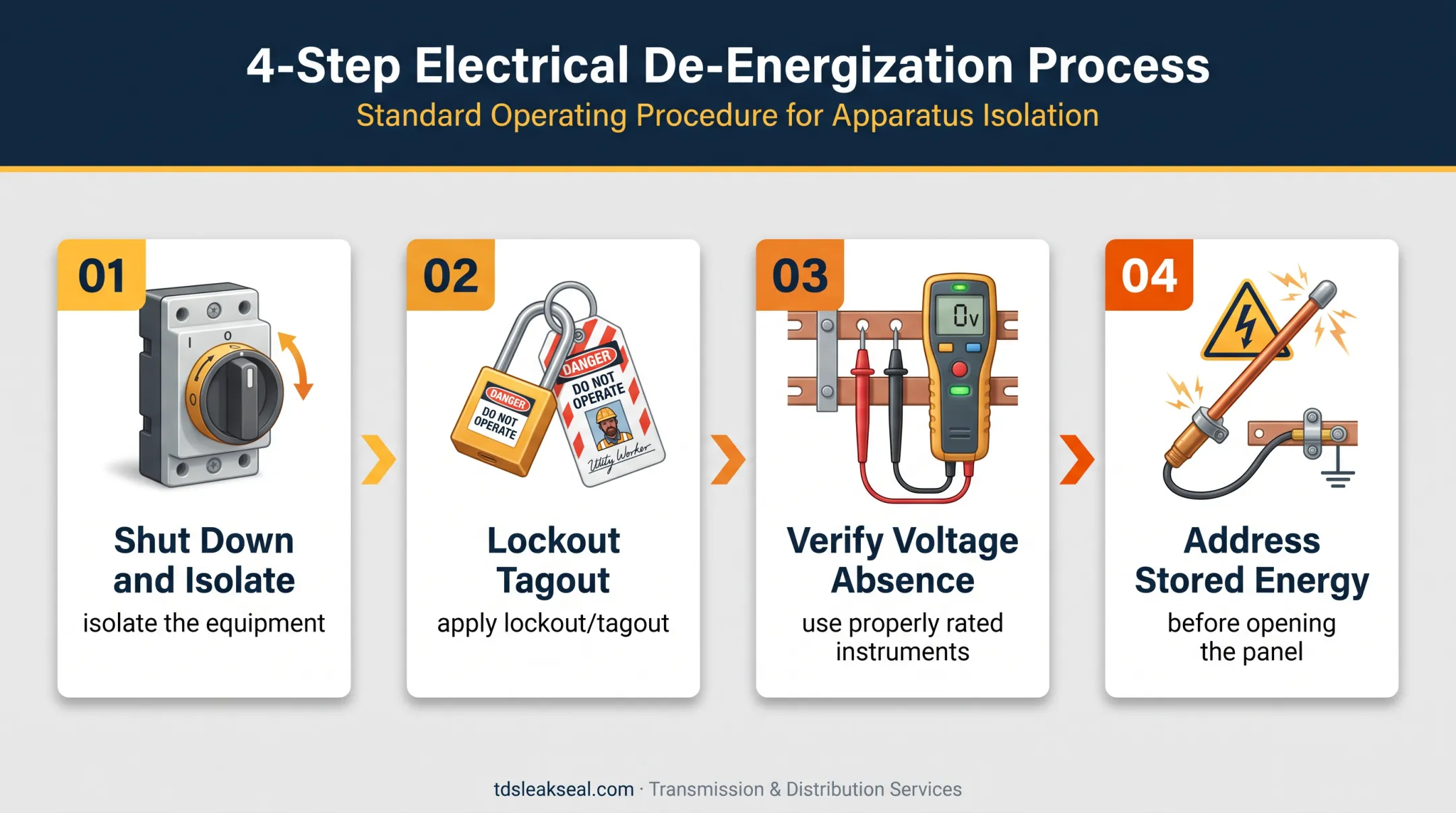

De-energization first
The safest plan is to:
- Shut down and isolate the equipment
- Apply lockout/tagout
- Verify absence of voltage with properly rated instruments
- Address stored energy before opening the panel
If de-energization is not feasible, only qualified personnel using an approved energized-work procedure can decide whether the task proceeds. No universal voltage threshold exists, and this is not work for unqualified staff.
Pre-cleaning inspection and environment
Look for:
- Damaged insulation or exposed conductors
- Loose connections, overheating, or corrosion
- Active leaks, standing moisture, and combustibles
Then check:
- Ventilation, temperature, and humidity
- Confined-space conditions and nearby ignition sources
- Chemical storage and spill response
- Barriers that keep cleaner away from energized areas outside the work scope
Controlled application and stop-work criteria
Follow the manufacturer's instructions. Use the minimum amount, hold required clearances, and prevent overspray.
Stop work immediately for:
- Unexpected arcing, odor, or smoke
- Heat damage or wet, deteriorated insulation
- Unstable equipment or active leaking
- Inadequate PPE or loss of visibility
- Any deviation from the approved procedure
Post-cleaning verification
Confirm the cleaner has evaporated or been removed as directed. Inspect for residue and displaced debris, restore barriers and covers, and run required electrical or functional tests.
The authorized electrical team controls re-energization. Records should name the equipment, contamination observed, product used, conditions, findings, and follow-up actions.
What a Complete Live-Panel Cleaning Setup Should Include
Inspection and diagnostic equipment
- Properly rated test instruments
- Lighting and visual inspection tools
- Thermal imaging where authorized
- Cameras or labels for documentation
- Leak-detection tools when oil is present
These tools reveal overheating, loose connections, moisture, and contamination sources. They do not replace an arc-flash assessment, absence-of-voltage verification, or a qualified-person procedure.
Cleaning and application tools
Use a product approved for the specific equipment, plus precision applicators, lint-free wipes, and nonmetallic brushes or swabs. Match the tool to the task: targeted application for contacts and terminals, controlled wiping for accessible surfaces, and an approved dry method for loose dust.

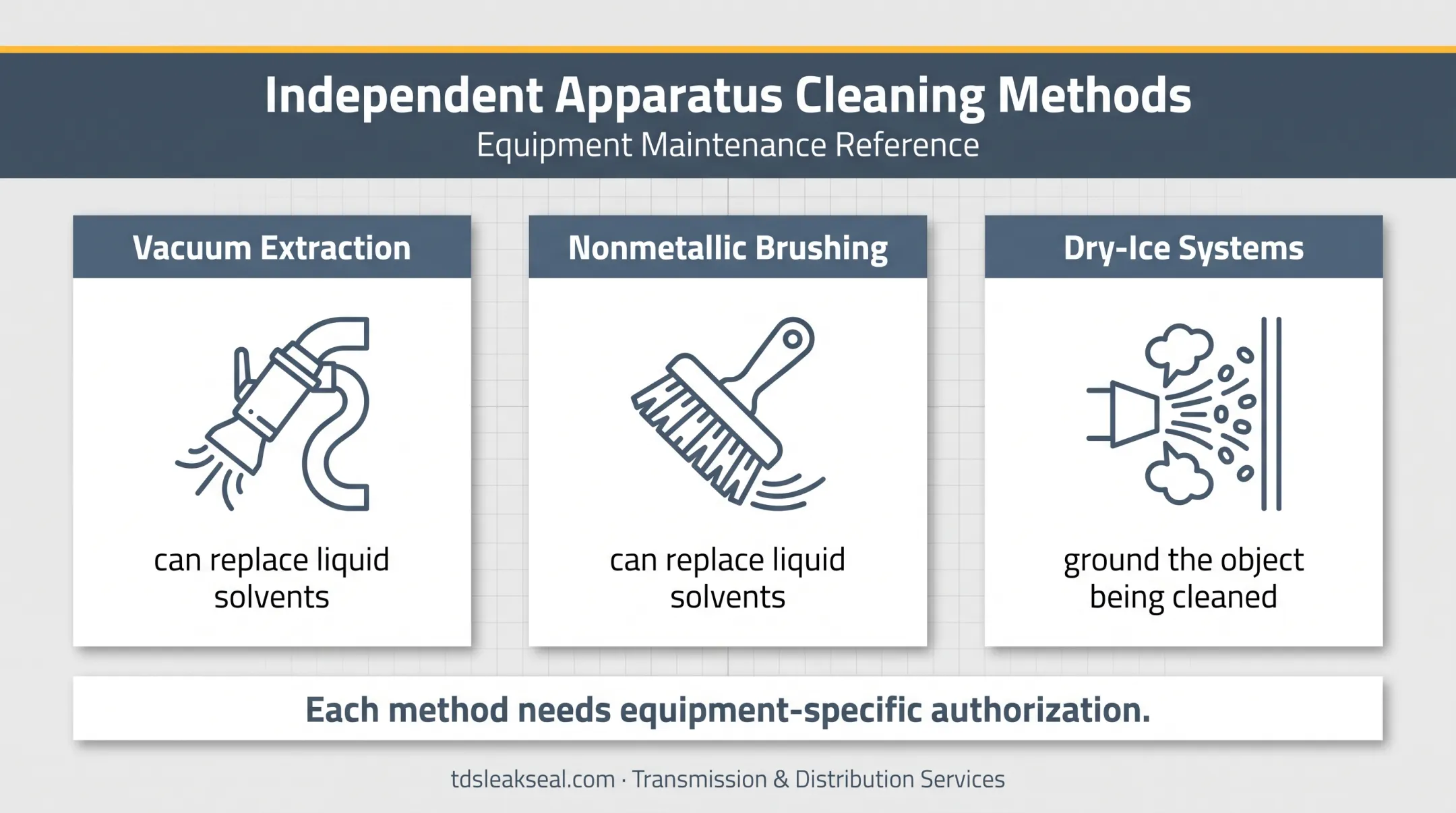

Dry-cleaning and specialized methods
Vacuum extraction, nonmetallic brushing, and dry-ice systems can replace liquid solvents. Each needs equipment-specific authorization. One dry-ice equipment manual, for example, instructs users to ground the object being cleaned.
"No residue" does not mean "no risk." Dust, debris, static, pressure, noise, ventilation, and waste still need evaluation.
PPE, containment, and waste supplies
- Arc-rated clothing (ASTM F1506) and voltage-rated gloves (ASTM D120)
- Insulated tools, plus eye and face protection
- Chemical-resistant PPE chosen from the SDS
- Drop cloths, spill kits, and containers for used wipes
Solvent-contaminated wipes are only excluded from hazardous waste rules under specific conditions covering containers, free liquids, labeling, and time limits (40 CFR 261.4). Check federal, state, and facility rules before disposal.
Product evaluation and records
Keep the SDS and technical data sheet in the kit. Record product and lot details, check shelf life, inspect nozzles and hoses, and replace damaged PPE and contaminated supplies.
Maintenance crews may also evaluate Transmission & Distribution Services (TDS) products:
- Biodegradable, water-soluble transformer cleaner in cases of six 1-gallon containers, documented for pressure washing
- Oil leak detector spray that darkens where oil emerges, in boxes of twelve 7-ounce cans
TDS documentation does not state energized-work approval. Confirm intended surfaces, SDS, and manufacturer permission before any live-panel use.
When Cleaning Equipment Is Not Enough
Repeated oil, grease, or fluid contamination calls for finding the source, especially on transformers, oil circuit breakers, and GIS. Wiping alone leaves both the reliability risk and the environmental problem in place.

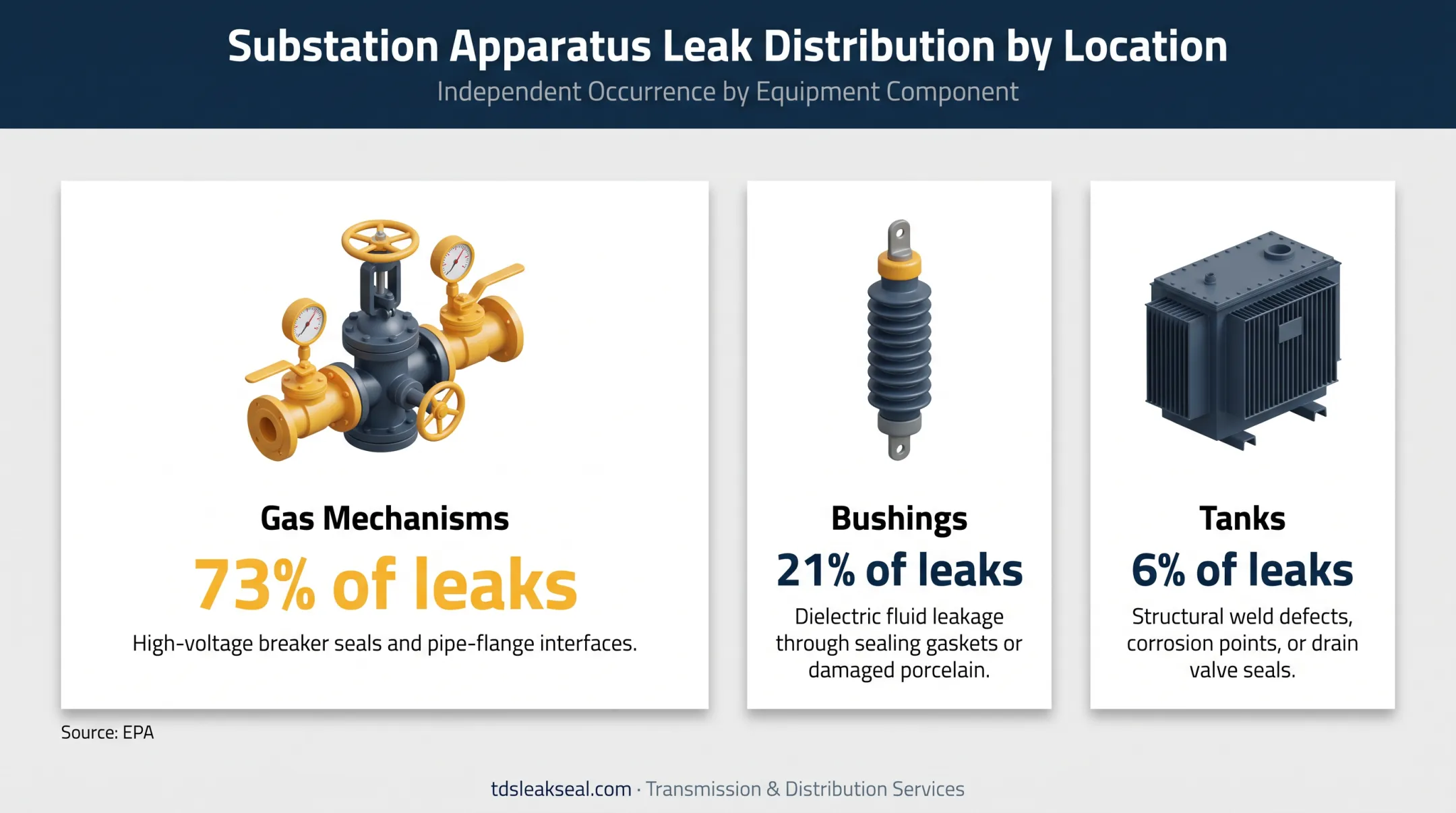

Leaks matter. EPA data on older high-voltage breakers found SF6 leaks mostly at gas mechanisms (73%), then bushings (21%) and tanks (6%). Operators addressed those leaks through repair or replacement, not cleaning.
TDS works exclusively in substations on oil-filled and SF6 gas-filled apparatus, including transformers, circuit breakers, and GIS. It uses low-pressure, cured-in-place gasket repairs that avoid traditional dismantling. When conditions allow, crews can complete repairs with the apparatus energized, though some SF6 repairs may need an outage for safe clearance.
Before authorizing work, request an equipment survey. TDS offers free surveys that document each leak with photos, equipment details, leak description, repair method, itemized cost, and outage requirements. Also confirm:
- Site-specific safety requirements
- Technician qualifications
- Warranty terms and scope
Frequently Asked Questions
Can you clean electrical panels while energized?
Only qualified personnel under an approved procedure and suitable conditions. De-energization remains the preferred approach.
What equipment is used to clean a live electrical panel?
An approved cleaner or dry method, controlled applicators, inspection and testing tools, containment supplies, and task-specific electrical and chemical PPE.
What type of cleaner is safe for energized electrical components?
Only one specifically evaluated for your equipment, with verified dielectric performance, residue, evaporation, flammability, and compatibility. Never assume a generic cleaner is safe.
Can I use compressed air or water to clean an electrical panel?
Not without approval. Water and uncontrolled air can add moisture, spread debris, and damage components.
How often should electrical panels be cleaned?
It depends on contamination, enclosure condition, environment, equipment criticality, inspection findings, and your preventive-maintenance program. No universal schedule exists.
When should I hire a professional cleaning service?
For energized work, high-voltage or substation equipment, recurring oil or SF6 contamination, suspected leaks, damaged components, or any task beyond your team's qualifications.
