The final number depends on transformer type, voltage and capacity, fault severity, parts availability, site conditions, outage requirements, and whether the work happens in the field or at a repair facility.
One caution up front: no authoritative public source publishes nationwide US repair-price bands by rating or repair type. So this article doesn't invent them. It covers how repair scopes differ, what a quote should contain, what drives cost, when repair stops making sense, and how to build a defensible budget.
Key Takeaways
- No standard price exists for power transformer repair; get itemized quotes by scope and rating.
- Leaks, bushings, and cooling parts belong in a different budget than winding, core, or tank damage.
- Testing, transport, outage coordination, and environmental handling are often outside the base estimate.
- The cheapest quote can carry the highest lifecycle cost.

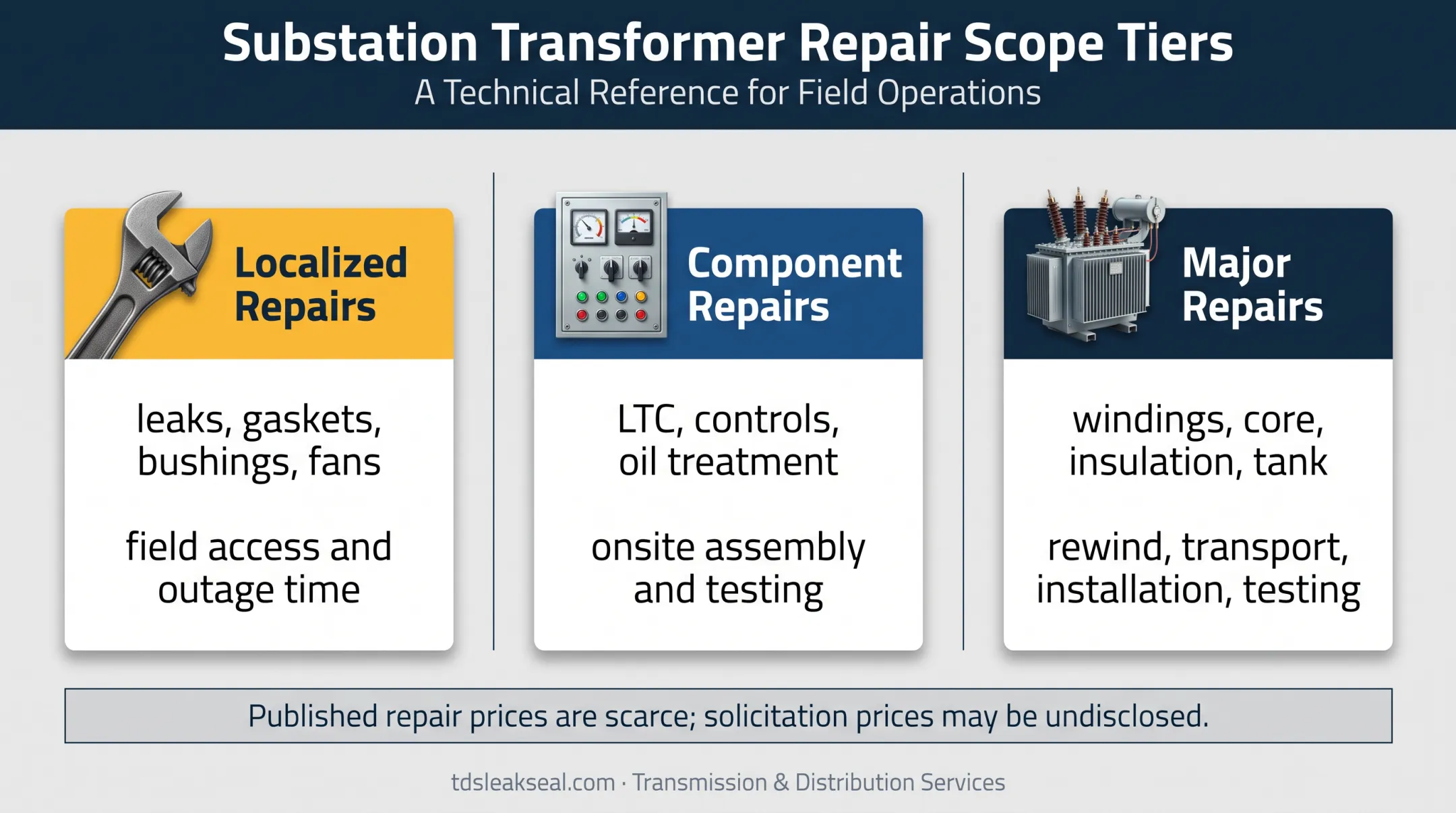

How Much Does Power Transformer Repair Cost?
Power transformer repair has no fixed price. Treat any published range as a planning reference, not a quote. Published ranges are scarce across the three scope tiers below. Public repair solicitations often describe scope in detail but leave price fields blank or undisclosed.
Localized or basic repairs
This tier covers external oil leaks, gaskets, seals, fittings, bushings, gauges, fans, pumps, and control wiring. Typical rating examples run from large service transformers to substation units.
Time and access matter more than parts here. According to TDS field procedures, a 4-bolt flange usually takes about two hours to repair and an 8-bolt flange about three. A CT junction block repair requires an outage and normally takes six to eight hours.
Ask what the price includes:
- Diagnosis and leak confirmation
- Site travel, per diem, and lodging (often added separately)
- De-energization and grounding, if needed
- Oil handling and cleanup
- Testing and follow-up inspection
Moderate component-level repairs
This tier includes larger cooling systems, tap-changer components, controls, and oil treatment. Siloam Springs' 2020 bid for a 12/16/20 MVA, 67/12.47 kV unit shows the scope: load tap changer (LTC) mechanism and control work, control-panel work, onsite assembly, oil processing, delivery, and testing.
Use that bid as a scope example, not a price benchmark.
Substations, generating plants, and industrial sites with no spare unit usually land here. Work moves into the major tier when testing reveals internal insulation damage, contaminated oil beyond reconditioning, or the need to ship the unit out.
Major internal repairs or refurbishment
Winding repairs, core work, insulation restoration, tank repairs, and full rewinds belong here. Hayward's solicitation, for example, specifies a rewind of a 1,500/1,680/1,932 kVA, 12 kV to 480Y/277 V unit with new copper windings and insulation, 466 gallons of FR3 fluid, painting, transport, installation, and testing. Pricing is not disclosed in the solicitation.
Major repair can approach or exceed the economic case for replacement, especially for old units, repeat failures, custom parts, or extensive internal damage. For context only, GAO says large power transformers can cost up to $10 million to buy, with transport running to hundreds of thousands of dollars. Those are purchase figures, not repair prices.
Emergency or expedited work may add labor, travel, parts, crane, or coordination charges. That premium is rarely quantified up front, so require it as a separate line item.
Key Factors That Affect Power Transformer Repair Cost
The estimate reflects technical condition, urgency, logistics, and the transformer's role in the system, not just the visible defect.
Transformer type, size, voltage, and configuration
Oil-filled and dry-type units differ in handling, testing, and parts. Rating (kVA or MVA), voltage class, cooling method (such as KNAN or KNAF), tap-changer type, and custom design all shift labor and materials. These are scope variables, not published price multipliers.
Fault severity and condition of major components
A leaking gasket is a different job than widespread winding or insulation damage. Diagnostics define the scope.
IEEE C57.104 covers dissolved gas analysis (DGA). The Bureau of Reclamation describes DGA as an early indicator of overheating, partial discharge, or arcing. IEEE C57.152 says field test results should be interpreted together rather than alone.
Visual inspection alone often misses the true leak location, so confirm it before quoting.
Parts, site, and outage requirements
- Obsolete or custom parts extend lead time and cost
- Crane, rigging, and difficult access add charges
- Switching coordination and lockout/tagout set the outage window
- Some limited repairs can proceed with the unit in service
Age, maintenance history, and remaining useful life
Age alone shouldn't drive the decision. EPRI defines expected life as the point when maintenance must shift to major refurbishment or replacement. That timeline depends on operating stress and maintenance history.
Weigh loading, environment, prior failures, diagnostics, and future capacity needs before choosing repair or replacement.

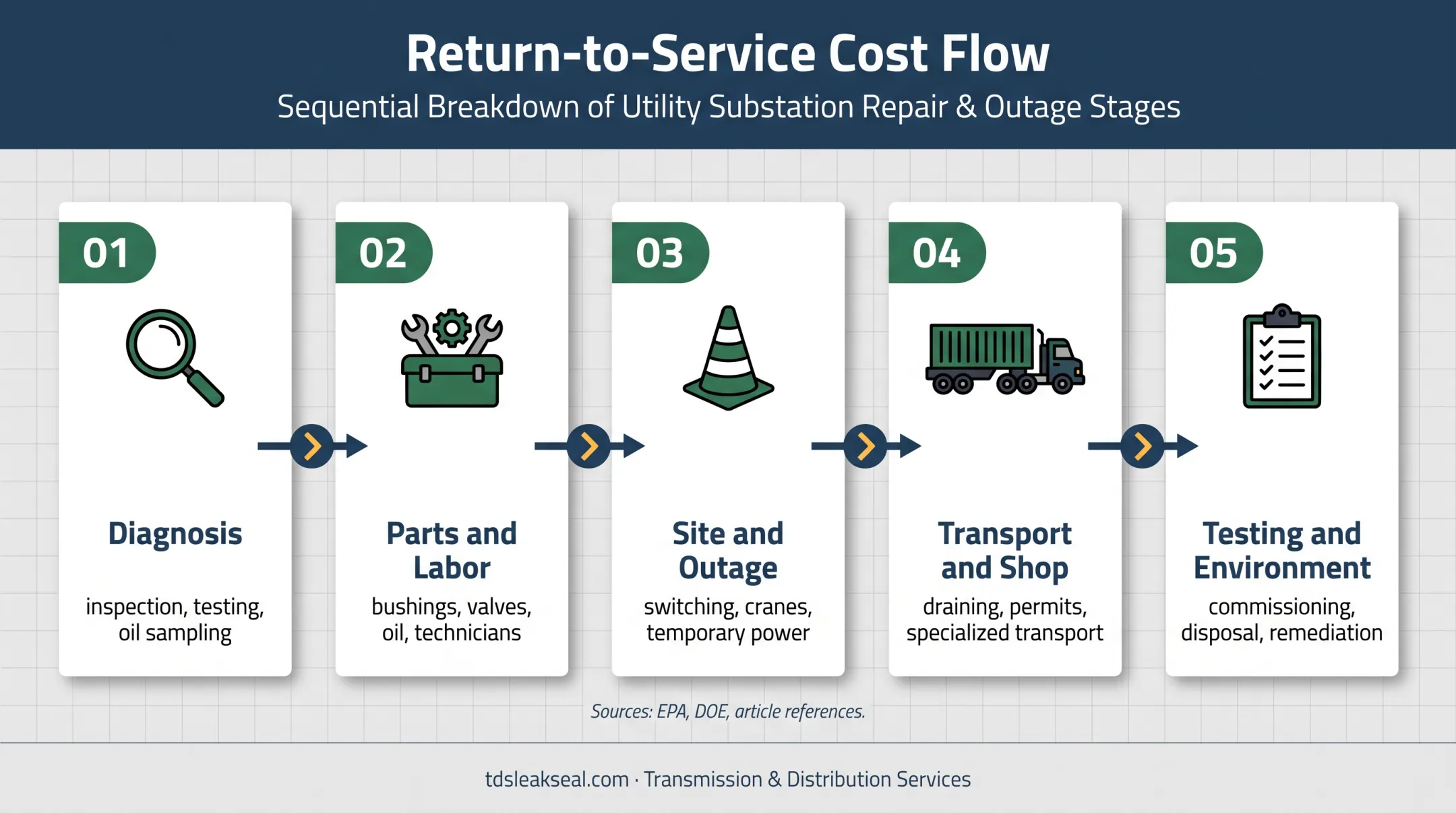

Power Transformer Repair Cost Breakdown and Repair Options
Review a quote as a complete return-to-service cost, not one labor figure.
Diagnosis and condition assessment
This covers inspection, electrical testing, oil sampling, leak confirmation, failure investigation, engineering review, and reporting. Ask whether diagnostic fees are credited toward the repair or billed separately. Practices vary by contractor.
Parts, materials, and specialist labor
Expect line items for gaskets, bushings, valves, cooling equipment, tap-changer components, insulation, oil, sealants, hardware, technicians, engineering, and shop labor. Get each one itemized on the quote, since unit pricing varies widely by scope.
Site preparation, outage, and access
Charges can include de-energization, switching coordination, safety controls, temporary power, cranes, rigging, and tight access. In Hayward's solicitation, the city handles outage, switching, and lockout/tagout, while the contractor handles removal, transport, and startup. Clarify who owns each task.
Transportation, shop work, and return logistics
Shop repair adds oil draining, packaging, permits, specialized transport, disassembly, reassembly, and return delivery. DOE reports large power transformers commonly weigh 150 to 400 tons. Ask which of these items are included and which are billed as exclusions.
Testing, commissioning, and environmental response
Budget for post-repair electrical and oil tests, functional checks, documentation, and commissioning. Environmental items include spill response, oil disposal or recycling, and remediation. EPA SPCC rules under 40 CFR 112.8 and PCB rules under 40 CFR Part 761 apply, so identify PCB status before handling oil.
Lower-cost versus higher-cost repair outcomes
| Factor | Localized repair | Major repair or replacement |
|---|---|---|
| Upfront cost | Lower | Higher |
| Downtime | Hours to days | Weeks to months |
| Testing | Limited | Extensive |
| Repeat-failure risk | Depends on root cause | Lower if properly rebuilt |
A cheap repair only makes sense if it restores acceptable condition and reliability.
When the confirmed problem is an oil leak, Transmission & Distribution Services (TDS) offers a low-pressure, cured-in-place sealing method intended to avoid traditional disassembly. TDS also offers a free equipment survey that identifies leak location, repair method, and price.
Energized repair depends on conditions: bottom-connection leaks can often be sealed energized, while upper leaks may require de-energization and grounding. Its four-year warranty applies to leak-seal repairs, not every transformer repair scenario. A 1998 DOE assessment of in-service leak repair is historical context and should not be read as confirmation of current results.
How to Estimate the Right Repair Budget
Match the budget to condition, criticality, outage exposure, and expected service life, not the lowest bid.
Information to gather before requesting a quote
- Nameplate data, kVA or MVA rating, primary and secondary voltage
- Transformer type, age, serial number, oil or SF6 details
- Fault description and photographs
- Test results, maintenance records, and loading history
- Site-access details
Complete data helps contractors separate field repairs from shop repairs, identify parts, and avoid change orders after mobilization.
Request an itemized, comparable proposal
Ask for separate lines covering:
- Diagnosis, parts, and labor
- Travel and outage coordination
- Oil handling, transportation, and shop work
- Testing, commissioning, and environmental services
- Warranty, taxes, and exclusions
Quotes should also state assumptions about site access, energized versus de-energized work, working hours, parts lead times, and what triggers a revised price.

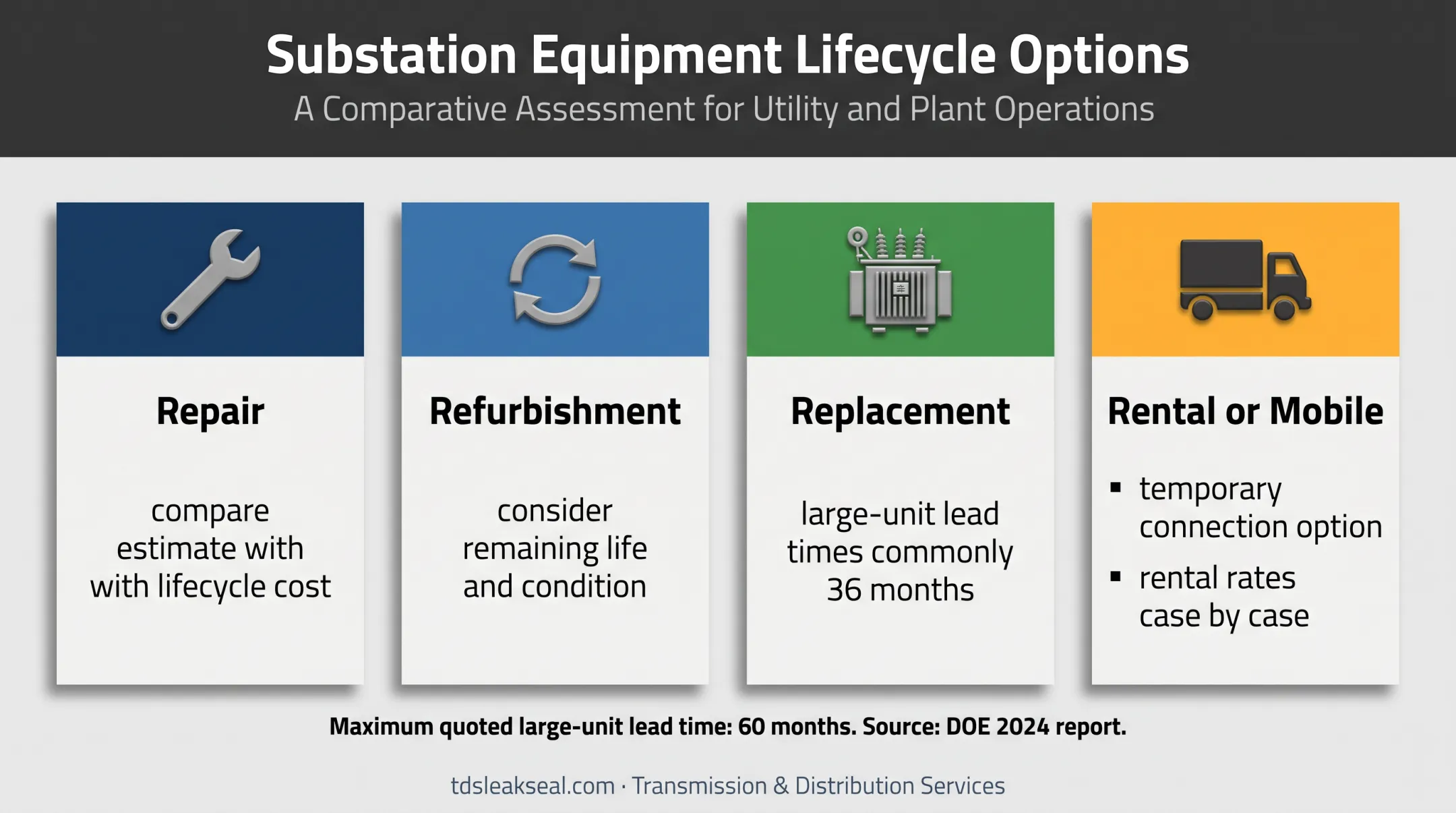

Compare repair, refurbishment, replacement, and temporary power
Weigh the repair estimate against a new unit, a refurbished one, and rental or mobile substation options. DOE's 2024 report records commonly quoted lead times of 36 months, with maximums up to 60 months, for large units. Hitachi Energy describes mobile substations as a temporary connection option. Rental rates are typically quoted case by case, so ask suppliers for current pricing.
Also consider remaining life, future load, repeat-failure probability, spare availability, and what another failure would cost operationally.
Plan for contingency and lifecycle expenses
Commonly missed items:
- Emergency mobilization and expedited parts
- Crane rental and special transportation
- Oil disposal and environmental cleanup
- Additional testing
- Temporary generation or rental transformers
- Post-repair monitoring
What Most People Miss When It Comes to Power Transformer Repair Cost
The repair invoice understates true exposure. True cost also includes lost production or power sales, internal crew labor, customer or service obligations, safety controls, environmental compliance, and a prolonged outage. Unchecked oil leaks can invite EPA scrutiny and fines.
Two opposite mistakes are common:
- Over-repairing. Pouring money into a unit with widespread insulation deterioration, recurring failures, inadequate capacity, obsolete parts, or major core and winding damage without comparing lifecycle economics.
- Buying on price alone. Choosing the lowest bid without verifying repair method, testing scope, parts quality, workmanship warranty, technician qualifications, and who returns the unit to service.
Conclusion
Power transformer repair cost varies with fault severity, design, rating, age, parts availability, site conditions, testing, logistics, and downtime. Because no public price schedule exists, itemized quotes are your best tool.
A condition-based assessment lets asset owners balance repair cost, reliability, outage risk, remaining life, and replacement alternatives before authorizing work. For leak-only problems, a free survey from a specialist such as TDS can document each leak with photos, a repair method, an itemized cost, and outage requirements.
Frequently Asked Questions
Can a blown transformer be repaired?
Sometimes. EPRI's 2006 report says a failed transformer has a low likelihood of repairability, while removal before failure makes on-site repair much more likely. Localized damage is recoverable; catastrophic internal damage usually means replacement.
What are the signs that a transformer is going bad?
Watch for oil leaks, overheating, unusual noise, gas in a Buchholz relay, abnormal DGA or oil power factor, repeated trips, bushing damage, corrosion, weak cooling, and unexplained load or voltage changes. No single sign sets the repair scope.
How many years does a transformer last?
It varies with loading, temperature, moisture, maintenance, and fault history. EPRI planning material includes 30-40 year expected-life entries under maintenance assumptions, but age isn't an automatic replacement trigger.
What is the 80% rule for transformers?
It usually refers to loading or capacity planning, such as the 125% continuous-load sizing for circuits and overcurrent protection, which equals 80% of rating. It isn't a universal repair or replacement standard. Confirm with the adopted NEC edition and local authority.
How much does it cost to repair a power transformer?
It ranges from limited field repairs to major shop refurbishment or rewinding. Rating, fault severity, testing, logistics, outage needs, and downtime set the quote. See the scope tiers above.
When should a transformer be repaired instead of replaced?
Repair fits when the fault is localized, major components are healthy, remaining life is adequate, lead time is acceptable, and lifecycle cost beats replacement. Run condition testing before deciding.
