SF6 provides insulation and arc interruption in circuit breakers, GIS, and related high-voltage equipment. A pressure gauge reports gas pressure. A density monitor uses pressure and temperature to assess gas density, or shows pressure normalized to a reference temperature.
This guide covers how both devices work, why temperature matters, how to select and maintain them, and what qualified personnel should do when readings suggest gas loss.
Key Takeaways
- A pressure reading alone doesn't prove an SF6 leak, because temperature moves pressure.
- Density monitors compensate for temperature and can drive alarm, lockout, or remote signals.
- Select by range, accuracy, temperature rating, contacts, enclosure, and OEM settings.
- Low readings call for a documented, qualified response, not improvised gas handling.
What SF6 Gas Pressure Gauges and Density Monitors Measure
What an SF6 pressure gauge measures
A pressure gauge displays gas pressure mechanically or electronically. Confirm whether the reading is gauge, absolute, or temperature-referenced. GE Vernova/Alstom's breaker manual defines absolute pressure as relative (gauge) pressure plus atmospheric pressure. Some instruments also show pressure referenced to a set temperature.
In a sealed, fixed-volume compartment, pressure rises and falls with temperature even when no gas escapes. Read it alongside ambient and gas temperature, equipment status, and the manufacturer's normal operating range.
What a density monitor or relay measures
Density is mass per unit volume. In a fixed-volume enclosure, the mass of SF6 present says more about insulation and interruption capability than an uncorrected pressure snapshot does.
Temperature-compensated monitors report density or an equivalent pressure at a reference condition. The Alstom manual uses a P20 convention: a relative pressure tied to 20 °C and 101.3 kPa atmospheric pressure. It is a reference convention, not a universal operating pressure.
Device types differ:
- Density monitor or relay: compensates mechanically and switches contacts at set thresholds
- Density transmitter: measures pressure and temperature, then calculates density for an electrical output
- Gas analyzers and dew-point instruments: separate tools for purity and moisture checks
Density monitoring doesn't replace gas-quality testing. CIGRE's measurement guide covers on-site tests for SF6 content, humidity, and decomposition products. Use an analyzer or dew-point instrument when purity or moisture is in question.
How SF6 Pressure Gauges and Density Monitors Work
How a pressure gauge produces a reading
Gauges sense gas force with a mechanical element or an electronic transducer. That force becomes a dial indication or an electrical signal. Confirm the exact mechanism on the datasheet for your model. Don't assume a Bourdon tube, since WIKA's GDM-100 sheet describes a welded stainless-steel measuring element without naming one.
Accuracy is affected by:
- Temperature swings
- Calibration drift
- Vibration
- Installation conditions
How temperature compensation works
Three common compensation methods are used:
- Bimetal compensation: a bimetal link offsets temperature-related movement so the indication stays steady as temperature changes
- Reference-gas chamber: Trafag describes a sealed reference volume and metal bellows that compare the monitored gas against a defined reference
- Electronic calculation: WIKA's GDT-20 computes density from measured pressure and temperature

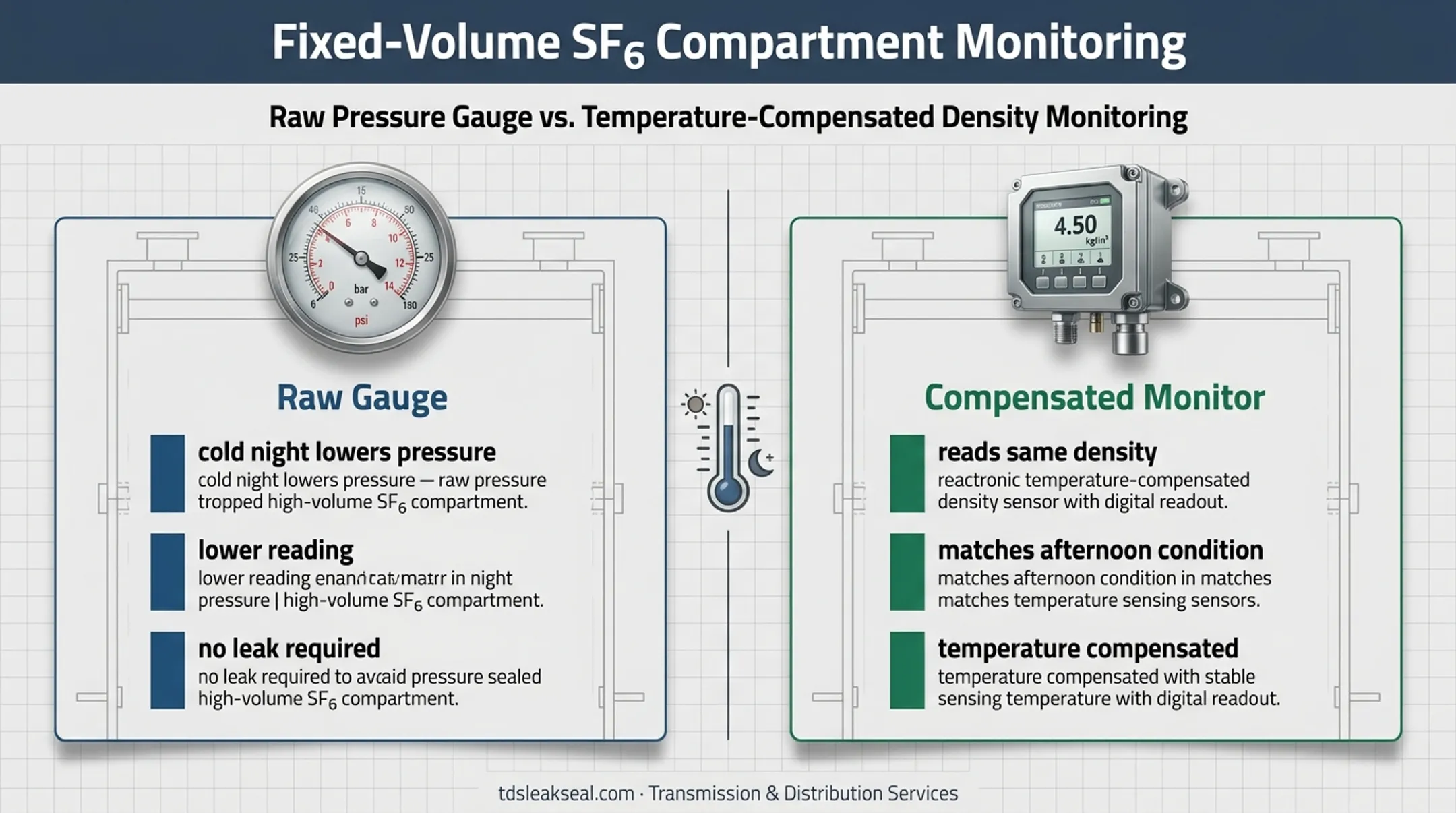

Conceptually: a cold night lowers pressure in a compartment with no leak. A raw gauge reads lower. A compensated monitor reads the same density as in the afternoon. That difference is why the two instruments aren't interchangeable.
Alarm, relay, and remote-monitoring functions
Density relays provide staged signals. The Alstom manual describes a first threshold as a warning and a lower one that can lock out or open the breaker. WIKA's GDM-100 offers rising or falling switching with normally open, normally closed, or changeover contacts. Confirm contact logic and fail-safe arrangement in the OEM documentation, since setpoints belong to the apparatus.
Digital systems trend pressure, temperature, density, alarm history, and rate of change. The GDT-20 documents Modbus RTU output with a 20 ms refresh. Trending supports diagnosis. It doesn't locate a leak.
SF6 Pressure Gauge vs Density Monitor: Which Is Appropriate?
| Feature | Pressure gauge | Density monitor/relay |
|---|---|---|
| Output | Direct local pressure | Compensated density indication |
| Temperature effect | Reading shifts with temperature | Corrected or normalized |
| Extras | Usually none | Alarm/lockout contacts, remote data |
| Best for | Local checks, filling, commissioning records | Low-gas alarms, interlocking, SCADA |
An ordinary gauge still has a place. It works for local checks, filling, and designs with clear pressure-temperature limits. The Alstom manual even calls for a separate 0 to 1 MPa gauge during filling, because the densimeter dial isn't precise enough for that job.
Choose a density monitor or relay when you need temperature-compensated status, automatic alarms, low-gas protection, or integration with substation monitoring. Many installations use both: one gives a visible local indication, the other supports compensated alarms and supervision.
Decision framework:
- Start with OEM requirements and the gas-compartment design.
- Define required accuracy and ambient temperature range.
- List alarm, lockout, and trip needs.
- Decide local versus remote monitoring.
- Check utility specifications and applicable US standards.
Selecting, Installing, and Maintaining Monitoring Equipment
Selection checks
Before buying or replacing, verify:
- Pressure or density range, and pressure reference (gauge or absolute)
- Accuracy at the expected temperature
- Temperature range and contact outputs
- Electrical interface, connection, and valve compatibility
- Enclosure rating and material compatibility

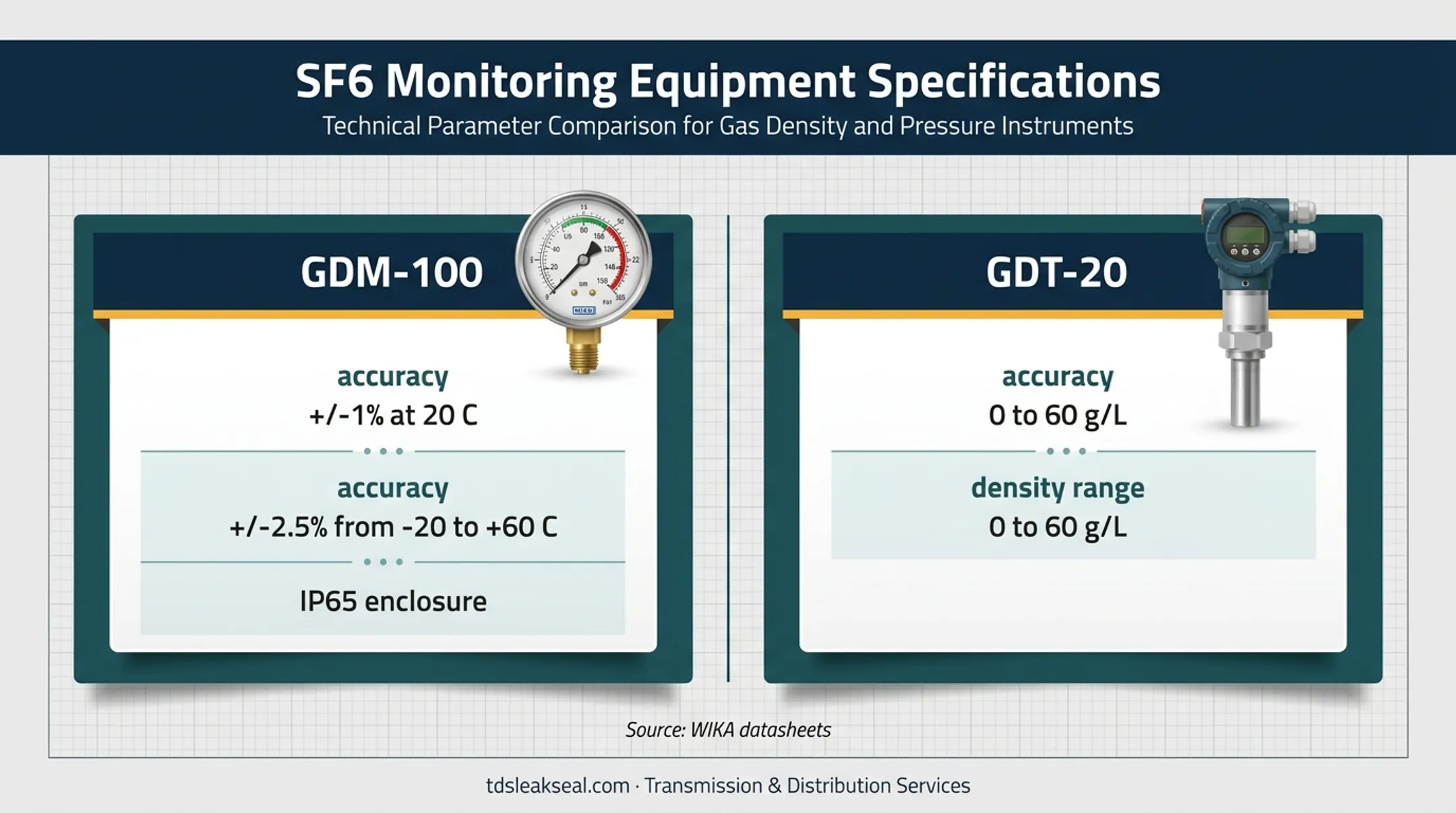

Datasheets vary widely. WIKA's GDM-100 lists ±1% accuracy at 20 °C and ±2.5% from -20 to +60 °C, with IP65. Its GDT-20 lists a density range of 0 to 60 g/L.
Treat these as model examples, not requirements for your equipment. WIKA's instructions also say to keep the instrument within its temperature limits.
Installation
Follow the manufacturer's procedure with qualified personnel, compatible valves, seals, and adapters, and approved SF6 handling. IEEE C37.122.3-2024 covers handling, recovery, refilling, and gas-quality checks.
Leak-test the new connection so the monitor doesn't become a new leak path. NIOSH notes that SF6 inhalation may cause asphyxia and liquid contact may cause frostbite.
Maintenance records
No universal interval is established. A CIGRE utility case reports five-year densimeter checks. The US Bureau of Reclamation calls for calibrating the gas-pressure meter and alarm/lockout switches to manufacturer requirements.
Check OEM, IEEE, IEC, NETA, and utility guidance for your equipment.
Log:
- Inspection dates and ambient temperature
- Local and remote readings
- Alarm tests and calibration or verification results
- Unusual trends and corrective actions
- Any SF6 recovery, filling, or testing
EPA inspections ask whether SF6 leaks are documented and whether an action plan exists to repair them, so good records serve compliance too.
Responding to Abnormal Readings and Suspected SF6 Leaks
Separating temperature from gas loss
Work through these checks:
- Record pressure and gas or tank temperature
- Compare against the OEM pressure-temperature curve
- Compare local and remote values
- Review historical data and confirm alarm status
The Bureau of Reclamation's guidance uses rated-density, alarm-density, and lockout-density curves for this. A steady decline that survives temperature correction points to gas loss.

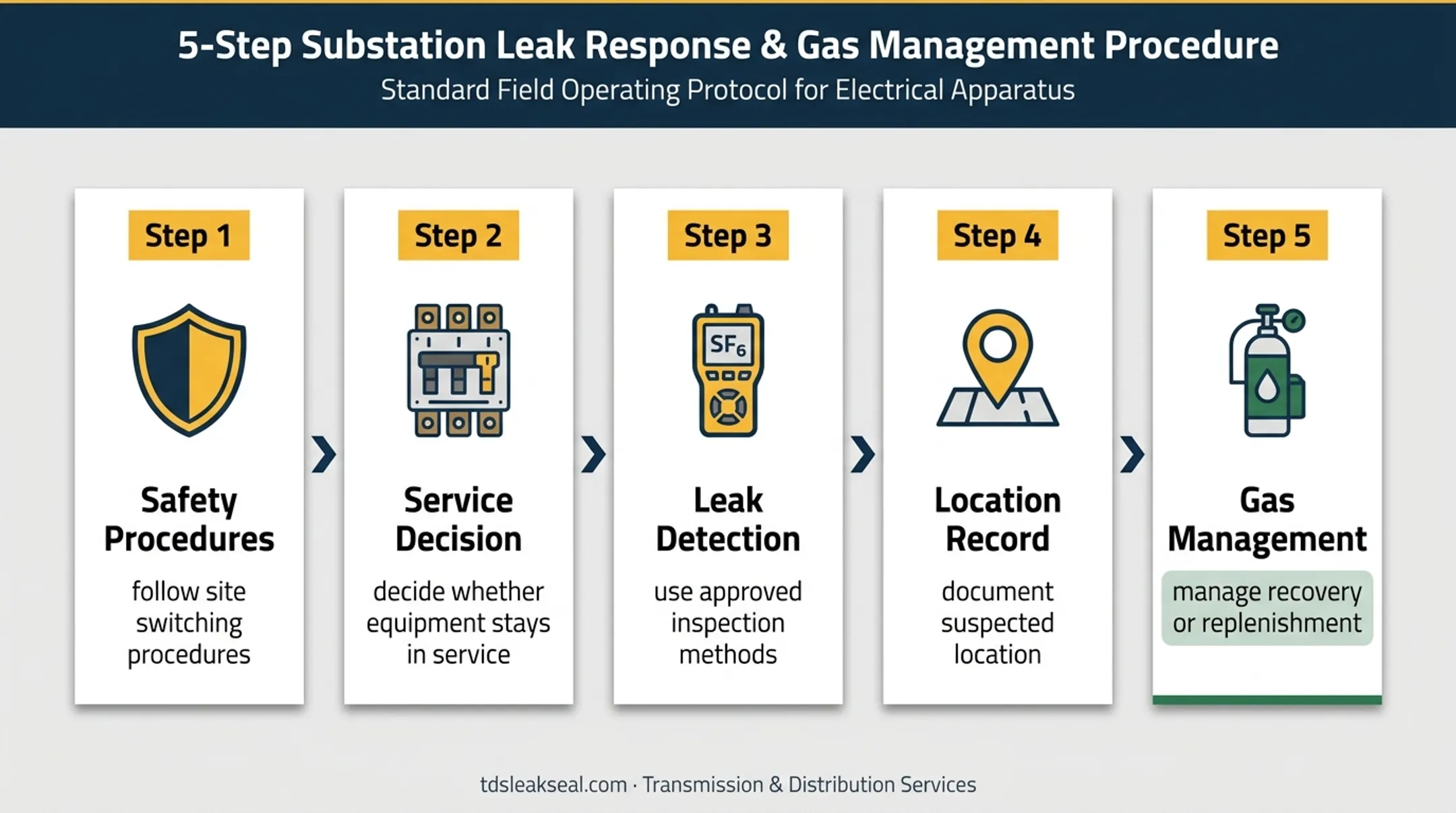

Qualified-response workflow
- Follow site switching and safety procedures.
- Decide whether the equipment can stay in service.
- Run an approved leak-detection inspection, such as a gas detector, soap-and-water check, or optical gas imaging.
- Document the suspected location.
- Manage recovery or replenishment under environmental and workplace requirements.
SF6 handling carries real environmental weight. EPA lists its 100-year global warming potential at 23,500, and IEC 62271-4 and IEEE C37.122.3 govern gas handling.
When the leak is confirmed
Transmission & Distribution Services specializes in substation leak surveys and low-pressure leak sealing for SF6-filled apparatus, including GIS piping, flanges, and seam welds. TDS does not manufacture gauges or density monitors.
Technicians assess the equipment and confirm the leak location before recommending a repair, and they fix only what is leaking. Many GIS and control-cabinet tubing repairs can be completed with the apparatus in service, though an outage may be needed for safe clearance.
Frequently Asked Questions
How do SF6 gas pressure gauges work?
A sensing element converts gas force into a dial movement or an electrical signal. Temperature still influences the reading in a sealed compartment, so interpret it with temperature data.
How do you measure SF6 gas?
Pressure gauges measure pressure, and density monitors measure temperature-compensated density. Purity, moisture, and dew point need separate tests with dedicated instruments.
What is gas density?
Density is mass per unit volume. In a fixed-volume compartment, it shows how much SF6 is actually present, regardless of temperature.
What is the difference between an SF6 pressure gauge and a density monitor?
A gauge reports pressure directly. A density monitor compensates for temperature, giving a more representative gas condition, and may include alarm or relay contacts.
How should operators respond to a low SF6 reading?
Verify temperature and instrument status, then follow site and OEM procedures. Leave gas handling to qualified personnel, investigate for leaks, and address environmental and equipment-protection requirements.
