SF6 is also a potent greenhouse gas. EPA's overview gives it a 100-year GWP of 23,500 and an atmospheric lifetime of more than 1,000 years, according to the EPA SF6 Basics page. Careless handling carries real cost.
Results depend on breaker design, gas compartment, ambient temperature, gas condition, calibrated equipment, and OEM requirements. Only trained, authorized personnel should do this work. This guide covers when to fill, preparation, controlled filling steps, key variables, mistakes, troubleshooting, and alternatives.
Key Takeaways
- Use the nameplate, OEM manual, and temperature-corrected density, never a generic pressure.
- Isolate, lock out, test for absence of voltage, and ground before work.
- Find and fix leaks first, and recover gas in a closed loop instead of venting.
- Analyze gas after fault exposure or compartment opening.
- Leak test, verify, and record before returning to service.
How to Fill SF6 Gas in a Circuit Breaker
This is a high-level workflow, not a replacement for the OEM procedure.
Step 1: Confirm the breaker condition, work scope, and safety controls
- Record the manufacturer, model, serial number, gas compartment, rated voltage, and the OEM filling instructions. Find the nameplate target and its reference conditions.
- Set up the switching plan, outage approval, lockout/tagout, isolation, and absence-of-voltage test before any gas work.
- Complete grounding, access control, and site PPE before connecting gas equipment.
- Decide whether this is a permitted top-up or a job needing leak repair, recovery, evacuation, and full refill. Abnormal pressure loss needs investigation, not a quick top-up.
Step 2: Prepare gas-handling equipment and the breaker
- Assemble a closed-loop gas cart or recovery unit with regulator, calibrated pressure or density instruments, weighing scale, approved hoses and couplings, and vacuum equipment if required.
- Add filters or dryers, a gas analyzer, a leak detector, and a suitable cylinder or recovered-gas container.
- Check calibration, cleanliness, pressure ratings, hose condition, valve operation, grounding, and compatibility of every connection. Secure the cylinder per site and transport rules.
- If the breaker was opened, had an internal fault, or holds suspect gas, analyze it for moisture, purity, and decomposition products first. Use the required PPE, ventilation, and decontamination controls.

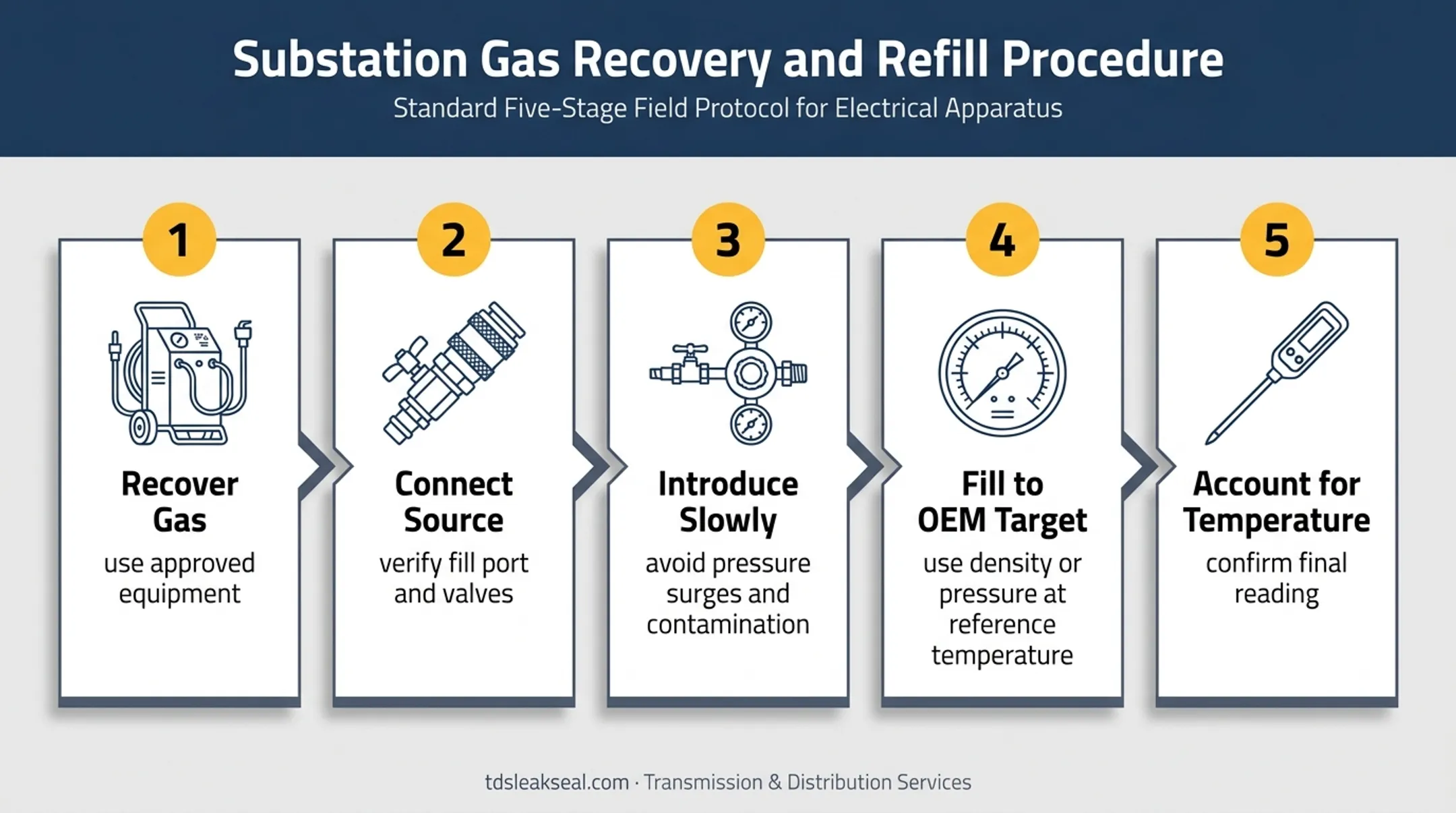

Step 3: Recover, evacuate, and fill as required
- Recover existing gas into approved equipment. If the compartment was opened or contaminated, follow the OEM procedure for evacuation and vacuum hold or decay checks.
- Connect the gas source to the correct fill port with approved hoses. Verify valve positions.
- Introduce gas slowly through the regulator to avoid pressure surges and contamination.
- Fill to the OEM density or pressure at the stated reference temperature, watching both gas mass and instrument readings.
- Account for temperature before accepting the final reading. Use cylinder heating or flow assistance only if the manufacturer and site procedure allow it.
EPA best practices point to gas-cart recovery for servicing, plus scales or the OEM temperature-pressure curve to confirm what gas remains.
Step 4: Final checks, leak testing, and documentation
- Close the gas supply, recover residual gas from hoses where required, and cap the fill connection.
- Inspect valves, fittings, seals, flanges, bushings, and density-monitor connections for leaks.
- Confirm the density or pressure indication is stable and matches the OEM requirement. If the gauge, density monitor, and temperature-corrected value disagree, find out why.
- Complete the required mechanical, control, interlock, insulation, and timing tests before energizing.
- Document the date, gas source, gas recovered and added, temperature, final reading, leak-test result, test results, and corrective actions.
When Should You Fill SF6 Gas and What Do You Need Beforehand?
Fill only after you understand why the reading is low. A refill should restore an approved gas condition. It should never hide an active leak, a failed monitor, or contaminated gas.
When SF6 filling is appropriate
Valid reasons include:
- Commissioning
- Approved maintenance
- Verified minor gas loss
- A repaired leak
Each differs from a full recovery and evacuation, which is the right call after internal work or contamination.
Stop work when you see:
- Repeated pressure loss
- Visible equipment damage
- Suspected arc by-products
- A failed density monitor
- Uncertain gas identity
- Missing OEM filling data
Equipment and system requirements
At minimum, you need:
- A compatible closed-loop recovery and filling system
- Calibrated pressure or density measurement
- A weighing device
- Approved connections
- Leak detection
- Gas analysis when applicable
- Vacuum equipment for procedures requiring evacuation
Ratings, connection types, and methods must match the breaker manufacturer's instructions. No universal gas cart setup exists.
Inputs, materials, and conditions
Gather these before you start:
- Correctly identified, clean, dry, compatible SF6 (new gas under IEC 60376; recovered gas assessed to IEC 60480 before reuse)
- Current OEM target values
- Recorded ambient and gas temperature
Check the rules that apply to your site as well:
- EPA GHGRP (40 CFR Part 98 Subpart DD): applies to qualifying transmission and distribution facilities, not every owner.
- California CARB and New York Part 495: phase-out schedules for new equipment, differentiated by voltage and short-circuit rating.
- Massachusetts 310 CMR 7.72: GIS owners must record SF6 added at least annually.
- Cylinder transport: SF6 ships as UN1080, Division 2.2, under 49 CFR requirements including §173.301.
- OSHA 29 CFR 1910.269: governs power generation, transmission, and distribution work.
Skill, safety, and leak-repair readiness
Confirm you have the following in place:
- Qualified high-voltage personnel
- Switching authority and lockout/tagout
- Proper grounding
- Cylinder-handling competence
- Adequate ventilation and PPE
- Controls for toxic or corrosive arc by-products
If a confirmed leak caused the low density, refilling alone won't solve it. Transmission & Distribution Services provides low-pressure leak sealing for SF6 gas-filled circuit breakers and GIS, often without traditional disassembly when conditions allow. Request an equipment survey to pinpoint the source.
Key Parameters, Common Mistakes, and Troubleshooting
Reliable filling depends on controlling measurement conditions, gas quality, leak tightness, and equipment setup. Reaching a number on a gauge is not enough.
Gas density, pressure, and temperature
Indicated SF6 pressure rises and falls with temperature. An OEM manual describes temperature-compensated switches and density relays that separate temperature effects from true gas loss.
Record ambient and gas temperature at the moment of the final reading. Then compare it with the exact OEM reference condition for that compartment.
Gas purity, moisture, and arc by-products
Moisture, air, or decomposition products can weaken insulation, damage handling equipment, and expose crews to hazards. Historical NBS guidance lists sulfur oxyfluorides, HF, and metal fluorides among possible by-products.
- Analyze gas after fault exposure, compartment opening, or any doubt about condition.
- Contain suspect gas. Never reuse it without assessment.
- Use specialized cleanup and disposal when by-products are present, following OEM and SDS guidance.
Leak tightness and connection integrity
A falling reading after filling usually means a leaking gasket, valve, flange, bushing, hose connection, or enclosure. Run a post-fill leak check with an approved method such as soap solution, bagging, thermal imaging, or optical gas imaging. Repair and retest any confirmed leak before service.

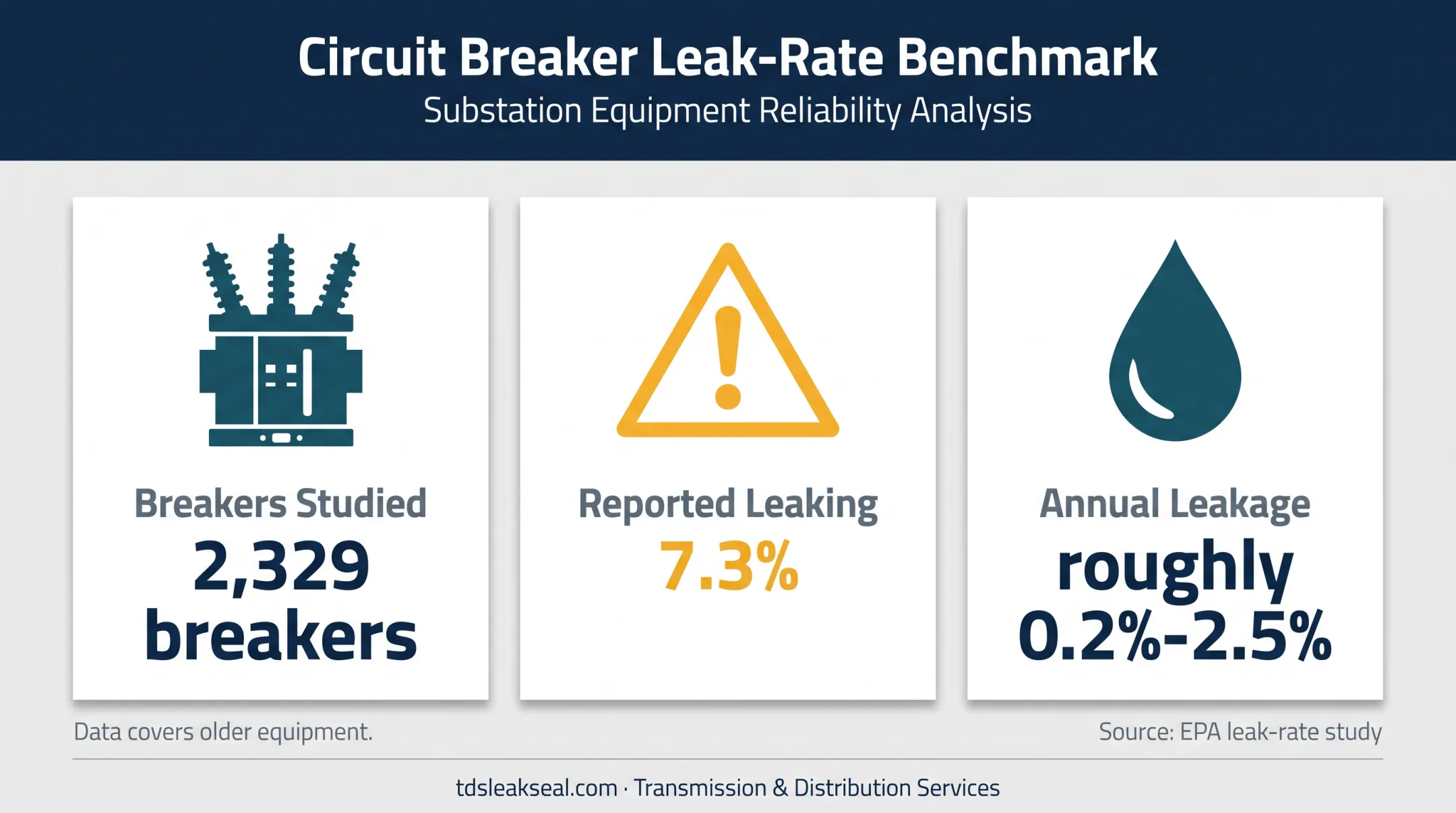

For context, an EPA leak-rate study of 2,329 breakers found 7.3% reported leaking, with weighted annual leakage of roughly 0.2%-2.5%. The data covers older equipment.
Instrument calibration and gas-mass control
Calibrated instruments and a verified scale expose overfilling, underfilling, supply problems, and future losses. When mass, pressure, density, and temperature disagree, resolve it before proceeding. Never force the process to a preset value.
Common mistakes to avoid
- Using a pressure value from another breaker
- Filling without the nameplate or OEM manual
- Ignoring temperature correction
- Adding gas before investigating repeated loss
- Bypassing a failed density monitor
- Using damaged, wet, or incompatible hoses and fittings
- Venting SF6
- Opening equipment without checking for by-products
- Skipping leak testing or functional checks
Troubleshooting common issues
- Pressure drops again: inspect for leaks, confirm monitor and gauge, review temperature changes, and repair the source before adding gas.
- Gauge and monitor disagree: verify calibration, compensation, reference conditions, connections, and monitor condition. Don't trust the higher or lower reading without diagnosis.
- Flow is slow, unstable, or stops: check regulator and valve positions, filters, hose restrictions, coupling compatibility, and remaining supply. Check cylinder temperature only through approved procedures.
- Analysis shows contamination: stop routine filling, contain the gas, use PPE and ventilation, and follow the OEM and hazardous-gas procedure.

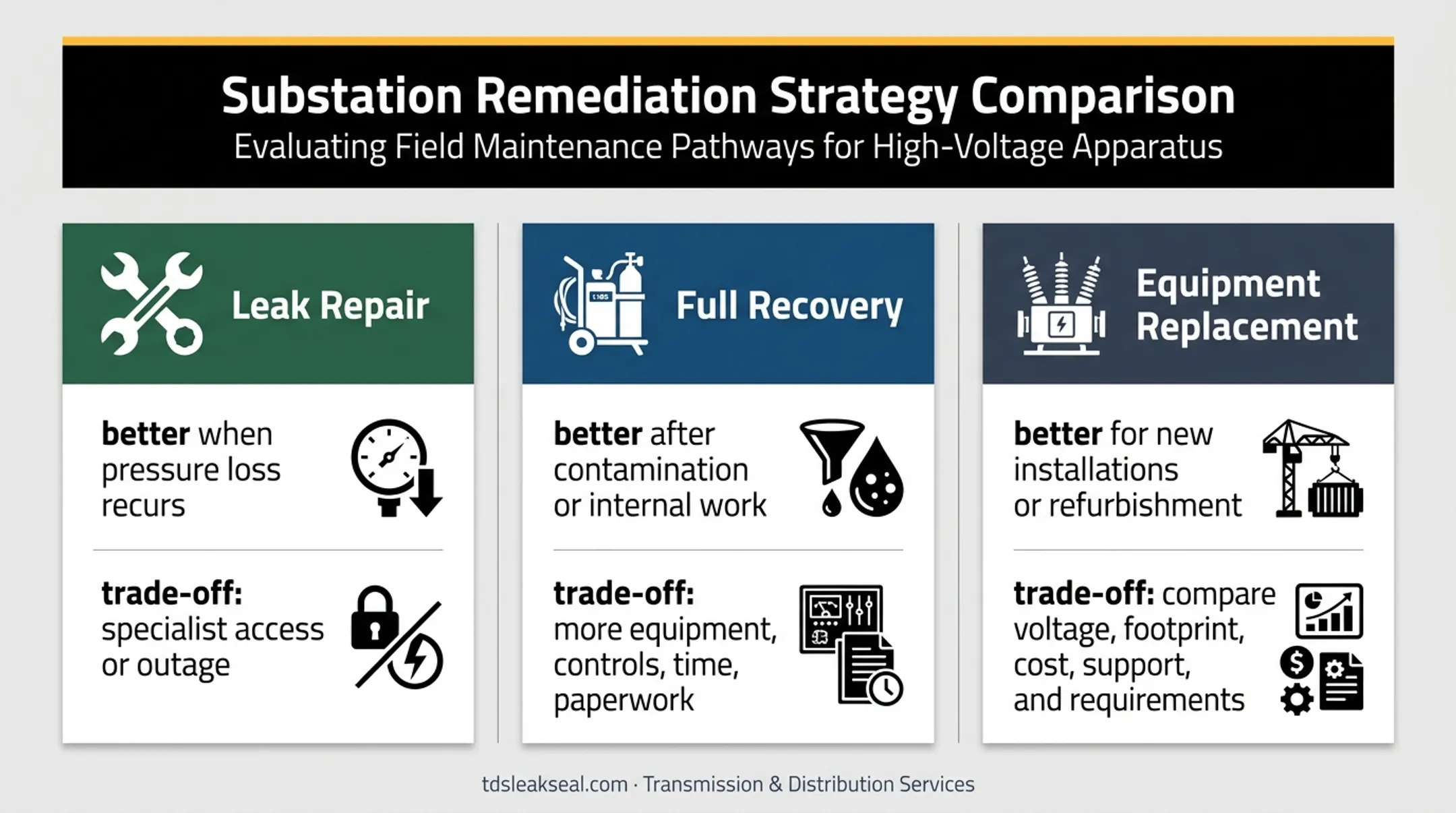

Alternatives to Filling SF6 Gas in a Circuit Breaker
Topping up is one response among several. The best choice depends on leak source, gas condition, equipment age, outage limits, and lifecycle plans.
Leak detection and repair before refilling
Better when: pressure loss recurs or you suspect a gasket, flange, valve, bushing, or enclosure leak. Typical SF6 breaker leaks occur between porcelain and base mounting flanges or at bushing end caps.
Trade-offs: repair may need specialist access or an outage. Refilling without sealing means repeat maintenance, emissions, and unreliable breaker condition.
Full recovery, evacuation, and recharge
Better when: internal maintenance, compartment opening, contamination, significant gas loss, or an OEM procedure calls for a clean evacuated compartment.
Trade-offs: more equipment, gas-quality controls, time, and paperwork than a top-up, but a more complete restoration.
SF6-free or vacuum-based equipment replacement
Better when: new installations, major refurbishment, environmental programs, or regulatory planning, where a compatible alternative exists for your voltage and interrupting duty.
Vendors list options such as Hitachi Energy's EconiQ dead-tank breaker (up to 420 kV), Siemens Energy's 8VN1 Blue GIS (up to 145 kV), and GE Vernova's g3 GIS. These are vendor-stated ratings, so confirm current U.S. availability.
Trade-offs: compare voltage capability, fault-interruption performance, footprint, OEM support, compatibility, procurement cost, outage needs, and U.S. state requirements.
Conclusion
Filling an SF6 breaker works best when breaker data, gas condition, equipment, temperature reference, and safety controls are confirmed first.
Most failures trace back to:
- Filling without diagnosing leaks
- Using generic pressure values
- Overlooking contamination
- Skipping final verification
The safest approach balances reliable breaker operation, emissions control, qualified workmanship, OEM requirements, and complete records. If a leak is driving your gas loss, TDS offers free equipment surveys that identify the leak location, repair method, and price.
Frequently Asked Questions
Why use SF6 gas in a circuit breaker?
SF6 insulates well and quenches the arc when contacts open. Its environmental impact makes leak prevention, recovery, and careful handling essential.
What is the pressure of SF6 gas in a circuit breaker?
There is no universal pressure. The value depends on the breaker model, gas compartment, temperature, and OEM nameplate or manual. Density-monitor guidance takes precedence where applicable.
How do you fill SF6 gas in a circuit breaker?
Qualified personnel isolate the breaker, prepare equipment, analyze or evacuate gas as needed, fill slowly to the OEM target, then leak test and run final functional checks.
What equipment is needed to fill an SF6 circuit breaker?
You need a compatible gas cart or recovery system, regulator, approved hoses and couplings, calibrated instruments, a scale, and a leak detector. Add an analyzer or vacuum equipment when required.
What happens if SF6 gas pressure drops in a circuit breaker?
Low pressure can reduce insulation and interruption performance. It may signal a leak, temperature change, or faulty monitor, so isolate and diagnose instead of simply adding gas.
Can SF6 gas be released into the atmosphere during filling?
No. Use approved closed-loop recovery and filling equipment, and follow applicable U.S. environmental, recovery, reporting, and site requirements.
