Introduction
SF6 keeps high-voltage equipment reliable. It also ranks among the most potent greenhouse gases in use, so even a slow leak from a single breaker carries real climate weight.
EPA estimates that about 67% of U.S. SF6 emissions in 2022 came from electrical transmission and distribution.
Maintenance, asset management, compliance, and substation operations teams share the same problem: cut emissions without causing outages or putting reliability at risk. Gas is expensive to replace, and EPA inspectors ask whether leaks are documented and being repaired.
This article covers where emissions come from, how to find them, how to handle and recover gas, when to repair versus replace, and how to build a documented program.
Key Takeaways
- Treat SF6 as a lifecycle program, from operation through decommissioning.
- Accurate inventories, leak detection, and verified repairs cut avoidable releases.
- Repair and recover gas before assuming a full replacement is needed.
- Check federal and state rules separately; obligations vary by jurisdiction.
Why SF6 Emissions Matter at Utility Substations
What SF6 Does and Why Utilities Use It
SF6 is a synthetic, colorless, odorless, nonflammable gas. It insulates and quenches arcs in circuit breakers and gas-insulated switchgear (GIS). Its dielectric strength far exceeds air or dry nitrogen, which allows compact designs. It is also chemically very stable.
That stability is also the problem. Once released, it stays in the atmosphere for thousands of years.
Climate Impact in Context

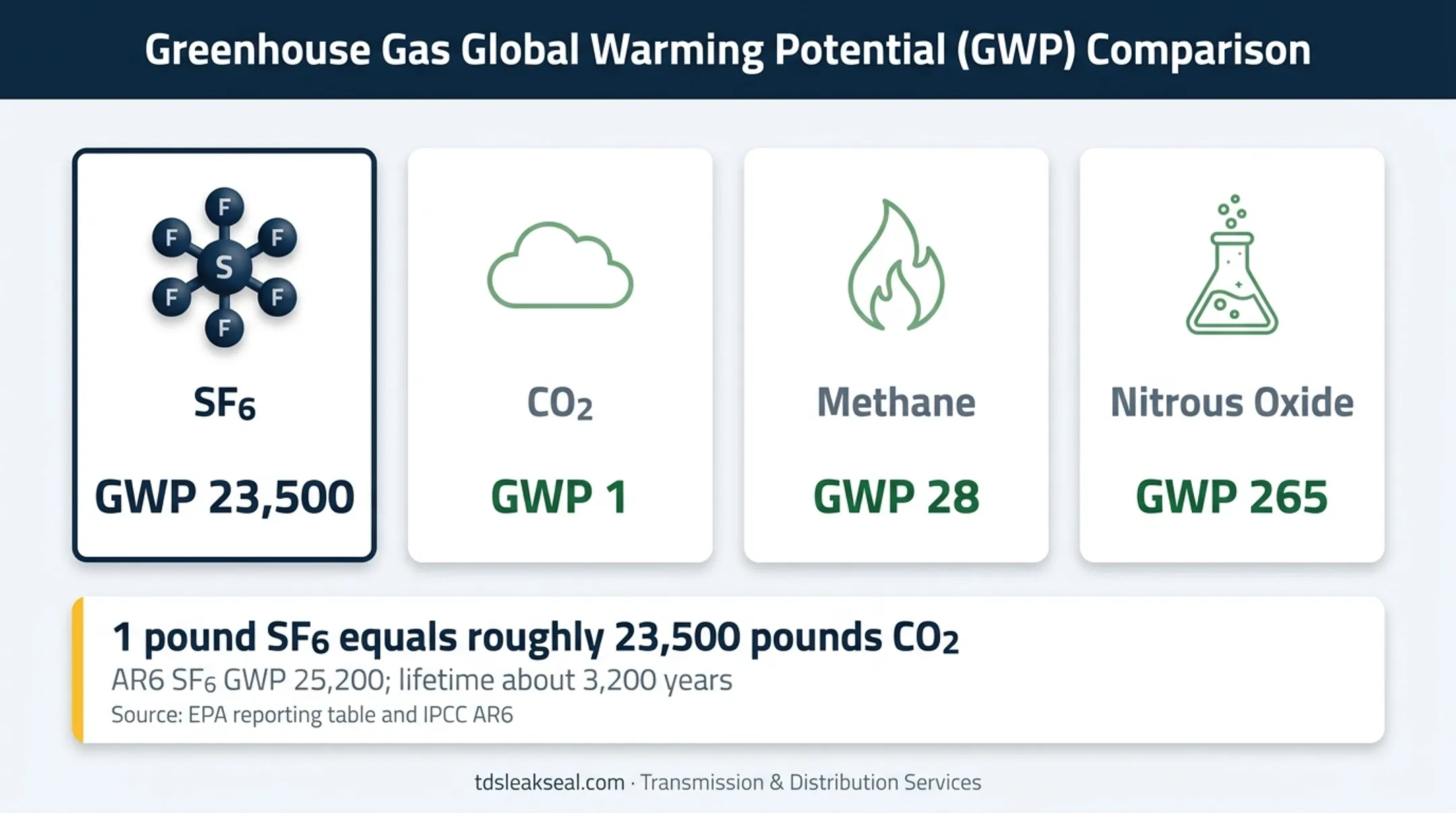

The current EPA reporting table assigns SF6 a 100-year global warming potential (GWP) of 23,500, compared with:
- CO2: 1
- Methane: 28
- Nitrous oxide: 265
The newer IPCC AR6 assessment gives SF6 a GWP of 25,200 and a lifetime of about 3,200 years. U.S. regulatory reporting uses the CFR table; the AR6 figure is a scientific comparison.
Volumes are small, so total emissions are modest. Even so, one pound of SF6 carries the warming effect of roughly 23,500 pounds of CO2.
Where Emissions Occur
Losses can happen at any stage:
- Equipment manufacturing and installation
- Commissioning and routine top-ups
- Leaks at flanges, bushings, drain valves, and seam welds
- Maintenance and gas transfers
- Equipment failure
- End-of-life retirement, disposal, and recycling
EPA's analysis of 2016 reporting data put manufacturing and end-of-life at about 12% each. Installation, operation, and servicing made up the largest share. Shares vary by year and utility.
Gasket failure is a common culprit. Gaskets at pipe flanges, bushing flanges, and drain valves degrade at end of life, and defective material or poor installation can speed that up.
Health and Safety
SF6 itself is inert under normal controlled conditions. The hazards are different:
- It can displace oxygen in poorly ventilated or confined spaces. OSHA treats atmospheres below 19.5% oxygen as deficient.
- Arcing creates decomposition products, including corrosive gases such as hydrogen fluoride.
- Odor is not a detection method.
Operational and Financial Consequences
Unmanaged leaks mean repeated gas purchases, questions about equipment condition, and exposure during EPA inspections. Repairs then compete for outage windows.
Con Edison shows what sustained effort achieves. After a long-running reduction program, it reported emissions below 10,400 lb in 2016 and a 4.88% emission rate. Those are historical, utility-reported figures, not a sector benchmark.
How Utilities Identify SF6 Emission Sources
Build the Inventory
You cannot reduce what you cannot trace. EPA best-practice guidance calls for equipment and cylinder inventories plus gas acquisition records. Collect for each asset:
- Equipment type, location, and manufacturer
- Nameplate capacity and current gas quantity
- Pressure or density readings
- Service, top-up, and leak history
- Cylinders and recovery carts used
Combine Inspection and Detection
No single method works everywhere. Common detection options include:
- Low-gas-density alarms that flag a problem but do not locate the leak
- Portable electronic detectors and soap solution, with reliability affected by wind, noise, and thoroughness
- Thermal and infrared imaging for minor chronic leaks that conventional methods miss
- Infrared laser scanning, which TDS uses to scan a whole breaker and record the leak as black smoke on video
Confirm each tool's limits and required training before relying on it.
Prioritize What to Fix First
EPA materials recommend addressing the worst-performing equipment first and weighing repair against replacement. Rank suspected leaks by:
- Equipment criticality and estimated release severity
- Accessibility and worker safety
- Regulatory significance
- Repair complexity
- Availability of an outage or maintenance window
Practical Ways to Reduce SF6 Emissions

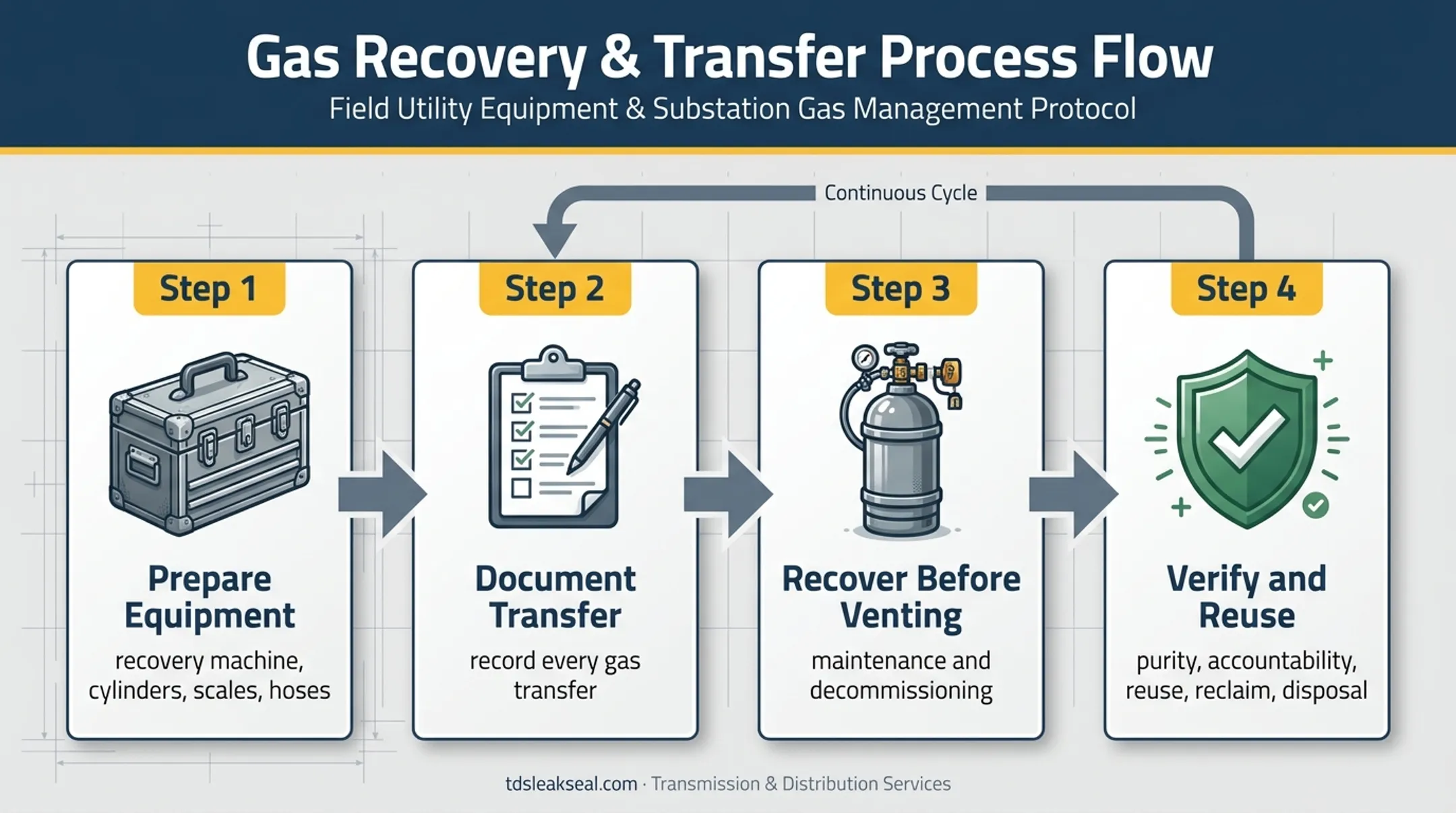

Closed-Loop Handling and Recovery
Most avoidable releases happen during filling, sampling, testing, and servicing. Control those steps with the right gear and a clear paper trail:
- Recovery machines, storage cylinders, calibrated scales, and leak-tight hoses
- Documentation of every transfer
- A "recover before venting" rule for maintenance and decommissioning
- Purity checks, cylinder accountability, and records of reuse, reclaim, or disposal
Repair the Component, Not the Whole Asset
Conventional bushing-gasket repairs require disassembly and leave the breaker out of service. Weigh leak location, gasket condition, equipment age, OEM guidance, and outage impact before choosing full teardown or a component-level fix.
A 2006 EPRI demonstration of an external sealing technique on a GIS flange and a breaker bushing interface found no leak by sniffer afterward. It was a demonstration, though, not proof of long-term performance.
Transmission & Distribution Services (TDS) is one specialist option. Its technicians work only in substations and use low-pressure sealing:
- A custom cast-aluminum clamp covers the leak point; rubber-based, nonadhering sealant is injected and typically cures in 20 minutes at 70°F.
- Cured-in-place gaskets replace OEM gasket material without traditional disassembly.
- Only the leaking component is repaired, and many jobs need no degassing.
- Energized work proceeds only when site conditions, safety procedures, and owner approvals allow; otherwise outages stay limited to switching, grounding, and access.
SF6-Free Alternatives
Plan for them in new construction and major replacements, but check availability for your voltage class and fault duty. Product claims are not proof of U.S. deployment.
| Technology | What is documented |
|---|---|
| Vacuum switching with clean-air insulation (Siemens) | Products up to 145 kV |
| g3 GIS (GE Vernova) | Product families up to 420 kV; confirm project status |
| Fluoroketone/air (ABB SafePlus AirPlus) | Medium-voltage compact switchgear |
| Schneider Electric for Southern California Edison | Planned medium-voltage project, installation from 2027 |
Also weigh climate conditions, footprint, OEM support, and total lifecycle cost.
Workforce and Contractor Controls
Emissions results also depend on how crews and contractors work on site:
- Written work procedures and SF6 handling training
- Job hazard analyses
- Confined-space and ventilation requirements
- Emergency response procedures
- Qualified supervision
- Post-work leak testing
How to Build an SF6 Reduction Program
Assign Ownership and Set a Baseline
Put operations, maintenance, environmental compliance, procurement, engineering, and contractors under one program, so gas inventory, repair decisions, reporting, and capital planning are managed together.
Build the baseline from:
- Purchases and installed inventory
- Gas added, recovered, and recycled
- Failures, detections, and repairs
- Decommissioning events
A mass-balance approach estimates total emissions but will not identify the leaking component, so accurate gas-flow records matter. The GHG Protocol Corporate Standard also covers SF6 as an organizational inventory framework.
Rank Actions by Time Horizon
- Immediate: leak repairs and handling fixes.
- Medium term: equipment refurbishment.
- Long term: SF6-free replacement.
Balance each against criticality, outage risk, safety, and capital.
Standardize the Work Package
For each intervention:
- Confirm the leak.
- Approve the work method.
- Plan isolation or energized-work controls.
- Recover gas where needed.
- Perform the repair.
- Test for leaks.
- Restore the apparatus and update the inventory.
- Retain evidence for compliance and asset records.
TDS follows a similar paper trail. Its survey lists the facility, equipment, leak location, repair price, and method, and its daily work logs tie back to the survey and establish the warranty.
Measure Progress
Track these metrics:
- Detected and repeat leaks
- Gas added per asset
- Gas recovered and reuse rates
- Repair completion time
- Avoided venting events
- Emissions intensity

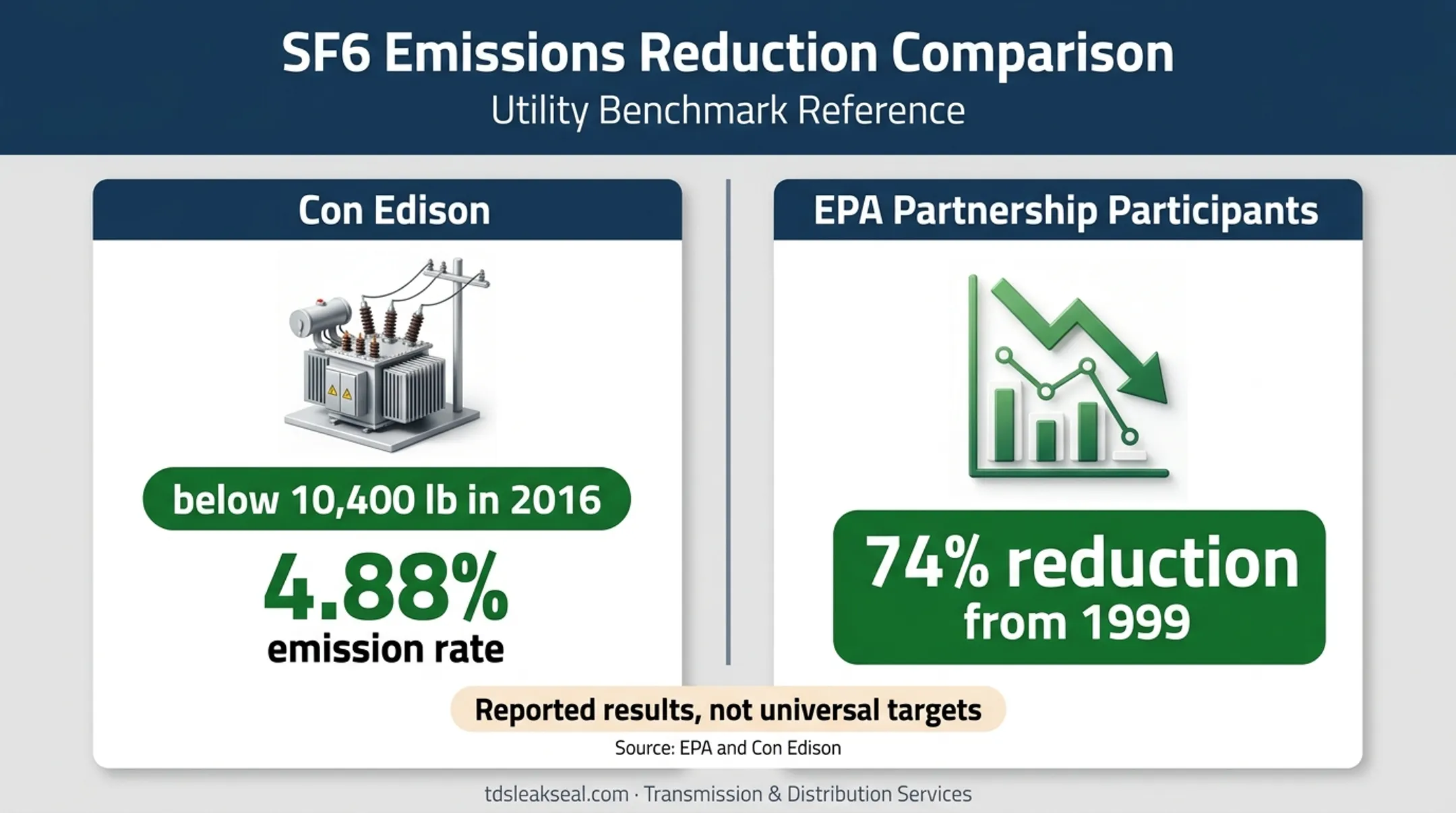

Treat external benchmarks with caution. EPA reported that partnership participants cut emissions 74% from 1999, but that partnership is no longer active. Con Edison's results are specific to its system. Neither figure is a universal target.
US Compliance and Emissions Reporting Considerations
Federal Requirements
Subpart DD of the Greenhouse Gas Reporting Program (40 CFR Part 98) covers electrical transmission and distribution equipment. The current reporting threshold is estimated annual emissions of 25,000 metric tons CO2e, calculated from nameplate capacity, gas weight fractions, GWP, and a prescribed emission factor.
The old 17,820 lb nameplate figure is a historical equivalency, not a current threshold.
Recent changes:
- EPA's 2024 rule updated Table A-1 GWPs, effective January 1, 2025.
- A September 2025 proposal would remove reporting for many source categories. It is a proposal, not a repeal.
- A later action extended the reporting-year 2025 deadline to March 10, 2027 and made no other changes to Part 98.
EPA's partnership guidance is voluntary. Subpart DD is binding.
State Rules
| State | Point to check |
|---|---|
| California | CARB phases out new SF6 equipment by voltage and category, 2025 through 2033 |
| Massachusetts | 310 CMR 7.72: 1% maximum annual leak rate for GIS bought after 2015 |
| New York | Part 495: voltage-based phaseout from 2027; 1% systemwide limit from 2030 |
| Washington | WAC 173-441-124 sets reporting requirements, not an equipment phaseout |
Audit-Ready Records
Support every calculation with records that cover:
- Beginning and ending inventory
- Purchases, transfers, and additions
- Recovery, recycling, and disposal
- Nameplate data and asset identifiers
- Leak events and repair dates
Assign someone to track regulatory updates. Retain the methodology, source documents, calibration records, work orders, and contractor documentation. Also check utility commission expectations and contract terms.
Frequently Asked Questions
How does SF6's global warming potential compare to other greenhouse gases?
On a 100-year basis, EPA's reporting table lists SF6 at a GWP of 23,500, versus 1 for CO2 and 28 for methane. Its lifetime of about 3,200 years means releases are effectively permanent.
Is sulfur hexafluoride harmful to humans?
Direct toxicity is low under controlled conditions. The risks are oxygen displacement in confined spaces and toxic byproducts from arcing. Ventilation, PPE, and trained handling are essential.
What is SF6?
Sulfur hexafluoride is a synthetic, colorless, odorless, nonflammable gas. Utilities use it as an insulating and arc-quenching medium in high-voltage equipment.
How can utilities reduce SF6 emissions at substations?
Detect leaks early, recover and reuse gas, repair promptly, track inventory accurately, and train workers. Evaluate SF6-free equipment for new or replacement projects.
Can an SF6 leak be repaired without taking equipment out of service?
Sometimes. Some sealing methods avoid full disassembly, and energized repair may be possible in limited, approved cases. Feasibility depends on the leak, equipment design, site hazards, utility procedures, and OEM requirements.
