Keeping gas pressure in range isn't enough, though. Gas quality, leak tightness, mechanism movement, contacts, controls, and insulation all have to stay within manufacturer limits. CIGRE's survey of single-pressure SF6 breakers rated 60 kV and above (CIGRE TB 510) counted 840 major failures and 6,655 minor failures across 281,090 breaker-years. That is a historical sample, not a current U.S. rate.
This guide covers maintenance types, warning signs, scheduling, safety, and when specialized leak sealing makes sense.
Key Takeaways
- Good maintenance combines gas management, leak detection, mechanical checks, electrical testing, and records.
- Set intervals from the OEM manual, duty, fault history, environment, and test trends.
- Low-density alarms, repeated gas loss, and abnormal timing need prompt qualified review.
- SF6 handling requires trained people, proper equipment, PPE, and current U.S. compliance.
Why Maintenance of SF6 Circuit Breakers Is Important
Preventive work supports dependable fault clearing, grid stability, and the long-term value of substation assets. Neglect shows up in a few predictable places:
- Low gas density: Reclamation's FIST 3-16 guidance notes that opening below the lockout density can cause catastrophic failure. Alarm and lockout values come from the manufacturer's curves.
- Moisture and contamination: Gas analysis checks moisture, SO2, and purity. Arcing also creates corrosive by-products.
- Contact and mechanism wear: Arcing contacts absorb most interruption damage, and the same guidance identifies the operating mechanism as the most common SF6-breaker failure point.
Condition-based servicing can extend useful life and avoid premature part replacement. It cannot substitute for replacing parts that exceed manufacturer wear limits.
Environmental and Compliance Stakes
EPA lists a 100-year global warming potential of 23,500 for SF6, with an atmospheric lifetime above 1,000 years. Other assessments publish higher values, so use the figure your reporting framework requires and name that source. A leak is therefore both an operating problem and a reporting problem.
Rules differ by jurisdiction:
- Federal: Under 40 CFR Part 98 Subpart DD, the reporting entity is the commonly owned electric power system, not an individual breaker. An interim final rule moves reporting-year 2025 submissions to March 10, 2027.
- California: CARB restricts acquisition of new SF6 equipment on a voltage and short-circuit-rating schedule, starting in 2025 for some classes. It isn't an order to retire existing breakers.
- Massachusetts and New York: Massachusetts limits GIS leak rates and requires annual records of gas added. New York's Part 495 begins phasing in requirements in 2027.
Check your utility's own procedures too.
Cost Consequences
Planned inspection and targeted repair almost always cost less than emergency response. ITC's utility case, presented at an EPA conference, tied leak-history review and repair to fewer shutdowns and refill visits. The drivers are outage exposure, equipment damage, repeated gas refills, and unnecessary full disassembly.
Types of Maintenance for SF6 Circuit Breakers

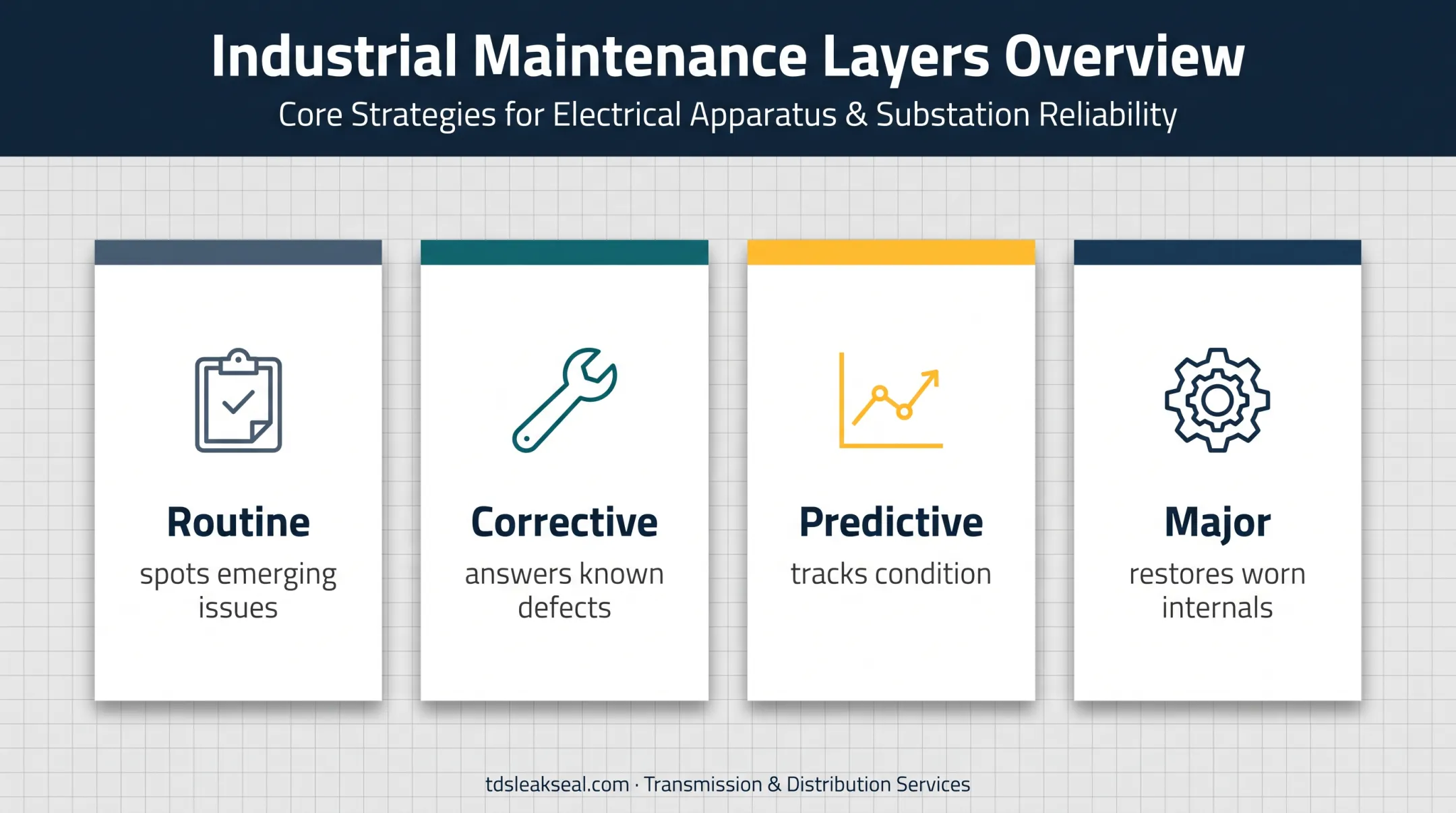

Think of maintenance as layers. Routine work spots emerging issues, corrective work answers known defects, predictive work tracks condition, and major work restores worn internals.
Routine / Preventive Maintenance
Scheduled, non-invasive tasks include:
- Visual inspection of enclosures, seals, and fittings
- Density-monitor checks and alarm verification
- Control-cabinet and heater checks
- Operating-counter review
- Manufacturer-approved lubrication
These checks are enough when readings stay stable and in range. Cost depends on breaker count, access, and outage needs, so there is no standard price.
Routine inspection doesn't authorize opening energized equipment or handling SF6 without qualified personnel, isolation procedures, and proper equipment.
Corrective / Reactive Maintenance
Typical triggers:
- Low-density alarm or confirmed leak
- Failed timing result or abnormal contact resistance
- Control-circuit defect
- Failed trip or close operation
- Damage after a fault
Repeated resets or gas top-ups are not a fix. They hide the root cause. Waiting for failure raises outage, safety, emissions, and equipment-damage risk. Early detection allows a targeted response.
Predictive / Condition-Based Maintenance
Trend data guides service decisions:
- Gas density, purity, and moisture
- Leak surveys
- Contact timing
- Static or dynamic resistance
- Insulation tests and partial discharge
- Thermography
- Operating counts and fault duty
EPRI describes dynamic resistance measurement as an offline, nonintrusive assessment of arcing contacts, though its 2023 program was still refining waveform interpretation. Limits must come from the manufacturer, applicable standards, and qualified testers, not generic internet thresholds.
Major / Overhaul Maintenance
Deep servicing typically includes:
- Controlled SF6 recovery
- Internal inspection
- Interrupter and arcing-contact assessment
- Seal replacement and mechanism servicing
- Alignment checks
- Gas filtration or replacement
- Post-maintenance testing
It may be required by manufacturer instructions, excessive operations, severe fault duty, abnormal results, aging components, contamination, or persistent leaks. Plan the outage early and bring in specialists.
How to Check If an SF6 Circuit Breaker Needs Maintenance
Treat the signs below as prompts for documented investigation. They are not permission for unqualified staff to open, operate, or test high-voltage equipment. Compare every reading with normal operating data and manufacturer limits.
Performance or Output Changes
Watch for:
- Slow, inconsistent, or failed opening and closing
- Abnormal timing or failure-to-operate indications
- Protection anomalies
- A breaker that can't reach its ready state
Trends matter more than single readings. A timing or resistance result drifting from prior tests can reveal mechanical wear, contact problems, linkage issues, or insulation deterioration before a complete failure. Timing outside OEM specifications can impair fault clearing or damage the breaker.
Unusual Behavior or Operation
Qualified staff should diagnose:
- Abnormal noise, vibration, or sluggish movement
- Odd hydraulic or spring behavior
- Repeated alarms, unexpected operations, and unexplained lockouts
Don't dismiss them. Reclamation warns that long idle periods can degrade the mechanism and cause faulty operation, and standby breakers hide that deterioration.
Visible Wear, Errors, or Irregularities
Inspect from a safe distance for:
- Corrosion or damaged enclosures
- Deteriorated seals and loose fittings
- Moisture or oil intrusion, where applicable
- Abnormal pressure or density indicators
- Contaminated control cabinets
SF6 is colorless and odorless, according to NIOSH, so you can't see or smell a leak. A suspected leak becomes a confirmed one only after a detector or other approved method finds it. TDS uses infrared laser scanning, which shows the leak as black smoke on recorded video. Soapy water, handheld detectors, and ultrasonic tools can fail in wind and noise.
Increased Resource Consumption
Repeated top-ups, rising leak readings, frequent control-power resets, and growing service calls point to a seal, valve, enclosure, or mechanism defect. Adding gas without locating the leak masks deterioration, raises emissions risk, and leaves the breaker exposed to low density or contamination.
Recurring Issues or Downtime
Repeated low-pressure alarms, failed tests, nuisance trips, repairs that don't hold, and unplanned outages call for a structured condition assessment.
For leaks, Transmission & Distribution Services specializes in low-pressure sealing of SF6-filled breakers and other substation equipment. Its free survey identifies the equipment, leak location, repair method, and price.
Many repairs avoid traditional disassembly, and some are completed while equipment stays in service when site conditions and safety procedures allow. A porcelain-to-flange gasket repair takes roughly four hours. TDS cites a four-year leak-seal warranty; confirm current terms with the company.
SF6 Circuit Breaker Maintenance Schedule (General Guidelines)
No universal interval is safe for every SF6 breaker. Build the schedule from the OEM manual, design, operating count, fault interruptions, gas condition, environment, history, regulatory duties, and monitoring data.
Maintenance Frequency Table

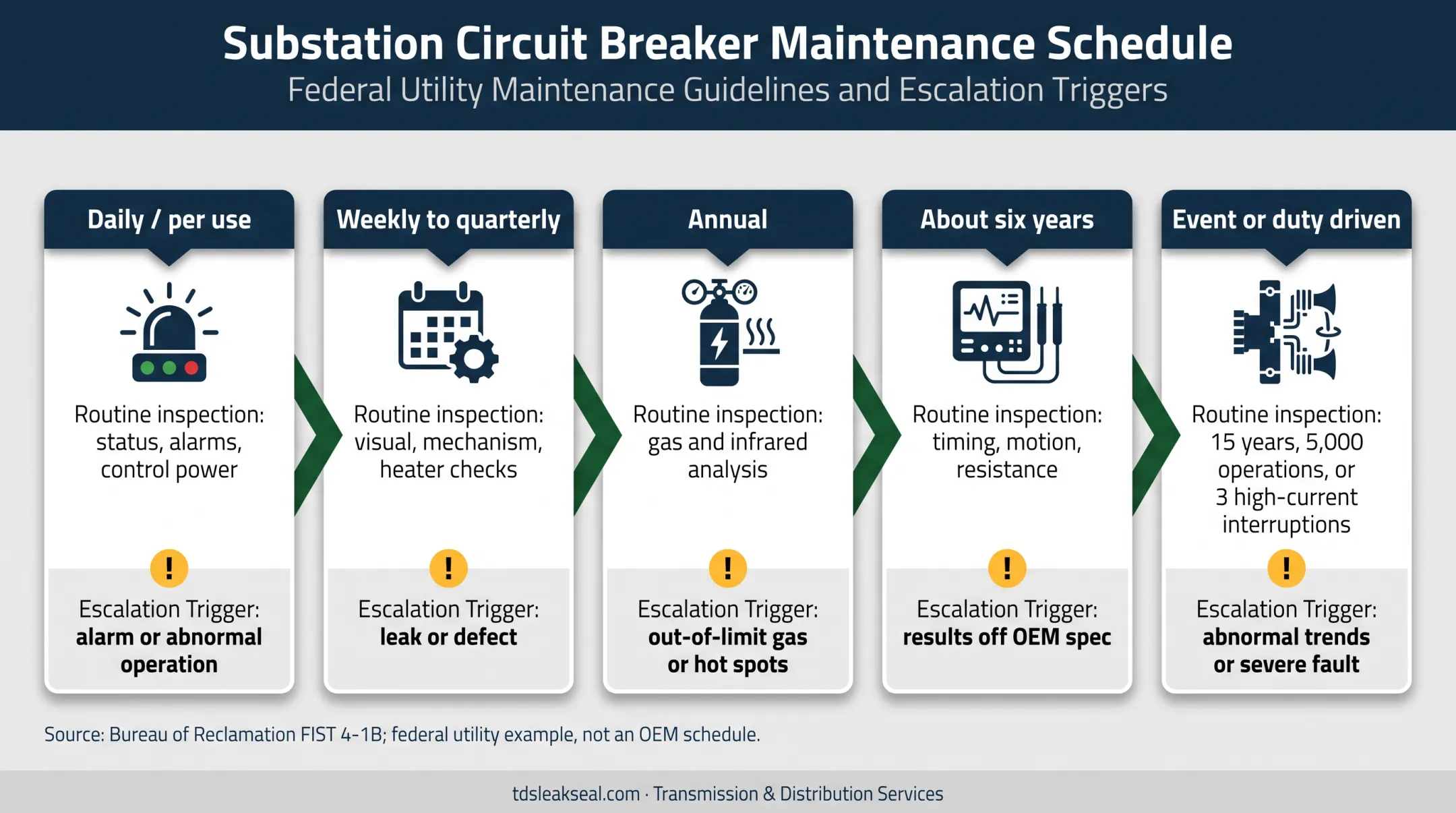

The Bureau of Reclamation's FIST 4-1B is a federal utility example, not an OEM schedule:
| Stage | Typical tasks | Who | Escalate when |
|---|---|---|---|
| Daily / per use | Status, density alarms, control power, operation reports | Operators | Alarm or abnormal operation |
| Weekly to quarterly | OEM-defined visual, mechanism, heater, and enclosure checks | Trained maintenance staff | Leak indication or defect |
| Annual | Visual inspection, gas analysis, infrared analysis (Reclamation) | Qualified testers | Out-of-limit gas or hot spots |
| About six years | Timing/motion, control tests, contact resistance (Reclamation) | Qualified testers | Results off OEM spec |
| Event or duty driven | Internal inspection or overhaul: 15 years, 5,000 operations, or 3 high-current interruptions (Reclamation) | OEM or specialist | Abnormal trends, severe fault |
Retain gas readings, test data, and alarm history at each stage.
Adjusting the Schedule to Site Conditions
Shorten intervals for:
- High fault duty or frequent switching
- Outdoor exposure, salt, or industrial contamination
- Temperature extremes
- Tight outage windows
Cold matters in particular: heaters control moisture and prevent SF6 liquefaction, which affects arc interruption.
A rarely switched breaker may still need mechanism exercise, while a busy one wears faster. Treat any example interval as a reference point, not a mandate, unless the manufacturer or standard says so.
Documentation and Review
Keep a lifecycle record for each breaker:
- Gas measurements and leak locations
- Test methods and instrument details
- Operating counts and fault interruptions
- Repairs, replaced parts, and technician notes
- Post-maintenance results
Trend reviews justify targeted repairs, coordinate outages, expose repeat defects, and demonstrate compliance.
Federal Subpart DD records must be kept at least three years after report submission, and California requires five calendar years. EPA inspections also ask whether leaks are documented and an action plan exists.
Safety Considerations
Clean SF6 and arced gas are different hazards. NIOSH lists asphyxiation among exposure effects, and the gas is about five times denser than air.
Arcing creates by-products such as SOF2, HF, and metal fluorides, according to EPA's chemistry review, which irritate skin, eyes, and lungs.
Follow OSHA 1910.269 for utility work and 1910.146 where permit spaces apply. Core controls include:
- Trained personnel for SF6 handling
- Gas analysis before entry or work
- Ventilation in confined or low-lying areas
- PPE matched to clean SF6 and arced by-products
- Closed-cycle recovery equipment
Conclusion
SF6 breaker maintenance protects fault-interruption capability, personnel, the environment, and asset life. The right plan blends:
- Routine inspection
- Condition-based testing
- Safe gas handling
- Timely leak repair
- OEM-directed overhauls
Investigate warning signs early. When leaks, internal defects, or complex testing exceed what the site team can handle, bring in qualified specialists.
Frequently Asked Questions
What is the 80% rule for SF6 circuit breakers?
No authoritative source defines a general "80% rule" for SF6 breakers. Don't apply it to pressure, density, interrupting capability, or maintenance without confirming the equipment standard or OEM guidance.
How often should an SF6 circuit breaker be maintained?
Routine checks, condition-based testing, and major servicing run on different intervals. The OEM manual, duty, environment, fault history, and test results set them.
What maintenance does an SF6 circuit breaker require?
Gas density and quality checks, leak detection, mechanical inspection, contact and mechanism testing, timing and insulation tests, and records. Controlled gas recovery applies when the enclosure must be opened.
What are the signs of SF6 circuit breaker failure?
Low-density alarms, repeated gas loss, abnormal timing, failed electrical tests, odd mechanism behavior, seal damage, recurring lockouts, and unexplained protection events.
Is SF6 gas dangerous during circuit breaker maintenance?
Uncontaminated SF6 is mainly an asphyxiant, while arcing by-products are toxic and corrosive. Use qualified technicians, gas analysis, PPE, ventilation, and recovery equipment, and follow current U.S. requirements.
Can an SF6 circuit breaker leak be repaired without an outage?
Some external leaks can be sealed without disassembly, or while equipment stays in service, when design, leak location, risk assessment, and utility procedures permit. Internal overhaul and electrical testing still require an outage.
