The maintenance question is hard to answer from the ground. A falling oil level may just be a cold night. Persistent loss is different. It can threaten insulation, cooling, spill-compliance obligations, and availability.
This guide covers how the conservator works, where it tends to leak, how to confirm a leak, and what repair options exist for utility and substation maintenance teams.
Key Takeaways
- A conservator keeps the main tank full of oil as temperature and load change.
- Check flanges, gaskets, welds, the oil level gauge, breather connections, valves, and the connecting pipe.
- Read oil level against top-oil temperature and the gauge's marks, not a fixed percentage.
- Qualified personnel must choose the repair method, and early leaks may suit targeted sealing over teardown.
What Is a Transformer Conservator Tank?
A conservator is an auxiliary reservoir mounted above the main tank. It connects through a pipe, and it gives oil somewhere to go as its volume changes with temperature. According to USBR's transformer guide, in free-breathing designs the oil level in the conservator rises and falls with temperature.
The operating cycle
- Load and ambient heat warm the oil, and it expands toward the conservator.
- As the oil cools, it contracts and returns toward the main tank.
- The core and windings stay immersed throughout.
Breather, gauge, and related components
In a free-breathing system, air moving in and out passes through a desiccant breather to limit moisture. Bladder or diaphragm designs separate the oil from the atmosphere, and the dry side breathes through the desiccant dryer.
Other parts matter for leak work:
- A magnetic oil level gauge, which uses a float and magnetic coupling
- The connecting pipe and its valves
- A Buchholz relay, where fitted, which responds to gas accumulation and oil surge from internal faults
- An air cell or diaphragm, depending on the design
Normal oil level and the "80% rule"
There is no universal fill percentage. USBR describes temperature-compensated high and low marks, with a center mark normally associated with 25°C (77°F). Gauge interpretation depends on oil temperature and the specific design. Check the OEM manual and nameplate for your unit rather than relying on a rule of thumb.

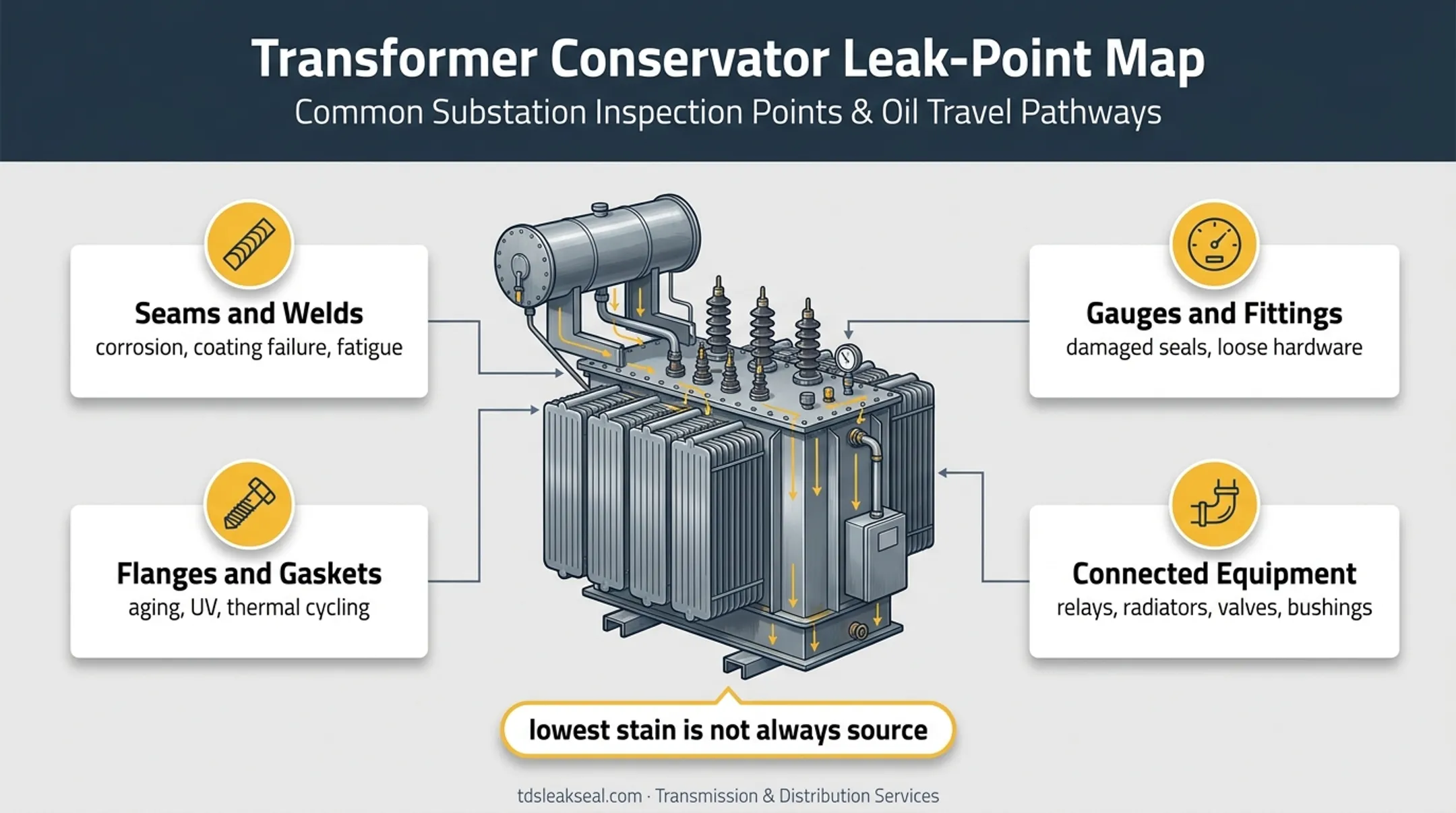

Common Transformer Conservator Tank Leak Points
These points are not ordered by how often they leak. Use the list as an inspection map rather than a probability table.
Seams, welds, and shell surfaces
Corrosion, coating failure, mechanical stress, and fatigue can turn a seam into a seep. EPRI's maintenance guide lists welded and cemented parts among potential leakage locations and calls for inspecting corroded areas.
Flanges, covers, and gasketed joints
Gaskets age. Heat, UV exposure, abnormal operating conditions, and compression set all contribute, and thermal cycling works the joint every day. Improperly installed or incompatible cover gaskets add to the problem. USBR also ties joint performance to gasket material, sealing-surface preparation, and bolt torque.
TDS notes that bolted lids are common on older transformers, while most new lids are welded.
Gauges and small fittings
- The oil level gauge and its mounting flange (damaged seals, loose hardware, cracked housings)
- Breather pipe and air-cell or diaphragm connections
- Drain valves and sampling points
- Threaded connections for temperature probes and no-load tap changers
Small fittings often leak slowly. A leaking gauge can also read unreliably while oil escapes.
Connected equipment
Inspect the conservator-to-main-tank pipe, the Buchholz relay, valves, radiators, bushings, and tap-changer connections. Oil travels along surfaces, so the lowest stain is not always the source. Flapper and butterfly valves between radiators and the main tank are documented gasket-leak sources.
Separate true leaks from old residue or maintenance spillage. Wipe, mark, and watch before you conclude anything.
How to Inspect and Confirm a Conservator Tank Leak
Start with safety
- Use qualified substation personnel and the owner's switching and energized-equipment procedures.
- Follow OSHA 29 CFR 1910.269 for work on power transformation and distribution equipment.
- Do not tighten or disturb components without approval.
- Stage spill containment first.
Spill rules depend on the site. Under EPA's SPCC rule (40 CFR Part 112), the aboveground storage threshold is generally more than 1,320 gallons, but applicability is not automatic for every substation.
Run a documented visual inspection
Record these at each inspection:
- Oil level and gauge pointer position
- Top-oil and ambient temperature
- Load condition
- Wetness pattern, staining, and corrosion
- Condition of each accessible flange, weld, valve, breather, and connection
Compare the gauge to top-oil temperature. The pointer should correspond reasonably to the temperature-related marks.
Where the unit has a bladder or diaphragm, visible oil on top of it indicates a leak. That check is done with the transformer offline and under clearance.
Confirm the source

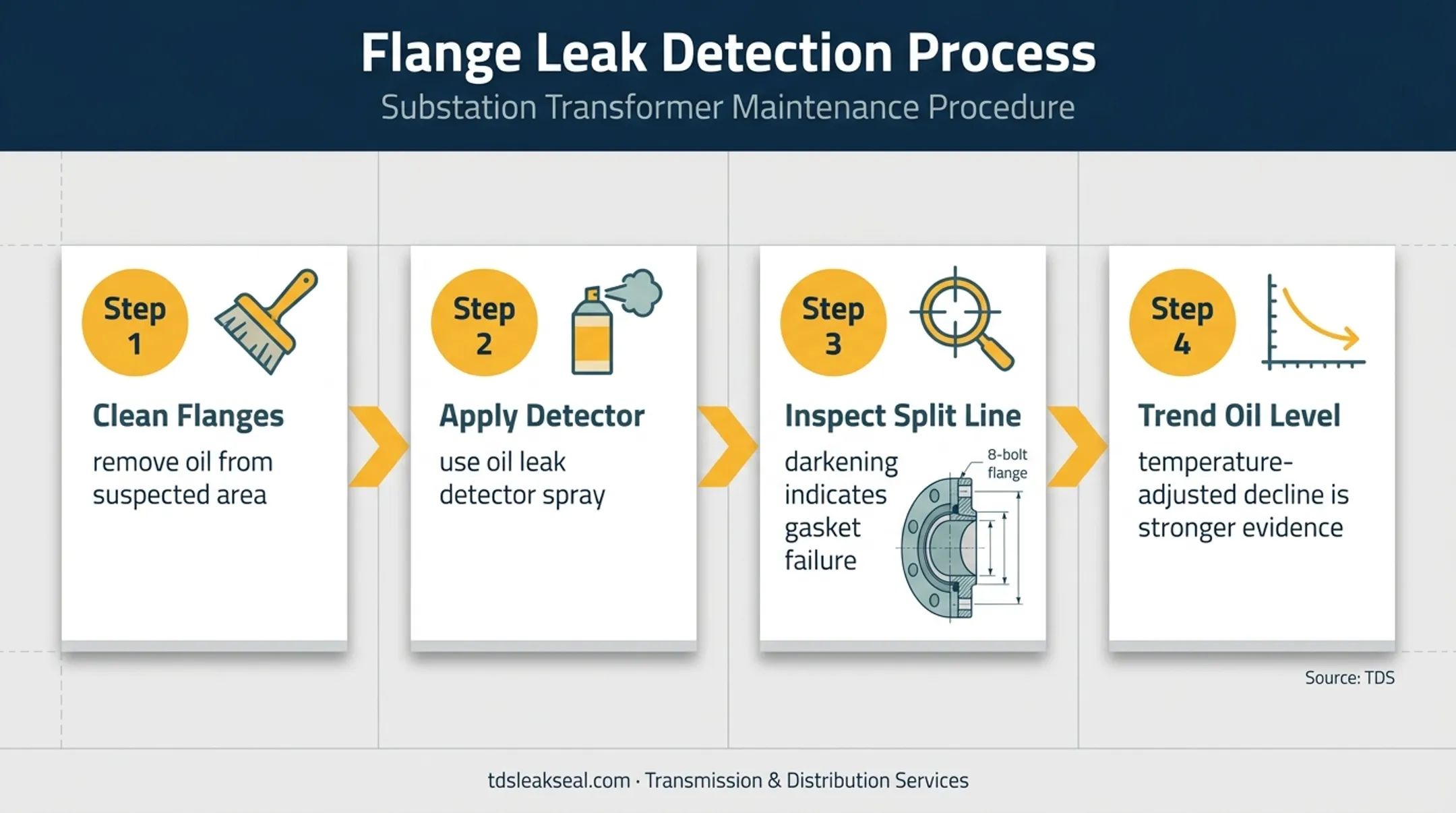

Visual checks alone often miss the exact leaking component. TDS technicians clean suspected flanges and apply an oil leak detector spray. On an 8-bolt flange, darkening at the split line points to a failing gasket.
Confirm the method with the manufacturer first. Cleaning, pressurizing, or applying any product is not safe for every transformer configuration. Trend oil level over time as well. A steady temperature-adjusted decline is a stronger signal than one low reading.
Transformer Conservator Leak Repair Options
Match the repair to severity and source.
| Situation | Typical path |
|---|---|
| Stable trace, no level loss | Monitor and document |
| Aged gasket or fitting | Replace during an approved outage |
| Corrosion or weld damage | Engineered repair; welding with oil present is risky |
| Small radiator leak | Quick-setting epoxy as a temporary fix only |
| Localized flange or fitting leak | Specialized sealing, where conditions permit |
Conventional versus targeted repair
Regasketing can mean draining oil, disassembling equipment, coordinating an outage, and reassembling. EPRI notes that large-transformer gasket replacement can be extremely costly. For an 8-bolt butterfly-valve flange, the traditional route drains the radiator bank, removes it, and replaces gaskets on the connecting flanges and valves.
Targeted repair addresses only the leaking component when equipment condition and site procedures allow.
Where TDS fits

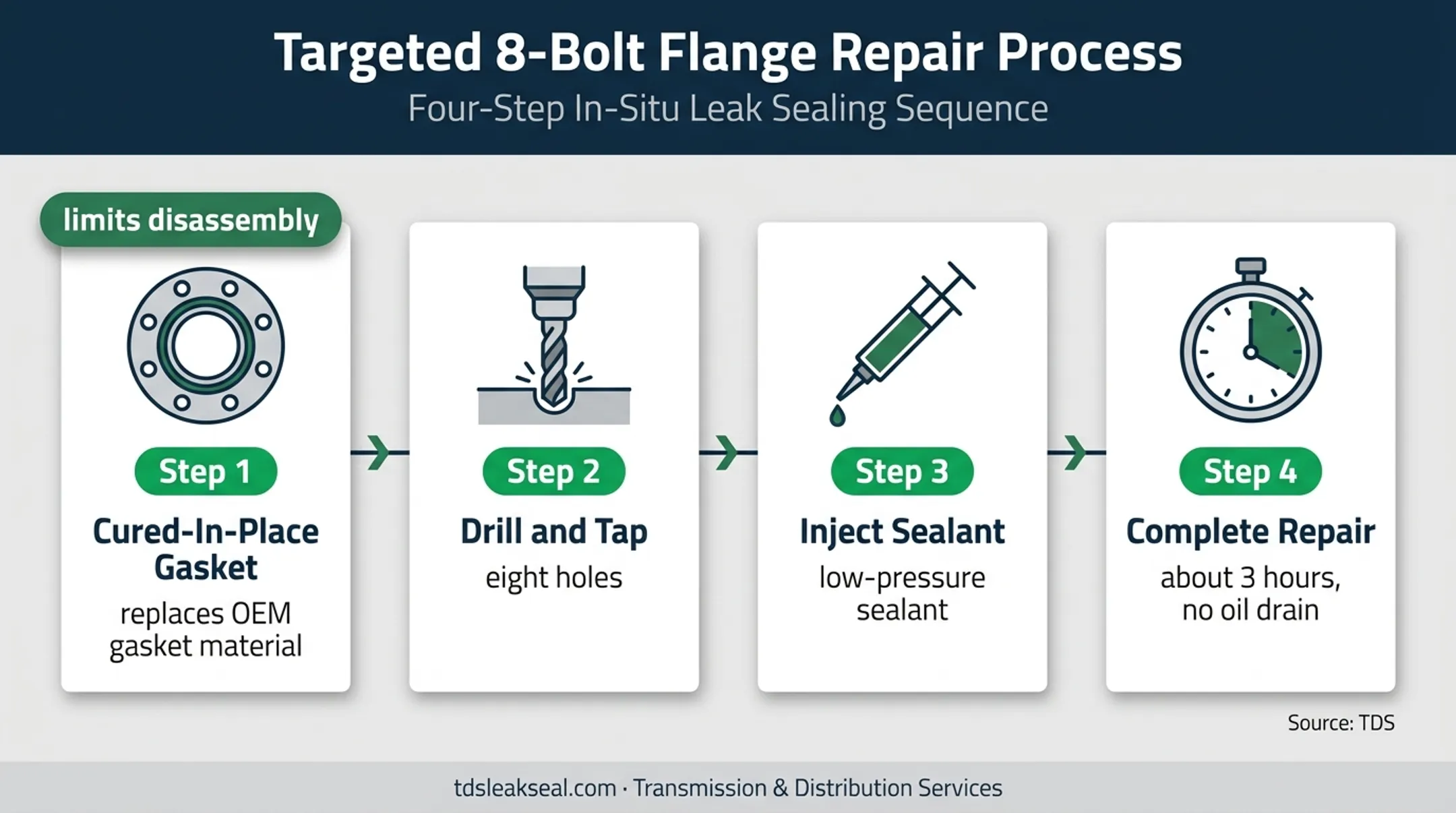

Transmission & Distribution Services specializes in substation leak sealing for oil-filled apparatus. Its low-pressure method replaces OEM gasket material with a cured-in-place gasket and limits disassembly. In its 8-bolt flange repair, TDS drills and taps eight holes and injects low-pressure sealant, normally in about 3 hours without draining oil.
Whether work can proceed energized depends on location. Bottom connections may be done energized, while upper leaks may need de-energization and grounding based on proximity to energized parts.
TDS technicians are OSHA certified, and the company is approved by ISNetworld, SAM, and Avetta.
TDS offers a free substation survey. Each survey:
- Documents and photographs each leak
- Confirms the location
- Recommends a repair method
- Provides an itemized price and outage requirements
If TDS cannot fix the leak, the customer does not pay for the sample repair work.
After the repair:
- Verify the repair holds, then clean the area.
- Keep monitoring temperature-adjusted oil level.
- Document the work and schedule a follow-up inspection.
TDS states a four-year warranty on leak-seal repairs. Confirm the terms for your specific repair.
Conclusion
A conservator supports insulation and cooling, but a small leak left unlocated can grow into an operational, environmental, and reliability problem.
Log temperature-adjusted oil-level changes, inspect every connected leak point, and request a qualified survey when targeted sealing could avoid unnecessary downtime.
Frequently Asked Questions
What is a transformer conservator tank?
It is an expansion reservoir connected to the transformer's main oil tank. It absorbs oil-volume changes caused by temperature so the main tank stays full.
What is the purpose of the conservator and breather in a transformer?
The conservator accommodates oil expansion and contraction. The breather manages air exchange and uses a desiccant to limit moisture entering the system.
What is the normal oil level in a transformer conservator tank?
It depends on oil temperature, loading, the gauge's reference marks, and OEM instructions. Read the level against the temperature-compensated gauge range for that unit.
What is the 80% rule for transformer conservator tanks?
No universal 80% fill rule applies across transformer designs. If a fill guideline applies, it comes from the specific unit, so check the manual and nameplate.
What is the difference between a hermetically sealed transformer and a conservator type transformer?
A hermetically sealed unit seals oil from the atmosphere with no conservator or dehydrating breather, and radiators accommodate volume change. A conservator unit uses a separate reservoir with a breather or bladder.
What is the typical lifespan of transformer oil?
There is no single service life. Condition depends on temperature, moisture, oxidation, contamination, and loading. Trends in moisture, acidity, dielectric strength, and dissolved-gas results should guide treatment or replacement.
