Introduction
Transformers transfer and regulate electrical energy. Circuit breakers isolate faults and protect everything connected to them. When one is neglected, the other pays for it.
Skipped inspections let insulation age, connections overheat, and oil or SF6 leak out unnoticed. The result is failed interruption, unplanned outages, safety exposure, and corrective work that costs far more than planned service.
CIGRE's survey of 22,181 substation transformers recorded 799 major failures, roughly 0.53% per year.
This guide covers maintenance types, inspection points, warning signs, scheduling, and when to call a specialist.
Key Takeaways
- Treat the transformer, breaker, relays, trip circuit, cooling, and leak points as one system.
- Pair visual checks with oil analysis, DGA, thermography, timing, and contact-resistance tests.
- Document and escalate abnormal temperature, noise, timing, SF6 density, or leakage.
- Set intervals from OEM instructions, duty, environment, criticality, and applicable U.S. requirements.
Why Maintenance of Transformers and Circuit Breakers Is Important
Preventive inspection preserves thermal, dielectric, mechanical, and interruption margins. A loose connection or weeping gasket is cheap to fix. A failed bushing is not.
Performance, Reliability, and Asset Life
Clean cooling paths, sound connections, healthy insulation, accurate relay settings, and well-functioning breaker mechanisms keep power stable and fault clearing dependable.
Maintenance also feeds replacement planning. Records reveal aging insulation, contaminated oil, bushing deterioration, contact erosion, mechanism wear, corrosion, and repeated overload or fault duty. Asset managers can then decide whether to refurbish or replace, and contain leaks in the meantime.
Safety, Environmental, and Compliance Stakes
The main rules cover different obligations:
- OSHA 29 CFR 1910.269 governs electric-power work, including clearance, testing, and protective grounding.
- NFPA 70E-2024 addresses electrical safety; NFPA 70B-2026 covers equipment maintenance.
- NERC PRC-005-6 requires protection-system maintenance programs for covered bulk electric system owners.
- EPA 40 CFR Part 98 Subpart DD covers SF6 emissions reporting. SF6 carries a GWP of 23,500 in federal reporting.
- SPCC (40 CFR Part 112) can apply where oil discharge is reasonably possible.
Unchecked leaks can leave utilities exposed during EPA inspections, which ask whether leaks are documented and an action plan exists. Confirm which rules apply to your equipment.

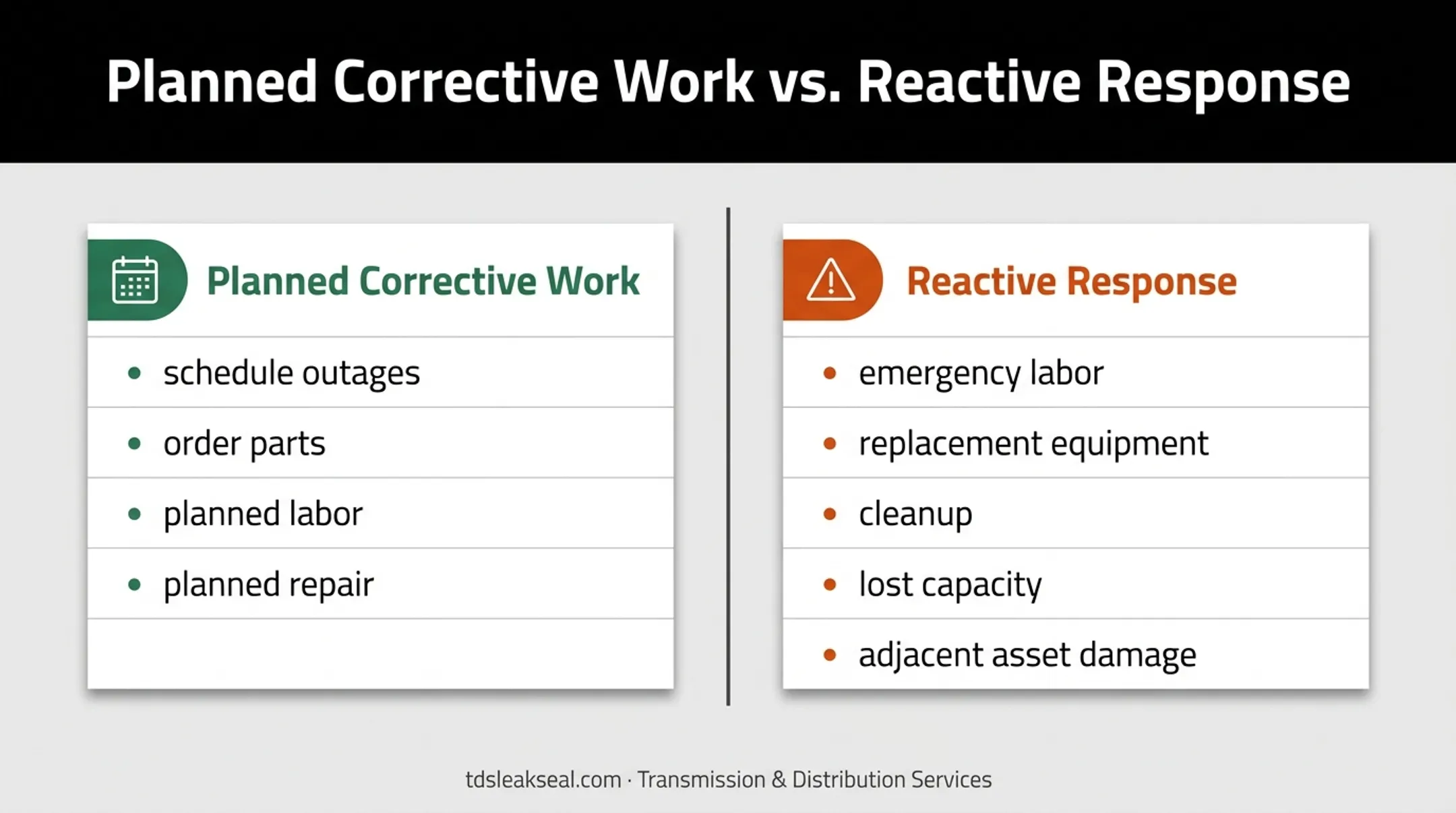

Planned Work Versus Reactive Response
Planned corrective work lets you schedule outages and order parts. Reactive response adds emergency labor, replacement equipment, cleanup, lost capacity, and possible damage to adjacent assets. Cost impact varies widely by site, so build the comparison from your own outage and repair history.

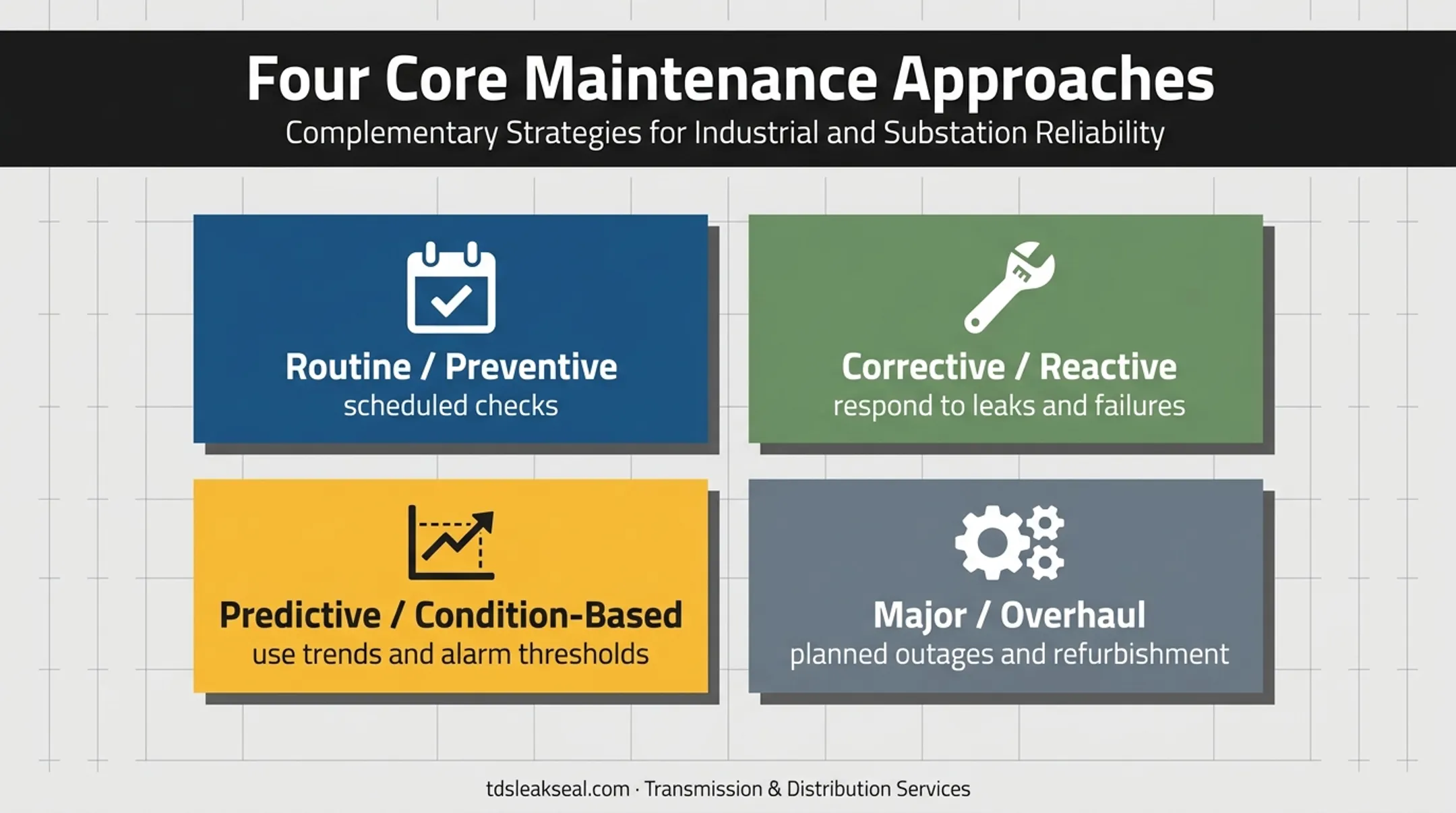

Types of Maintenance for Transformers and Circuit Breakers
An effective program blends several approaches. Calendar servicing alone misses developing defects, and waiting for failure is the costliest option.
Routine / Preventive Maintenance
Scheduled checks cover:
- Transformer oil level and temperature, bushings, radiators, fans, breathers, and enclosures
- Grounding and control wiring
- Breaker indicators, mechanism condition, trip/close circuit status, and operating counters
Follow OEM procedures and site safety controls. Costs are mostly labor, planned outages, consumables, calibration, and minor parts.
Corrective / Reactive Maintenance
Common triggers include:
- Oil or SF6 leaks
- Abnormal temperature
- Repeated trips or failed alarms
- Poor insulation results
- Contact-resistance changes or timing deviations
- Visible damage
Repeated temporary fixes without root-cause analysis raise risk. Separate emergency isolation from planned repair. Costs depend on the asset, access, outage needs, and parts, so get site-specific quotes rather than relying on universal prices.
Predictive / Condition-Based Maintenance
For transformers, monitor:
- DGA, oil moisture, and dielectric strength
- Temperature trends and thermography
- Load history
IEEE C57.104-2019 guides DGA interpretation.
For breakers, track:
- Timing, contact resistance, and coil current
- SF6 moisture, SO2, and purity
- Vacuum integrity and operation counts
A CIGRE case shows the value. Gas-in-oil rose on a 140-MVA transformer under winter loading while offline electrical tests found nothing. Operators kept monitoring and scheduled repair. Internal inspection found core overheating from multiple grounds, repaired on site. Trends, loading, and inspection each added information.
Baselines, trend records, and alarm thresholds turn findings into work orders before a fault. Confirm test intervals and acceptance criteria per asset type with the OEM manual.
Major / Overhaul Maintenance
Planned outages typically cover:
- Oil processing or replacement
- Bushing and gasket work
- Internal transformer testing and cooling service
- Breaker mechanism refurbishment and interrupter inspection
- Relay testing and control-circuit verification
Weigh manufacturer guidance, fault duty, age, test trends, findings, criticality, spare availability, and the consequences of removing the asset from service. Diagnostics can show which component needs work and may support delaying a full overhaul.
How to Check If Transformers or Circuit Breakers Need Maintenance
Treat these signs as early warnings. They do not replace qualified testing, safe work planning, or manufacturer instructions.
Performance or Output Changes
- Rising transformer temperature at normal load
- Phase-current imbalance or unstable voltage
- Declining insulation results or weaker cooling
- Slower breaker operation, incomplete closing, failure to reclose, or inconsistent interruption
Unusual Behavior or Operation
Listen and watch for these signs:
- Abnormal hum, buzzing, vibration, or odor
- Pressure-relief activity or odd fan or pump behavior
- Mechanism noise, delayed operation, or control alarms
- Nuisance trips or no response to a command
Compare each symptom with load, weather, and prior records. There is no universal acoustic threshold.
Visible Wear, Errors, or Irregularities
- Oil staining or pooling, low oil level, damaged gaskets
- Bushing cracks or tracking, corrosion, overheating marks
- Contaminated radiators, loose connections, damaged grounding
- Breaker contact or mechanism wear, panel alarms, SF6 density warnings
SF6 pressure changes with temperature, so use compensated density indications. Alarm and lockout curves are equipment-specific.
Confirmed oil or SF6 leakage needs qualified diagnosis plus environmental and safety controls. Transmission & Distribution Services (TDS) performs low-pressure leak sealing on oil-filled transformers and SF6 breakers.
Its cured-in-place gasket method can avoid teardown, and many repairs are completed with equipment energized when conditions allow. Not every leak qualifies, and an outage may be needed for safe clearance.
A technician first confirms the exact leak location, and TDS repairs only the leaking component. Free surveys photograph each leak and list the repair method, itemized cost, and outage requirements.
Increased Resource Consumption
- Higher cooling demand or persistent high temperature at the same load
- Repeated fan or pump operation and rising auxiliary power use
- Declining oil quality
- Rising breaker mechanism energy or control-circuit demand
These suggest friction, overheating, or degradation.
Recurring Issues or Downtime
Repeated trips, recurring alarms, failed temporary repairs, ongoing oil or SF6 loss, recurring hot spots, and worsening diagnostic trends all point to a deeper cause. Don't reset and move on.
Isolate the equipment, request engineering review, or bring in a specialist. Breaker results outside manufacturer limits call for investigation and repair before return to service.
Transformer and Circuit Breaker Maintenance Schedule (General Guidelines)
No universal schedule fits every asset. Build the program around factors that actually drive risk and wear:
- OEM guidance and applicable standards
- Voltage class, interrupting class, and switching duty
- Load profile, ambient conditions, and contamination
- Asset criticality and previous findings

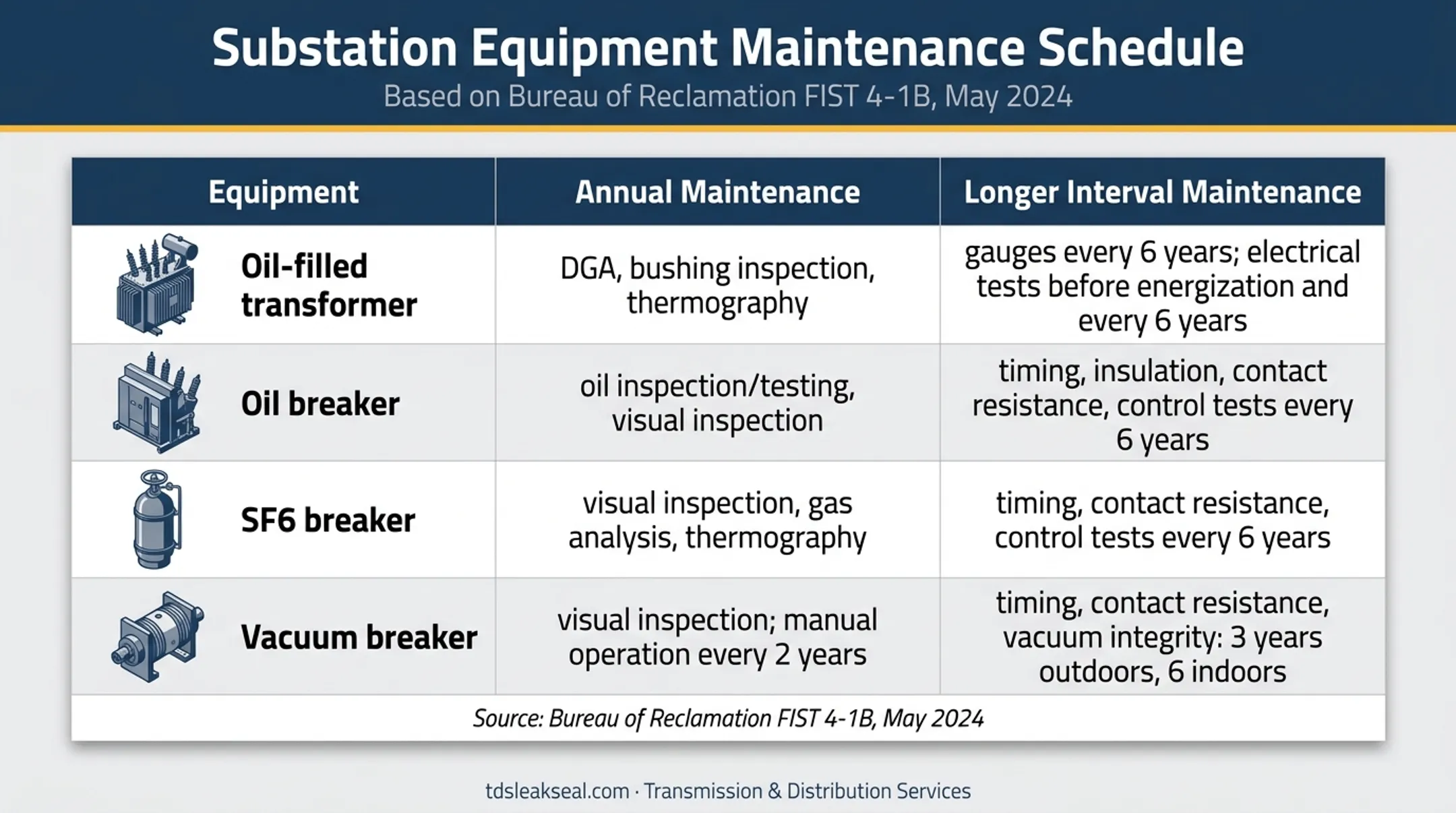

The table reflects Bureau of Reclamation FIST 4-1B program examples (May 2024), not universal intervals.
| Equipment | Annual checks | Longer-interval tests |
|---|---|---|
| Oil-filled transformer | DGA, bushing inspection, thermography | Gauges every 6 years; electrical tests before energization and every 6 years |
| Oil breaker | Oil inspection/testing, visual inspection | Timing, insulation, contact resistance, control tests every 6 years |
| SF6 breaker | Visual inspection, gas analysis, thermography | Timing, contact resistance, control tests every 6 years |
| Vacuum breaker | Visual inspection; manual operation every 2 years | Timing, contact resistance, vacuum integrity: 3 years outdoors, 6 indoors |
Frequency by Task
- Daily or per shift (or remote): Review alarms, temperature and oil level, load and phase balance, cooling status, leaks, breaker position, trip flags, gas-density alarms, and unusual sounds or odors.
- Weekly or periodic: Document a visual walk-down of bushings, radiators, breathers, enclosures, grounding, control cabinets, mechanism indicators, and counters. Record changes instead of relying on memory.
- Monthly or quarterly: Trend load and temperature, inspect cooling gear and connections, review leak history, confirm alarms, and run thermography where authorized.
- Annual or planned outage: Oil and insulation tests, DGA, electrical diagnostics, breaker timing and contact resistance, trip/close checks, relay testing, grounding, and mechanical inspection.
Usage can also trigger work. Reclamation's 2024 scheduling volume lists SF6 internal inspection at 15 years, 5,000 operations, or three high-current interruptions, while its companion breaker manual says 12 years. Follow your manufacturer's number.
Event-Driven Inspections
Add an assessment after any of these events:
- Fault interruption, through-fault, or overload
- Lightning strike or abnormal trip
- Temperature excursion
- Oil or SF6 leak
- Flood, fire, transport, or major protection change
High-duty, harsh-environment, and critical assets may need shorter intervals or continuous monitoring.
Conclusion
Transformer and circuit breaker maintenance is a safety, reliability, and asset-management requirement. A sound program balances preventive, corrective, predictive, and overhaul work according to condition and operational risk.
Consistent inspections, qualified testing, accurate records, and timely repairs protect uptime and extend asset life. Before any inspection or maintenance, follow OEM instructions, site electrical safety procedures, and applicable U.S. standards.
Frequently Asked Questions
What are the basic steps of transformer maintenance?
Plan the work and isolate safely, then inspect visually, check oil and temperature, and examine cooling and bushings. Run electrical and oil tests, document results, and follow up on corrective actions under qualified supervision.
How to size a circuit breaker for a transformer?
Sizing depends on transformer voltage and kVA, full-load current, inrush, available fault current, interrupting and continuous ratings, coordination, grounding, OEM data, and the NEC. No universal breaker size applies.
What causes a transformer breaker to trip?
Common causes are transformer faults, overload, short or ground faults, differential or overcurrent operation, inrush, and miscoordination. Low oil or SF6 conditions and breaker or relay malfunction also trip units. Investigate before re-energizing.
What is used for transformer protection?
Protection combines fuses or breakers, overcurrent and ground-fault relays, differential protection, temperature devices, surge arresters, and pressure or gas-operated devices. Relays must be properly tested.
What type of circuit breaker is used in transformers?
Selection follows system voltage, fault duty, application, switching needs, environment, and site standards. Vacuum and SF6 are common, and legacy oil breakers remain in service. No single type suits every transformer.
What are the four rules of electrical maintenance?
No standardized four-rule list exists. A common framing is qualified personnel and planning, de-energization and isolation, verification with proper test equipment, and documentation with follow-up. Align it with OSHA, NFPA 70E, and employer procedures.
