Introduction
A low-density alarm at 2 a.m. A breaker that won't trip when the relay says it should. A trip nobody can explain. Each one puts a circuit out of service or leaves a fault uncleared, and the visible symptom rarely names the failed part.
The root cause might sit in the gas system, the control circuit, the protection scheme, the operating mechanism, the contacts, or the insulation. Guessing wrong means wasted outages and repeat failures.
This guide covers the common faults, a safe troubleshooting order, testing and maintenance, repair decisions, and US safety and environmental duties.
Key Takeaways
- Separate gas, control, mechanism, contact, insulation, and protection faults before treating an SF6 breaker fault as a gas problem.
- Review event records, alarm history, control power, and OEM baselines before disturbing the breaker.
- Verify low-density alarms with temperature-compensated readings; never bypass lockouts or top up gas blindly.
- Only qualified personnel should recover gas or work on high-voltage equipment.
What an SF6 Breaker Does and How Failures Present
According to the U.S. EPA, utilities use SF6 in high-voltage equipment for insulation, current interruption, and arc quenching. Gas density, gas quality, interrupter condition, and mechanism speed all affect whether the breaker can interrupt a fault.
When something goes wrong, symptoms usually point to a short list of fault families.
Symptom-to-fault map
| Symptom | Fault families to check first |
|---|---|
| Fails to trip | Protection output, DC supply, fuses, trip coil, latch |
| Fails to close | Interlocks, spring charge, close coil, anti-pump circuit, density lockout |
| Low-density alarm or lockout | Real leak, gauge or density-relay error, temperature effect |
| Spurious trip | Relay settings, wiring, DC ground, auxiliary contacts |
| Slow or incomplete operation | Mechanism, dampers, lubrication, coil current |
| Overheating | Terminals, contact resistance, loading |
| Partial discharge | Insulation, contamination, internal defects |
| Visible gas or oil contamination | Seals, mechanism leaks, decomposition products |
Breaker or secondary system?
Many "breaker failures" never touch the breaker. A dead relay output, a blown DC fuse, a loose terminal, a worn auxiliary contact, or an open interlock all produce a breaker that won't operate. Rule these out before pulling the mechanism apart.
Common SF6 Breaker Faults and Their Causes
Gas leaks, low density, and density-monitor faults
Leaks cluster at seals, flanges, valves, fittings, density-relay connections, operating-rod seals, and enclosure seams. A 2020 IOP Conference paper on GIS lists weld defects, flange sealing failures, expansion-joint cracks, and aluminum shell corrosion. TDS field experience adds a common circuit-breaker pattern: leaks between the porcelain and base mounting flange, or at bushing end caps.
Not every alarm is a leak. Pressure falls with ambient temperature, which is why OEMs use temperature-compensated density switches. A drifting density relay or a bad gauge can mimic gas loss.
Moisture, contamination, and decomposition products
Moisture ingress, contaminated gas, poor filling or recovery practice, and arc byproducts degrade insulation and corrode components. Arcing creates compounds such as SO2, HF, and SOF2, and the mix varies with discharge conditions. Gas-quality limits come from the OEM and standards such as IEC 60376 and IEEE C37.122.3; apply the numeric values those documents specify for your equipment.
Control, protection, and secondary-circuit faults
- Loss of DC supply or blown fuses
- Open or degraded trip and close coils
- Faulty auxiliary contacts and interlocks
- Anti-pumping circuit problems
- Relay output failures, wiring faults, and protection-setting errors
Each presents the same way: the breaker simply doesn't move.
Operating-mechanism faults

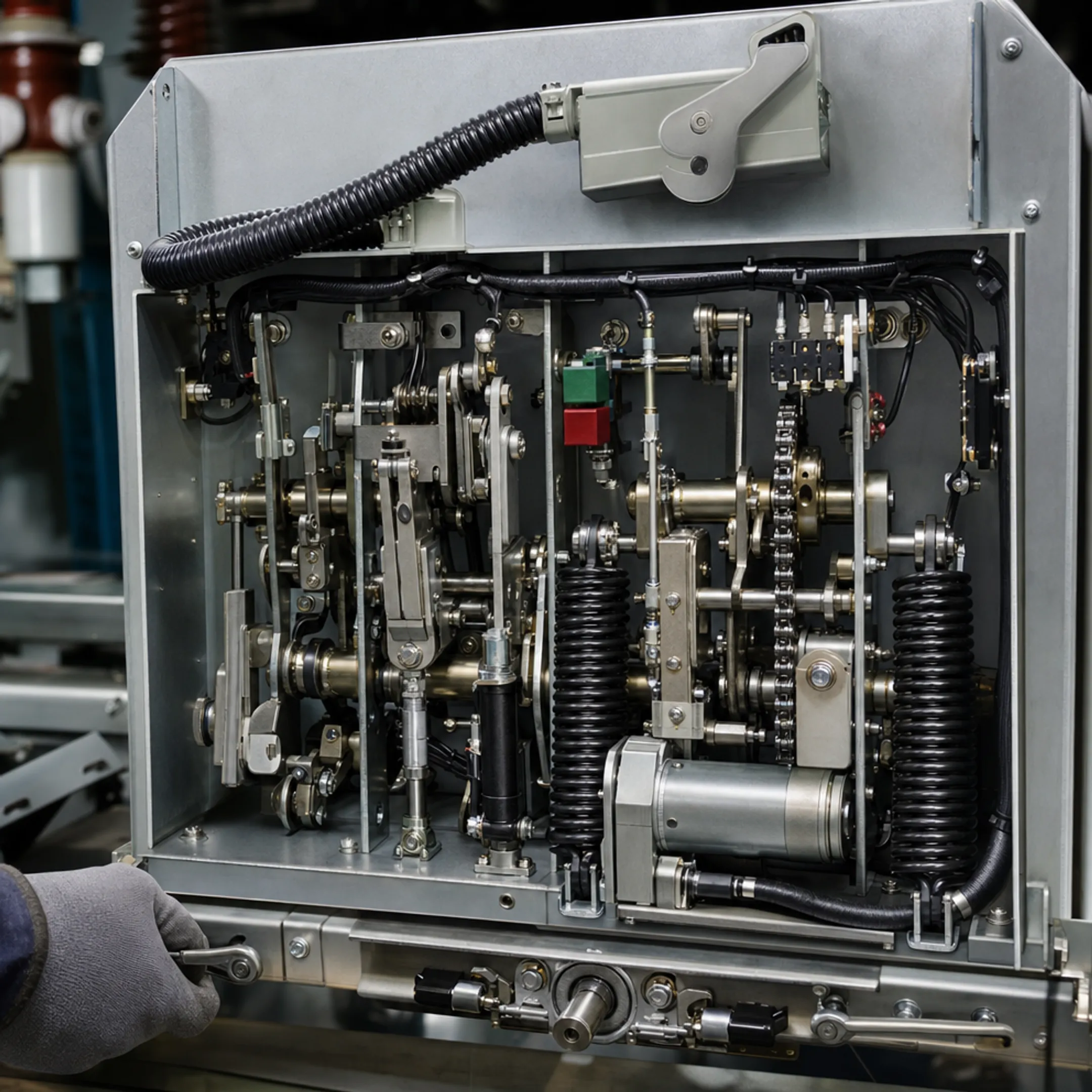

Spring-charging motors, latches, linkages, dampers, bearings, lubrication, limit switches, and alignment all wear. The symptoms are slow operation, incomplete travel, abnormal noise, failed recharge, and inconsistent timing.
Contact, insulation, and interrupter faults
Contact erosion, rising contact resistance, loose or overheated terminals, polluted insulators, partial discharge, flashover, and interrupter wear carry the highest consequences. They often need specialized testing and an outage to confirm.
How to Troubleshoot SF6 Breaker Failures by Symptom
Start with safety, records, and evidence
Confirm switching authority, lockout/tagout, arc-flash controls, and manufacturer procedures first. Then review relay targets, event records, alarm history, gas-density status, recent operations, and prior maintenance. Records often point to the fault before a single test is run.
Failure to trip or close
Work from command to breaker:
- Confirm the relay or control issued a command.
- Verify control voltage during the operation, not just at rest.
- Check fuses and interlocks.
- Inspect trip or close coil condition.
- Confirm spring charge and mechanism status.
- Compare local and remote operation only under approved procedures.
Low gas-density alarm or lockout
Compare the indication against a calibrated, temperature-compensated measurement. Know whether you're seeing an alarm or a lockout; in one Mitsubishi manual, an alarm precedes lockout, and density contacts block closing or trip the breaker below the lockout setting. That's OEM-specific.
Then inspect likely leak points with a suitable detector. Snoop solution, handheld sniffers, and ultrasonic tools are affected by wind, noise, and survey thoroughness. Infrared imaging scans the whole breaker and shows leaks as moving plumes.
Never bypass a density lockout. Never add gas before finding the cause.
Slow, incomplete, or inconsistent operation
Compare timing, travel, coil current, spring-charge behavior, and auxiliary-contact status against commissioning or OEM baselines. The Bureau of Reclamation's FIST 3-16 guide measures timing from coil energization to contact touch or separation. When electrical checks explain nothing, inspect the mechanism.
Overheating, partial discharge, or unexplained trips
- Infrared inspection under suitable load
- Contact-resistance testing
- Insulation and power-factor testing
- Partial-discharge methods where applicable
- DC insulation monitoring
- Disturbance-record review and protection verification
Escalate to an outage or a specialist when evidence points to internal contact, interrupter, or insulation damage.
Testing, Maintenance, and Repair Options
Build a condition-based program

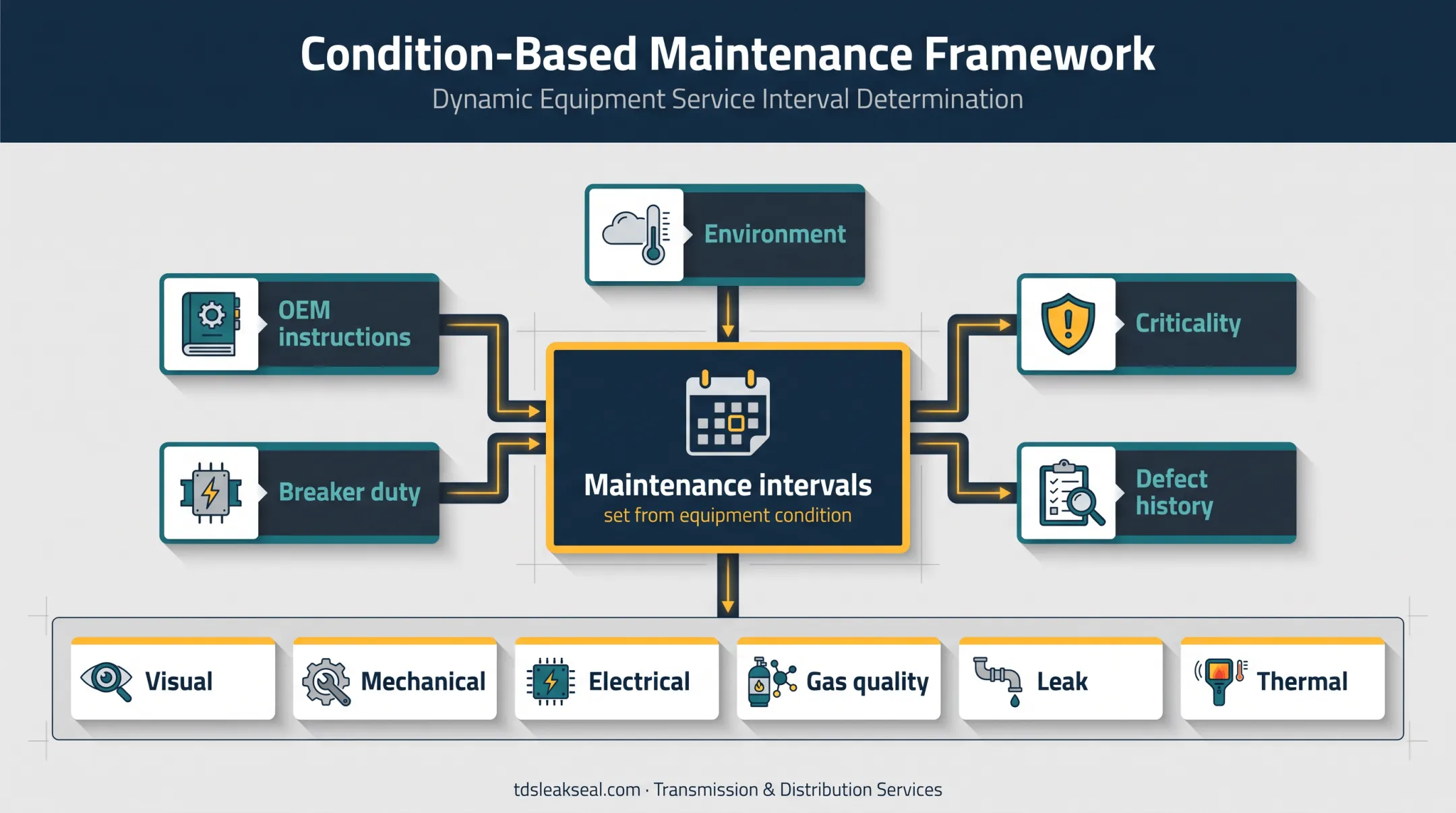

Set intervals from OEM instructions, breaker duty, environment, criticality, and defect history rather than a generic schedule. Include visual, mechanical, electrical, gas-quality, leak, and thermal checks. IEEE C37.10.1-2018 offers a framework for selecting monitoring parameters.
Trend, don't snapshot
Record and trend these parameters over time:
- Gas density with ambient temperature
- Gas added or recovered
- Leak findings
- Timing, travel, and coil current
- Contact resistance and insulation results
- Thermal images and alarms
One reading means little. A slow drift across several years shows deterioration early.
Match the repair to the subsystem
- External seal or instrument repairs are low-impact.
- Mechanism work, compartment opening, interrupter replacement, and contact repair need planned outages.
- Repeated leaks, failed acceptance criteria, or flashover damage may call for compartment replacement, refurbishment, or full replacement.
Repair, refurbish, or replace?
Weigh these factors before you decide:
- Fault severity, age, and duty
- Repeat failures and parts availability
- Outage impact
- Remaining insulation and interrupter condition
- Manufacturer support and environmental obligations
- Cost and risk of continued operation
Low-pressure sealing for confirmed external leaks
When the confirmed problem is an external leak in an SF6 breaker or GIS enclosure—not an internal interrupter, control, or mechanism failure—Transmission & Distribution Services (TDS) is one option. TDS technicians work exclusively in substations.
- A free equipment survey identifies the equipment, leak location, repair method, and price.
- TDS requires the exact leak source before proposing a repair.
- Repairs target only the leaking component, using custom clamps and rubber-based sealant that cures in place.
- Reduced disassembly can mean less downtime.
- Leak-seal repairs carry a four-year warranty.
Repair while energized is conditional. It depends on a documented risk assessment, switching authority, OEM guidance, site conditions, and safety procedures. It doesn't replace gas recovery or internal repair when those are required.
Safety, Environmental, and US Compliance Considerations
Hazards of decomposition products
Pure SF6 is odorless and colorless. Arcing byproducts are different. The EPA's 2002 byproducts report identifies several as severe irritants to the eyes, nose, and throat, with possible corrosive and respiratory injury.
- Analyze the gas before opening a compartment.
- Use suitable PPE and ventilation.
- Treat confined spaces and oxygen displacement seriously; OSHA 29 CFR 1910.146 treats oxygen below 19.5% as deficient under permit-space rules.
- Never vent gas. Never rely on smell to detect contamination.
US regulatory landscape

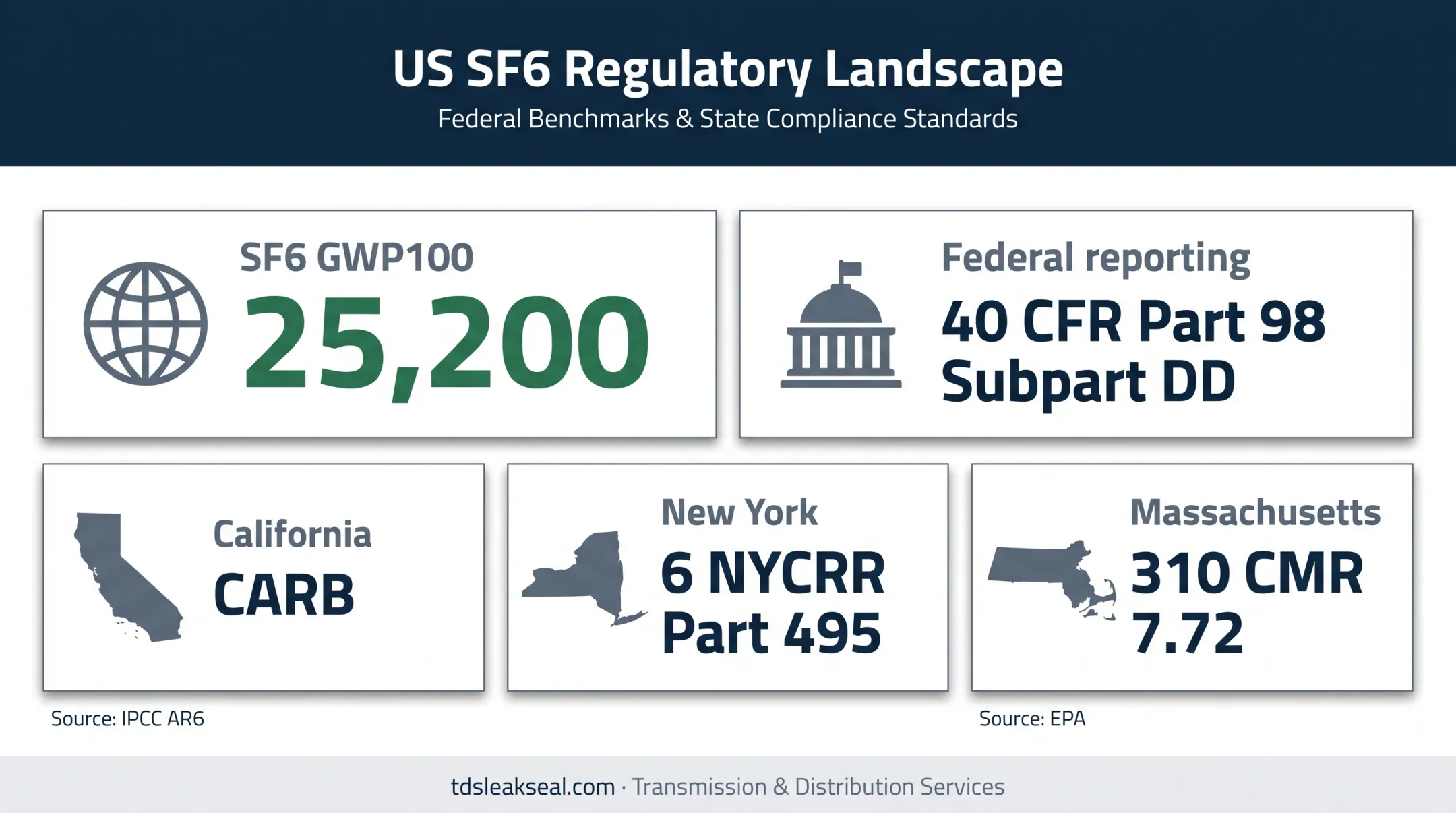

SF6 carries a GWP100 of 25,200 in IPCC AR6. Federal requirements include EPA's Greenhouse Gas Reporting Program, 40 CFR Part 98 Subpart DD, which covers electric transmission and distribution equipment. Applicability is tied to a facility emissions threshold. EPA's SF6 Emission Reduction Partnership is voluntary and separate from mandatory reporting.
State programs with SF6 equipment rules include:
- California (CARB)
- New York (6 NYCRR Part 495)
- Massachusetts (310 CMR 7.72)
Phaseout dates, leak limits, and reporting duties vary by state. Check the current text and your utility and customer requirements before relying on any number. EPA inspections also ask whether leaks are documented and an action plan exists.
Who should do the work
Only trained, authorized personnel should perform switching, gas handling, testing, or internal work. Manufacturer manuals, site electrical-safety programs, and applicable IEEE, NFPA 70E, OSHA, and environmental requirements govern.
Frequently Asked Questions
What is the most common reason for circuit breaker failure?
It varies by fleet and application. CIGRE's survey counted 840 major and 6,655 minor SF6 breaker failures. For subsystem-level causes in your fleet, rely on your own maintenance and event data.
What causes an SF6 circuit breaker to lose gas pressure?
Degraded seals, flanges, valves, fittings, weld or enclosure defects, and corrosion. Temperature swings and faulty gauges or density relays also mimic loss. Confirm and locate the leak before refilling.
What are the signs of SF6 circuit breaker failure?
Low-density alarms, failure to trip or close, slow or incomplete operation, abnormal timing, unexplained trips, overheating, partial discharge, and protection or control alarms.
Can an SF6 circuit breaker with a low-gas alarm remain in service?
It depends on the manufacturer's alarm and lockout design, verified density, site procedures, and qualified assessment. Never bypass lockouts or safety devices.
How should SF6 gas leaks be repaired safely?
Use qualified leak detection, proper gas recovery, and decomposition-product precautions. Apply an approved seal or component repair, verify afterward, and document it, following OEM and US environmental requirements.
