The cause matters because transformer oil insulates and carries heat away from the windings. Keep losing it and you risk reliability, worker safety, environmental compliance, and service continuity.
This article covers the common leak sources, how to tell active leakage from residue, the warning signs, and how to choose a safe inspection or repair response.
Key Takeaways
- Aged gaskets, uneven torque, corrosion, weld defects, thermal cycling, vibration, and impact damage cause most leaks.
- Flanges, bushings, radiator connections, valves, gauges, and covers are the usual leak points.
- Staining alone doesn't prove an active leak. Clean, monitor, and confirm.
- Continued oil loss cuts cooling and insulation performance and raises fire and outage risk.
- Routine inspection and timely specialist repair stop a seep from becoming a failure.
Common Causes of Transformer Oil Leakage
Transformer oil leakage is oil escaping from the main tank, conservator, radiator, bushing, valve, gauge, or any connected component. One visible symptom can have several root causes.
Oil also travels. It runs along seams and down tank walls, so the lowest stain is rarely the failure point. Trace upward and inspect the whole joint before repairing anything.
Gasket, seal, and bolted-joint failure
This is the most frequently documented cause, though no fleet-wide ranking exists. The Bureau of Reclamation notes that gaskets must handle compression, temperature swings, expansion, contraction, and vibration. Age and temperature extremes cause permanent set, and the wrong gasket type or dimensions can leak from day one.
Typical trouble spots:
- Tank covers, inspection covers, and bushing flanges
- Radiator and pipe flanges
- Drain valves and tap changer compartments
- Cable and pipe connections
Gasket material must suit the fluid. Cargill's guidance for natural-ester fluid, for example, points to high-nitrile NBR, silicone, or fluoropolymer materials. Don't assume a mineral-oil gasket carries over.
Valve stems leak too. Deteriorated packing on flapper and butterfly valves is a common source, and extra bolt tightening rarely fixes it.
Improper installation, torque, or alignment
An incomplete seal often traces back to assembly:
- Under-torqued or unevenly tightened bolts
- Over-compressed gaskets
- Damaged fasteners
- Dirty flange faces
- Misaligned components
Follow the manufacturer's torque values and tightening sequence. No universal torque number exists. Prolec specifies model-specific incremental tightening, and Maddox calls for a cross-pattern sequence.
Corrosion, weld defects, and tank damage
Pinholes, porous or incomplete welds, fatigue cracks, and tank-wall corrosion all release oil. Manufacturer guidance lists defective welds, rust, loose bolts, deteriorated gaskets, and physical damage as possible causes. Those items describe possible causes, not how often each one occurs.
Moisture, salt, chemicals, pollution, and neglected coatings speed up the damage. Watch the areas around radiators and conservator connections.
Bushings, radiators, valves, and pressure components
Frequent inspection points include:
- Bushing gaskets
- Radiator headers and fins
- Drain and sample valves, fill plugs, and gauges
- Relief devices, breathers, and conservator parts
Pressure changes, blocked breathers, or overfilling can push a small defect into visible leakage.
Thermal, mechanical, and external stress
Load-driven heating and cooling loosens joints over time. Other stresses pile on:
- Vibration and short-circuit forces
- Transport movement and vehicle strikes
- Storms, vandalism, and nearby construction
Gradual seepage points to wear. Sudden leakage after an impact or fault points to damage.
What Happens If Transformer Oil Leakage Is Ignored
The chain is predictable:
- Oil level drops and cooling weakens.
- Moisture can enter through defective seals as the unit cools.
- Dielectric strength falls and temperatures climb.
- Insulation deteriorates, sometimes irreversibly.
- Electrical failure and a forced outage follow.
Reclamation documents a case where oil fell below an upper radiator inlet, interrupting circulation and raising temperature. The oil-level indicator was stuck reading "normal."
Replacement is no quick fix. A DOE 2024 report describes commonly quoted large-power-transformer lead times of 36 months, sometimes up to 60 months. Treat that as a resilience benchmark, not a quotation.
Safety and environmental consequences
- Fire: NFPA notes oil-filled transformer failures can produce intense fire or explosion.
- Slips and contamination: Pooled oil endangers workers and can reach soil and stormwater.
- Sheen discharges: Clean Water Act rules (40 CFR Part 110) require immediate National Response Center notification when oil causes a sheen on covered waters.
- SPCC reporting thresholds: More than 1,000 gallons in one event, or more than 42 gallons in each of two events within 12 months (40 CFR 112.4).
- SPCC applicability: Depends on facility activity, location, and discharge potential—not a blanket exemption or obligation.
- Inspections: EPA inspectors ask whether utilities document oil leaks and keep an action plan to repair them.
Confirm obligations with your environmental compliance staff.
Warning Signs You're About to Experience Transformer Oil Leakage
Look for:
- Fresh wetness or dark oil trails
- Stains that return after cleaning
- Droplets or puddles
- A falling oil level
- Abnormal gauge or pressure readings
- Corrosion bubbles or damaged paint
- Unusual temperature patterns or repeated alarms
No single reading is conclusive. Compare oil level with top-oil temperature, since a stuck indicator can mislead. Pressure also varies with heating and cooling, and thermal anomalies alone are not leak-specific.
Residue or active leak?
Shipping, filling, and earlier maintenance leave residue that can look like a leak. Maddox distinguishes residue from ongoing leakage. Clean the area, document it, and re-inspect.
TDS's Oil Leak Detector spray helps here: after the flange is cleaned, the powder darkens where oil is present, pinpointing the failed gasket or packing. In one case, it exposed a leaking 8-bolt flange gasket that visual inspection couldn't confirm.
Safety first
Don't approach energized equipment or attempt improvised repairs. OSHA's 29 CFR 1910.269 limits specified work near exposed energized parts to qualified employees, with employer-set minimum approach distances. For an active or worsening leak, follow your site's isolation, spill-response, and qualified-person procedures.
How to Prevent Transformer Oil Leakage
Prevention combines correct installation, condition monitoring, environmental protection, and timely repair. Topping up oil after the level drops is none of those.
Inspect leak-prone components systematically
Use a documented route covering gaskets, flanges, bushings, radiator connections, valves, gauges, welds, coatings, breathers, conservators, and containment. Record for each finding:
- Location and severity
- Oil level
- Photos
- Weather and load conditions
- Prior repair history
The Bureau of Reclamation's FIST guidance calls for physical and infrared inspection of tanks and radiators after the first month in service and annually. That is source-specific guidance, not a statutory interval.
Maintain joints, seals, and pressure systems
- Use approved gasket materials
- Clean and align mating surfaces
- Use calibrated torque tools and OEM patterns
- Keep breathers and relief devices working
- Follow proper fill procedures that account for temperature
Confirm the source with layered testing

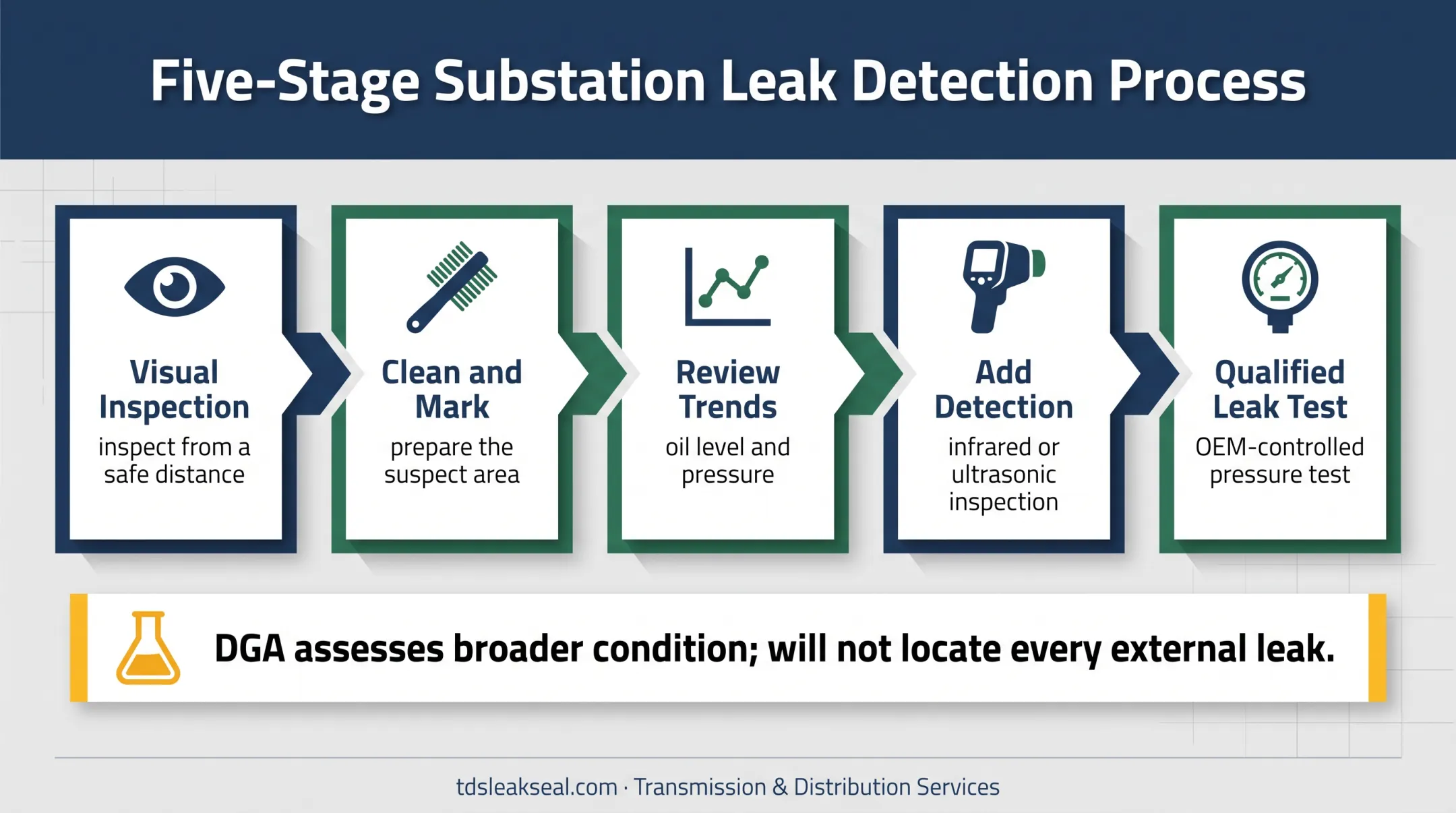

Start with visual inspection, then clean and mark the area. Review oil-level and pressure trends. Add infrared or ultrasonic inspection where appropriate, then qualified leak testing, such as an OEM-controlled pressure test.
DGA assesses broader transformer condition. It won't locate every external leak.
Protect against environmental and mechanical damage
- Maintain coatings and corrosion control
- Plan drainage and secondary containment
- Shield units from vehicle strikes
- Inspect after transport or severe weather
- Fix damaged radiators, pipework, supports, and tank surfaces promptly
Choose a repair method based on the failure mechanism
| Problem | Typical response |
|---|---|
| Minor gasket or fitting seepage | Regasket or seal the joint |
| Persistent bushing leak despite proper torque | Replace the bushing, with manufacturer input |
| Structural weld or radiator defect | OEM or factory-level repair |
| Severe corrosion | Engineering evaluation |
Each path needs outage planning, oil handling, and post-repair verification.
When specialized low-pressure leak sealing may be appropriate
Transmission & Distribution Services (TDS) works exclusively in substations. It confirms the leak location, then may use low-pressure sealing on compatible leaks with less disassembly. Its technicians are OSHA certified.
Methods include cured-in-place gasket compound and drill-and-inject repair. A 4-bolt flapper-valve flange can usually be repaired in about two hours without draining oil.
A qualified assessment decides whether the apparatus can stay in service. Upper leaks near energized bushings may require de-energization and grounding. TDS offers free equipment surveys and a four-year leak-seal warranty. Neither replaces site-specific engineering approval or emergency response.
Evidence is mixed on in-service sealing. An EPRI and Ontario Hydro assessment looked at in-situ sealing technologies, but it isn't blanket approval for energized repairs.
Tips for Long-Term Prevention and Control
- Monitor by condition. Pair routine visual checks with oil-level, pressure, temperature, infrared, ultrasonic, or remote alarm data on critical units.
- Train crews. Operators and contractors should recognize leak patterns, separate residue from active seepage, protect containment, and escalate fast-changing conditions through formal work management.
- Keep a full asset record. Include photos, findings, oil additions, torque or gasket work, test results, environmental incidents, repairs, and verification. Under 40 CFR 112.7(e), applicable SPCC inspection records are kept for three years.
- Review trends after events. Revisit leaks after overloads, faults, transport, extreme weather, maintenance, and component replacement. Update inspection intervals, spares, containment, and outage plans.
Conclusion
Transformer oil leakage almost always has an identifiable cause: seal deterioration, poor joint assembly, corrosion, component damage, pressure stress, or external impact.
Address leaks promptly:
- Confirm the source early
- Isolate safely when required
- Document inspections
- Contain oil
- Use qualified repair
That protects performance and cuts environmental harm, downtime, and avoidable cost.
Frequently Asked Questions
What is the most common reason for an oil leak?
Gasket or seal deterioration and poorly torqued joints are the most documented causes. No authoritative ranking exists, and the real source may be corrosion, a bushing, radiator, valve, weld, or physical damage.
How do you test for oil leakage in a transformer?
Inspect visually from a safe distance, then clean and monitor the suspect area. Check oil level and pressure trends, and use qualified leak detection per OEM and site safety procedures.
What are the signs of a transformer oil leak?
Fresh stains, wetness, drips, puddles, a falling oil level, abnormal pressure, corrosion, and residue that returns after cleaning.
Can a transformer oil leak be repaired without taking the transformer out of service?
Some compatible external leaks can be sealed with low-pressure methods. Only a qualified professional can decide whether energized work is safe and permitted at your site.
Are transformer oil leaks dangerous?
Yes. They create electrical, thermal, fire, worker-safety, and environmental hazards. For active or substantial leaks, follow your emergency, containment, and de-energization procedures.
When should a leaking transformer be replaced?
Consider replacement for severe tank corrosion, structural weld failure, cracked critical components, repeated failed repairs, unsafe oil condition, or uneconomical repair. A leak alone doesn't mandate it. Engineering and OEM evaluation should decide.
