Two approaches dominate. Oil leak detection dye travels with the host oil and glows under an inspection light. Developer powder is applied to the outside of a suspect area and shows where oil arrives.
For US maintenance teams, the choice affects source precision, prep time, material compatibility, worker safety, and outage planning. It matters environmentally too: under EPA's SPCC rule, facilities with oil-filled equipment must prevent discharges from reaching navigable waters.
Key Takeaways
- Dye suits systems where oil circulates and the leak path is hidden.
- Powder suits accessible, cleaned external surfaces and equipment that can't take an additive.
- Neither method repairs anything; both feed a documented repair decision.
- Check compatibility and site safety rules before using either on energized apparatus.
Oil Leak Detection Dye vs. Developer Powder: Quick Comparison

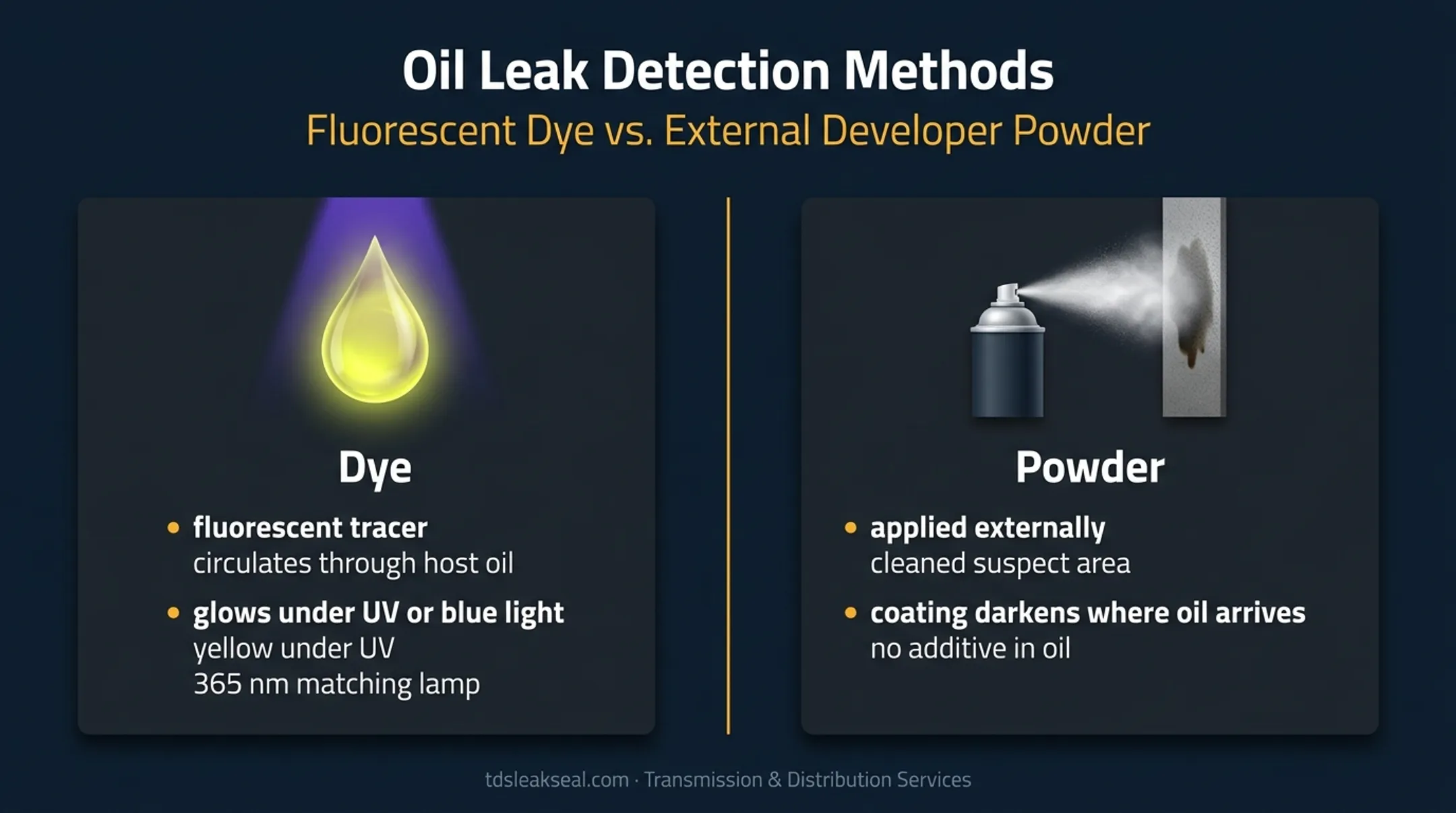

How each method works
Dye: A fluorescent tracer is added to the host oil and circulates through the system. Technicians then scan with the specified UV or blue light, and the escaped oil glows. Spectroline's OIL-GLO ULTRA fluoresces yellow under UV, and its matching lamp is 365 nm.
Powder: A product is applied externally to a cleaned, suspect area. Oil reaching the surface changes the coating's appearance. TDS Oil Leak Detector, for example, is sprayed as a light coating and the powder turns dark where oil is present. Mechanisms differ by product, so confirm against the technical data sheet.
Precision and visibility
| Factor | Dye | Powder |
|---|---|---|
| Hidden or remote paths | Better, since it follows the oil | Limited to exposed surfaces |
| Fresh seepage on accessible joint | Works, but needs circulation | Fast, direct indication |
| Setup | Add dye, circulate, scan | Clean, dry, spray, watch |
| Light required | UV or blue | Ambient |
These differences reflect how each method works, not measured head-to-head sensitivity. Ask the manufacturer for any comparative test data if sensitivity is a deciding factor.
Operational tradeoffs
- Cost: One reseller listed a Spectroline 365-nm lamp at $236.85. List prices for dye, powder, and professional leak-detection services vary, so request quotes.
- Safety: A dye or powder procedure doesn't replace your electrical safe-work program. Equipment counts as energized unless deenergized under OSHA 1910.269.
- Compatibility: Confirm the product against the oil type, seals, coatings, and insulation before use.
What Are Oil Leak Detection Dye and Developer Powder?
What is oil leak detection dye?
Dye is a tracer formulated for a specific oil-based fluid system. It fluoresces under UV or blue light after circulating. Dosage varies by product.
Spectroline's current page gives a starting guideline of 1 fl oz per up to 30 gallons, while an older series flyer lists different ratios by fluid. Follow the current label for your exact SKU.
The benefit is tracing. When oil has spread, dye helps identify the true source, so crews repair only the leaking component instead of tearing down more than necessary.
Use cases for dye
The manufacturer's page lists hydraulic, compressor, engine, and gearbox oils. It does not list transformers or oil-filled breakers. Confirm dye approval with the manufacturer before using it in transformer insulating liquids; treat that use as an approval question, not an assumption.

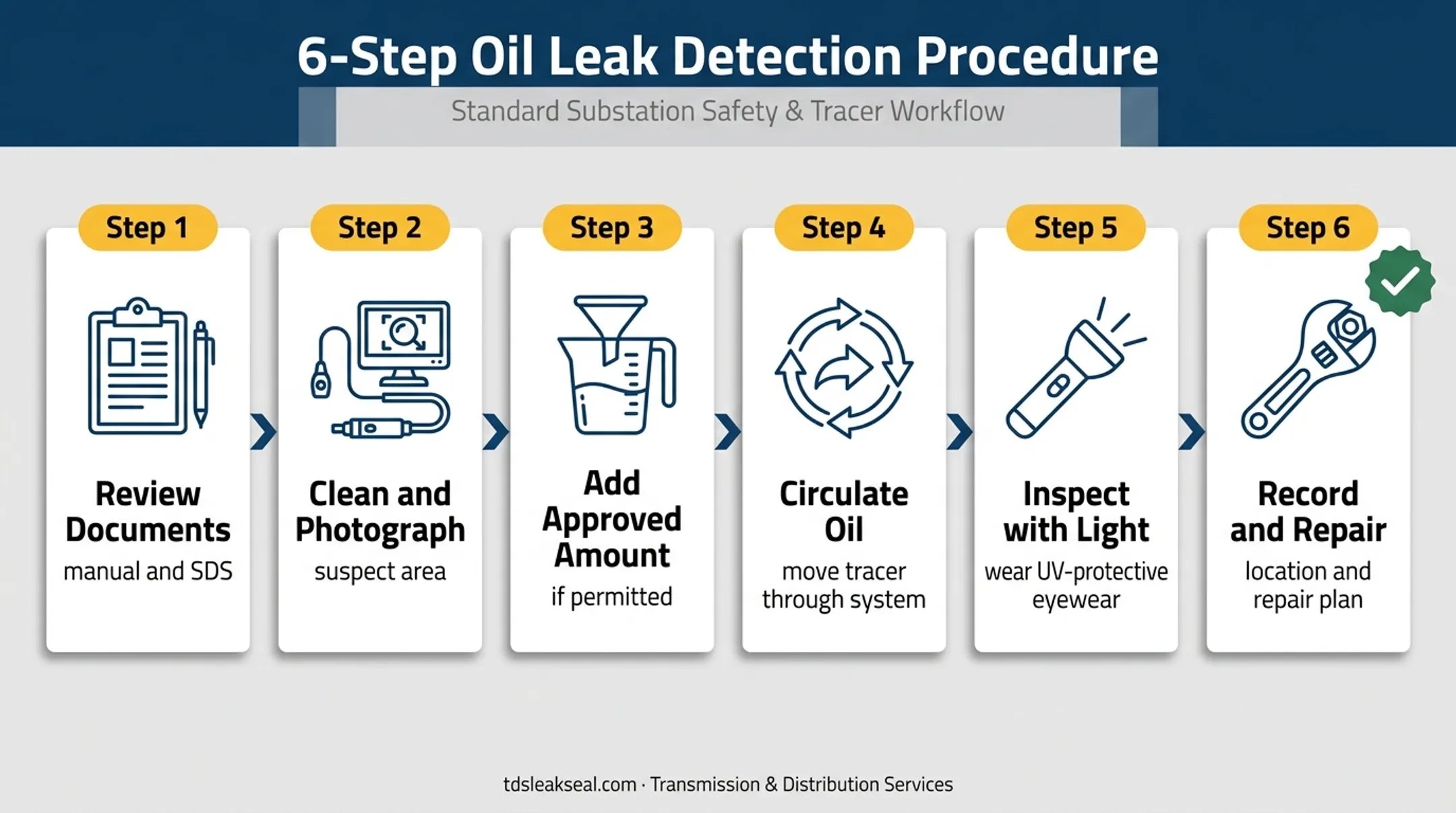

A controlled workflow looks like this:
- Review the equipment manual and the SDS.
- Clean and photograph the suspect area.
- Add the approved amount, if permitted.
- Circulate the oil.
- Inspect with the specified light and wear UV-protective eyewear.
- Record the location and plan the repair.
What is developer powder?
The term covers two different things, so define it first.
- External oil-seepage powder or paint: Applied to welds, joints, and fittings. AGC's ODP-210 sprays an opaque white coating that stains visibly at an oil leak and wipes off with a damp cloth. ODP-110 is brushed on and turns from white to red on hydrocarbon contact.
- NDT penetrant developer: Part of liquid-penetrant testing under standards such as ASTM E165, used to find surface-open discontinuities in components. It is a different process and not an oil-seepage tool.
This article focuses on the first type. Its advantages are rapid visual confirmation, strong contrast on dark equipment, and no substance introduced into the oil.
Use cases for powder
Powder fits clean, reachable flanges, fittings, seams, gaskets, and valve connections. TDS has used its detector this way: after cleaning an 8-bolt connecting flange, oil darkened the split line and exposed a failed gasket. On a 4-bolt flapper valve, it revealed leaks at both the flange split line and the stem packing.
Limits matter:
- Surfaces already saturated with oil give false readings.
- Wind, moisture, and rough or contaminated coatings can interfere.
- Hidden leak paths stay hidden.
- Powder can contaminate insulation, breathers, or electrical components.
- Ask the manufacturer for weather, temperature, and dwell-time limits on AGC products, and follow those restrictions along with your site rules.
Review the SDS, too. AGC's ODP-210 sheet flags eye and skin irritation and inhalation toxicity, and calls for ventilation and gloves.
Oil Leak Detection Dye vs. Developer Powder: What Is Better?
Neither is universally better. Choose by whether the leak is internal or external, accessible or hidden, and whether the system can accept an additive.
Choose dye when:
- The system can safely accept a compatible tracer.
- Oil migration obscures the source.
- Several possible leak points need checking after circulation.
Choose powder when:
- The suspect area is external and reachable.
- The equipment can't take an additive.
- You need quick screening, or want to confirm fresh seepage after cleaning and drying.
Neither is enough when:
- The leak is large and active, or the surfaces are contaminated.
- A tank or weld defect is suspected.
- Gas is involved. Oil methods don't detect SF6 in breakers (EPA SF6 basics); TDS prefers infrared laser scanning for those leaks.
- Access is limited, or pressure, thermal, or electrical testing is needed.
Selection criteria
Weigh these factors when you decide:
- Source precision and repeatability
- Speed and cleanup effort
- Lighting and environmental controls
- System compatibility
- Documentation needs
- Total cost, including downtime
A note for in-house screening teams
Maintenance crews that want in-house screening can use TDS Oil Leak Detector spray (boxes of twelve 7-ounce cans) and TDS Transformer Cleaner. The cleaner is biodegradable, water soluble, and sold in cases of six 1-gallon containers.
Confirm suitability for your equipment and oil type from current documentation first. A detection product is separate from TDS's low-pressure leak-sealing service.
Work around energized transformers, breakers, GIS, or other substation apparatus must follow approved facility practices and be done by qualified personnel. Automotive DIY steps don't apply.
Real-World Examples
Finding the failed component is often the hardest part of a survey. TDS's first procedure is to confirm the exact leak location, and its policy is to fix only what is leaking.
Consider the 4-bolt flapper valve. After cleaning and applying detector powder, darkening showed the flange split line and stem packing were both weeping.

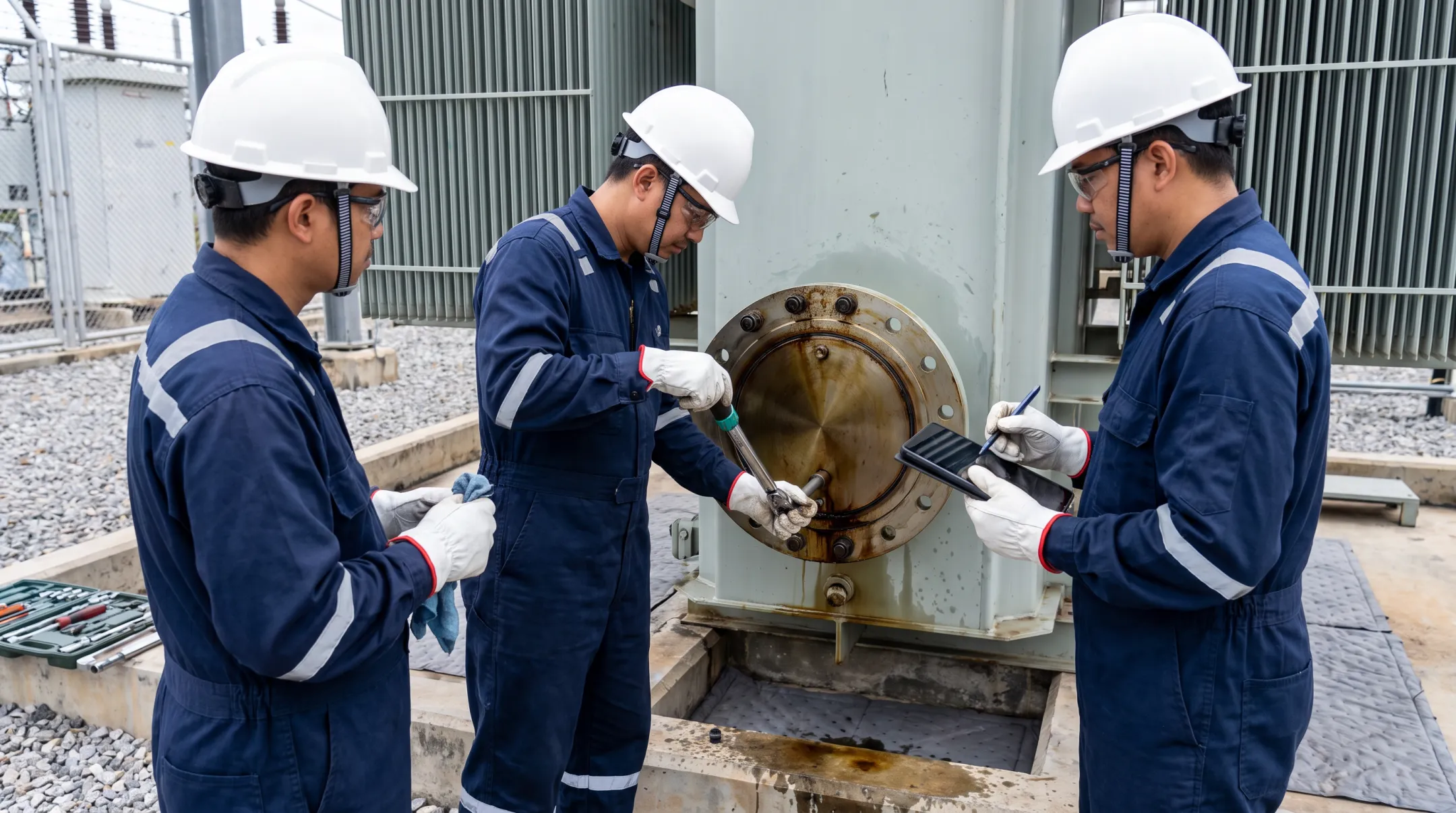

With the source confirmed, TDS documents a repair for a failed gasket on a flange below the transformer lid:
- Drill and tap holes at the 12, 3, 6, and 9 o'clock positions
- Inject sealant into the prepared holes
The documented repair takes about two hours, while energized and without draining the oil.
Practical cue: when the suspect area is external and reachable, clean it, apply powder, and confirm before committing to a repair scope.
Have a stubborn transformer, breaker, GIS, or substation oil leak? Request TDS's free equipment survey. It documents the equipment, leak location, proposed repair method, and price. Whether a repair can be completed energized depends on site and equipment conditions.
Conclusion
Use compatible dye when tracing through the fluid system is the best way to find a hidden or migrating leak. Consider developer powder for accessible external seepage when product compatibility and surface conditions support it.
A visible indication is only the first step. What matters is a safe, documented path to the right repair, with minimal unnecessary disassembly, downtime, contamination, or environmental exposure.
Frequently Asked Questions
How much does an oil leak detection dye test cost?
A dye product or consumer kit is a small purchase. A professional test adds labor, inspection equipment, cleaning, access, and any outage. Published US rates for transformer-service dye testing are hard to find, so request quotes from providers.
How expensive is it to fix an engine oil leak?
RepairPal estimates valve-cover-gasket replacement at $375-$514, and oil-pan replacement at $868-$1,094. Costs vary by vehicle and location. They don't predict transformer or substation leak-sealing costs.
What is oil leak detection dye?
It's a compatible tracer added to an oil-based system so technicians can find escaped fluid with the specified inspection light. The label, SDS, and equipment manufacturer must confirm compatibility.
Will UV dye hurt an engine?
Spectroline lists engine oil as a supported application and says its dye doesn't change viscosity or lubricity. That's a manufacturer claim. Wrong dosage or an incompatible product creates risk, so follow both manufacturers' instructions.
When should you use developer powder instead of dye?
Choose powder for a cleaned, accessible external leak when adding a tracer to the oil is undesirable. Hidden paths and contaminated surfaces may need another method.
Can oil leak detection dye be used in transformers?
Only if the product is specifically approved for the transformer's oil, seals, insulation, and operating conditions. Get equipment-owner approval and qualified technical guidance before adding anything to transformer oil.
