Many utilities struggle to get a clean number. Public per-pound quotes are scarce, and what exists often excludes cylinders, freight, recovery, and testing. A leak adds refill frequency, outage exposure, and emissions reporting on top.
This article covers what US pricing evidence exists, what moves gas and service costs, how to total up an unresolved leak, and how to compare refilling with repair or replacement.
Key Takeaways
- No single US SF6 price exists; quotes depend on grade, container, volume, and date.
- Purity, logistics, recovery, testing, and compliance can shift the final cost.
- Bulk or contracted supply may lower unit price but adds storage and inventory burden.
- The cheapest refill can cost more than a repair once a recurring leak is counted.
How Much Does SF6 Gas Cost? (Pricing Overview)
SF6 has no fixed US price. A published figure may cover only the gas, leaving out cylinder deposits, freight, taxes, recovery, analysis, and field service.
Misreading a quote causes predictable problems:
- The budget covers gas but not transport, cylinder rental, or compliant handling.
- A low unit price applies to a different purity, container size, volume, or delivery term.
- Repeated refilling hides a bigger leak-repair or reliability cost.
Current US Pricing Snapshot
No current public US per-pound quote, list price, or awarded unit price is posted. Supplier pages describe products and services but do not state prices. A federal procurement notice seeks 4,025 lb of reclaimed SF6 in 115-lb cylinders, with no price or award shown.
The only published dollar figure is historical. EPA's 2003 annual report assumed $6-$9 per pound when estimating avoided purchases in 1999-2003. Treat that as context, not a quote.
When you request quotes, ask each supplier to state:
- Quote date and validity period
- Virgin or reclaimed gas, and the grade
- Container type and size, and whether cylinders are rented or purchased
- Freight, taxes, and delivery terms
- Analysis, certification, and recovery charges

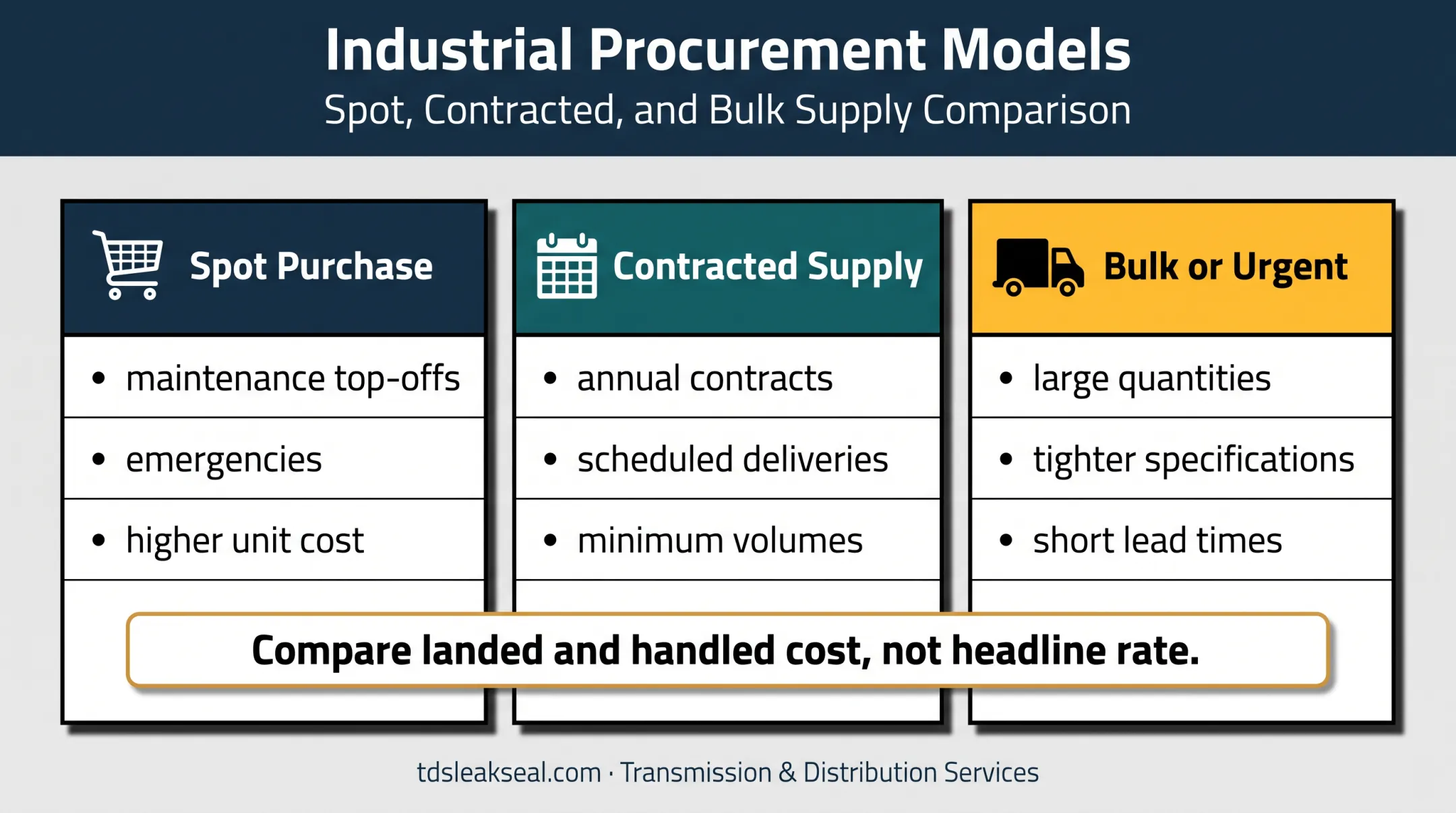

Small-Volume or Spot Purchases
Spot buys suit maintenance top-offs and emergencies. Expect the gas, possibly with a cylinder, but check whether freight, deposits, and analysis are extra. Unit cost often runs higher than larger orders because fixed handling and delivery costs spread over fewer pounds.
Routine Utility Replenishment or Contracted Supply
Recurring demand can support annual contracts and scheduled deliveries. Before signing, review:
- Minimum volumes and contract length
- Price-adjustment terms
- Cylinder return and storage requirements
- What happens if a leak repair cuts your consumption
Bulk, Specialty-Grade, or Urgent Supply
Large quantities, tighter specifications, short lead times, or unusual delivery needs all change the quote. A sharp unit price can disappear once you add freight, storage, and handling. Compare landed and handled cost, not the headline rate.
Who Sells SF6 Gas?
Legitimate US sources include industrial-gas suppliers, gas-handling equipment and service providers, and reclaimed-gas channels. Airgas lists dielectric-grade SF6 and cylinder management. Concorde Specialty Gases lists virgin and recycled SF6, cylinder services, and pickup. DILO supplies handling and analysis equipment rather than gas.
Verify specifications, cylinder compliance, documentation, delivery capability, and recovery practices before buying.
Key Factors That Affect the Cost of SF6 Gas and Leaks
Cost comes from technical, operational, market, environmental, and asset-specific factors, not gas volume alone.
Gas Purity and Quality
Moisture, air, CF4, oil, and acidic by-products affect suitability for electrical equipment. Published criteria differ by gas type:
| Standard | Key criteria |
|---|---|
| IEC 60376:2018 (new technical-grade) | SF6 above 98.5 vol%; moisture under 200 ppmv; mineral oil under 10 mg/kg |
| IEC 60480:2019 (reclaimed, for reuse) | SF6 above 97 vol%; air and CF4 under 3 vol%; water under 200 ppmv |
| ASTM D2472 | Tests for water, acidity, noncondensables, CF4, and assay |
Check your equipment manufacturer's specification before choosing a grade.
Quantity and Purchasing Model
Spot purchases cost more per pound but tie up no inventory. Contracts and bulk orders lower the rate but bring minimum quantities, cylinder charges, and unused stock.
Supply, Demand, and Market Conditions
An undated supplier presentation hosted by EPA describes demand outpacing supply, along with duties, freight, and energy surcharges. Treat it as a vendor signal, not an independent market assessment. Ask suppliers about current allocation and lead times rather than trusting a forecast.
Transportation, Storage, and Handling
SF6 ships as UN 1080, Class 2.2, and DOT rules require compliant, inspected, requalified cylinders. Recurring costs include freight, cylinder rental, weighing, and technician time. Incident-based costs cover recovery, reclamation, gas analysis, and emergency mobilization.
Equipment Type and Leak Characteristics
Equipment type, leak location, leak rate, accessibility, gas inventory, and criticality drive detection, refill, repair, and outage costs. GIS trouble spots include piping, flange connections, and seam welds. A breaker you cannot easily remove from service costs more to fix by teardown than one with a spare.
US Regulations and Environmental Requirements
Requirements vary by jurisdiction and application:
- EPA GHGRP Subpart DD covers electrical transmission and distribution equipment, with mass-balance emissions reporting. Check 40 CFR 98.301 for applicability. Annual reports are generally due March 31.
- California (CARB) restricts acquisition of new SF6 gas-insulated equipment on voltage-specific dates, from 2025 to 2033, and requires annual reporting by June 1.
- New York finalized Part 495, with acquisition phaseouts starting in 2027 and a 1% systemwide emissions limit from 2030.
- Massachusetts sets a 1% maximum annual leak rate for GIS purchased after 2015.
The True Cost Breakdown of an SF6 Leak
A leak's cost spans detection, temporary refills, repair, and final verification. Gas is one line item.
Initial Gas Purchase or Refill
Usually recurring while the leak stays active. Calculate pounds and price, then confirm whether the estimate includes cylinder charges, freight, taxes, analysis, recovery, and technician labor.
Detection, Testing, and Documentation
One-time at discovery, with possible recurring monitoring. This covers leak location, gas-quality checks, weighing and inventory records, emissions documentation, and retesting. TDS uses an infrared laser-scanning unit that shows SF6 leaks as black smoke on video.
Transportation, Storage, and Handling
One-time or recurring, depending on your refill program. Include compliant transport, cylinder storage, mobilization, recovery equipment, and trained personnel.
Lost Gas and Environmental or Compliance Exposure

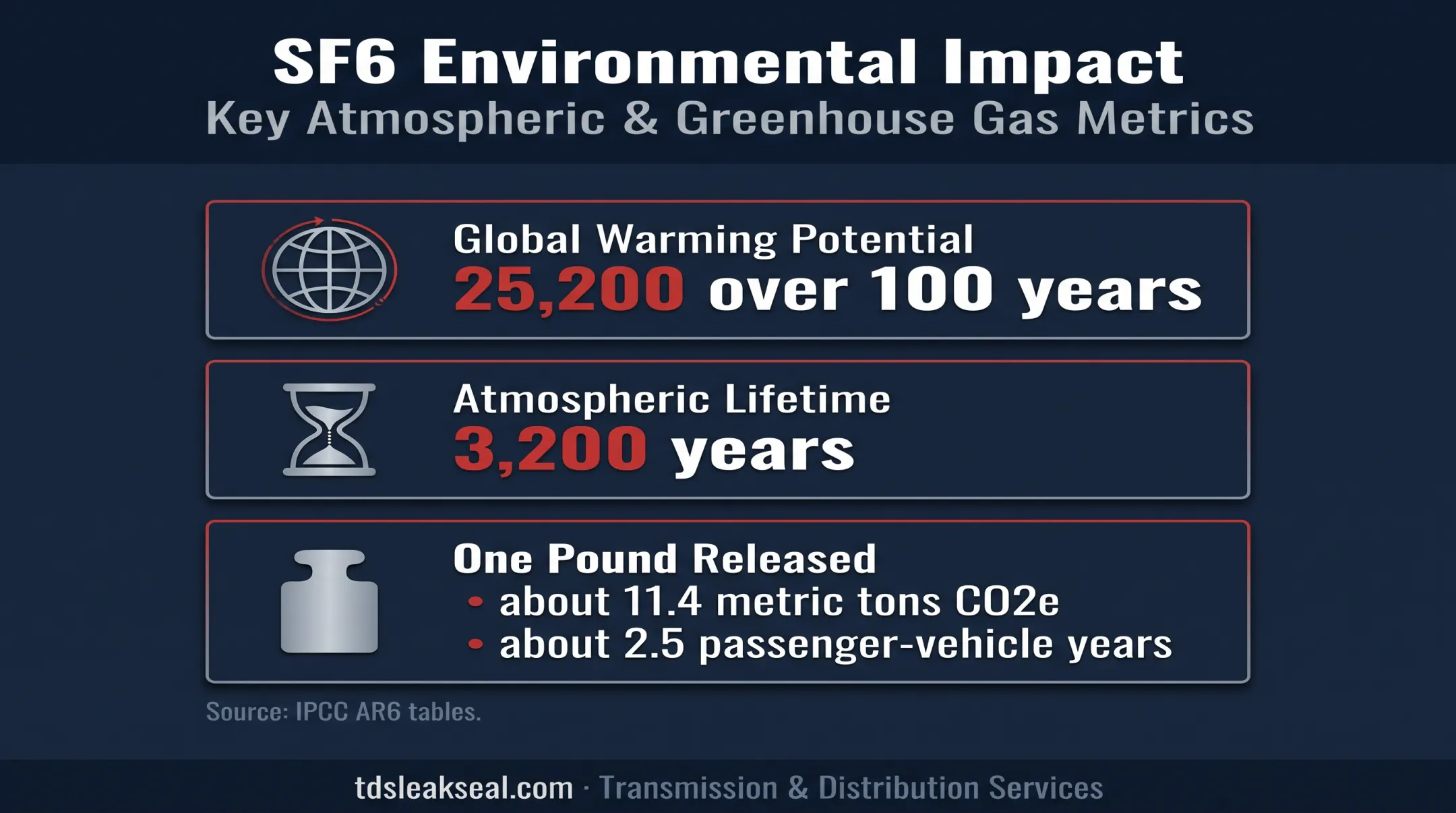

Recurring while the leak continues. Per the IPCC's AR6 tables, SF6 has a 100-year GWP of 25,200 and a 3,200-year lifetime. One pound equals roughly 11.4 metric tons CO2e, about 2.5 passenger-vehicle years of emissions.
Ongoing loss flows into emissions inventories and reports. Unchecked leaks can leave utilities exposed during EPA inspections, which examine whether leaks are documented and an action plan exists. Ask your compliance team for your own penalty exposure, since published benchmarks vary by case.
Downtime, Outage, and Asset Risk
Contingent or periodic. Taking a breaker or GIS section out of service affects transmission availability, crew coordination, and emergency work. It also carries the risk of a more serious failure if the leak is ignored.
Repair, Continued Topping-Off, or Replacement
Repair or replacement is generally one-time; topping-off recurs. Compare upfront price, durability, outage needs, verification, and warranty.
A documented case helps. Alliant Energy's 2012 work on a leaking 69-kV breaker compared re-gasketing at 5 days and $20,000 with online leak sealing at 1 day and $20,860. The presentation reported four days of transmission saved. These are case-specific figures, not a price schedule.
Low-Cost Gas Purchase vs Lower Total Cost
A cheap quote can still cost more overall if it means more frequent refills, weaker documentation, longer lead times, or no fix for the leak source.
TDS Leak-Sealing Option
Transmission & Distribution Services provides low-pressure leak sealing for SF6 gas-filled transformers, circuit breakers, and GIS equipment. Repairs are often done without traditional disassembly, and sometimes while equipment stays energized when conditions allow. TDS reports a porcelain-to-flange breaker repair in about four hours, with sealant curing in 20 minutes at 70°F.
Confirm site suitability, scope, pricing, and warranty terms through a professional equipment survey.
How to Estimate the Right SF6 Leak Budget
Fit the budget to equipment risk, duty, leak history, compliance needs, and remaining service life, not the lowest price per pound.
Build an Asset-Level Cost Estimate
For each affected asset, record:
- Gas inventory and leak location
- Refill history and estimated loss rate
- Operating status and criticality
- Access conditions
- Required testing
- Likely repair or outage needs
Compare Complete Scenarios
Request comparable estimates for these paths:
- Continued topping-off
- Detection and repair
- Specialized leak sealing
- Traditional disassembly or regasketing
- Replacement where appropriate

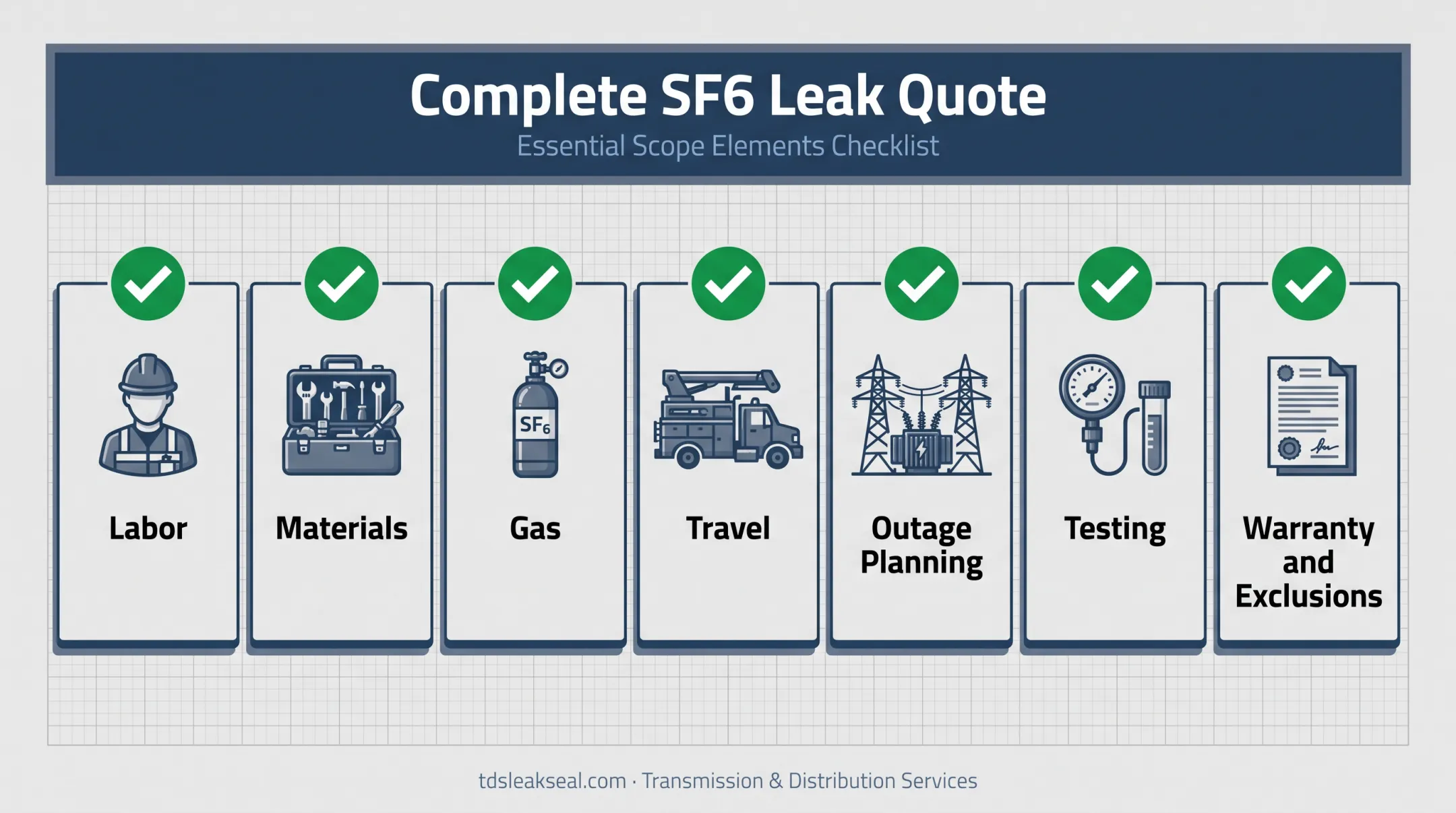

Each quote should itemize labor, materials, gas, travel, outage planning, testing, warranty, and exclusions. Without that, you are comparing unlike numbers.
What Most People Miss When Estimating SF6 Leak Cost
- Refill frequency over a full year
- Emergency mobilization
- Storage and cylinder charges
- Emissions documentation time
- Downtime and lost generation or transmission availability
- Repair verification
- The cost of delaying corrective work
TDS offers free equipment surveys that identify the leak location, repair method, and repair price. The survey also estimates travel, per diem, and hotel charges for the job.
Conclusion
SF6 gas price is one component of the total cost. Purity, volume, supply conditions, logistics, handling, compliance, and equipment requirements all shape the final budget.
Compare the cost of continued refilling with the cost and benefits of timely repair. For utilities and generation facilities, that comparison improves reliability, controls lifecycle spending, and cuts avoidable emissions.
Frequently Asked Questions
How much does sulfur hexafluoride cost?
US prices vary by purity, quantity, container, supplier, delivery terms, and date, so request dated written quotes. A leak also adds handling, refills, compliance, downtime, and repair costs.
Who sells sulfur hexafluoride?
Qualified industrial-gas suppliers, gas-handling providers, and approved reclaimed-gas sources sell it. Verify specifications, documentation, cylinder compliance, and recovery practices first.
What is sulfur hexafluoride used for?
It insulates gas-insulated switchgear and high-voltage equipment, and quenches arcs in circuit breakers. It also has selected industrial and research uses.
Is SF6 gas harmful to humans?
Clean SF6 is inert and nontoxic, but it is about five times heavier than air and can displace oxygen in confined spaces. Arc by-products are toxic, so follow the current safety data sheet, ventilation, PPE, and site procedures.
Is SF6 gas being phased out?
Federal rules have not set a nationwide phaseout of SF6 in electrical equipment. California and New York have acquisition schedules, and Massachusetts has a leak-rate rule. Equipment type, rating, jurisdiction, and acquisition date all matter.
