The alarm doesn't tell you why. A real leak, a cold morning, and a failing density switch can all produce the same annunciator point. This article covers how to tell them apart, how to respond safely, and when to bring in qualified substation service personnel.
Key Takeaways
- An alarm isn't proof of a leak; check it against temperature, local indicators, and the manual.
- Alarm, lockout, and trip setpoints differ by breaker model.
- Don't reset, refill, or operate outside OEM limits without approved procedures.
- Confirming and repairing a leak early protects reliability and cuts emissions.
What an SF6 Low Pressure Alarm Means
An SF6 low pressure alarm means gas density inside the breaker has dropped below a defined operating setpoint. SF6 has much higher dielectric strength than air or dry nitrogen. It insulates and extinguishes the arc when the breaker opens. Less gas means less margin on both jobs.
Pressure, density, and dew-point measurements
Pressure alone shifts with temperature. A temperature-compensated density monitor corrects for that. CIGRE reports note that thermally compensated densimeters help avoid false leakage alarms. Density is the better indicator of what the gas can actually do.
Dew-point and gas-quality tests answer a different question. They measure moisture, SF6 content, and decomposition products, not gas quantity. Don't treat the sensors as interchangeable.
Alarm, lockout, and trip stages
Breakers typically use staged logic:
- Low alarm: buys time to investigate
- Lower alarm: may restrict operation or call for a protection response
- Final stage: close-blocking, lockout, trip, or interlock
Labels, setpoints, and behavior vary. Confirm them in the breaker's drawings and instruction manual.
Why low gas condition matters
Inadequate density can reduce dielectric strength and interrupting performance, especially during fault clearing. Utility specifications distinguish normal fill pressure from the manufacturer's minimum for interrupting rated current. No universal minimum exists, so rely on OEM ratings, your utility's protection philosophy, and applicable IEEE C37.04 guidance.

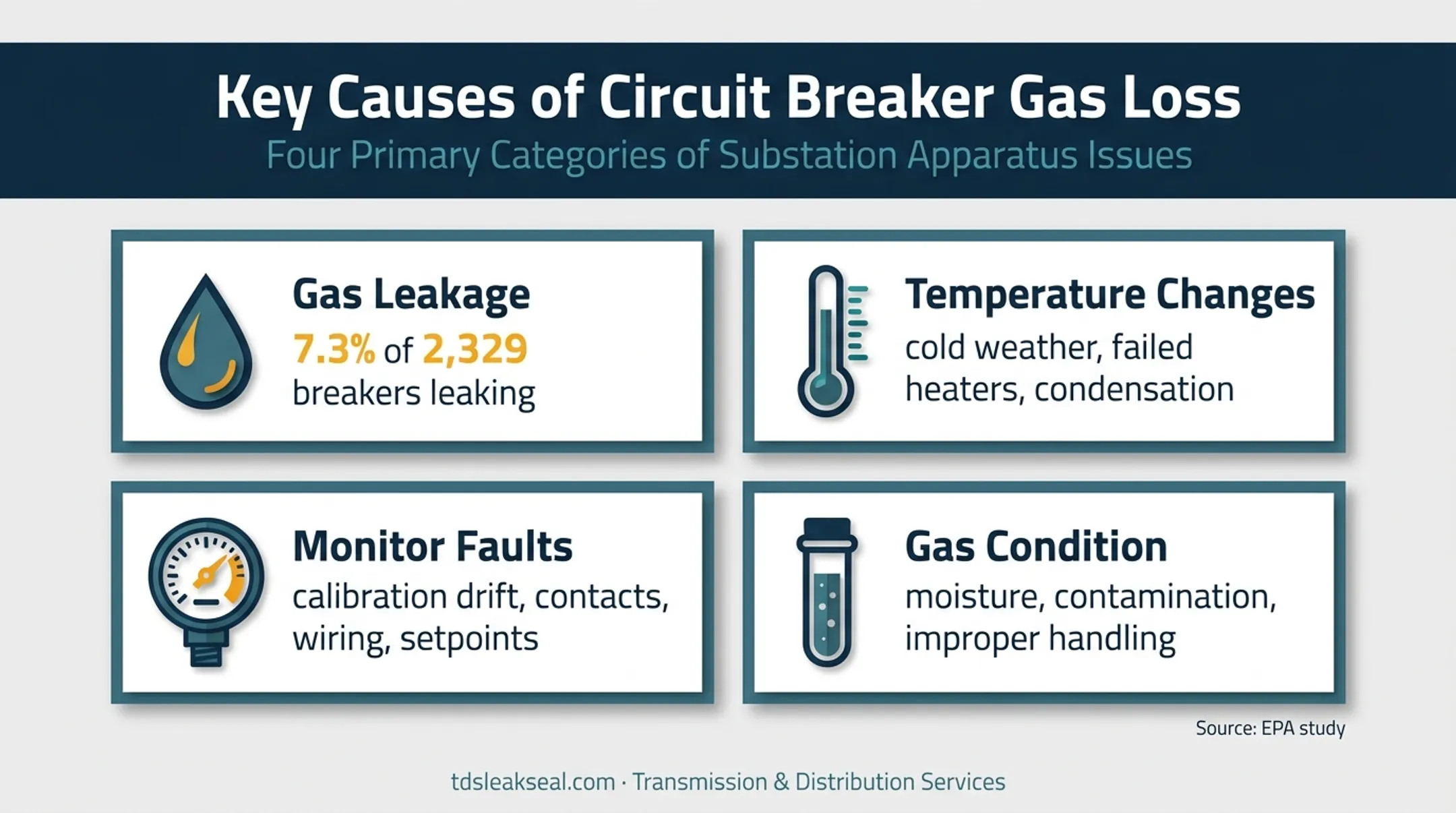

Common Causes of an SF6 Low Pressure Alarm
Gas leakage from the sealed system
Leaks typically occur at:
- Porcelain and base mounting flange joints
- Bushing end caps
- Gaskets on pipe flanges, bushing flanges, or drain valves
- Fill connections, valves, and fittings
An EPA study of 2,329 breakers found 7.3% leaking, based on documented top-ups after density alarms. It's a historical, three-utility dataset, but it shows leaks are common. Slow leaks can trip an alarm well before anything is visible.
Temperature-related density changes
Cold weather, failed heaters, or condensation behavior can shift a pressure or density indication. Temperature limits are model-specific, so take them only from the breaker manufacturer.
Monitor, switch, or wiring faults
A false or intermittent alarm can come from:
- Calibration drift in a density switch
- Stuck contacts
- Damaged wiring or control-circuit problems
- Incorrect setpoints
Gas condition and maintenance history
Moisture, contamination, or improper gas handling can degrade equipment even when the alarm comes from a pressure device. Run gas-quality tests when the OEM procedure calls for them.

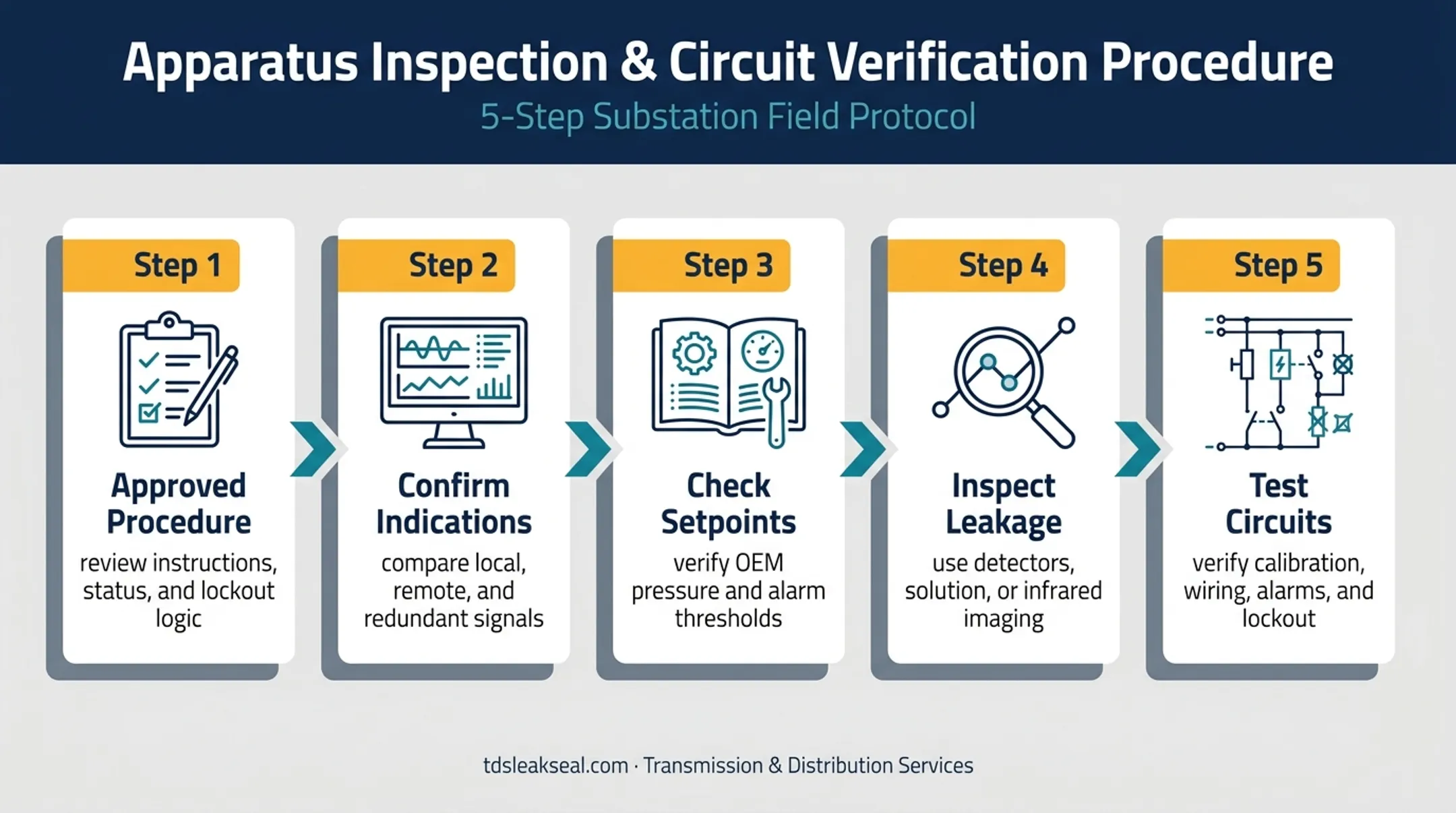

How to Diagnose an SF6 Low Pressure Alarm
Start with the approved operating procedure
Qualified personnel should review switching instructions, breaker model, alarm priority, equipment status, and any lockout or trip logic before acting.
Don't bypass an interlock, open a gas compartment, or do live work unless you're authorized, trained, and equipped.
OSHA 1910.269 requires a job briefing covering hazards, procedures, energy-source controls, and PPE before each job.
Confirm the alarm locally and remotely
Compare the control-room indication with the local gauge, density monitor, annunciator, SCADA point, and any redundant sensor. Record:
- Time and alarm stage
- Ambient temperature
- Recent breaker operations
History helps. A slow decline suggests a leak, a sudden jump suggests signal failure, and a daily swing points to temperature.
Check documentation and setpoints
Verify rated fill pressure, reference temperature, alarm and lockout thresholds, and temperature compensation in the OEM manual and approved drawings. Never borrow ranges from another design, voltage class, or manufacturer.
Inspect for evidence of leakage
Traditional methods include:
- Soapy-water "snoop" solution
- Handheld detectors
- Ultrasonic devices
Wind, noise, and survey thoroughness can make them unreliable. Infrared imaging scans the whole breaker for SF6's infrared signature and shows the leak as black smoke on video, which is how TDS pinpoints sources.
Document the suspected location and check prior inspection, refill, and repair records before choosing a repair method.
Test the monitoring and protection circuits
Verify calibration, contact operation, wiring continuity, annunciation, remote signals, and lockout logic using approved maintenance procedures. Don't assume a monitor fault just because the alarm is inconvenient.
What to Do After an SF6 Low Pressure Alarm
Stabilize the operating condition
Follow site switching and emergency procedures. Determine whether the breaker is in service, available to interrupt, locked out, or blocked from closing. Notify protection and maintenance teams.
Whether to keep it running, isolate it, or remove it from service depends on OEM limits, system configuration, redundancy, staffing, and your approved risk assessment.
Repair the underlying problem, not just the gas
Adding gas without finding the leak lets the condition recur, adds emissions, and leaves a compromised seal in service. EPA's study used repeat top-ups as the marker of a leaking breaker.
A leak-sealing assessment can identify the leaking component and determine whether it can be repaired without teardown or regasketing.
Where TDS fits
Transmission & Distribution Services specializes in low-pressure leak sealing for SF6-filled circuit breakers, GIS, and other substation apparatus. Its technicians are OSHA-certified and work exclusively in substations.
- Free equipment surveys that list equipment, leak location, repair price, and method
- Cured-in-place gasket repairs that avoid traditional disassembly in suitable cases
- Energized, in-service repairs when access near live components isn't required
- Four-year warranty coverage on leak-seal repairs
Some repairs need an outage for safe clearance, in which case switch the equipment out and ground it first.
Handle SF6 safely and responsibly

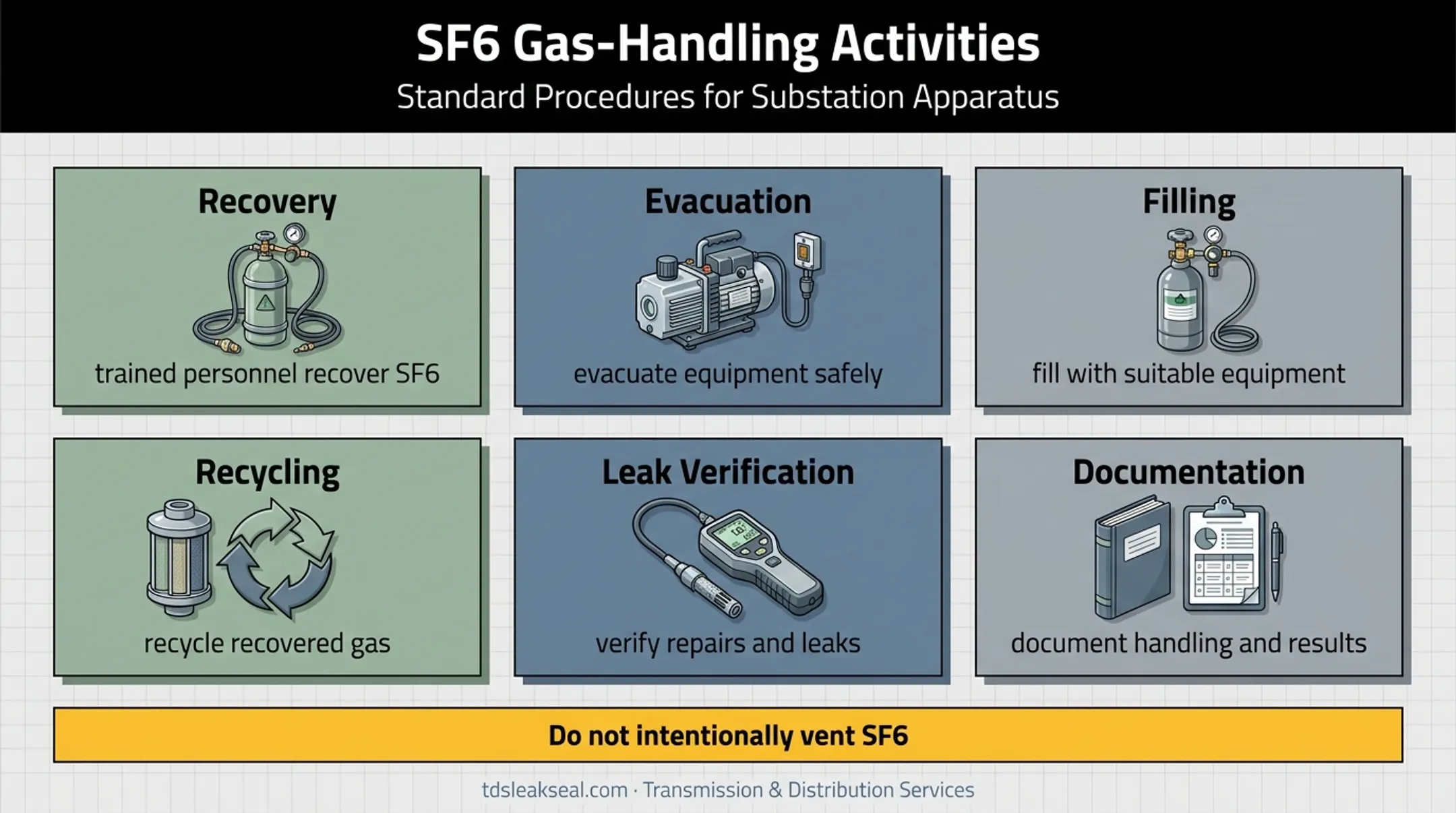

Trained personnel should handle recovery, evacuation, filling, recycling, leak verification, and documentation with suitable equipment. IEC 62271-4 sets minimum gas-handling requirements. Don't intentionally vent SF6.
Warning: arc byproducts are corrosive and irritating to eyes, skin, and lungs. They may require added ventilation, PPE, and hazardous-material procedures.
Verify restoration before returning to service
Confirm:
- Gas condition after the repair
- Leak-test results
- Monitor and alarm operation
- Lockout or interlock reset
- Protection-scheme testing
- Maintenance records
The return-to-service decision should follow the OEM manual and your facility's engineering and operations approval.
Preventing Repeat SF6 Low Pressure Alarms
- Trend the data. Record pressure or density, temperature, alarms, gas additions, leak tests, and maintenance. Continuous monitors can log this automatically, including heater operation.
- Prepare for cold. Verify heaters, insulation, station-service capacity, and temperature compensation using site-specific engineering data.
- Maintain equipment. Inspect seals and fittings, calibrate and function-test density monitors, check gas quality, and use qualified recovery practices.
These records also support compliance. EPA's Subpart DD reporting covers fugitive leaks from electrical equipment, and inspections ask whether utilities document leaks and have a repair plan. Verify current federal and state requirements before relying on any summary.
Frequently Asked Questions
What does a low SF6 pressure alarm mean?
Temperature-compensated SF6 density has reached a manufacturer-defined threshold. Causes include a leak, temperature effects, or an instrument fault. Confirm the reading against the OEM procedure.
Can an SF6 circuit breaker operate with low gas pressure?
It depends on the design, alarm stage, density, temperature, and OEM limits. Don't assume insulation or interrupting capability is adequate below the approved threshold.
How do you troubleshoot an SF6 low-pressure alarm?
Follow the operating procedure, then compare local and remote indications. Check temperature and alarm history, inspect for leaks, and test the monitor circuit. Involve qualified personnel throughout.
How is a circuit breaker tested?
Typical tests cover visual and mechanical checks, timing, insulation and contact resistance, trip-and-close, gas pressure and analysis, leak detection, and alarm and interlock checks. Follow the OEM manual and qualified maintenance procedures.
Is SF6 being phased out?
Not uniformly. Rules vary by jurisdiction, equipment, and voltage. California's CARB rules set acquisition schedules and emissions caps; EPA HFC rules are not an SF6 switchgear phase-out. Check current requirements for your site.
