This guide covers why cleaning matters, the four maintenance approaches, warning signs, safe cleaning practice, and how to set a schedule. It also flags when to call qualified electrical personnel.
Key Takeaways
- Dry-type transformers need regular cleaning and inspection to stay cool and keep insulation intact.
- Use dry, nonconductive methods and follow the OEM manual; liquids can damage insulation.
- Internal cleaning requires de-energization, lockout/tagout, voltage verification, and PPE.
- Set frequency by dust, humidity, corrosion, load, ventilation, and criticality.
Why Cleaning and Maintenance of Dry-Type Transformers Is Important
Cleaning is one piece of a preventive maintenance program, alongside inspection, testing, and records. It protects the money already spent on the transformer.
Cooling and Heat
ABB's cleaning guidance says dust and dirt in cooling ducts and on surfaces can reduce cooling efficiency and lead to overheating. Eaton likewise instructs inspectors to check terminations and ventilation openings for dust and dirt. A transformer that can't shed heat under load runs hotter, and sustained heat is hard on insulation.
Insulation, Moisture, and Tracking
ABB also notes that moisture is detrimental to most insulation systems, and visible moisture on insulation must be dried before energizing. Eaton directs inspectors to look for evidence of tracking or discharge, cracks, breaks, and burns. These manufacturer-identified issues—moisture, tracking, cracks, and burns—are the practical risks inspection and cleaning are meant to catch.
Safety and Compliance
Maintenance also protects people. Key points:
- OSHA 1910.303 specifies that openings in ventilated dry-type transformers deflect foreign objects away from energized parts, so damaged screens and covers matter.
- OSHA 1910.333 generally requires exposed live parts to be de-energized, and 1910.147 covers energy-control procedures and verification.
- NFPA 70B became a "Standard" in 2023, and NFPA 70E addresses hazard analysis, PPE, and electrically safe work conditions.
- Clearances and ventilation dimensions depend on the locally adopted NEC edition and the OEM instructions.
Planned Versus Reactive Costs
Build the cost comparison from your own outage and repair numbers rather than generic industry averages. Planned cleaning costs labor, a scheduled outage, and basic testing. Reactive work adds emergency labor, lost production, possible rewinding, and premature replacement. Your own outage cost per hour usually settles the question.
Types of Maintenance for Dry-Type Transformer Cleaning
Maintenance is not one-size-fits-all. Cleaning may be routine, corrective, condition-based, or part of a major service, depending on contamination, operating conditions, and inspection findings.
Routine / Preventive Maintenance
The DOE's O&M best practices guide defines preventive maintenance as actions scheduled by time or run-time to detect and mitigate degradation. For a dry-type unit, that means scheduled visual inspections, dust removal from windings, cleaning of vents and filters, terminal checks, and written findings.

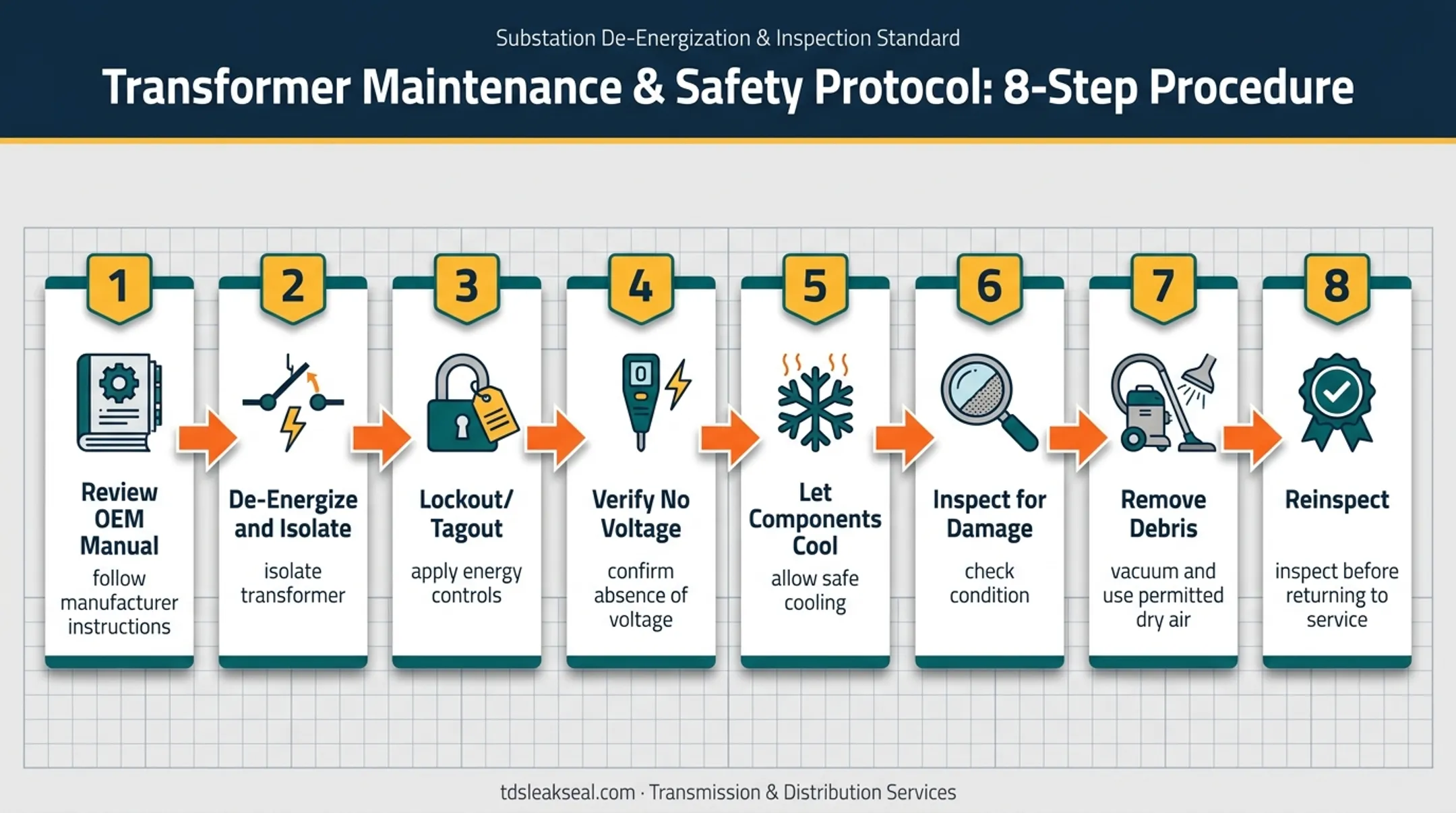

Follow this safe sequence:
- Review the OEM manual.
- De-energize and isolate the transformer.
- Apply lockout/tagout.
- Verify absence of voltage.
- Let components cool.
- Inspect for damage.
- Vacuum loose debris.
- Use dry, low-pressure air only where the OEM permits.
- Reinspect before returning to service.
Tools and methods. Use an industrial vacuum, nonconductive or antistatic brushes, lint-free cloths, and moisture-free low-pressure air. Eaton permits vacuuming, brushing, or dry air but cautions against blowing contamination deeper into the equipment. Hammond Power Solutions recommends vacuuming first, then clean, dry compressed air at no more than 25 psi. That limit is specific to its manual. ABB and Eaton give no number, so check yours.
Liquid cleaners. Hammond says liquid cleaners are undesirable because solvents may harm insulating materials. Transmission & Distribution Services (TDS) sells a biodegradable, water-soluble transformer cleaner designed for oil-stained, pressure-washed equipment. Use it on dry-type windings only when the product label and the transformer's OEM both approve that application.
When routine cleaning fits. Use it when contamination is superficial, with no carbonization, tracking, cracked insulation, severe overheating, moisture damage, or winding displacement. Build your cost estimate from labor, materials, testing, and outage planning for your site.
Corrective / Reactive Maintenance
Corrective service follows a trigger:
- Heavy visible contamination or blocked vents
- Thermal alarms, hot spots, or repeated breaker trips
- Unusual odors or discoloration
- Reduced insulation resistance
- An overload, fault, nearby fire, or water intrusion
Waiting for failure risks an unplanned outage, damaged windings, and a far larger bill than a scheduled cleaning.
Predictive / Condition-Based Maintenance
DOE describes predictive maintenance as based on actual, quantified equipment condition. Useful inputs include:
- Visual trends and maintenance logs
- Infrared thermography
- Temperature sensors and load records
- Airflow checks
- Insulation-resistance testing
ASTM E1934 guides infrared examination but sets no transformer pass/fail temperature. Verify test methods and acceptance criteria against the OEM and applicable standards such as NETA MTS.
Major / Overhaul Maintenance
Cleaning alone will not fix:
- Moisture ingress or tracking
- Carbonization or damaged insulation
- Loose or overheated connections
- Winding damage
- Persistently abnormal test results
These conditions call for specialist testing, then repair, rewinding, or replacement. No single clean-versus-repair-versus-replace threshold applies across OEMs, so get quotes for each option.

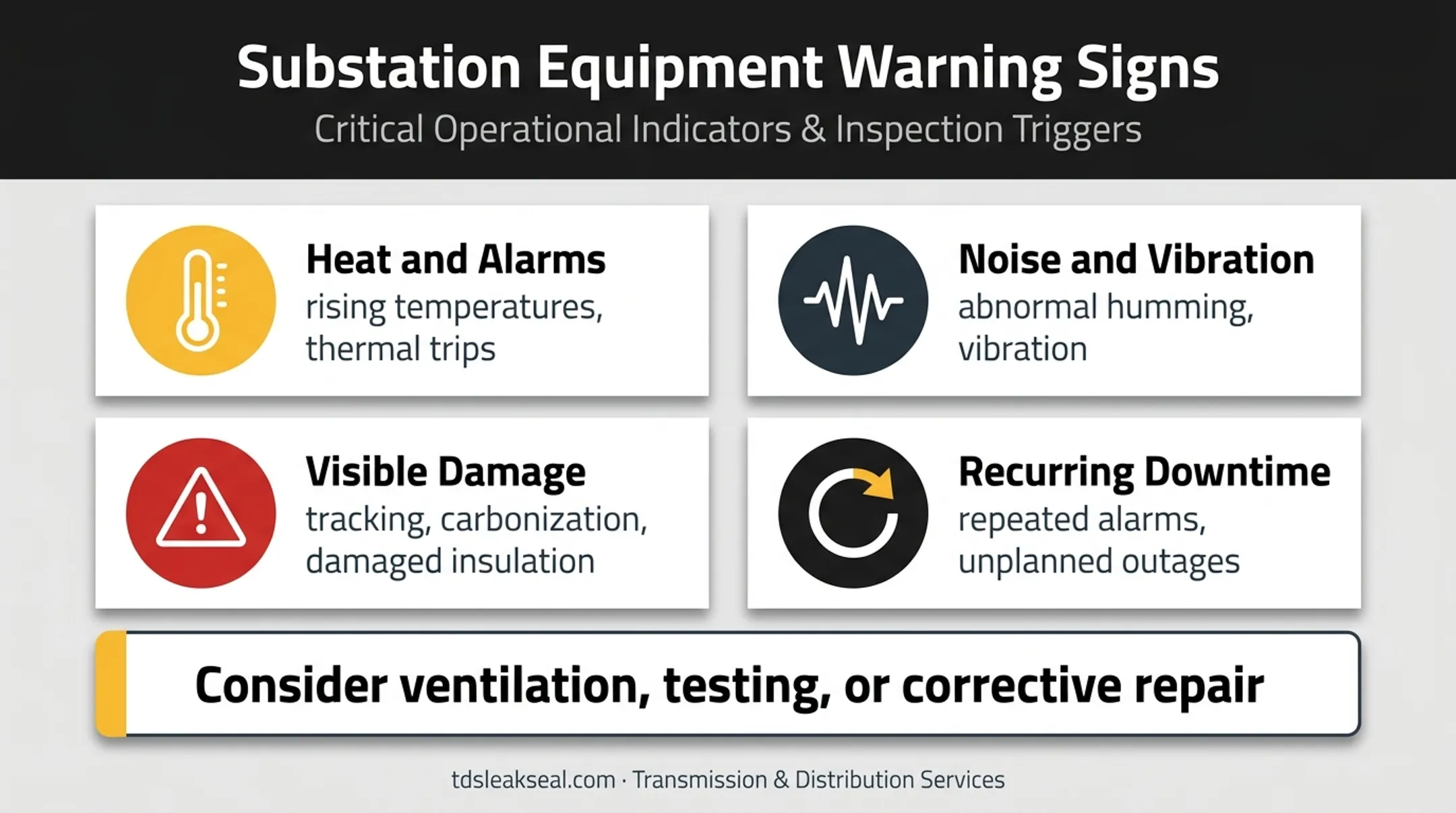

How to Check If a Dry-Type Transformer Needs Cleaning or Maintenance
Treat these indicators as prompts for a documented inspection, not as authorization to open or clean energized equipment. Suspected damage or abnormal operation needs a qualified electrical assessment.
Performance or Output Changes
Rising winding or enclosure temperatures, thermal alarms, or reduced loading capability can point to blocked airflow or contamination. They can also point to overload or an electrical fault. Compare readings against the nameplate and OEM limits, since no universal alarm temperature exists.
Unusual Behavior or Operation
Watch for abnormal humming, vibration, fan problems, odors, repeated alarms, or shutdowns after load increases. Hammond notes that excess noise may come from poor room ventilation or outside heat sources, so noise alone doesn't prove dirt. Investigate first, then clean.
Visible Wear and Irregularities
Look for:
- Dust on windings, vents, screens, filters, terminals, and enclosure surfaces
- Moisture marks, rust, corrosion, and paint deterioration
- Discoloration, cracked insulation, and tracking
Stop-work indicators: black marks, arcing evidence, exposed conductors, melted parts, severe discoloration, or damaged insulation. Remove the unit from service and have qualified personnel evaluate it.
Increased Cooling Demand
Fans running more often or temperatures climbing under the same workload may mean dirt is choking airflow. Rule out overload, imbalance, poor connections, and room conditions before blaming dust.
Recurring Issues or Downtime
Repeated thermal trips, nuisance alarms, fixes that don't hold, fast dust buildup, or unplanned outages suggest the interval is too long. Consider better ventilation, environmental controls, testing, or corrective repair.

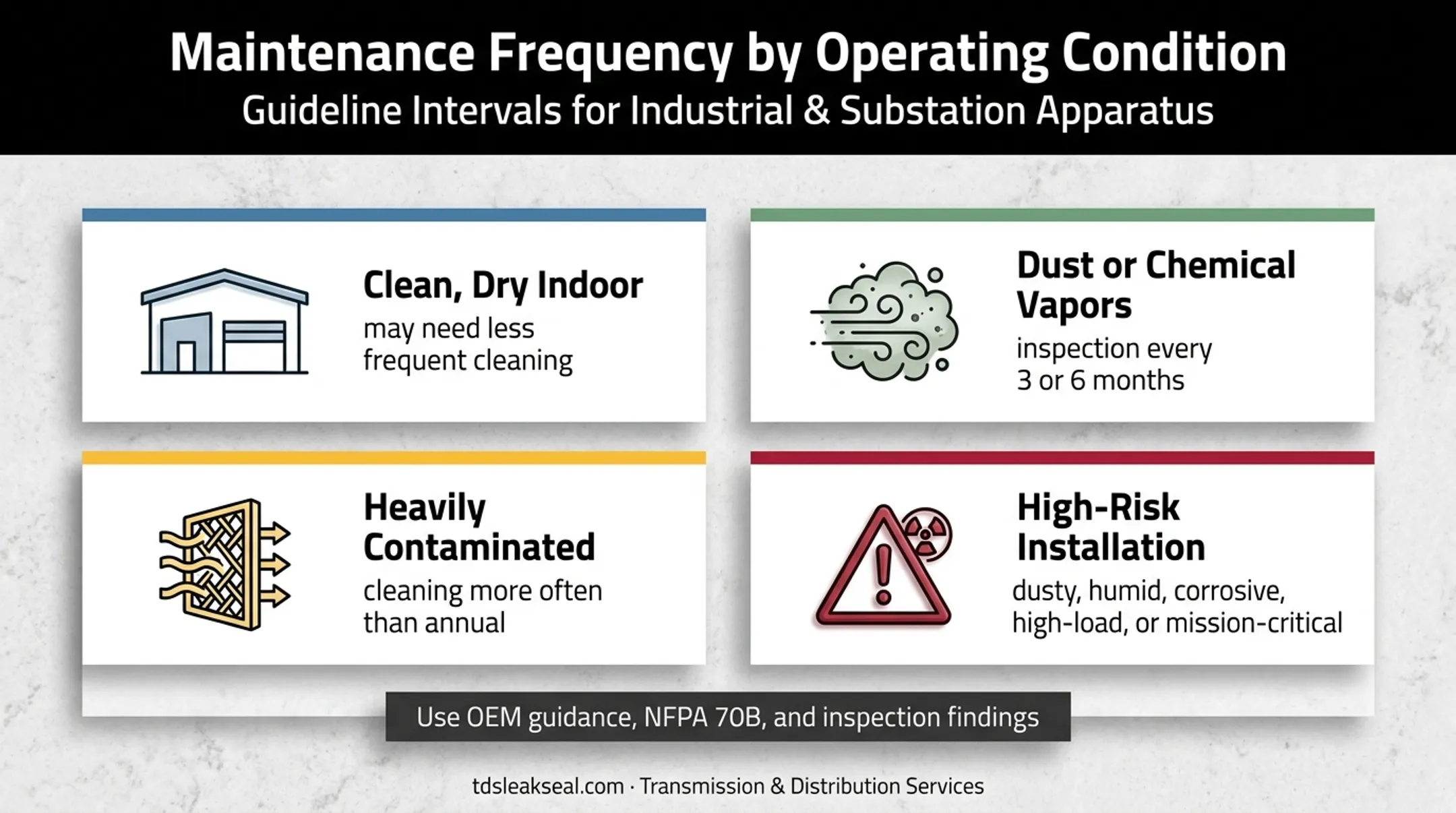

Dry-Type Transformer Cleaning Schedule (General Guidelines)
No single interval fits every unit. Combine the OEM manual, current NFPA 70B guidance, environment, load, ventilation design, criticality, and past findings.
Hammond's guide says annual inspection is normally sufficient in clean, dry locations, but every 3 or 6 months may be needed where dust or chemical vapors are present.
ABB suggests at least annual cleaning, and more often in heavily contaminated atmospheres.
Maintenance Frequency Table
These are starting points, not universal rules.
| Activity | General starting point |
|---|---|
| Operating observations (temperature, noise, alarms) | Daily or per use |
| Housekeeping (clear area around unit, vents unobstructed) | Weekly or periodic |
| Visual and airflow inspection | Monthly or quarterly |
| De-energized cleaning, testing, documentation | Annually, or per OEM and site conditions |
Clean, lightly loaded indoor units may need less. Dusty, humid, corrosive, high-load, continuously operating, or mission-critical installations need more frequent inspections and planned outages.
Confirm any current NFPA 70B interval in the edition your site follows.
Scheduling and Documentation Notes
- Coordinate cleaning with planned outages.
- Record contamination levels and take inspection photos.
- Track thermal and insulation-test trends.
- Review filter and ventilation performance.
- Revise the schedule after environmental changes, overloads, faults, construction, or nearby fires.
Conclusion
Dry-type transformer cleaning is essential preventive maintenance. Clean airflow and protected insulation support reliability, keep operating costs in check, and reduce downtime.
Follow the OEM manual. Bring in qualified electrical personnel whenever work involves internal components, abnormal findings, energized equipment, or testing beyond your team's training.
Frequently Asked Questions
What would burn out a transformer?
Sustained overload, blocked cooling, loose connections, insulation failure, moisture, contamination, and short circuits can all do it. Cleaning reduces contamination-related risk but can't correct every cause.
What is transformer oil purification?
It is the filtration, dehydration, or treatment of insulating liquid in oil-filled transformers. It plays no part in cleaning a dry-type transformer, which has no oil.
How often should a dry-type transformer be cleaned?
It depends on dust, humidity, corrosive exposure, loading, ventilation, criticality, OEM guidance, and inspection findings. No universal interval exists.
How do you clean a dry-type transformer safely?
De-energize, isolate, lock out/tag out, and verify no voltage while wearing PPE. Vacuum, use OEM-approved dry air and nonconductive tools, inspect, and test before re-energizing.
Can you use water or liquid cleaner on a dry-type transformer?
Don't apply water, solvents, detergents, or unapproved sprays to windings or insulation. Clean removable filters with water only if the manufacturer allows it, and make sure they are fully dry before reinstalling.
What are signs a dry-type transformer needs cleaning?
Visible dust, blocked vents, high temperatures, hot spots, odd odors or sounds, thermal alarms, discoloration, and repeated trips. Tracking, carbonization, or damaged insulation needs professional evaluation, not routine cleaning.
