Maintenance teams face a practical question: keep the unit running, monitor it more closely, or replace it? Chronological age alone doesn't answer that. A 45-year-old unit with stable test trends may have more life left than a 15-year-old one that has seen repeated through-faults.
This article covers expected service life, what shortens it, how to assess remaining life, and how to decide between repair and replacement.
Key Takeaways
- No universal expiration date exists; condition data beats age.
- Hot-spot temperature, moisture, oxygen, and cooling performance drive insulation aging.
- Oil tests, DGA, electrical tests, and trend records estimate remaining life.
- A leak or failing accessory may be repairable without replacing the unit.
How Long Do Power Transformers Typically Last?
Large power transformers carry a design life of roughly 40 years, according to the DOE's 2024 report, and many serve longer. That is a design horizon, not a retirement order.
What "lifespan" actually means
Published figures measure different things:
- Design life: the horizon engineers plan around, about 40 years for large power units.
- Insulation life: time until paper insulation deteriorates to a high risk of electrical failure.
- Useful service life: how long the unit performs as intended before removal.
- Economic life: the point where losses or upkeep costs justify retiring a technically working unit.
- End of life: removal from service, usually an owner decision weighing condition, economics, and risk.
CIGRE's 2022 work finds no universally accepted end-of-life value for solid insulation, so treat any single number with caution.

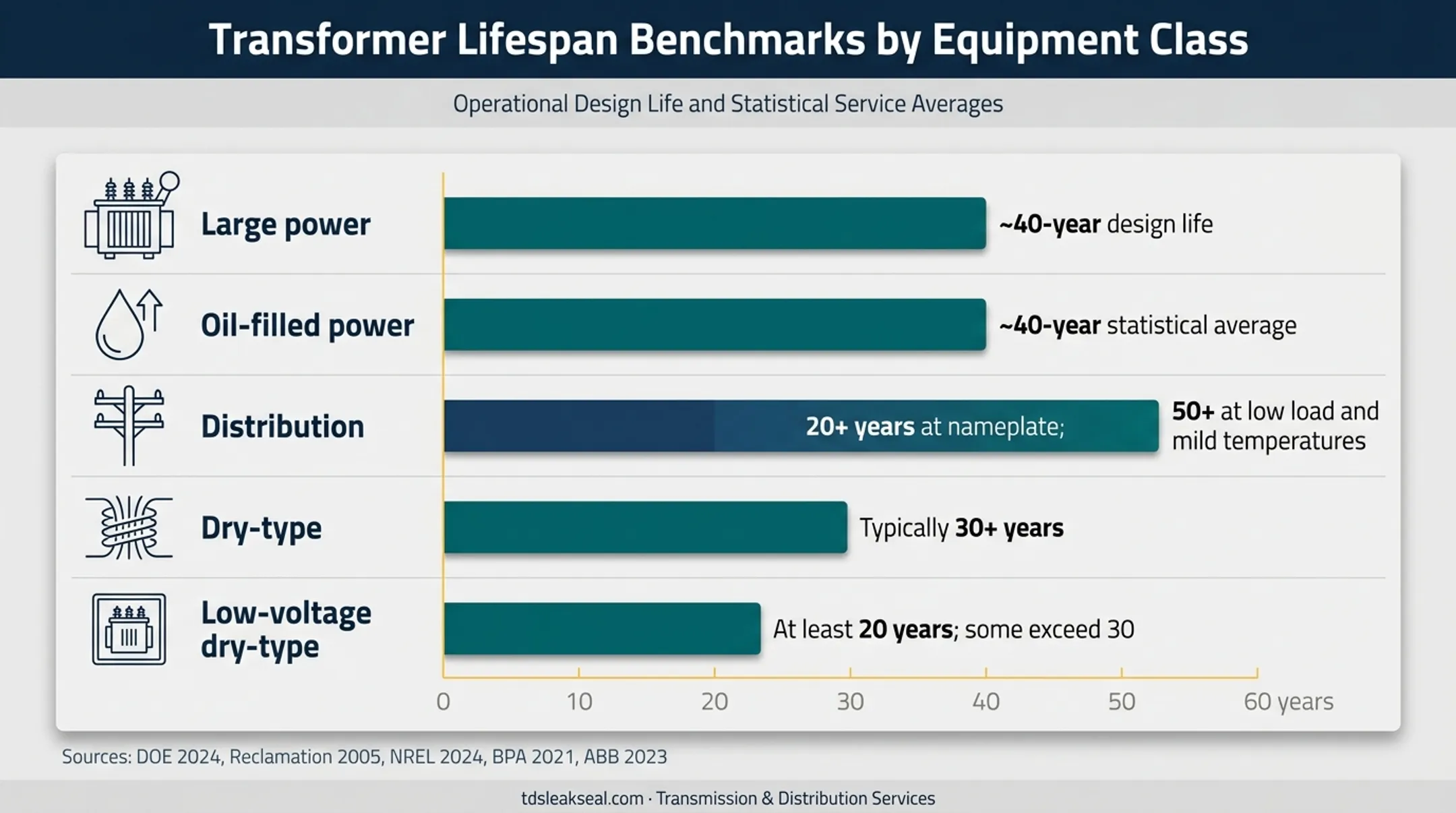

Lifespan by transformer type
| Category | Benchmark | Caveat |
|---|---|---|
| Large power | ~40-year design life | Design horizon, not mandatory retirement |
| Oil-filled power | ~40-year statistical average (Reclamation, 2005) | Population average, not individual remaining life |
| Distribution | 20+ years at nameplate load; 50+ at low load and mild temperatures (NREL, 2024) | Doesn't separate oil-filled from dry-type |
| Dry-type | Typically 30+ years (BPA, 2021) | Not an oil-filled power estimate |
| Low-voltage dry-type | At least 20 years; some exceed 30 (ABB, 2023) | Depends on application and installation |
Low-voltage and dry-type overlap; they aren't separate classes.
Why estimates vary, and why age isn't enough
Sources differ on loading assumptions, ambient temperature, insulation system, and what "end of life" means. The often-quoted 20.5 years comes from a legacy insulation-aging reference (180,000 hours), not whole-transformer life.
An older unit with stable test results and good maintenance can stay serviceable. A younger one hit by overheating, through-faults, or moisture may not.
Building a life estimate for one asset
Gather these inputs:
- Nameplate and manufacturer data
- Commissioning date and loading history
- Fault exposure and repair history
- Oil and electrical test trends
- Known defects, such as leaks or alarms
- Criticality of the connected load
What Factors Shorten or Extend Transformer Life?
Thermal loading and hot-spot temperature
Heat is the main enemy of paper insulation. In the legacy IEEE C57.91 aging model, a 110 °C winding hot spot (65 °C rise system) is the reference point. Aging roughly doubles with each 6-7 °C increase near it. These are model-specific conditions, not universal limits. The current guide is IEEE C57.91-2025; the IEC equivalent is 60076-7:2018.
Overloads, high ambient temperature, weak cooling, and rapid load swings all push hot-spot temperature up.
Moisture, oxygen, and oil condition
EPRI's 2007 testing found that moisture accelerates paper aging and oxygen accelerates it further. In wet, oxygen-rich conditions, standard and thermally upgraded paper degrade at the same rate. Upgraded paper alone doesn't guarantee longer life.
Cooling systems and accessories
Radiators, fans, pumps, conservators, breathers, bushings, and tap changers can fail while the tank and windings look fine.
- A dead fan bank raises thermal stress
- A failed breather lets moisture in
- Tap changers accounted for 31% of major failures in CIGRE's substation-group survey
Cooling-system leaks matter too. Many large units use 6- and 8-inch dresser couplings on cooling circuits, and replacing a worn gasket conventionally means draining that oil.
Electrical, mechanical, and environmental stress
- Through-faults and short-circuit forces can shift windings
- Lightning and switching surges stress insulation
- Shipping damage can hide displacement until later
- Humidity, salt, and dust deposits raise bushing flashover risk
- Flooding can disable controls and contaminate oil
These are mechanism-specific risks. No fixed number of years lost per event is established.
How to Assess Remaining Transformer Life
Start with history and a walkdown
Maintenance records, loading history, fault events, oil additions, repairs, and alarms give test results their context. On the walkdown, look for corrosion, cracked insulators, overheating, and unusual noise.
Inspect for leaks and deterioration
Check tanks, radiators, valves, bushings, gaskets, welds, gauges, and conservators. Separate an external seal leak from signs of internal damage. Common leak points include:
- Flange gaskets on 4-bolt flapper valves, where extra bolt tightening rarely stops a failed gasket
- 8-bolt butterfly valve and pump flanges
- Temperature probes, liquid-level gauges, flow gauges, and no-load tap changers
- Bushing bases and pinhole or weld-seam cracks

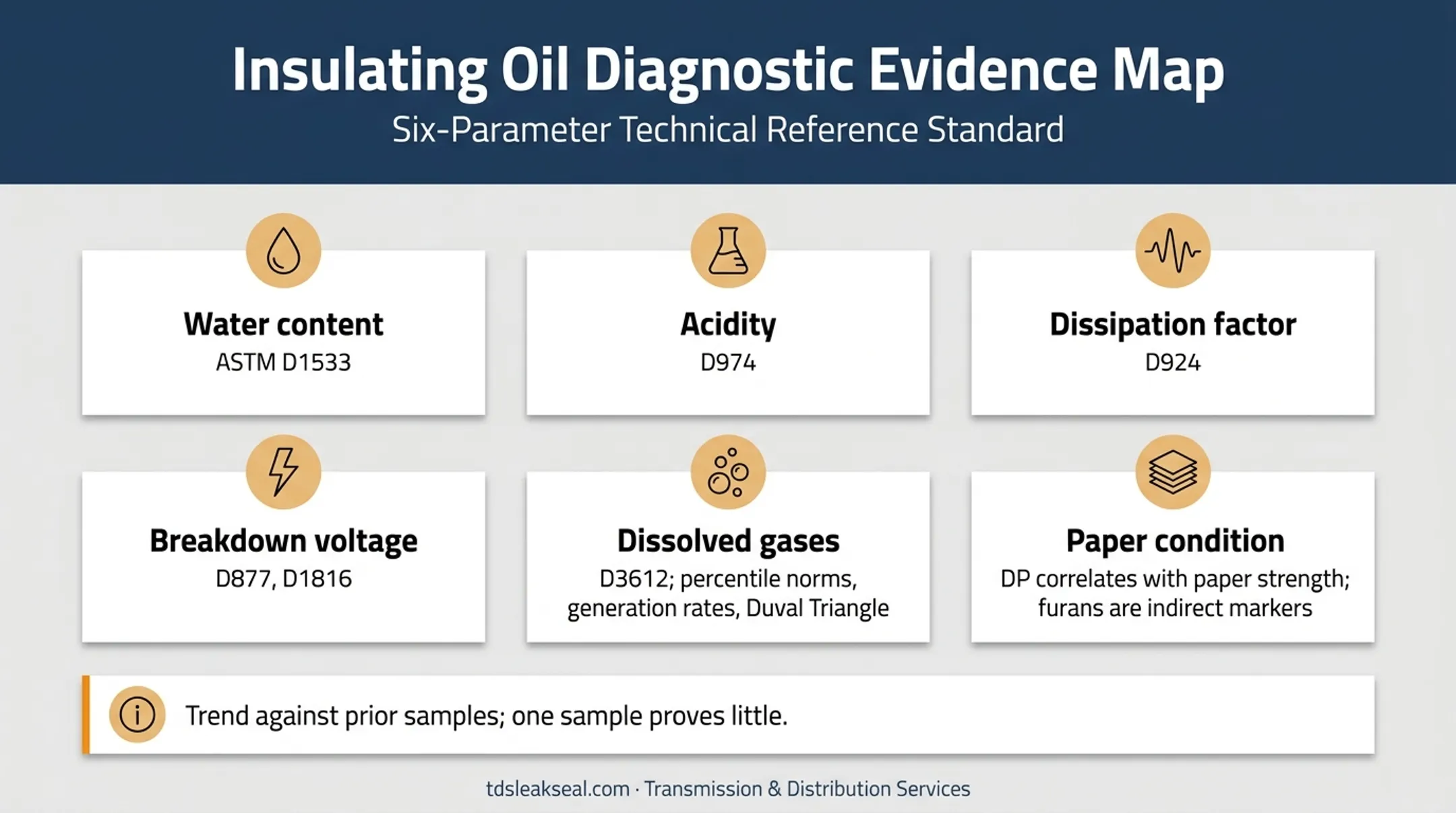

Oil testing and dissolved gas analysis
Standard oil tests cover water content (ASTM D1533), acidity (D974), dissipation factor (D924), breakdown voltage (D877, D1816), and dissolved gases (D3612). Each measures a different property, and a good oil result doesn't establish remaining paper life.
IEEE C57.104-2019 interprets DGA using percentile norms, generation rates, and the Duval Triangle for fault type. DGA status is not transformer condition, and one sample proves little. Trend against prior samples.
CIGRE also notes that degree of polymerization (DP) correlates with paper strength, but no universal limit exists. Furans are indirect markers, not life clocks.
Electrical, thermal, and functional testing
- Insulation resistance and power/dissipation factor
- Winding resistance and turns ratio
- Bushing tests and frequency response
- Infrared thermography
- Partial-discharge investigation where warranted
- Verification of cooling and tap-changer operation
IEEE C57.152-2025 calls for combined interpretation of results alongside manufacturer criteria.
Make a condition-based call
Sort the unit into one of four buckets:
- Normal service
- Corrective maintenance or enhanced monitoring
- Planned outage and repair
- Replacement
Qualified personnel should perform all testing under applicable safety procedures, including NFPA 70E.
Repair, Reseal, or Replace?
The central question: is the problem a repairable interface or component, or the main insulation system? Leak repair doesn't reverse paper degradation.
Signs replacement may be necessary
- Severe or repeated internal faults
- Major insulation deterioration or extensive winding or core damage
- Obsolete or unavailable parts
- Poor test trends and unsafe operation
- Repair costs and outage risk that no longer make economic sense
Plan early. DOE reports transformer acquisition commonly takes 36 months and can stretch to 60.
When targeted repair makes sense
A leaking gasket, valve, bushing flange, or gauge connection can justify targeted repair when the internal condition is acceptable. It makes the most sense when replacement would mean long downtime or procurement risk. Have engineering evaluate the unit first.
Where specialized leak sealing fits
Transmission & Distribution Services (TDS) offers low-pressure leak sealing for oil-filled substation equipment. Its technicians work exclusively in substations. The process replaces failed OEM gasket material with a cured-in-place gasket, usually without dismantling the apparatus.

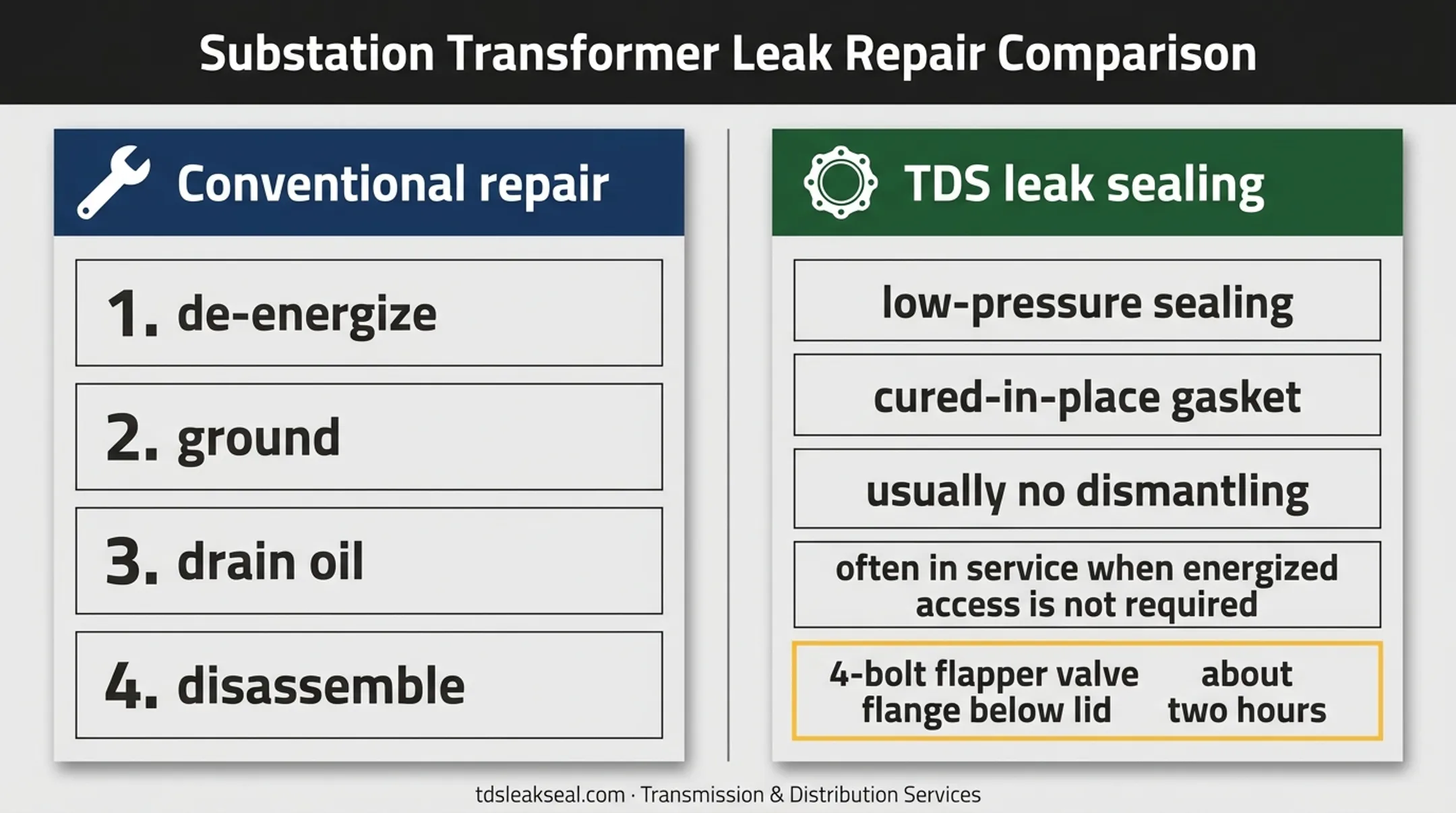

Conventional repair means de-energizing, grounding, draining oil, and disassembly. Many TDS repairs can be done in service when access to energized components is not required. For example, a 4-bolt flapper valve flange below the lid can often be repaired energized in about two hours.
TDS also provides a free equipment survey listing the equipment, leak location, repair method, and price. Confirm warranty terms in writing before relying on them.
Sealing is not a substitute for condition assessment. If a unit is headed for replacement or overhaul, containment may be enough until then.
Conclusion
The best answer to "how long do power transformers last?" is a condition-based estimate built on thermal history, insulation health, oil and electrical test trends, environment, and maintenance records.
Before you choose continued operation, repair, monitoring, or replacement:
- Pull the transformer's records
- List current defects and criticality
- Schedule testing
- Get a qualified engineering assessment
Frequently Asked Questions
How much does it cost to replace a power transformer?
Cost depends on rating and design, engineering, procurement, transport, cranes and rigging, installation, testing, disposal, outage planning, and any supporting equipment. There is no universal price; get project-specific quotes.
How long does it take to replace a transformer?
Procurement is the long pole, often years for large units. Site preparation, outage coordination, transport, installation, and commissioning add more time. Deploying an available compatible spare is much faster than ordering new.
How long do transformers typically last?
It varies by type and operating history. Large power units are designed for about 40 years, but insulation health, oil tests, loading, temperature, and fault exposure say more than age.
What is the average lifespan of an oil-filled transformer?
Reclamation cites roughly 40 years as a statistical average for oil-filled power units. The 20.5-year figure is a nominal insulation-life reference, not actual service life.
Do low-voltage transformers wear out?
Yes. Overload, ambient heat, harmonics, blocked airflow, dust, moisture, and loose connections age them. Schneider lists visible or audible arcing and excessive hum or rattles as reasons to inspect.
