Published U.S. package prices for Type II mineral oil normalize to roughly $10.45 to $12.09 per gallon before freight. Ester fluids lack dependable public pricing. Price also shifts with chemistry, quantity, packaging, delivery location, specification and urgency.
This article covers current price evidence, the main cost components, a framework for calculating oil loss, and when repair or treatment beats repeated replacement.
Key Takeaways
- Mineral oil prices depend on package size, so budget by package, not by one per-gallon figure.
- Oil loss costs include freight, testing, labor, cleanup, disposal, and outage exposure.
- Emergency top-offs and small packages cost more than planned deliveries.
- Topping off, treating, replacing, or repairing each solves a different problem.
How Much Does Transformer Oil Cost?
No fixed price exists. Delivered cost moves with oil type, specification, quantity, packaging, freight, market conditions and site location.
Misreading the price creates budget problems:
- The budget covers the fluid but omits freight, handling, sampling, labor or disposal.
- An emergency top-off costs more than planned procurement.
- An unsuitable or incompatible fluid causes testing and maintenance trouble.
Typical Cost Range
Per-gallon figures below are each package price divided by its labeled gallons. Supplier pages are undated, and listed prices exclude freight.

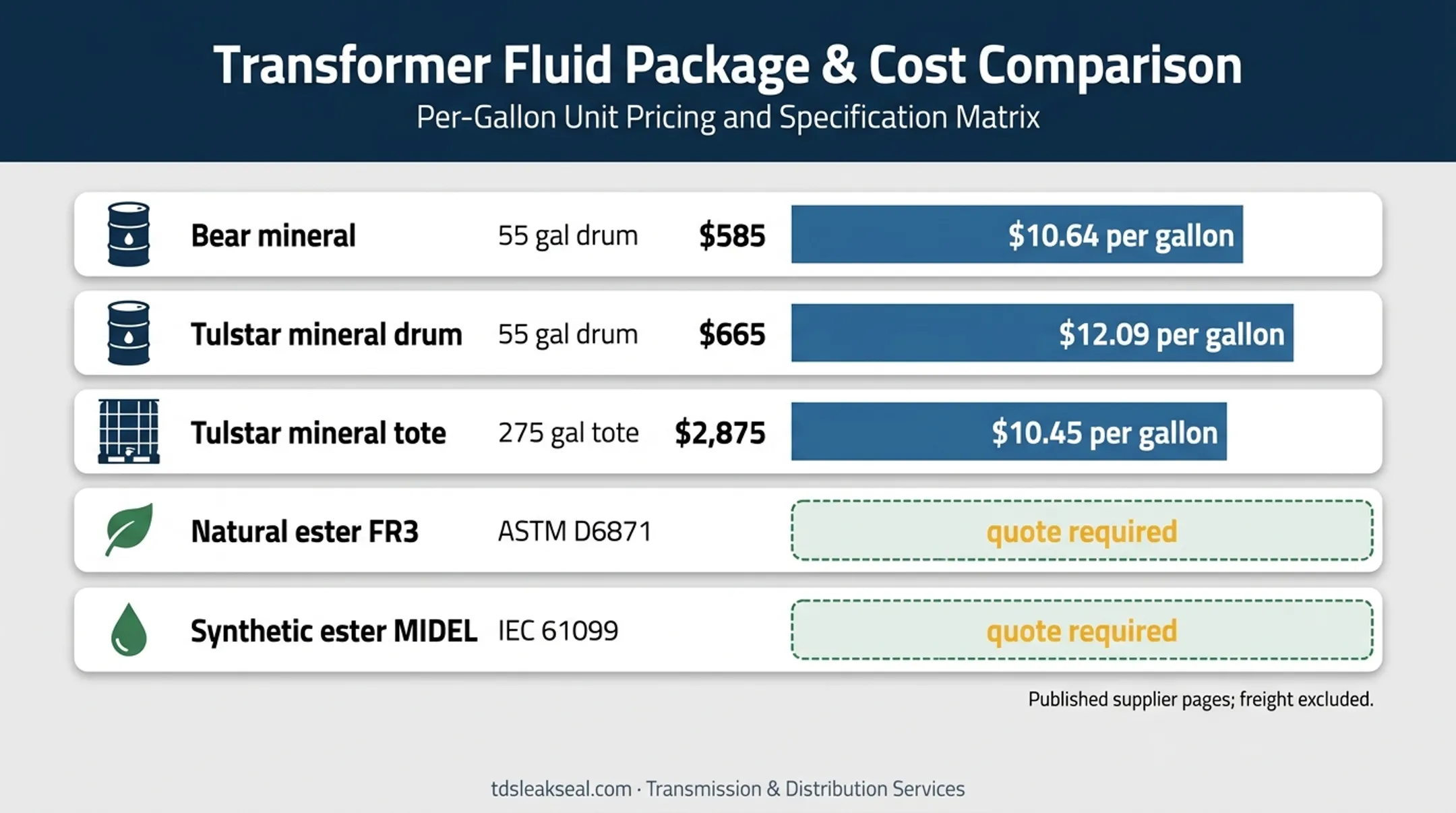

| Fluid / vendor | Specification | Package | Price | Per US gallon |
|---|---|---|---|---|
| Mineral / Bear Power Solutions | ASTM D3487 Type II | 55 gal drum | $585 | $10.64 |
| Mineral TS-3487 / Tulstar | Type II | 55 gal drum | $665 | $12.09 |
| Mineral TS-3487 / Tulstar | Type II | 275 gal tote | $2,875 | $10.45 |
| Natural ester (FR3) | ASTM D6871 | Pail/drum/tote | Not established | Quote required |
| Synthetic ester (MIDEL 7131) | IEC 61099 | Not established | Not established | Quote required |
A dependable U.S. bulk benchmark or ester price multiplier is hard to find. Get written quotes for anything beyond drums and totes.
Standard Mineral Insulating Oil
Bear Power Solutions ships nationwide with freight quoted separately. Tulstar does not state whether delivery is included. Before comparing quotes, confirm what each covers:
- Fluid and certificate of analysis
- Container type (drum, tote, tanker)
- Freight, taxes and unloading
Mineral oil fits outdoor equipment, routine top-offs and planned maintenance where the equipment specification supports it. ASTM D3487 Type I has normal oxidation resistance. Type II has greater oxidation resistance.
Natural Ester Fluid
Compare any ester quote against mineral oil on a delivered basis. Cargill's guide says FR3 mixes with mineral oil, but mineral oil above 7% can drop the fire point below 300 C.
Typical residual targets are 4-5% for power transformers and 5-6% for distribution units. The same guidance calls for compatible gaskets and limited oxygen and moisture exposure.
Fire performance, biodegradability and environmental risk may justify the premium, subject to engineering approval.
Synthetic Ester and Specialty Fluids
MIDEL 7131 has a pour point of -56 C and a fire point of 316 C, per Shell's selection guide. Premium pricing may reflect formulation, low-temperature performance, packaging and availability. Don't pick a fluid because it costs more. Pick it because the application needs the documented properties.
Key Factors That Affect Transformer Oil Price and the Cost of Oil Loss
The unit price of oil is one number. The cost of managing oil that has escaped is a much larger one.
Type and Specification
Mineral, natural ester and synthetic ester fluids carry different prices. Inhibited oils include oxidation additives, while uninhibited oils don't. Any top-off must be compatible with the fluid already in the unit. Check the nameplate and the existing oil's test results.
Size, Quantity and Packaging
Tulstar lists 55-gallon drums, 275-gallon totes, 330-gallon totes on request, and tank-truck or rail delivery. Its published tote price is lower per gallon than its drum price. Tulstar does not publish a separate quantity-break schedule, so ask for one rather than assuming a discount.
Freight, Delivery and Site Access
Delivered cost often exceeds the unit price. Confirm how each factor shows up in the quote:
- Distance and fuel surcharges on the route
- Remote or restricted site access
- Unloading equipment at the pad
- Emergency or expedited delivery premiums
- Whether freight is included or billed extra
Testing, Treatment and Maintenance
Sampling and analysis add cost. Common tests include DGA (ASTM D3612), moisture by Karl Fischer (ASTM D1533) and dielectric breakdown (ASTM D877 or D1816). U.S. lab fees are not standardized in public price lists, so request quotes for the tests you need.
Treatment options differ:
- Reconditioning removes moisture, gases and solids.
- Reclamation also removes oxidation products such as acids and sludge.
- Replacement is needed when the oil is too degraded or contaminated.
Calculating the Cost of Oil Loss
Use this framework:
Oil loss cost = (gallons lost × delivered replacement price) + testing + labor + freight + cleanup + disposal + environmental response + outage or contractor costs
Repeated top-offs can hide a leaking gasket, flange, valve, bushing, weld or tank. EPRI's maintenance guide also lists valve packing, gas-relay piping, CT pockets, tap changers, radiators and covers as leak sites.
Illustrative scenario (assumptions, not a case study): A 20-gallon loss, replaced with $10.64/gal drum oil, costs about $213 for fluid. Add freight, a technician's time and a sample, and the fluid becomes a small share of the total. Repeat it four times a year and the real cost is the unresolved leak.
Leak Repair as a Cost-Control Option
A leak assessment should decide between targeted repair, treatment, replacement or an outage. Transmission & Distribution Services (TDS) specializes in low-pressure leak sealing for oil-filled substation equipment. Its free equipment survey documents the equipment, leak location, repair method and repair price.
Where site, equipment, safety and engineering conditions allow, TDS can repair without traditional disassembly, and sometimes while equipment stays in service. Warranty and suitability depend on those same conditions.

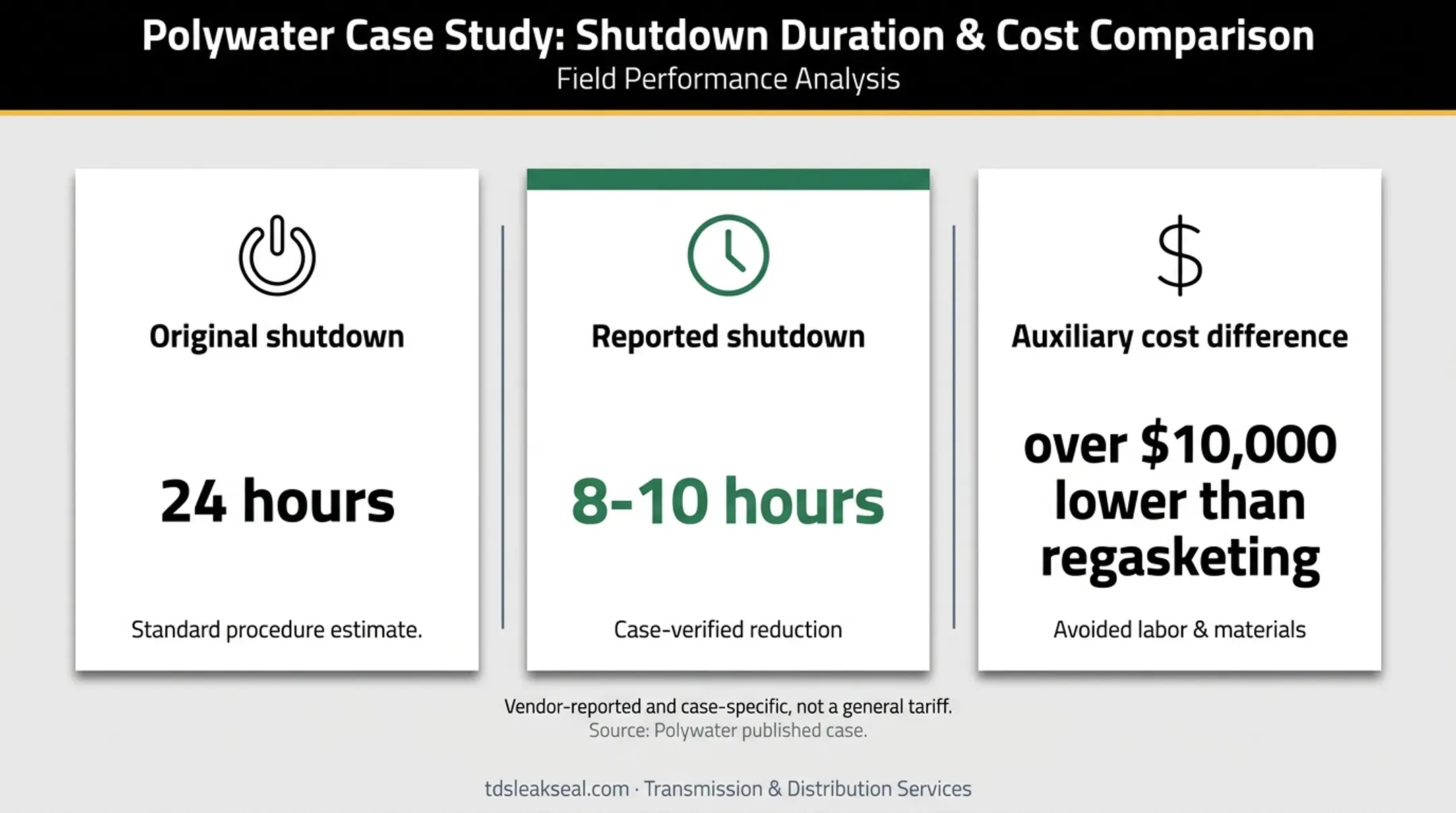

A published Polywater case on a 22 MVA main-cover gasket leak reported shutdown time falling from 24 hours to 8-10 hours, with auxiliary-equipment costs over $10,000 lower than regasketing. That is vendor-reported and case-specific, not a general tariff.
Low-Cost vs. High-Cost Transformer Oil: What's the Difference?
Compare by application fit and lifecycle value. The cheapest gallon isn't automatically the best.
| Factor | Lower-cost (mineral) | Higher-cost (ester/specialty) |
|---|---|---|
| Performance | Meets dielectric and thermal needs when correctly specified | Fire point 316–360°C vs. 160°C for mineral in Cargill's comparison |
| Environmental | OECD 301 ready-biodegradability data often unavailable for standard grades | Readily biodegradable (OECD 301 B) |
| Durability | Depends on moisture, oxidation, loading and testing | Cargill reports FR3 supports 15–20°C warmer operation in accelerated paper-aging tests |
| Quality proof | ASTM D3487 and a certificate of analysis | Documented properties tied to the application |
| Maintenance | Sampling, moisture control, leak inspections | Still needs inspection and monitoring |
Long-Term Value
A low sticker price can be erased by frequent oil loss, poor delivery planning and avoidable downtime. Weigh a premium fluid against:
- Expected service life
- Operating environment
- Fire and environmental requirements
- Oil volume
- The cost of a future leak or outage
Cargill's 15–20°C figure is a laboratory result under stated test conditions, not a field-life guarantee. Ester fluids still need condition monitoring, and an ester doesn't fix a leaking gasket.
How to Estimate the Right Budget for Transformer Oil and Oil Loss
Base the budget on the transformer's condition, oil volume, role and response plan, not a generic per-gallon price.
Gather these first:
- Nameplate oil volume and fluid type
- Current oil level, corrected for temperature (Prolec uses a 25°C reference)
- Recent test results
- Known leak location
- Delivery ZIP code and packaging preference
- Outage constraints
Then build two scenarios: planned and emergency. Each should include:
- Oil, freight, sampling and treatment
- Labor, cleanup, disposal and repair
- Cost of taking equipment out of service
TDS surveys list repair price and estimate travel, per diem and hotel charges.
What Most People Miss
- Recurring leaks: A small leak repeats freight, labor, testing and emergency purchasing.

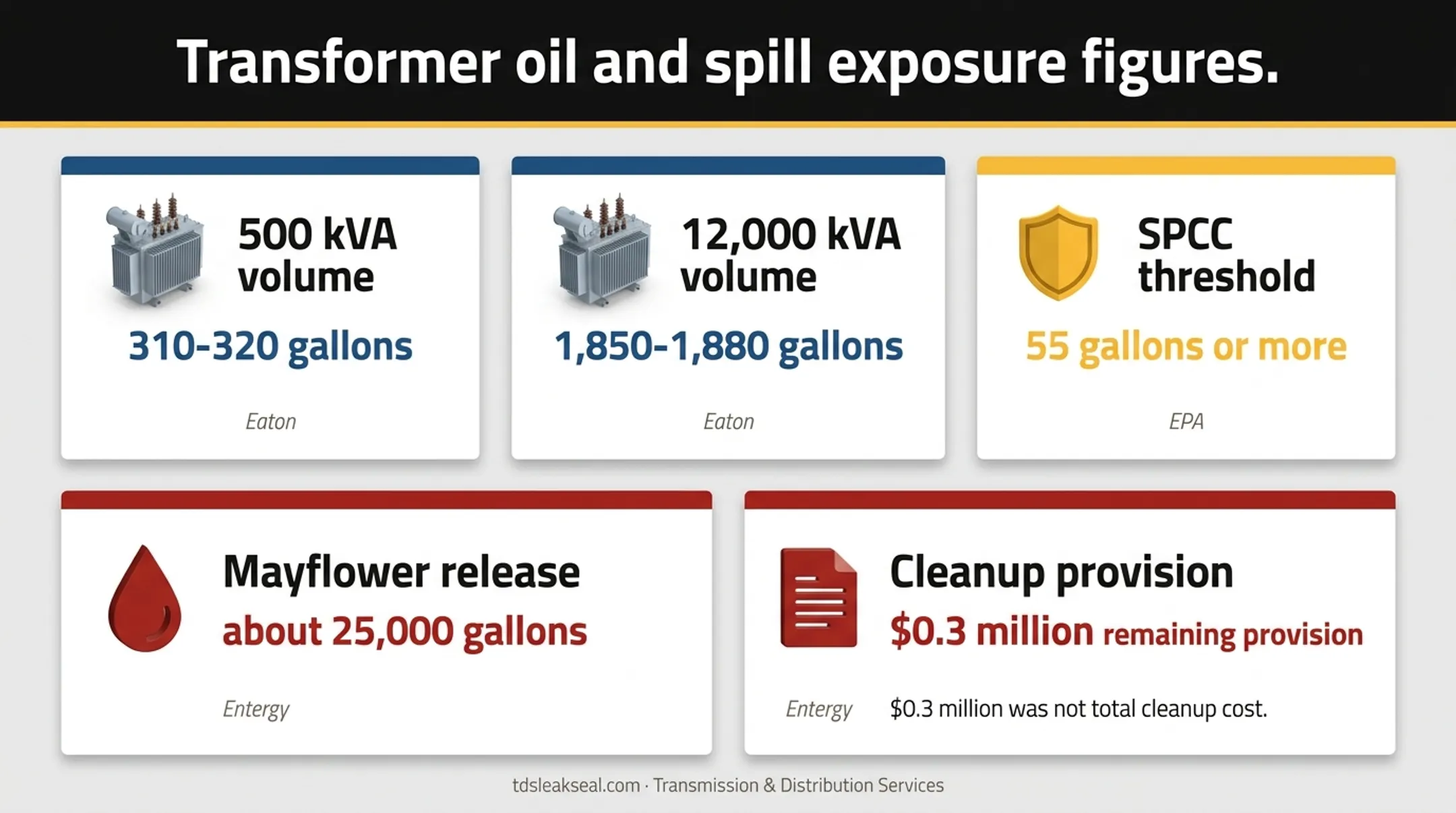

- kVA as a volume guide: Eaton's substation tables show 310-320 gallons at 500 kVA and 1,850-1,880 gallons at 12,000 kVA. Verify volume on the nameplate.
- Blind top-offs: Confirm compatibility, find the leak source, check oil condition and verify a safe level.
- Spill obligations: EPA treats transformers as oil-filled operational equipment; 55 gallons or more counts toward SPCC applicability. A sheen can trigger reporting, with no universal minimum. Document inspections and keep records for three years.
Entergy's filing for a tornado-related release of about 25,000 gallons at its Mayflower substation shows the scale of exposure. Its $0.3 million figure was a remaining cleanup provision, not a total cleanup cost, so it can't be turned into a per-gallon rate.
Conclusion
Oil price is one part of the decision. Delivery, testing, treatment, labor, cleanup, disposal, repair and downtime often outweigh the fluid itself.
The most economical path pairs correctly specified fluid with condition monitoring and prompt leak diagnosis. That keeps owners from paying repeatedly for oil that keeps escaping.
Frequently Asked Questions
What is the price of transformer oil per liter?
One US gallon equals 3.785 liters, per NIST Handbook 44. The published mineral prices above work out to roughly $2.76 to $3.19 per liter before freight. Fluid type, packaging and region change the result.
How much oil is in a 100 kVA transformer?
It varies by design and manufacturer. Check the nameplate, technical documentation or supplier data rather than using a generic estimate.
What is the cost of transformer oil loss beyond the price of replacement oil?
It includes freight, testing, labor, cleanup, disposal, leak repair and any outage or operational cost. Fluid is often the smallest line.
Is it cheaper to top off transformer oil or repair the leak?
Topping off can be a controlled temporary action. Recurring loss should be compared against the cost and risk of locating and repairing the leak.
How can you tell if a transformer is losing oil?
Look at level indicators, visible seepage or staining, and gaskets and fittings. Falling levels or changing test results are further signs. Have a qualified person assess it.
Can transformer oil be filtered or reclaimed instead of replaced?
Yes, when testing shows the fluid can be restored. Heavily degraded, contaminated or spill-affected oil may need replacement and proper disposal.
