Introduction
An oil leak repair epoxy putty stick can seal some small, external, low-pressure leaks. Whether it holds depends on the leak source, surface condition, operating temperature, pressure, and material compatibility.
Many people struggle with the first step: finding where the oil actually comes from. Oil runs, pools, and drips from somewhere else. A patch over the wrong spot fails fast.
This article helps you decide if an epoxy stick fits your situation. It covers general preparation, application, and cure considerations. It also explains why energized or critical electrical equipment, such as transformers and substation apparatus, calls for a qualified leak-sealing specialist.
Key Takeaways
- Epoxy putty suits small, accessible defects on stable, clean, dry surfaces, not active pressurized leaks or moving seals.
- Oil contamination is a leading cause of failed adhesion, so follow the datasheet exactly.
- Never patch hot, pressurized, or energized equipment without isolation and authorization.
- Transformer and substation leaks need equipment-specific, safety, and environmental review.
What Are Oil Leak Repair Epoxy Putty Sticks?
How epoxy putty sticks work
A putty stick holds two parts: resin and hardener. You knead them together until the color is uniform, press the mix onto the defect, and it cures into a rigid, bonded patch.
That patch is external. It does not restore a failed internal seal, revive a worn shaft seal, or stop a leak driven by pressure inside a damaged component.
Check the manufacturer's data before trusting any claim. Products differ a lot:
| Spec | J-B Weld SteelStik | Henkel LOCTITE EA 3463 |
|---|---|---|
| Timing | 5-minute set, 1-hour labeled cure | 4-minute working life, 10-minute labeled cure at 77°F (25°C) |
| Temperature | Withstands up to 350°F | Apply at 59-86°F; never to surfaces above 150°F |
| Oil resistance | Listed by manufacturer | No oil-immersion figure in the datasheet |
| Wet surfaces | Not authorized for oil contamination | Wet application allowed, with lower bond strength |
Material strength, application temperature, and oil-service pressure are different parameters. SteelStik's published 4,000 psi is material strength, not an allowable leak pressure. Neither product document supplies an oil-service pressure rating.
Where epoxy putty is commonly considered
Putty fits small cracks, pinholes, or localized holes in stable metal, provided you can isolate, clean, dry, and reach the area. A non-pressurized oil pan or housing is a typical candidate.
It is a poor match for pressurized lines, rotating-shaft seals, threaded fittings, gaskets, or structural parts. A patch there hides the problem without fixing the failure.
"Oil-resistant" on the label is not enough. The right repair follows the component maker's instructions and the product's technical data sheet.
When Can Epoxy Putty Stop an Oil Leak?

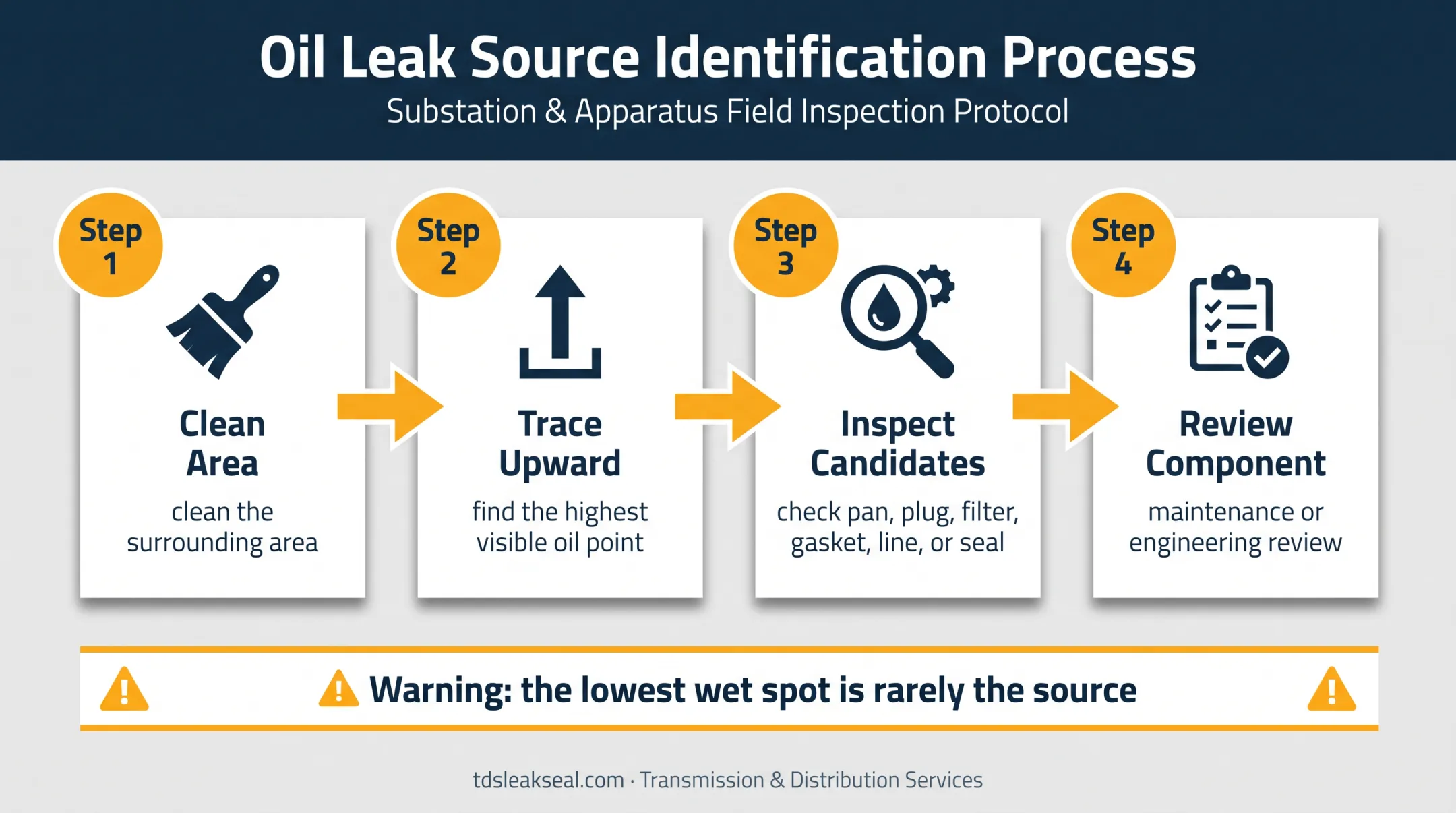

Diagnose the actual leak source first
Clean the surrounding area, then trace the oil to its highest visible point. Oil travels, and the lowest wet spot is rarely the source.
On vehicles, candidates include the pan, drain plug, filter, gasket, cooler line, or seal. A Subaru service bulletin lists five separate areas to inspect for one symptom. Oil near a pan does not mean the pan shell is damaged.
Gaskets and shaft seals usually need replacement. Fel-Pro warns that tightening pan bolts on a Honda B-Series can worsen the leak, because the flange dimples distort. The documented fix is a new gasket on clean, dry surfaces.
For industrial equipment, document the leaking component and have the responsible maintenance or engineering team review it before choosing a material.
Assess the operating conditions
A putty patch is more likely to hold when:
- The leak is small
- The component is rigid
- Pressure is low or absent during application
- The surface stays undisturbed through cure
Evaluate temperature, oil type, vibration, movement, pressure, chemical exposure, access, and what happens if the patch fails. The datasheet sets the allowable limits.
Set realistic expectations
Treat putty as a temporary or localized repair unless the manufacturer, equipment owner, and a qualified technician approve it as permanent. Product datasheets rarely state a service life for an external oil patch.
A patch must not hide falling oil levels, recurring seepage, contamination, overheating, or a growing defect. Record the location, product, preparation method, cure conditions, inspection results, and any follow-up monitoring.
How to Apply Oil Leak Repair Epoxy Putty Safely

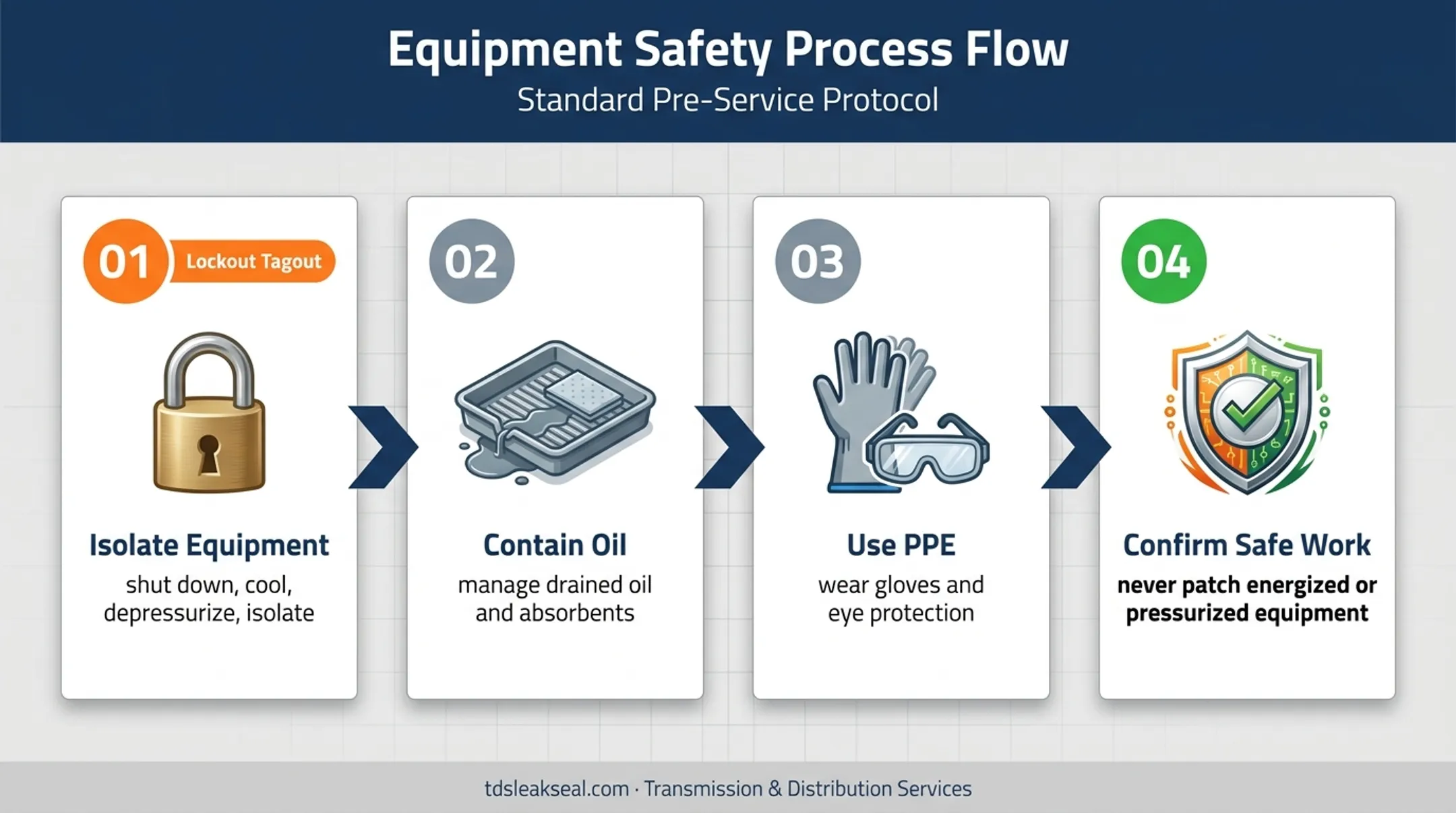

Isolate and prepare the work area
Shut down, cool, depressurize, and isolate the equipment per the service manual and lockout/tagout procedures before touching the leak. Verify isolation, and keep verifying if hazardous energy can build back up.
Contain drained oil. Oily rags and absorbents with free-flowing used oil remain subject to EPA used-oil standards, and combustible waste belongs in covered metal receptacles. Check the SDS before you start: SteelStik's Part B may cause an allergic skin reaction, so wear gloves and eye protection.
Do not patch energized electrical equipment, pressurized systems, or anything you cannot make safe for hands-on work.
Clean and prepare the surface
Oil, grease, dirt, rust, paint, moisture, and loose material all block bonding. Use the epoxy maker's approved cleaning method. The Henkel datasheet calls for cleaning and sanding for maximum adhesion.
Roughen the surface only if the instructions allow it, and avoid damaging thin walls, insulation, precision surfaces, or corrosion protection.
If oil keeps seeping through the defect, the putty probably will not bond reliably. Choose another repair.
Mix, apply, and cure
- Knead the two components until uniform.
- Press the putty firmly into and around the defect.
- Feather the edges without blocking vents, drains, moving parts, or inspection points.
- Respect the stated working time, thickness, and ambient temperature.
- Keep the equipment isolated for the full cure.
Working time can be as short as 4 minutes, so stage your tools first. Do not expose the patch early to oil, pressure, vibration, or operating heat.
Inspect and monitor the result
After cure, inspect under controlled conditions for:
- Fresh seepage
- Soft or uncured material
- Edge lifting, cracking, or swelling
- Movement at the patch
If the leak returns, oil loss rises, or the patch fails, stop the equipment when safe and call a qualified repair provider. Do not keep piling on material.
When Is Epoxy Putty the Wrong Repair?
Warning signs that require another solution
Skip putty for:
- Active streams and high-pressure leaks
- Hot surfaces
- Rapidly worsening cracks
- Damaged threads
- Flexible joints and rotating seals
- Defects that affect structural integrity
A patch is also unreliable when you face:
- Inaccessible surfaces
- Continuously oil-wet substrates
- Unknown fluids
- Poor cure conditions
- Material incompatibility
SteelStik's 350°F rating describes resistance, not permission to apply it to a hot component.
Critical equipment and failure consequences
Do not rely on consumer epoxy where a leak could lead to:
- Fire or an environmental release
- Loss of insulation or arc-flash exposure
- SF6 release
- A forced outage or damage to a revenue-producing asset
A qualified professional should decide whether the answer is a gasket, seal, fitting, cover, housing, tank, line, or component replacement.
Compare the short-term patch with a permanent repair
The putty costs little. The real comparison includes inspection, cleanup, downtime, lost oil, environmental response, and a repeat failure.
Use a patch only inside a documented maintenance plan, with a follow-up date and clear criteria for permanent repair. A stubborn drain-plug leak is a good example: more tightening won't cure it. The plug must come out and be repaired.
Why Transformer and Substation Oil Leaks Require a Different Approach
Why automotive epoxy advice does not transfer directly
An oil-filled transformer adds electrical, thermal, pressure, insulation, environmental, and operational concerns that a car's oil pan never has. A small leak matters too. The Bureau of Reclamation links cooling-related pressure changes and poor seals to moisture entry, which speeds insulation decay and sludge formation.
Even EPRI's small radiator-fin epoxy example is expressly temporary and limited to qualified personnel. It does not approve any putty stick for transformer service.
SF6 gas-filled equipment adds containment, worker-safety, and emissions obligations. Consumer epoxy is not a general repair method there. Never apply putty to energized substation equipment or open electrical apparatus without the right qualifications, procedures, isolation, and owner approval.

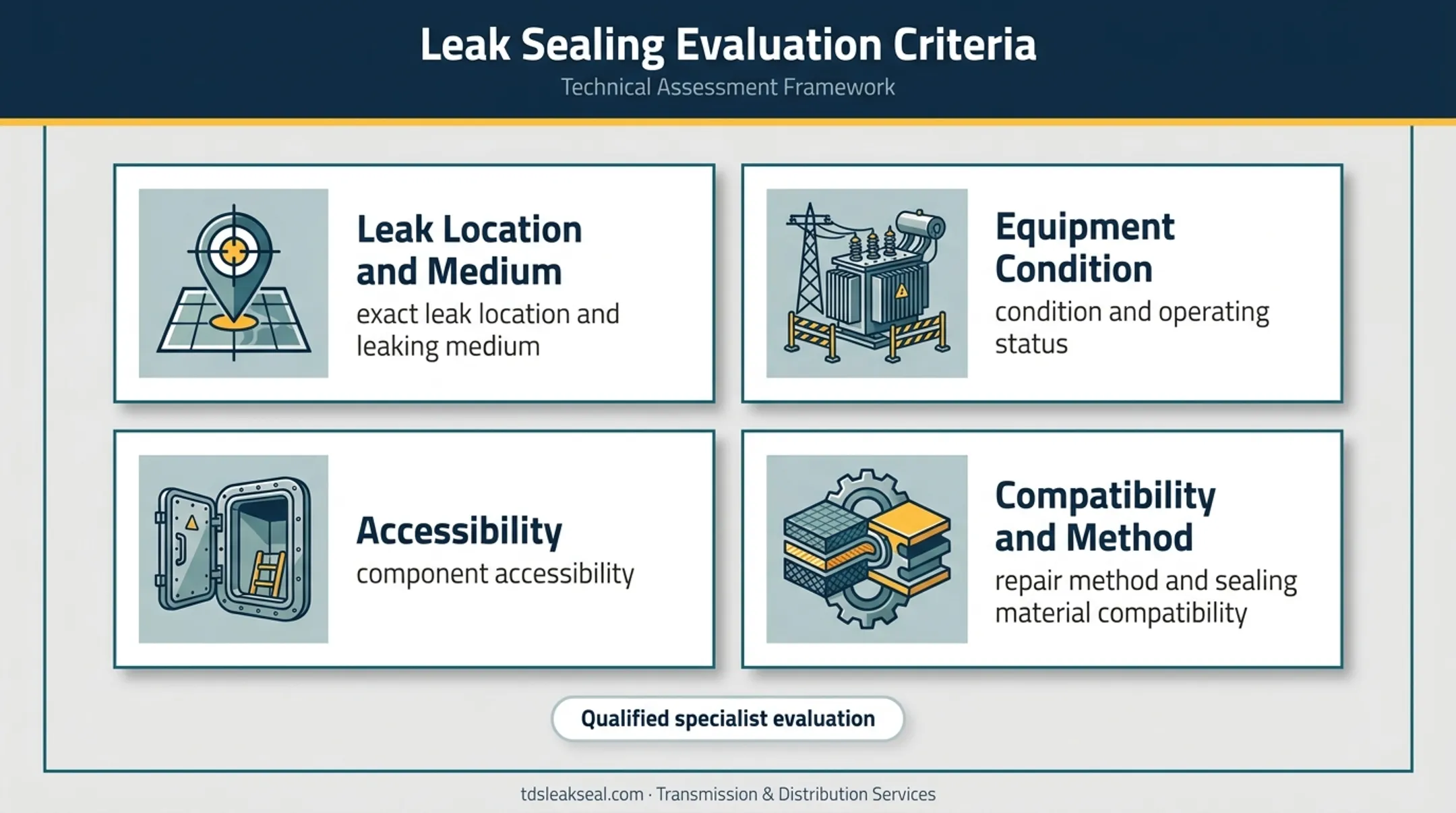

What a specialist evaluates
A specialist confirms:
- The exact leak location and the leaking medium
- Equipment condition and operating status
- Component accessibility
- The repair method and sealing material compatibility
They may also judge whether a low-pressure leak-sealing method can avoid traditional disassembly and keep the equipment in service. That option applies only when site conditions and safety procedures allow it.
Where Transmission & Distribution Services fits
Transmission & Distribution Services (TDS) specializes in low-pressure leak sealing for oil-filled transformers, circuit breakers, GIS systems, and other substation equipment. It does not sell generic epoxy putty sticks. Its technicians are OSHA-certified and work exclusively in substations.
TDS offers free equipment surveys that identify the facility, equipment, leak location, repair method, and price. Confirm current warranty terms with TDS before relying on them.
If you maintain substation equipment for a utility, generating plant, municipality, or cooperative and a consumer patch isn't suitable, request a professional assessment from TDS.
Frequently Asked Questions
Will epoxy putty stop an oil leak?
It can stop some small, localized leaks when the surface is compatible, clean, dry, isolated, and fully cured. It is not a universal fix for failed seals, pressurized leaks, or critical equipment.
How long does epoxy putty take to cure on an oil leak?
Working time, initial set, and full cure differ. One stick lists a 5-minute set and 1-hour cure; another lists a 10-minute cure at 77°F. Follow your datasheet and keep equipment isolated until full cure.
Can epoxy putty stick to an oily or wet surface?
Oil and moisture usually reduce adhesion. One datasheet allows wet application but warns of lower bond strength. Stop active seepage, clean and dry as directed, or choose another repair.
Is epoxy putty a permanent repair for an oil leak?
Permanence depends on the defect, substrate, conditions, product approval, and preparation. Treat an unapproved patch as temporary and schedule a proper repair.
Can epoxy putty repair a transformer oil leak?
Not as a DIY fix. Transformer leaks need qualified assessment, equipment-specific materials, electrical safety controls, and owner approval. Utility and plant personnel should contact a specialist.
