Introduction
SF6-filled breakers and gas-insulated switchgear can trigger federal reporting duties, but owning the equipment does not automatically mean you report. Subpart DD of the EPA Greenhouse Gas Reporting Program (GHGRP) applies based on a calculated applicability screen, not ownership.
Most compliance teams struggle with the same four questions:
- Does the rule apply to us?
- Which threshold controls today?
- What must we track?
- How do we keep field work and the annual report from drifting apart?
This guide covers current requirements under 40 CFR Part 98, the emissions calculation, recordkeeping, the annual reporting workflow, and how leak control supports accurate numbers.
Key Takeaways
- Subpart DD covers electric transmission and distribution equipment, and now reaches fluorinated gases beyond SF6 and PFCs.
- Applicability uses a calculated 25,000 metric tons CO2e screen, not the old nameplate-capacity test.
- Defensible reports rest on inventories, cylinder records, transfers, and recoveries.
- State SF6 rules apply separately from the federal program.
What EPA Subpart DD Covers and Who Must Report
Subpart DD is part of the Greenhouse Gas Reporting Program (GHGRP) and covers electric power systems: integrated transmission and distribution equipment containing fluorinated greenhouse gases. Reportable insulating gases include SF6, PFCs, and other fluorinated GHG components. Mixtures with a weighted-average global warming potential (GWP) of 1 or less are excluded.
It is a reporting and emissions-accounting rule. It does not set a federal leak-rate reduction target. Other federal, state, or utility-specific requirements may impose controls separately.
Who falls within the Subpart DD source category?
Relevant equipment includes:
- Gas-insulated substations and switchgear
- Circuit breakers
- Electric power transformers
- Pressurized cylinders and gas carts
- Other containers of fluorinated GHGs
The "facility" is the whole electric power system, including servicing inventory, from receipt of power through delivery to customers. Releases counted include:
- Fugitive leaks
- Installation and servicing
- Decommissioning and disposal
- Storage-cylinder emissions
Responsibility sits with owners and operators as defined in 40 CFR 98.6. Owners hold legal or equitable title, a leasehold, or control.
A designated representative, chosen by binding agreement, certifies and submits the report. Check the definitions rather than assuming every equipment owner reports.
Federal reporting versus state SF6 requirements
You can fall below the federal threshold and still face state rules. Two examples:
- California (CARB): owner-specific annual CO2e emissions limits, equipment acquisition phaseouts starting January 1, 2025, and reports due June 1.
- Massachusetts (310 CMR 7.72): applies to owners and operators of SF6 GIS. Units purchased after January 1, 2015 need a manufacturer-represented maximum annual leak rate of 1%.
Confirm the rules in every state where your equipment operates.
How to Determine Applicability and Calculate SF6 Emissions
Many older articles cite superseded rules. The previous screen was nameplate capacity above 17,820 lb of SF6 or PFC equipment. That is no longer the test.
The April 2024 final rule took effect January 1, 2025. Updated GWPs affect existing reporters' RY2024 data; other changes apply from RY2025.
A September 2025 EPA proposal would eliminate DD reporting after RY2024, but it is a proposal, not current law. Existing reporters also stay covered unless discontinuation conditions are met.
Determine whether the facility must report
- Identify all covered equipment and gases.
- Set the facility boundary (the whole electric power system, plus specified commonly owned or controlled equipment outside it).
- Collect nameplate capacities and gas composition.
- Apply the 98.301 equation.
- Compare the result with 25,000 metric tons CO2e per year.
The DD-1 equation is: E = 0.000453592 × 0.1 × Σ[NC × Σ(weight fraction × GWP)]. NC is nameplate capacity in pounds. The 0.1 factor is fixed and applies to all gases, so the result is a screen, not measured leakage.
Equipment is evaluated across the system. Hermetically sealed-pressure equipment is excluded from the applicability capacity.
Reporting under another Part 98 category does not automatically trigger DD. A non-electric-power-system facility must reach the separate DD-2 threshold on its own.
Apply the Subpart DD emissions calculation
Reporting uses an annual mass balance (98.303, Equation DD-4). For each gas:
Emissions = weight fraction × [inventory decrease + acquisitions − disbursements − net increase in nameplate capacity]
The inputs include:
- Inventory decrease: beginning minus ending gas stored in containers, excluding energized equipment
- Acquisitions: bulk gas, gas bought with equipment, and recycling returns
- Disbursements: supplier returns, recycling or destruction shipments, bulk transfers
- Net nameplate increase: full charge of new equipment minus retiring equipment
Convert to CO2e using Table A-1 100-year GWPs (AR5): SF6 23,500, CF4 6,630, C2F6 11,100.
A worked example (fictional data)
Suppose a hypothetical utility records: beginning inventory 1,000 lb, ending 800 lb, acquisitions 600 lb, disbursements 200 lb, net nameplate increase 300 lb. Emissions are 200 + 600 − 200 − 300 = 300 lb of SF6.
Now say a 150 lb cylinder purchase was never logged. Acquisitions drop to 450 lb and the result falls to 150 lb, understating emissions by half.
A wrong nameplate capacity on new equipment shifts the net increase and skews the answer the same way. Bad records distort the report in both directions.
What Data and Records Utilities Must Maintain
Records support both the applicability determination and the annual report. That matters most for utilities that must show they sit below the threshold.
Build a complete equipment inventory
Track for each asset:
- Identification, facility location, and equipment type
- Manufacturer, model, and serial or asset number
- Gas type and nameplate capacity
- Installation date, additions, removals, and operating status
Reconcile legacy assets, temporarily removed units, decommissioned equipment, and anything serviced by outside contractors against the central inventory. Missing data under 98.305 must be replaced using similar equipment and similar maintenance operations, so gaps are costly.
Track every SF6 movement
Log every SF6 movement event:
- Purchases, cylinder ID, tare weight, and gross weight
- Fills, top-offs, recoveries, and transfers
- Returns, recycling, destruction, storage, and disposal
Technicians and contractors should capture:
- Date, equipment serviced, and quantity moved
- Work performed and who completed it
- Any abnormal release
Con Edison's decommissioning work found real gas quantities differed from nameplate values in some breakers. It built a remove-and-refill procedure with a mass flow meter and corrected its records (EPA workshop presentation).
Establish quality control and audit readiness
Reconcile cylinder logs, inventory, invoices, service reports, and balances during the year, not at report time. Key federal requirements include:
- Certify inventory cylinder scales within 2 lb of true weight and recalibrate per manufacturer specifications
- Disallow negative inputs, though inventory decrease and net nameplate increase may be negative
- Retain records generally at least three years after report submission (five years where EPA-specified verification software is required)
EPA inspections also ask whether SF6 leaks are documented and whether an action plan exists.
How to Organize and Submit the Annual Report

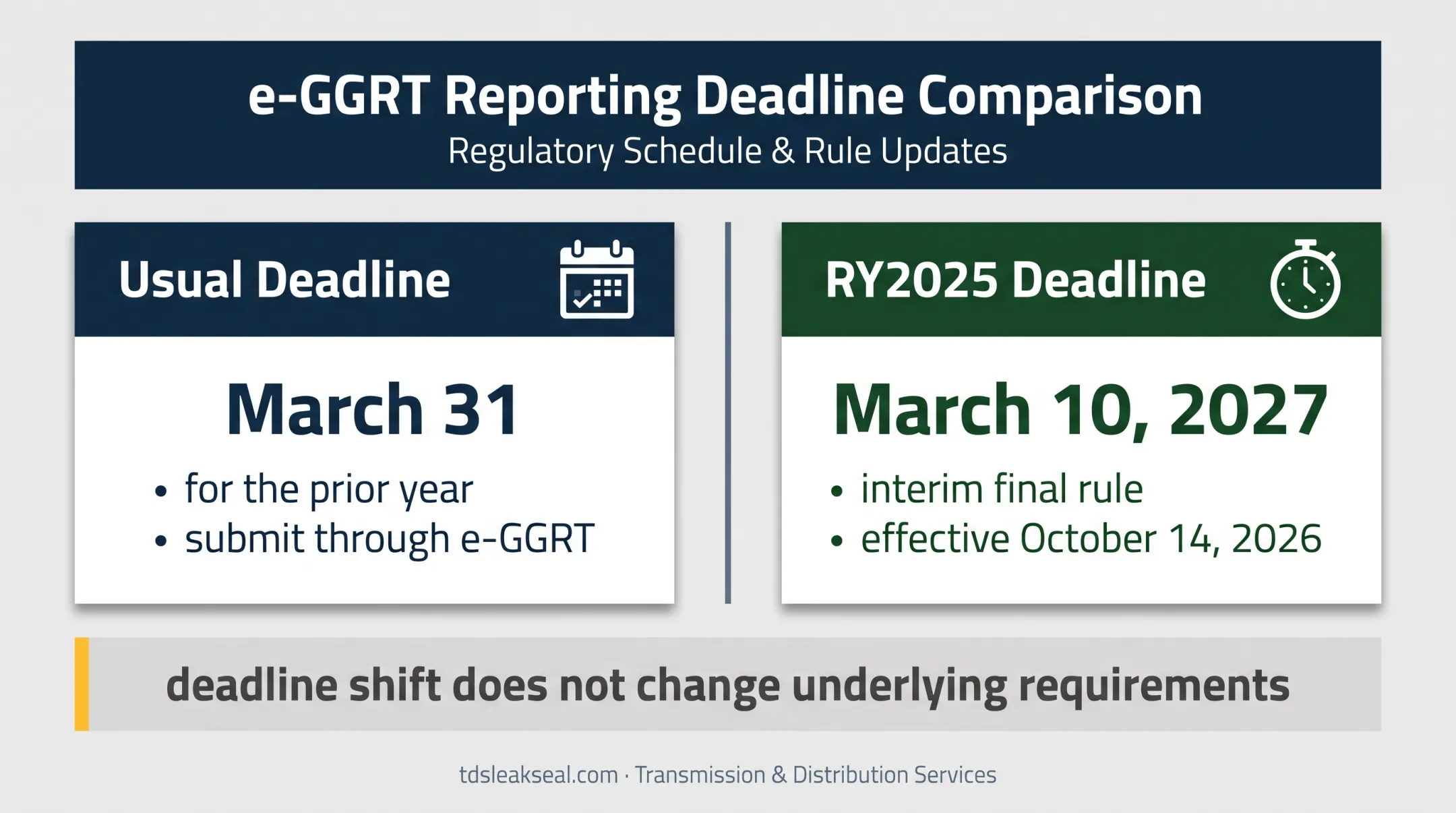

Submit reports through EPA's electronic Greenhouse Gas Reporting Tool (e-GGRT). The usual deadline is March 31 for the prior year, but RY2025 is due March 10, 2027 under the interim final rule effective October 14, 2026. That shift changes the deadline, not the underlying requirements.
Workflow:
- Assign responsibility and name the designated representative.
- Close the reporting-year inventory.
- Reconcile all gas movements.
- Calculate emissions with DD-4.
- Review the 98.306 data elements.
- Complete the certification under penalty of law.
- Submit through e-GGRT.
Beyond general facility information, 98.306 requires per-gas data such as:
- Beginning and ending container inventory
- Acquisitions, supplier returns, and transfers
- Nameplate capacities
- Transmission miles above 35 kV
- Distribution miles at or below 35 kV
- Gas identifiers
Pre-submission checklist:
- Calculations reviewed and units converted correctly
- Service events and contractor records included
- Equipment additions and removals reflected
- Beginning inventory matches prior year-end
- Supporting documents archived
- Certification complete
How Leak Detection and Repair Support Compliance
Aging gaskets, seals, and valves, plus handling losses, cause actual SF6 releases. They also create gaps between the mass-balance record and what is actually in the equipment. EPA's overview notes closed-pressure equipment is especially susceptible to leaks.
A practical program includes:
- Routine leak inspections using methods such as infrared imaging, sniffers, or soap solutions
- Prompt repair escalation
- Documented recovery and refill procedures
- Calibrated scales and trained technicians
- Post-repair verification

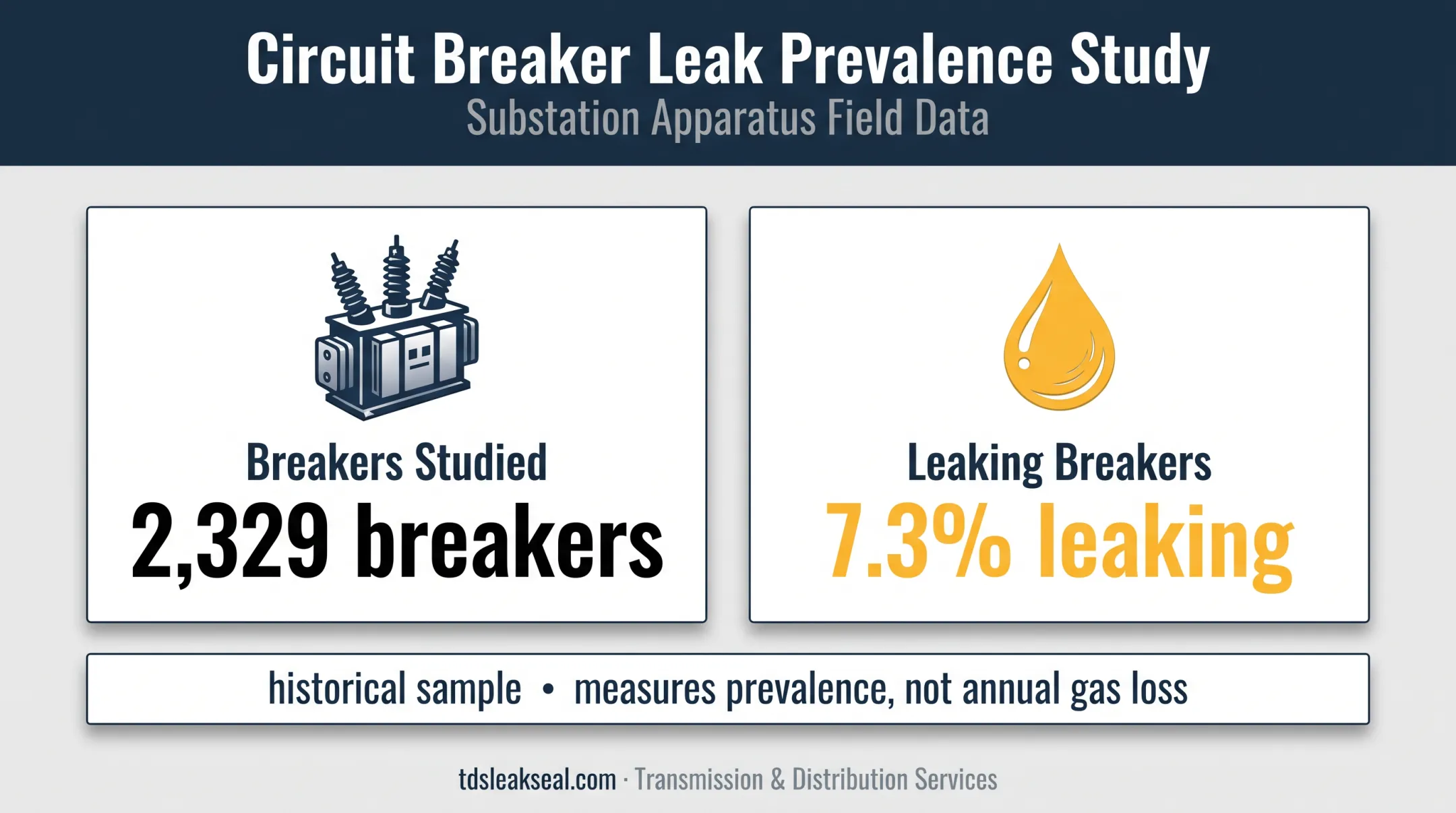

An older EPA and utility field study of 2,329 breakers found 7.3% leaking. That figure measures prevalence, not annual gas loss, and reflects a historical sample.
Finding and sealing those leaks keeps mass-balance records accurate and cuts reportable emissions. Transmission & Distribution Services offers low-pressure leak sealing for confirmed leaks in SF6-filled breakers and GIS. Its technicians work only in substations. The method uses a cured-in-place gasket and avoids disassembly, which can reduce downtime. Some repairs can be done while equipment stays energized, when site and safety conditions allow.
Leak repair does not replace EPA reporting, recordkeeping, or state obligations. Gas added after a repair still belongs in your records.
Frequently Asked Questions
Who has to report greenhouse gas emissions?
It depends on the EPA source category, facility boundary, covered gases, and Subpart DD applicability. Owning one piece of SF6 equipment is not the test.
What is EPA Subpart DD?
It is the electric power systems part of the GHGRP. It collects emissions data from equipment containing insulating gases.
What is the current reporting threshold for EPA Subpart DD?
A calculated 25,000 metric tons CO2e per year, using nameplate capacity, gas composition, GWP, and a fixed 0.1 factor. It replaced the 17,820 lb nameplate threshold.
How are SF6 emissions calculated under Subpart DD?
By annual mass balance: inventory decrease plus acquisitions, minus disbursements, minus net nameplate capacity increase, adjusted by gas weight fraction.
What records are needed for SF6 emissions reporting?
Equipment inventories, nameplate data, cylinder weights, purchases, transfers, recoveries, recycling or disposal records, service reports, and beginning and ending inventories.
Does every utility with SF6 equipment have to report to the EPA?
No. Every utility should still run the current applicability analysis and check state and local requirements separately.
