Introduction
Pressure inside a liquid-immersed transformer tank rarely stays still. It drifts with load and ambient temperature during normal operation, then can spike in milliseconds during an internal arc. A pressure relief device (PRD) is the mechanical safeguard built for that second scenario.
This guide is for substation maintenance teams, utility engineers, and plant personnel. It covers what PRDs and pressure relief valves (PRVs) do, how they operate, how they differ from fault-detection devices, and what to do after an indication or activation.
One boundary up front: set pressures, venting capacity, test methods, and replacement requirements depend on the transformer design, manufacturer documentation, applicable US standards, and qualified personnel. Nothing here replaces those sources.
Key Takeaways
- A PRD vents excess tank pressure but does not find or fix the cause.
- PRV and PRD labels vary by manufacturer, so check the nameplate and manual.
- Sudden pressure relays detect events; they do not vent anything.
- Treat every indication as a protection event: investigate, document, and get authorization before re-energizing.
What Is a Transformer Pressure Relief Device?
A transformer PRD is a mechanical component mounted on the tank of a liquid-immersed transformer. It releases excessive internal pressure before that pressure damages the tank.
The device is used mainly on oil-filled, tanked units. Dry-type transformers and specialized sealed designs use different protection arrangements, so they fall outside this discussion.
Parts you will encounter
Designs differ, but most include:
- A housing and a spring-loaded valve plate, diaphragm, or other calibrated mechanism
- A sealing seat and gasket
- A vent outlet, sometimes with a cover to pipe released oil to a drain point
- A visual indicator, such as a pin or semaphore
- Optional alarm or trip contacts
For example, Reinhausen's MESSKO MPREC uses a spring-loaded valve plate, a gasket seat with sealing lips, a self-locking signal pin, and optional micro-switches. Eaton's Cooper Power substation transformer manual describes a diaphragm that lifts under tank gas pressure and reseals afterward.
The PRD's role is narrow but critical. It vents overpressure through a controlled path and can alert local staff or a remote system when it operates.
How a Transformer Pressure Relief Device Works
Pressure buildup inside the transformer
Normal pressure changes are slow. Eaton's manual notes that gas-space pressure in a substation transformer varies with temperature and can even go negative at light load in cold weather. Oil expansion, loading, and ambient swings all play a part.
Faults are different. An arc in the insulating liquid rapidly heats and decomposes oil and solid insulation, producing gas that raises pressure far faster than thermal cycling ever could.
A simple scenario shows why rate matters. A transformer that warms through a hot afternoon sees pressure creep up and settle. A transformer with an internal arc sees a sudden surge. The same absolute pressure means very different things depending on how fast it arrived and where it came from.

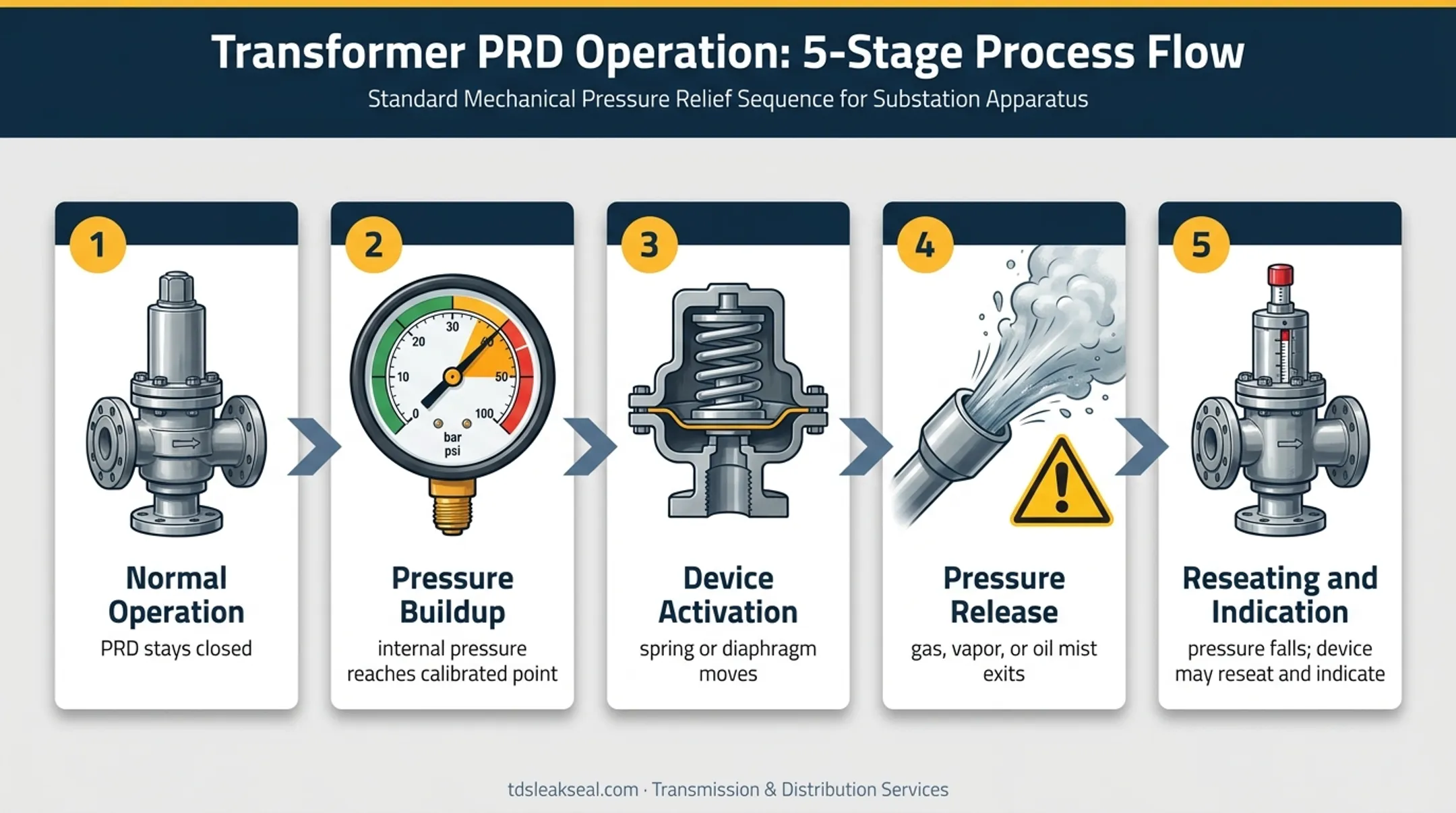

Device activation and pressure release
During normal operation the PRD stays closed. When internal pressure reaches its calibrated point, a spring, diaphragm, or similar mechanism moves the valve or relief plate and opens an outlet for gas, vapor, or oil mist.
Vent direction and clearance matter. Discharge must be directed away from people and sensitive equipment, following the equipment design and site requirements.
MESSKO's instructions, for instance, say vertical mounting needs no venting under the valve plate, while horizontal mounting is vented only if the transformer manufacturer recommends it. Those are product-specific rules, not universal ones.
Reseating, indication, and system response
Some devices reseat automatically after pressure falls. Others are non-reclosing or single-use and may need replacement after they operate.
Indication takes several forms:
- A raised indicator or semaphore
- A microswitch or alarm contact
- A signal into the transformer trip circuit
Do not assume a tripped flag resets itself. On the MESSKO unit, the signal pin stays in the alarm position after pressure normalizes and must be reset by hand.
Reseating also proves nothing about transformer health. The operation may reflect an internal fault, abnormal heating, or another condition that needs investigation.
Limitations of pressure relief
A PRD guards against excess pressure. It does not replace electrical protection, condition monitoring, fault detection, or root-cause analysis.
Speed is a real limit. CIGRE's internal arc research describes a sudden pressure surge from low-impedance arcs and warns that venting devices cannot be relied on to prevent rupture in high-energy faults. PRDs reduce risk; they do not guarantee tank integrity in every fault.
Performance also depends on correct installation, calibration, adequate venting capacity, compatible equipment design, and coordination with the protection scheme.
PRV vs. PRD and Related Fault-Detection Devices
Understanding PRV and PRD terminology
"Pressure relief device" often serves as the broad category. "Pressure relief valve" may point to a spring-loaded, reseating valve. But usage is not standardized. Eaton calls its diaphragm device a "PRV or PRD," and MESSKO uses "pressure relief device" for a spring-loaded valve plate. Read the manual instead of inferring the mechanism from the acronym.
Spring-loaded PRVs and other designs
A spring-loaded PRV opens automatically at its calibrated setting and reseats once pressure drops, where the design allows. Older rupture-disc arrangements and other non-reclosing designs need replacement or resetting after operation.
Transformer size, tank construction, fluid type, expected fault conditions, and venting requirements all shape the right design. Take pressure settings, flow rates, and dimensions from current manufacturer data or applicable US standards, not generalized online figures.
| Criterion | What to check |
|---|---|
| Activation mechanism | Spring, diaphragm, or rupture element |
| Reset | Automatic, manual, or replace after operation |
| Indication | Pin, semaphore, or flag |
| Contacts | Alarm and trip options |
| Venting | Outlet direction, drain connection |
| Mounting | Orientation and flange |
| After operation | Manufacturer's inspection and replacement steps |

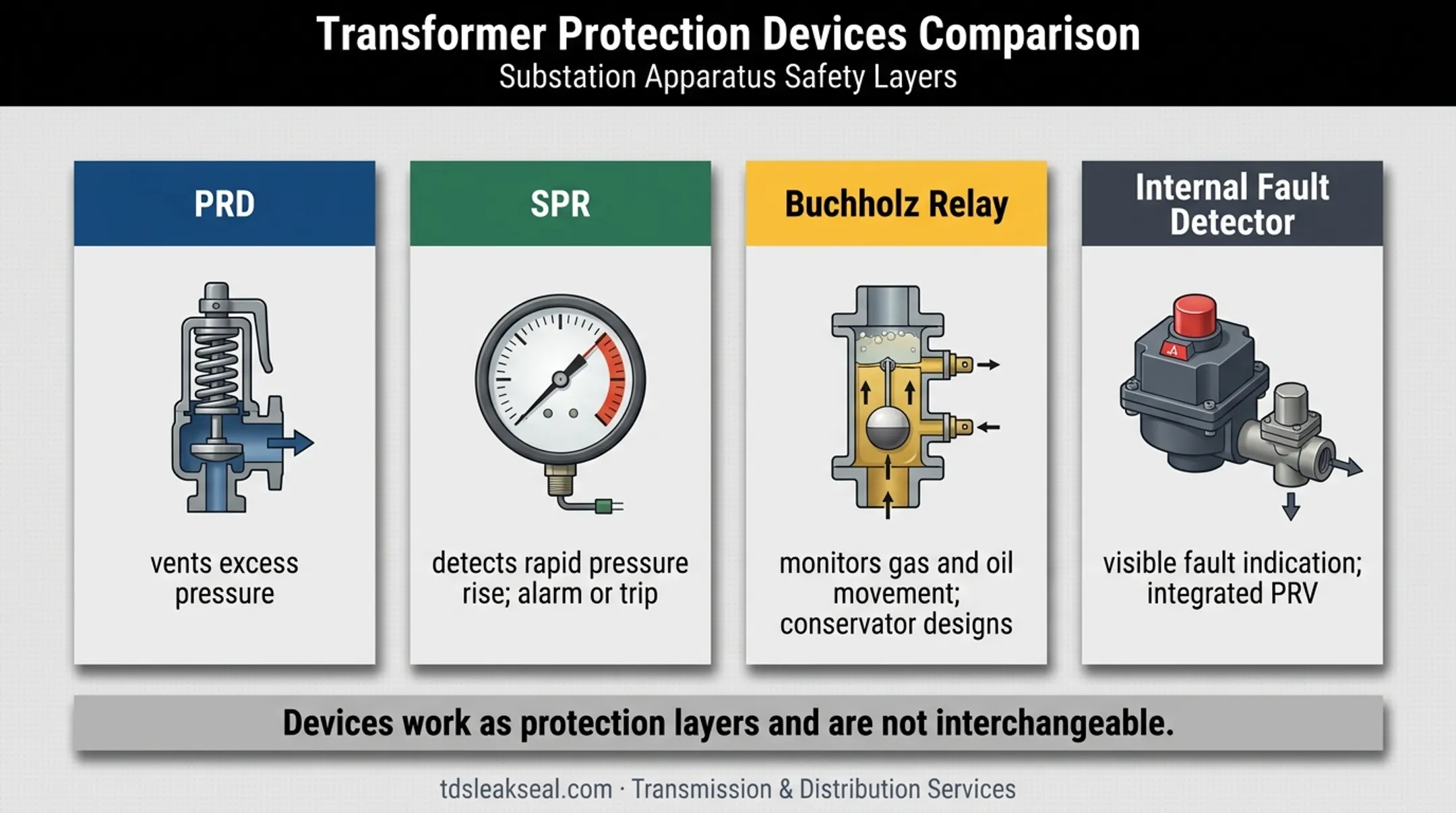

Fault-detection devices that are not relief devices
- Sudden pressure relay (SPR): senses a rapid pressure rise and can alarm or trip. The Bureau of Reclamation's FIST 3-30 guide describes it as operating before the PRD and ignoring normal changes such as temperature swings.
- Buchholz relay: monitors gas accumulation and oil movement between the main tank and conservator, so it applies only to conservator designs.
- Internal fault detector: one vendor example combines a visible fault indication with an integrated PRV on distribution transformers.
These devices work as layers. They are not interchangeable. Also note that a contact alarm alone does not prove the valve lifted; MESSKO says a switch signal with the pin in the operation position can point to a trip-circuit fault.
Confirming the right arrangement
Before replacing or modifying anything, check the nameplate, drawings, protection scheme, maintenance history, and original manufacturer requirements. Factors include tank type, rating, insulating fluid, normal operating pressure, fault energy, required venting capacity, monitoring interface, environment, and utility specifications.
Inspection, Maintenance, and Response After PRD Operation
Routine inspection and safe testing
Qualified personnel should do this work under the site's electrical safety program, with isolation, grounding, pressure, and access requirements settled first. OSHA's 1910.269 covers hazardous-energy control for power transformation equipment, depending on the work involved.
Visual checks should cover:
- Corrosion, physical damage, and loose hardware
- Oil seepage and damaged gaskets
- Blocked or misdirected outlets
- Indicator position
- Weather-related deterioration
Then verify alarm and trip wiring, contact operation, device identification, and maintenance records using the manufacturer's approved procedure. MESSKO, for example, calls its unit maintenance-free yet still specifies visual inspection and a function test at each transformer inspection.
Calibration and replacement
Set pressure, reseating performance, sealing integrity, and venting capacity must stay compatible with the tank and protection scheme. Never swap springs, relief elements, discs, gaskets, or setpoints for unapproved parts or settings.
Painting, contamination, corrosion, mechanical interference, and incorrect reassembly can all impair operation. One Eaton manual warns against painting its T-10 PRD because paint can make the mechanism stick. Follow the manufacturer's instructions.

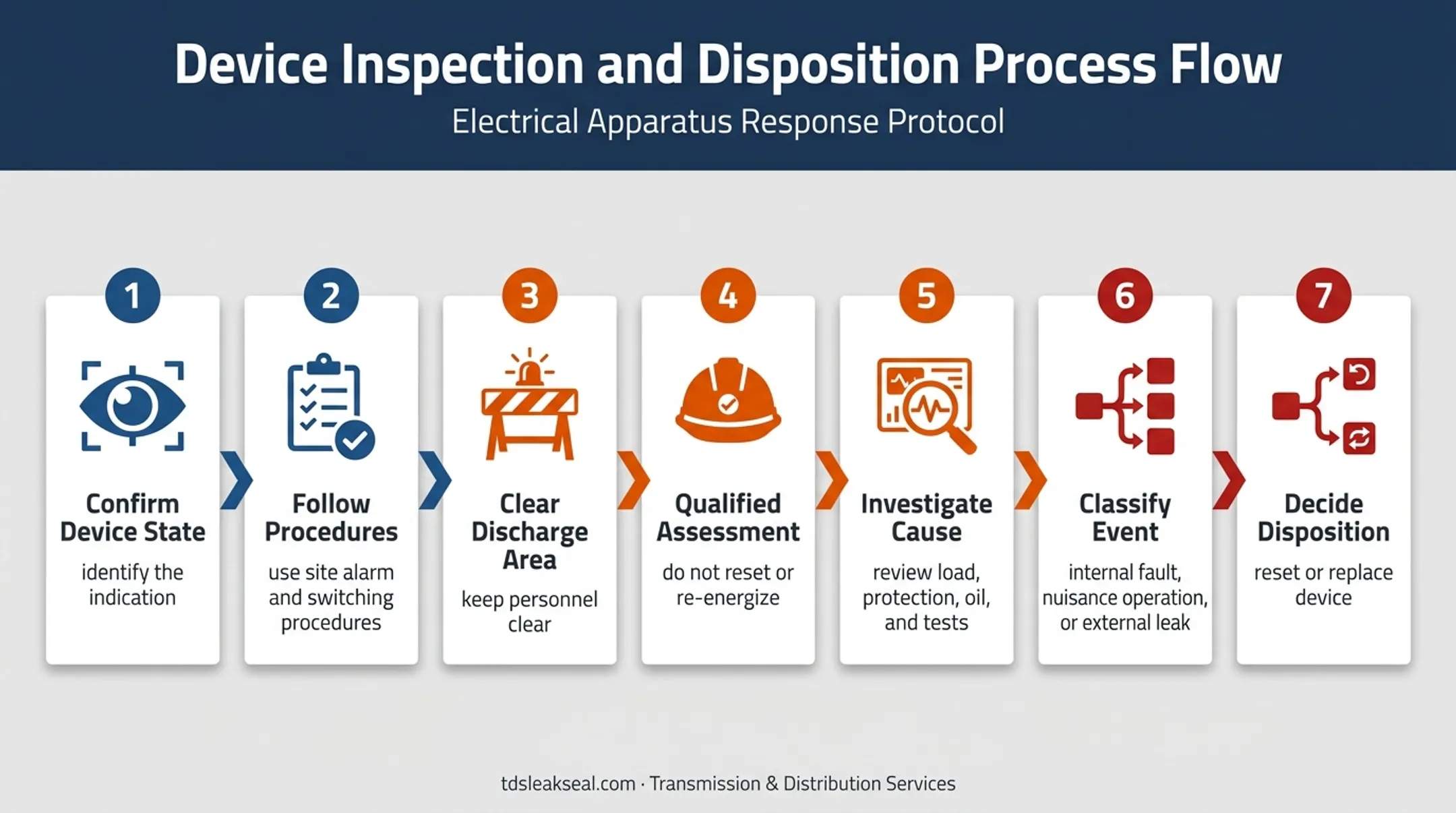

What to do when the device indicates or operates
- Identify the indication and confirm actual device state.
- Follow site alarm and switching procedures.
- Keep personnel clear of the discharge area.
- Do not reset or re-energize without qualified assessment.
Investigation may include:
- Load and temperature review
- Protection records and visual inspection
- Oil sampling or dissolved-gas analysis
- Electrical testing chosen by transformer specialists
FIST 3-30 says not to re-energize after relief-device operation until the cause is found and corrected.
Sort the event into one of three categories:
- Confirmed internal fault
- Nuisance or mechanical operation
- External leak or sealing problem
That classification decides whether the device can be reset or must be replaced.
Addressing oil leakage around the device
Service note: Oil seepage at a PRD flange, gasket, bushing, or enclosure is not the same as a PRD opening from overpressure.
FIST 3-30 makes the same distinction, noting that oil may leak around the tank gasket and that gaskets are a common leak point. Confirm the indicator first, then investigate seepage separately.
Transmission & Distribution Services (TDS) provides low-pressure leak sealing for oil-filled substation equipment. Its free substation surveys document each leak with photographs and include:
- Equipment surveyed and leak description
- Repair method and itemized cost
- Outage requirements
TDS fixes only what is leaking.
Leak sealing does not replace PRD testing, internal-fault investigation, protection-system checks, or manufacturer-required component replacement. Any in-service repair depends on site conditions and safety authorization.
Documentation and prevention
Record the following after any PRD event or inspection:
- Device status and indicator position
- Alarm or trip time
- Operating conditions
- Inspection findings and test results
- Corrective action and return-to-service approval
Then review trends. Repeated pressure indications, oil leaks, temperature excursions, or protection alarms can expose a recurring problem before it becomes a serious event.
Conclusion
Transformer pressure relief devices are passive mechanical safeguards against dangerous overpressure. PRVs, PRDs, SPRs, Buchholz relays, and other detectors each add a different layer of protection.
When specifying, testing, replacing, or responding to a PRD, rely on the manufacturer's documentation, current applicable standards, and qualified substation personnel.
Frequently Asked Questions
What is a pressure relief valve in a transformer?
It is a spring-loaded or pressure-actuated valve that opens when tank pressure exceeds its calibrated setting. Exact settings depend on the transformer design and manufacturer.
Why is a PRV used in transformers?
It releases excess internal pressure to help prevent tank deformation or rupture. It does not diagnose or correct the underlying fault.
What is the difference between a PRD and a PRV in a transformer?
PRD is commonly the broader term for pressure-relief equipment, while PRV usually names a specific valve design. Manufacturers do not always use the terms this way, so check the documentation.
What is SPR in transformers?
SPR stands for sudden pressure relay. It responds to rapid pressure changes and can initiate an alarm or trip, but it does not physically vent tank pressure.
What is the 3% rule for pressure relief valves?
The "3% rule" usually refers to process safety valves, where inlet-line pressure loss should stay under 3% of set pressure to avoid chatter. It comes from API RP 520 Part II, not transformer standards, and should not be applied to transformer PRDs without a manufacturer or project requirement.
